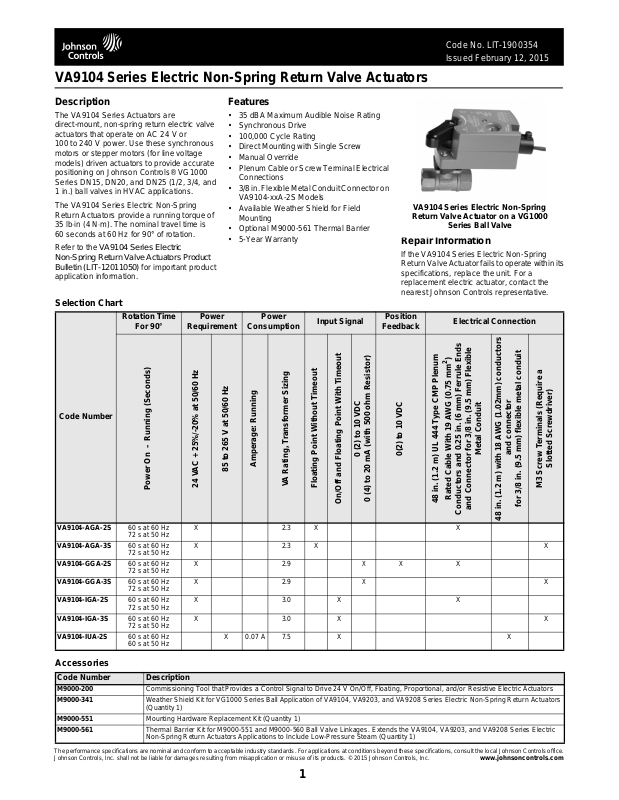

Johnson Controls VA9104 Series Catalog Page

VA9104 Series Electric Non-Spring

Return Valve Actuator on a VG1000

Series Ball Valve

VA9104 Series Electric Non-Spring Return Valve Actuators

Code No. LIT-1900354 Issued February 12, 2015

Description

The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on AC 24 V or 100 to 240 V power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls® VG1000 Series DN15, DN20, and DN25 (1/2, 3/4, and 1 in.) ball valves in HVAC applications.

The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 lbin (4 Nm). The nominal travel time is 60 seconds at 60 Hz for 90° of rotation.

Refer to the VA9104 Series Electric

Non-Spring Return Valve Actuators Product Bulletin (LIT-12011050) for important product

application information.

Selection Chart

Rotation Time

For 90°

Power

Requirement

Features

• 35 dBA Maximum Audible Noise Rating

• Synchronous Drive

• 100,000 Cycle Rating

• Direct Mounting with Single Screw

• Manual Override

• Plenum Cable or Screw Terminal Electrical Connections

• 3/8 in. Flexible Metal Conduit Connector on VA9104-xxA-2S Models

• Available Weather Shield for Field Mounting

• Optional M9000-561 Thermal Barrier

• 5-Year Warranty

Power

Consumption

Input Signal

Feedback

Repair Information

If the VA9104 Series Electric Non-Spring Return Valve Actuator fails to operate within its specifications, replace the unit. For a replacement electric actuator, contact the nearest Johnson Controls representative.

Position

Electrical Connection

)

Code Number

VA9104-AGA-2S 60 s at 60 Hz

VA9104-AGA-3S 60 s at 60 Hz

VA9104-GGA-2S 60 s at 60 Hz

VA9104-GGA-3S 60 s at 60 Hz

VA9104-IGA-2S 60 s at 60 Hz

VA9104-IGA-3S 60 s at 60 Hz

VA9104-IUA-2S 60 s at 60 Hz

72 s at 50 Hz

60 s at 50 Hz

Accessories

Code Number Description

M9000-200 Commissioning Tool that Provides a Control Signal to Drive 24 V On/Off, Floating, Proportional, and/or Resistive Electric Actua tors M9000-341 Weather Shield Kit for VG1000 Series Ball Application of VA9104, VA9203, and VA9208 Series Electric Non-Spring Return Actuators

M9000-551 Mounting Hardware Replacement Kit (Quantity 1) M9000-561 Thermal Barrier Kit for M9000-551 and M9000-560 Ball Valve Linkages. Extends the VA9104, VA9203, and VA9208 Series Electric

The performance specifications are nomina l and conf orm to accep table industr y standar ds. For ap plications a t condition s beyond th ese specification s, consult the local Johnson Controls o ffice. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. © 2015 Johnson Controls, Inc.

Amperage: Running

0 (2) to 10 VDC

85 to 265 V at 50/60 Hz

Power On – Running (Seconds)

(Quantity 1)

Non-Spring Return Actuators Applications to Include Low-Pressure Steam (Quantity 1)

24 VAC + 25%/-20% at 50/60 Hz

X2.3X X

X2.9

X3.0X X

X0.07 A7.5 X X

VA Rating, Transformer Sizing

Floating Point Without Timeout

0 (4) to 20 mA (with 500 ohm Resistor)

On/Off and Floating Point With Timeout

0(2) to 10 VDC

48 in. (1.2 m) UL 444 Type CMP Plenum

Metal Conduit

Rated Cable With 19 AWG (0.75 mm

and Connector for 3/8 in. (9.5 mm) Flexible

Conductors and 0.25 in. (6 mm) Ferrule Ends

www.johnsoncontrols.com

and connector

Slotted Screwdriver)

M3 Screw Terminals (Require a

for 3/8 in. (9.5 mm) flexible metal conduit

48 in. (1.2 m) with 18 AWG (1.02mm) conductors

VA9104 Series Electric Non-Spring Return Valve Actuators (Continued)

Technical Specifications

Power Requirements VA9104-x xx-xS AC 24 V +25%/-20% at 50/60 Hz, 2.3 VA (-AGA), 2.9 VA (-GGA), 3.0 VA (-IGA) Supply,

VA9104-IUA-xS AC 100 to 240 V (-15%/+10%) at 50/60 Hz, 0.07 A Running, and 7.5 VA Supply

Control Type VA9104-AGA-xS Floating Control without Timeout

VA9104-GGA-xS Proportional Control VA9104-IxA-xS Floating or On/Off Control with Timeout

Control Signal VA9104-AGA-xS AC 24 V +25%/-20% at 50/60 Hz, Class 2 or SELV Without Timeout

VA9104-GGA-xS DC 0 (2) to 10 V or 0 (4) to 20 mA With Field-Furnished 500 ohm Resistor VA9104-IGA-xS AC 24 V +25%/-20% at 50/60 Hz, Class 2 or SELV With Timeout VA9104-IUA-xS AC 100 to 240V -15%/+10% at 50/60 Hz, and 7.5 VA Supply

Control Input Impedance VA9104-GGA-xS Voltage Input: 200,000 ohm

Running Torque 35 lbin (4 Nm)

Travel Time VA9104-xGA-xS 60 Seconds at 60 Hz (72 Seconds at 50 Hz) for 90° of Rotation

VA9104-IUA-2S 60 Seconds for 90° of Rotation

Rotation Range 93° ±3°, CW or CCW Cycles 100,000 Full Stroke Cycles; 2,500,000Repositions at Rated Running Torque Audible Noise Rating 35 dBA at 39-13/32 in. (1 m) maximum Electrical Connections VA9104-xxA-2S 48 in. (1.2 m) UL 444 Type CMP Plenum Rated cable with 18 AWG

VA9104-xGA-3S M3 Screw Terminals (Requires a Slotted Screwdriver) VA9104-IUA-2S 48 in. (1.2 m) with 18 AWG (1.02 mm) conductors and connector for 3/8 in. (9.5 mm) flexible

Enclosure VA9104-xxA-2S NEMA 2, IP42

VA9104-xGA-3S NEMA 1, IP40

Ambient Conditions Operating -4 to 140°F (-20 to 60°C); 90% RH Maximum, Noncondensing

Storage -40 to 185°F (-40 to 85°C); 90% RH Maximum, Noncondensing

Fluid Temperature Limits (Actuator and Valve Assembly)

Compliance United States UL Listed, CCN XAPX, File 27734

Shipping Weight 1.25 lb (0.55 kg)

VG12x1 and VG18x1 Series

VG12x5 and VG18x5 Series

VG12x5 and VG18x5 Series With M9000-561 Thermal Barrier Installed

Canada cUL Listed, CCN XAPX7, File 27734

Europe Johnson Controls, Inc. declares that this product is in compliance with the essential

Australia and New Zealand

Class 2 or Safety Extra-LowVoltage(SELV)

Current Input: 500 ohm With Field-Furnished 500 ohm Resistor

(1.02 mm

metal conduit.

23 to 203°F (-5 to 95°C)

-22 to 212°F (-30 to 100°C)

-22 to 284°F (-30 to 140°C) water; 15 psig (103 kPa) at 250°F (121°C) Saturated Steam

Plenum rated, UL2043, suitable for use in other environmental spaces (plenums) in accordance with section 300.22.(c) of the National Electrical Code

Plenum Rated Per CSA 22.2 No. 236/UL 1995, Heating and Cooling Equipment

requirements and other relevant provisions of the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

C-Tick Mark, Australia/NZ Emissions Compliant

) connector for 3/8 in. (9.5 mm) flexible metal conduit.

The performance specifications are no minal and co nform t o acceptab le ind ustry standar ds. For appl ications at condition s beyond these specifica tions, consult the local Johnson Co ntrols office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. © 2015 Johnson Controls, Inc.

www.johnsoncontrols.com
