V46AA-1 Water
Regulating Valve
V46AT-1 Water
Regulating Valve
Valves and Valve Accessories
Code No. LIT-1927350

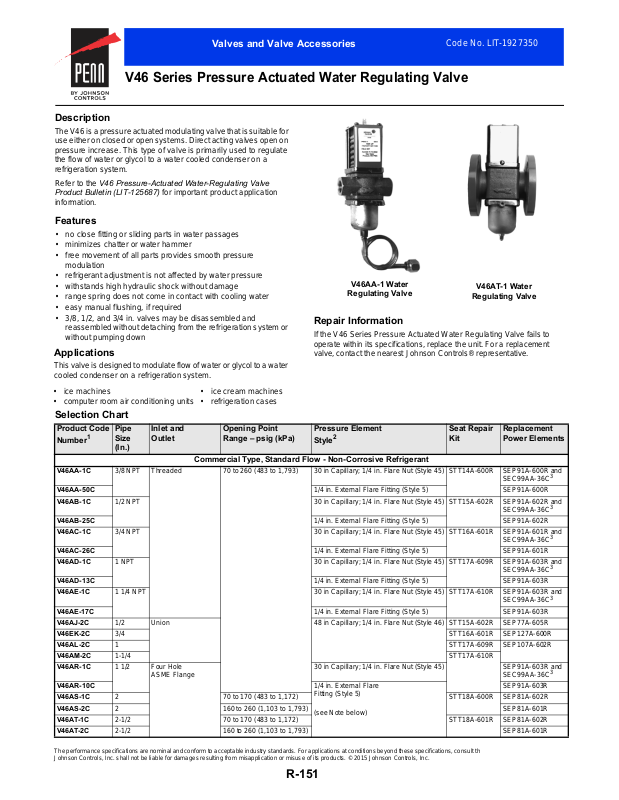

V46 Series Pressure Actuated Water Regulating Valve
Description
The V46 is a pressure actuated modulating valve that is suitable for
use either on closed or open systems. Direct acting valves open on
pressure increase. This type of valve is primarily used to regulate
the flow of water or glycol to a water cooled condenser on a
refrigeration system.
Refer to the V46 Pressure-Actuated Water-Regulating Valve
Product Bulletin (LIT-125687) for important product application
information.
Features
• no close fitting or sliding parts in water passages
• minimizes chatter or water hammer
• free movement of all parts provides smooth pressure
modulation
• refrigerant adjustment is not affected by water pressure
• withstands high hydraulic shock without damage
• range spring does not come in contact with cooling water
• easy manual flushing, if required
• 3/8, 1/2, and 3/4 in. valves may be disassembled and
reassembled without detaching from the refrigeration system or
without pumping down
Applications
This valve is designed to modulate flow of water or glycol to a water
cooled condenser on a refrigeration system.
• ice machines
• computer room air conditioning units
• ice cream machines
• refrigeration cases
Selection Chart
Product Code
Number
V46AA-1C 3/8 NPT Threaded 70 to 260 (483 to 1,793) 30 in Capillary; 1/4 in. Flare Nut (Style 45) STT14A-600R SEP91A-600R and
V46AA-50C 1/4 in. External Flare Fitting (Style 5) SEP91A-600R
V46AB-1C 1/2 NPT 30 in Capillary; 1/4 in. Flare Nut (Style 45) STT15A-602R SEP91A-602R and
V46AB-25C 1/4 in. External Flare Fitting (Style 5) SEP91A-602R
V46AC-1C 3/4 NPT 30 in Capillary; 1/4 in. Flare Nut (Style 45) STT16A-601R SEP91A-601R and
V46AC-26C 1/4 in. External Flare Fitting (Style 5) SEP91A-601R
V46AD-1C 1 NPT 30 in Capillary; 1/4 in. Flare Nut (Style 45) STT17A-609R SEP91A-603R and
V46AD-13C 1/4 in. External Flare Fitting (Style 5) SEP91A-603R
V46AE-1C 1 1/4 NPT 30 in Capillary; 1/4 in. Flare Nut (Style 45) STT17A-610R SEP91A-603R and
V46AE-17C 1/4 in. External Flare Fitting (Style 5) SEP91A-603R
V46AJ-2C 1/2 Union 48 in Capillary; 1/4 in. Flare Nut (Style 46) STT15A-602R SEP77A-605R
V46EK-2C 3/4 STT16A-601R SEP127A-600R
V46AL-2C 1 STT17A-609R SEP107A-602R
V46AM-2C 1-1/4 STT17A-610R
V46AR-1C 1 1/2 Four Hole
V46AR-10C 1/4 in. External Flare
V46AS-1C 2 70 to 170 (483 to 1,172) STT18A-600R SEP81A-602R
V46AS-2C 2 160 to 260 (1,103 to 1,793) SEP81A-601R
V46AT-1C 2-1/2 70 to 170 (483 to 1,172) STT18A-601R SEP81A-602R
V46AT-2C 2-1/2 160 to 260 (1,103 to 1,793) SEP81A-601R
Pipe
1
Size
(In.)
Inlet and
Outlet
Opening Point
Range – psig (kPa)
Commercial Type, Standard Flow - Non-Corrosive Refrigerant
ASME Flange
Repair Information
If the V46 Series Pressure Actuated Water Regulating Valve fails to
operate within its specifications, replace the unit. For a replacement
valve, contact the nearest Johnson
Pressure Element
2
Style
30 in Capillary; 1/4 in. Flare Nut (Style 45) SEP91A-603R and
Fitting (Style 5)
(see Note below)
Controls®
Seat Repair
Kit
representative.
Replacement
Power Elements
SEC99AA-36C
SEC99AA-36C
SEC99AA-36C
SEC99AA-36C
SEC99AA-36C
SEC99AA-36C
SEP91A-603R
3
3
3
3
3
3
The performance specifications are nomina l and con form to accep table ind ustry stand ards. For applicati ons at con ditions be yond these specification s, consult th
Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. © 2015 Johnson Controls, Inc.
R-151
Valves and Valve Accessories
V46 Series Pressure Actuated Water Regulating Valve (Continued)
Product Code
Number
V46DA-2C 3/8 NPT Threaded 70 to 260 (483 to 1,793) 30 in Capillary; 1/4 in. Flare Nut (Style 45) STT14A-603R SEP91A-600R and
Pipe
1
Size
(In.)
Inlet and
Outlet
Opening Point
Range – psig (kPa)
Pressure Element
2
Style
Commercial Type, Low Flow - Non-Corrosive Refrigerants
4
Seat Repair
Kit
Replacement
Power Elements
SEC99AA-36C
5
Commercial Type - Ammonia
V46AC-8C 3/4 NPT Threaded 100 to 200 (690 to 1,379) 1/4 in. Internal NPT (Style 15) STT16A-601R SEP70A-601R
V46AD-4C 1 NPT STT17A-609R SEP70A-604R
V46AE-4C 1-1/4 NPT STT17A-610R
V46AR-2C 1-1/2 Four Hole
V46AS-3C 2 STT18A-600R SEP70A-605R
V46AT-3C 2 1/2 STT18A-601R
ASME Flange
Maritime Type - Non-Corrosive Refrigerants
V46BA-2C 3/8 NPT Threaded 70 to 260 (483 to 1,793) 30 in. Capillary with Sweat Connection
V46BB-2C 1/2 NPT STT15A-603R SEP13A-600R
V46BC-2C 3/4 NPT STT17A-613R SEP13A-603R
V46BD-2C 1 NPT STT17A-611R SEP50A-600R
V46BE-2C 1-1/4 NPT STT17A-612R
V46BS-4C 2 Four Hole
V46BT-4C 2-1/2
ASME Flange
160 to 260 (1,103 to 1,793) STT18A-602R SEP50A-601R
(Style 34)
STT14A-601R SEP13A-602R
NAVSEA Certified – Non-Corrosive Refrigerants
V46CG-1C 3/8 Threaded 70 to 260 (483 to 1,793) 30 in. Capillary with Sweat Connection
V46CH-2C 3/8 Sweat Connector
V46CH-4C 3/8
V46CH-5C 3/8
V46CJ-2C 1/2 Sweat Connector STT15A-603R SEP13A-600R
V46CN-2C 3/4 Four Hole
V46CP-2C 1 STT17A-611R SEP50A-600R
V46CQ-2C 1-1/4 STT17A-612R
V46BR-2C 1-1/2 Four Hole
V46CR-2C 1-1/2 Six Hole Navy Flange
V46BS-3C 2 Four Hole
V46CS-3C 2 Six Hole Navy Flange
V46CS-4C 2 160 to 260 (1,103 to 1,793)
V46BT-3C 2-1/2 Four Hole
V46CT-3C 2-1/2 Six Hole Navy Flange
V46CT-4C 2-1/2 160 to 260 (1,103 to 1,793)
1. Refer to V46 Series Valve Sizing Information — 90% Open Method (LIT-1927400). Then specify the code number from this chart.
Refer to the Accessories chart on the following page for companion flange kit code numbers.
2. Standard capillary length on Style 45 and Style 34 elements is 30 inches
3. Replacement element supplied with 1/4 in. external SAE connector. Order SEC99AA Capillary Kit with 2 flare nuts separately, if needed.
4. Low water flow valve - 2.5 GPM max.
5. Replacement element supplied with 1/4 in. external SAE connector. Order SEC99AA Capillary Kit with 2 flare nuts separately, if needed.
Navy Flange
ASME Flange
ASME Flange
ASME Flange
70 to 170 (483 to 1,172) STT18A-602R SEP50A-601R
70 to 170 (483 to 1,172)
(Style 34)
STT14A-601R SEP13A-602R
STT17A-613R SEP13A-603R
Note: Use only on valves specified.
The performance specifications are no minal and co nform t o acceptab le ind ustry standar ds. For appl ications at condition s beyond these specifica tions, consult th
Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. © 2015 Johnson Controls, Inc.
R-152
Ring
Gasket (Two)
Cast Iron
Flange (Two)
Hex
Nut (Eight)
Machine
Bolt (Eight)
Valves and Valve Accessories
V46 Series Pressure Actuated Water Regulating Valve (Continued)
Accessories (Companion Flanges and Gaskets)
Product Code Number Water Valve
Flange Gasket
(One Gasket per Package)
246-423
246-424
246-425
1. For commercial valves only
Companion Flange Kit
(See Diagram)
KIT14A-612
KIT14A-613
KIT14A-614
1
1
1
Note: Flange has NPT (National Pipe Thread)
Size (in.)
1-1/2 in.
2 in.
2-1/2 in.
Companion Flange Kit
Technical Specifications
V46 Series Pressure Actuated Water Regulating Valves
Maximum Water Temperature 170°F (77°C)
Valve Body Commercial 3/8 to 3/4 in. cast brass, 1 in. and larger cast iron with a special finish
Navy and Maritime Cast naval bronze with Monel® interior parts
Pressure Range Specification
Refrigerant
Opening Point Range1 - psig
(kPa)
V46A B, C, D
Maximum Permissible Pressure
psig (kPa)
Water Refrigerant
Static P Across Valve
Non-Corrosive Refrigerants (R12, R22, R134a, R502, R404a, R507)
All Range Valve 70 to 260 (483 to 1,793) 150 (1,034) 60 PST 320 (2,206)
All Range with High Overpressure 370 (2,551)
3/8 in. Extended All Range 70 to 300 (483 to 2,068) 440 (3,034)
Valves 2 in. or Larger
R12, R134a - 2 and 2-1/2 in. Low Range 70 to 170 (483 to 1,172) 150 (1,034) 60 PST 230 (1,586)
R22, R502, R404a, R507 - 2 and 2-1/2 in. High Range 160 to 260 (1,103 to 1,793) 320 (2,206)
Other Refrigerants
Ammonia R717 100 to 200 (690 to 1,379) 150 (1,034) 60 PST 320 (2,206)
1. Direct acting valve ranges indicate the valve opening point.
The performance specifications are no minal and co nform t o acceptab le ind ustry standar ds. For appl ications at condition s beyond these specifica tions, consult th
Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. © 2015 Johnson Controls, Inc.
R-153
