2

Wireless Security and Safety

At Johnson Controls, the home of Tyco security
solutions, we understand that protecting homes
and businesses from intrusion and major safety
threats is a primary concern; but, it’s not
something end-users want to think about all the
time. That’s why we focus on providing reliable
and easy-to-use security solutions that protect
home and business premises in the widest variety
of situations. With PowerMaster wireless security
system, end-users can rest assured that their
property is secure and their families, employees
and customers are safeguarded.

Tyco is the world-leading intrusion security brand
of Johnson Controls. All of our products are
designed, developed, and manufactured to the
highest quality standards for residential, small
business, and light commercial intrusion security,
as well as residential premises safety.

PowerMaster Family –
with PowerG Technology

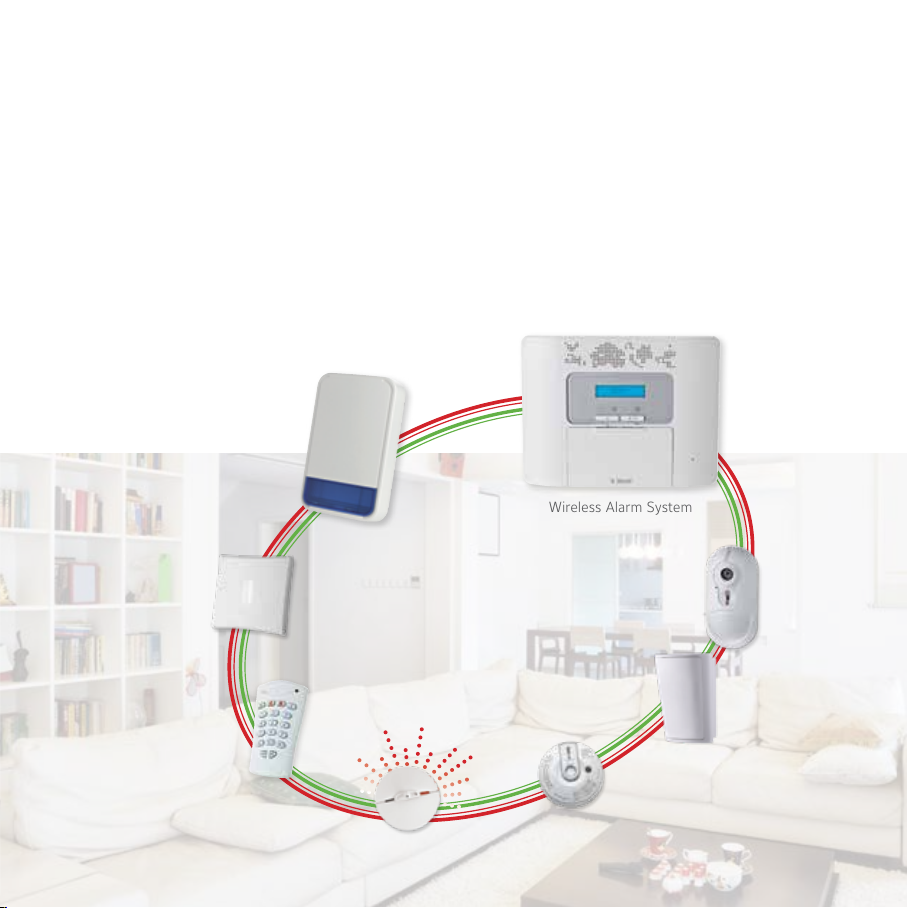

The PowerMaster family is the leading-edge line of
Tyco professional wireless intrusion alarm systems
for home, business, and light commercial premises.
All PowerMaster systems and peripherals are based
on our one-of-a-kind PowerG technology. As the
most advanced wireless security technology available
today, PowerG delivers everything needed to ensure
maximum protection of homes and businesses:

• Unmatched detection accuracy

• Long-lasting reliability

• System-wide hardiness

• Effortless use

• Wireless convenience

PowerG-based security systems are well-proven in
hundreds of thousands of homes and businesses
around the world.

4

PowerMaster-33 G2 Control Panel

• Can be installed in a hidden location and operated via the KP-250 PG2 keypad

• Works with more than 120 wireless devices, including 32 keypads, 32 keyfobs and
8 sirens, in 64 zones

KP-250 PG2 Two-way Keypad

• Complete view and control of the system while the panel is hidden

• Integrated sounder

• Wall-mounted or portable use

6

PowerMaster-33 G2 with
KP-250 PG2

Hidden Hybrid Security Alarm with
Wireless Two-way Keypad

The PowerMaster-33 hybrid security system
enables a new level of protection for homes and
small-to-medium business premises. With the
main components hidden away out of sight, it is
significantly harder for intruders to disable or tamper
with the system.

• Enhanced protection – With intelligent two-way
communication, hidden and near-invisible devices

• Improved privacy – With outdoor detection and
remote visual verification

• More convenience offering peace of mind –
Activate alerts from anywhere onsite

PowerMaster-30 G2

Professional Wireless Security and
Safety System

PowerMaster-30 is a professional security system for
small to mid-size businesses, light commercial and
large residential premises. Using PowerG wireless
security technology, it meets the needs of advanced
security alarm monitoring applications and heavy­duty operation.

• Fast, easy wireless installations, with prolonged
battery life

• Supports all security and safety needs + visual verification

• Very easy to use, with voice and LCD user-interface

• Utilizes smoke detector buzzers for louder alarms

• Works with more than 120 wireless devices, including 32
keypads, 32 keyfobs, 8 sirens, 4 repeaters in 64 zones

• Up to 48 hour back-up battery

8

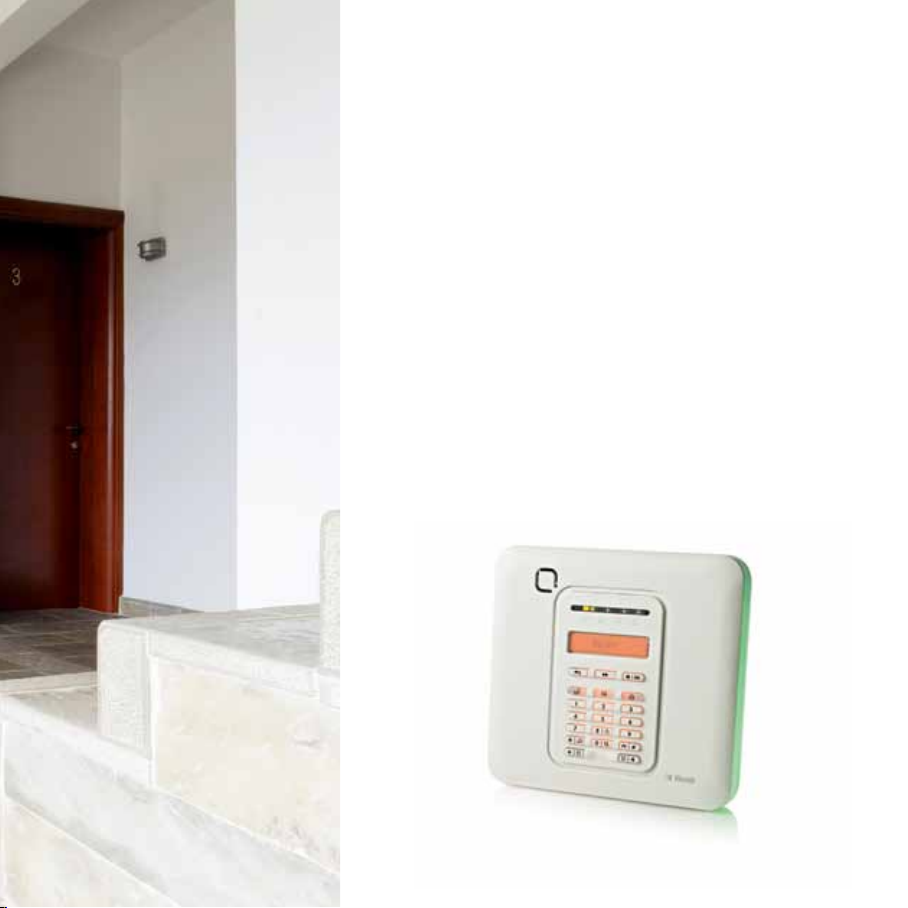

PowerMaster-10 G2

Compact Wireless Security and Safety System

PowerMaster-10 is a compact security system for homes
and small to mid-size businesses. Using highly secure
PowerG wireless technology, it delivers superior range,
long battery life, and unmatched wireless robustness.

• Combines both high performance and affordability

• Fast, fuss-free wireless installations

• Supports all security and safety needs + visual

verification

• Utilizes smoke detector buzzers for louder alarms

• Works with more than 60 wireless devices, including 8

keypads, 8 keyfobs, 4 sirens, 4 repeaters in 30 zones

• 12 or 24 hour back-up battery

Intrusion Detectors

PowerMaster Family

10

Outdoor PIR Motion Mirror

u

r

c

i

t

e

S

Detector and Integrated Camera

y

TOWER CAM PG2

Motion Detector
with Anti-masking

TOWER-30AM PG2

Wireless Door/
Window
Magnetic Contact

MC-303 PG2

Mirror Dual
Technology
Detector

TOWER-32AM PG2

Outdoor Wireless
Magnetic Contact
with Auxiliary Input

MC-312 PG2

Outdoor PIR Motion
Mirror Detector

TOWER-20AM PG2

Shock
Detector

SD-304 PG2

Motion
Detector

MP-802 PG2

Magnetic Contact

MC-302/E PG2

Motion Detector with
Integrated Camera

Next CAM PG2 /
Next CAM K9 PG2

Wireless Ceiling­Mount PIR
Detector

MP-862 PG2

Curtain PIR
Detector

Clip PG2

Glass break
Detector

GB-502 PG2

Outdoor
Wireless Curtain
PIR Detector

MP-902 PG2

Safety Detectors

e

f

t

a

y

S

Gas Detector

GSD-441 PG2

Carbon Monoxide
(CO) Detector

GSD-442 PG2

Smoke
Detector

SMD-426 PG2

Smoke & Heat
Detector

SMD-427 PG2

Flood
Detector

FLD-550 PG2

Temperature
Detector

TMD-560 PG2

with PowerG Technology

Control Panels

PowerMaster-30 G2

64-zone control panel

PowerMaster-10 G2

30-zone control panel

PowerMaster-33 G2

Distributed wireless alarm control panel

Keypads

C

e

o

t

n

o

t

r

m

o

e

l

R

Two-way Keypad

KP-250 PG2

Keyfobs

C

e

o

t

n

o

t

m

r

o

e

l

R

Slim Keyfob

KF-235 PG2

Communication Modules

l

i

l

a

e

n

v

r

c

u

e

S

Touchscreen Keypad

KP-160 PG2

Keyfob

KF-234 PG2

Wireless Portable Keypad

KP-140 / 141 PG2

Panic Buttons

g

e

r

n

e

c

m

y

E

Panic Button

PB-101 PG2

Panic Button

PB-102 PG2

Proximity Tags

Chicklets

Repeater

l

e

e

r

i

s

s

W

Repeater

RP-600 PG2

Sirens

e

r

i

n

S

GSM/GPRS
Communicator

GSM-350

IP Module

PowerLink3

Outdoor Siren

SR-740 PG2

Indoor Siren

SR-720B PG2

Internal GSM/GPRS Module

GSM-350 PG2

GSM-350 is a cellular communication module that
connects PowerMax and PowerMaster intrusion
alarm systems to the alarm central station. It can
report via GPRS data channel and/or through the
GSM network, providing a high-speed, highly reliable
communication channel in the event of telephone
line failure or tampering.

• Supports three data channels: GPRS, GSM and SMS

• Enables full event reporting and remote operation
of the security system

• Can be configured as a backup or primary
reporting method

• Recommended for every home as a backup
communication line

12

Wireless Ceiling-Mount PIR
Detector

MP-862 PG2

MP-862 is a superior motion detector that provides
end-users with complete security coverage from every
angle, with a single device. Specially designed for
hard-to-reach ceiling placement and built on PowerG
technology, this visually attractive, highly robust and
tamper-resistant device ensures 360o coverage of
small-to-medium sized rooms.

• 360° motion detection

• Coverage of up to 10m (32.8ft) in diameter

• Extended battery life

• Ready for upcoming smart energy-saving
functionality*

* Energy and cost savings with smart presence, light, and temperature

detection functionality will be available soon.

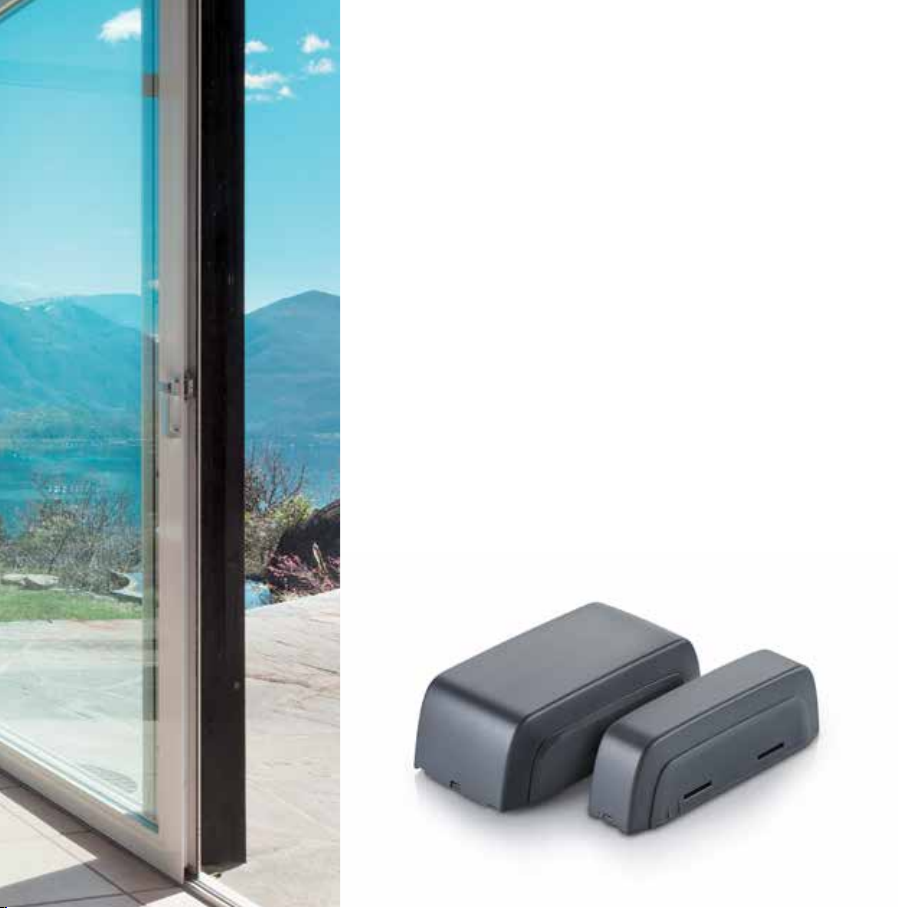

Wireless Door/Window
Magnetic Contact

MC-303 PG2

MC-303 is a small, thin and exceptionally discreet
wireless magnetic contact, designed primarily for
protecting doors and windows. When installed, it
is virtually unnoticeable, blending in with the home
décor. Fully compliant with international standards,
this highly reliable wireless magnetic contact is
suitable for a wide range of residential and light
commercial environments.

• Pull tab for easy, fast installation

• Prolonged battery life – Up to 6 years with typical use

• Front and back cover tamper detection

• Available in white and brown casing

14

Outdoor Wireless Magnetic
Contact with Auxiliary Input

MC-312 PG2

MC-312 is a powerful magnetic contact, perfect
for protecting any outdoor entry or exit, including
perimeter gates, pool and garden enclosures, shed
doors, windows, and more. Designed for both
residential and high-volume commercial use, it ensures
superb performance over many years and reliable
operation in severe weather conditions.

• Long-lasting, all-weather outdoor protection (IP66)

• Extra-long transmission range

• Back and front tamper-proofing and unprecedented
anti-obstruction capabilities

• Wide gap tolerance for reduced false alarms

• Long-battery life – Up to 5 years with typical use

Smart Wireless Outdoor
Curtain PIR Detector

MP-902 PG2

MP-902 is a smart, wireless outdoor curtain PIR
detector that creates a narrow protective shield
across windows, doors and other entranceways,
catching intruders before they’re inside. Small in
size, this robust detector is weather-proof pet­immune, and anti-masking certified – adding a
reliable, extra layer of protection outside residential
homes and small to mid-size businesses.

• Covers areas of up to 8m (26ft)

• Operates dependably in extreme temperatures and
environmental conditions (IP55)

• Supports automated control of selected electrical
appliances

• Long-battery life – Up to 3 years with typical use

16

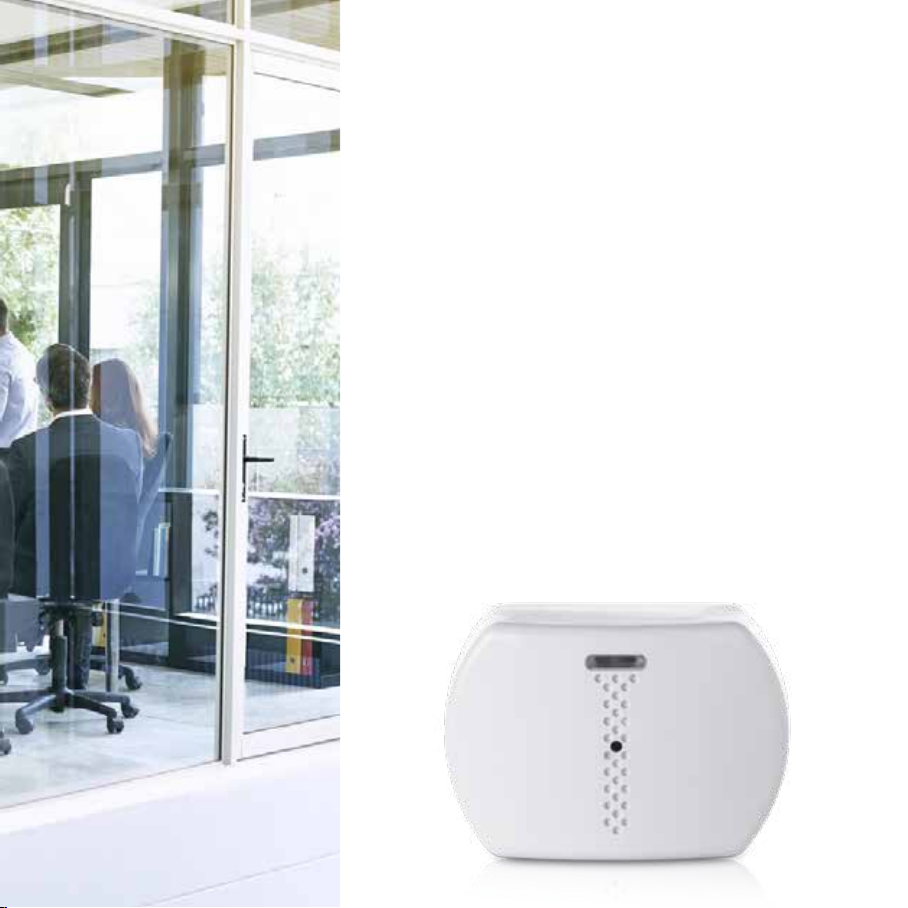

Wireless Glass-break Detector

GB-502 PG2

GB-502 PG2 is a digital wireless glass-break detector
compatible with PowerMaster intrusion alarm systems
and PowerG receivers. It is designed for a wide range
of residential and commercial applications where
reliable glass-break detection with near-zero false
alarms is required.

• Adds extra perimeter security and safety

• Protects building to contents

• Saves energy and reduces costs

• Super-accurate detection

• Extended battery life – Up to 5 years

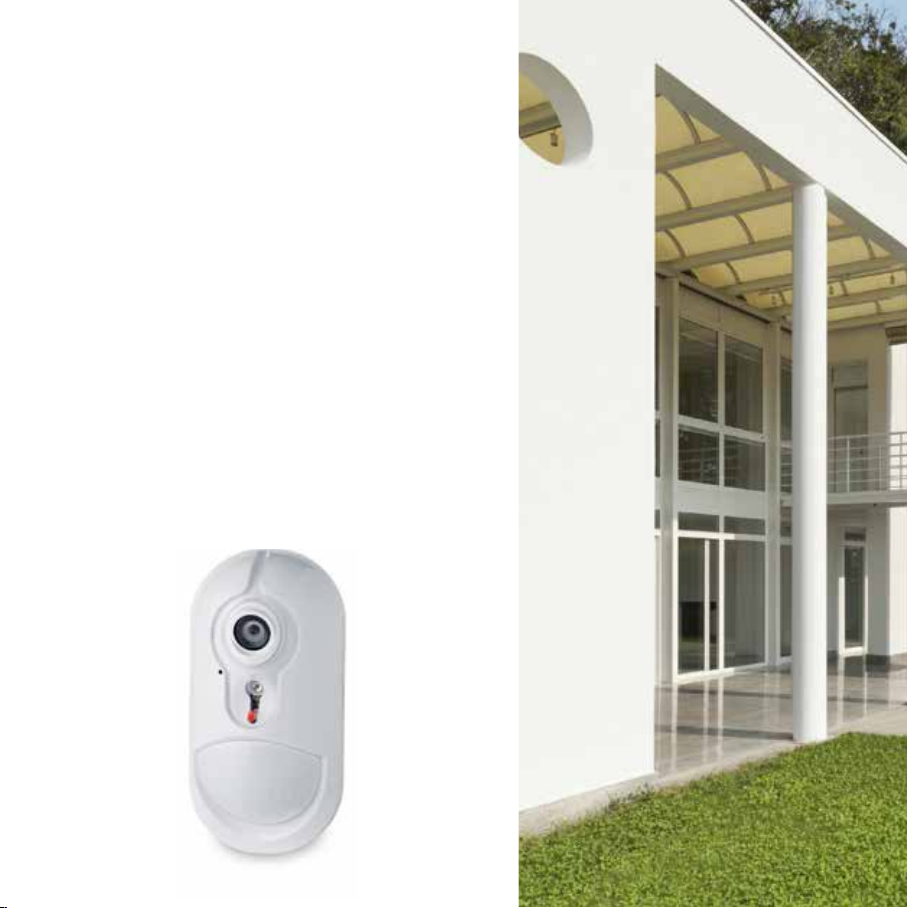

Wireless, PIR Motion/Pet­immune Detector with
Integrated Camera

Next CAM PG2, Next CAM K9-85 PG2

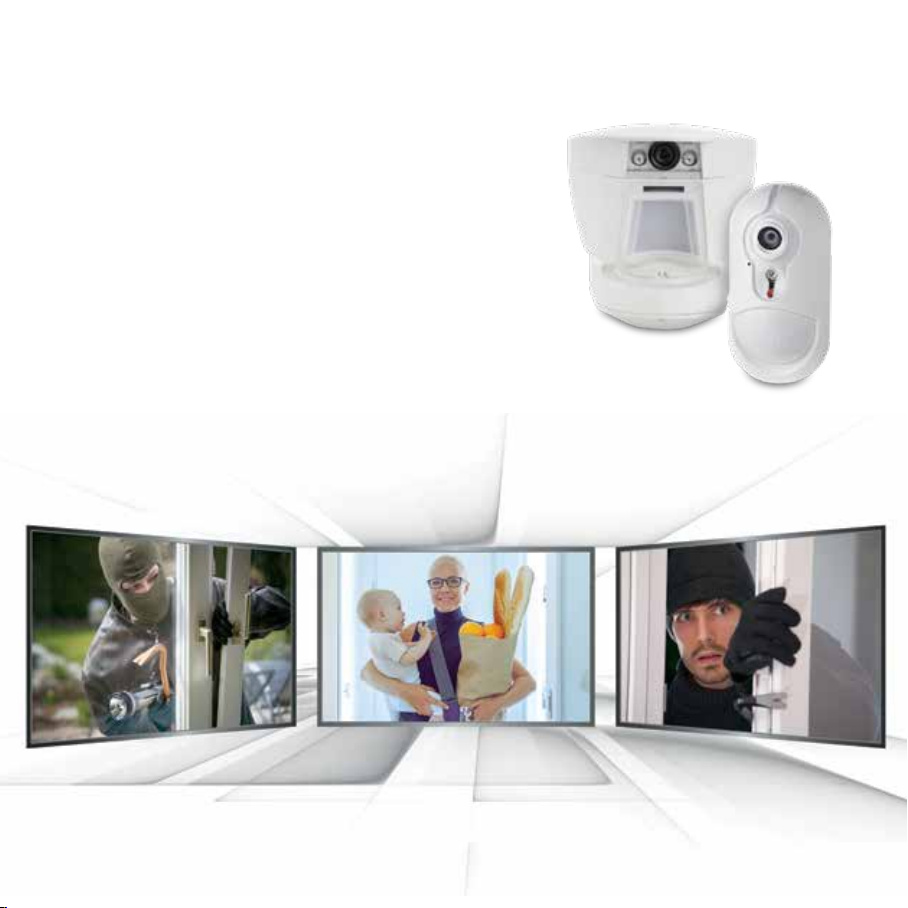

Next CAM PG2 / Next CAM K9-85 PG2 provides the
perfect solution for visual alarm verification, day or
night. When the alarm system is armed and the PIR
sensor detects movement, the detector sends an
alert to the control panel and activates the camera.
By reviewing the images in real time, security staff
can verify the alarm and respond accordingly.

• Extended battery life – 5-8 years with typical use

* PIR Motion/Pet-immune Detector also available without integrated

camera (MP-802 PG2)

18

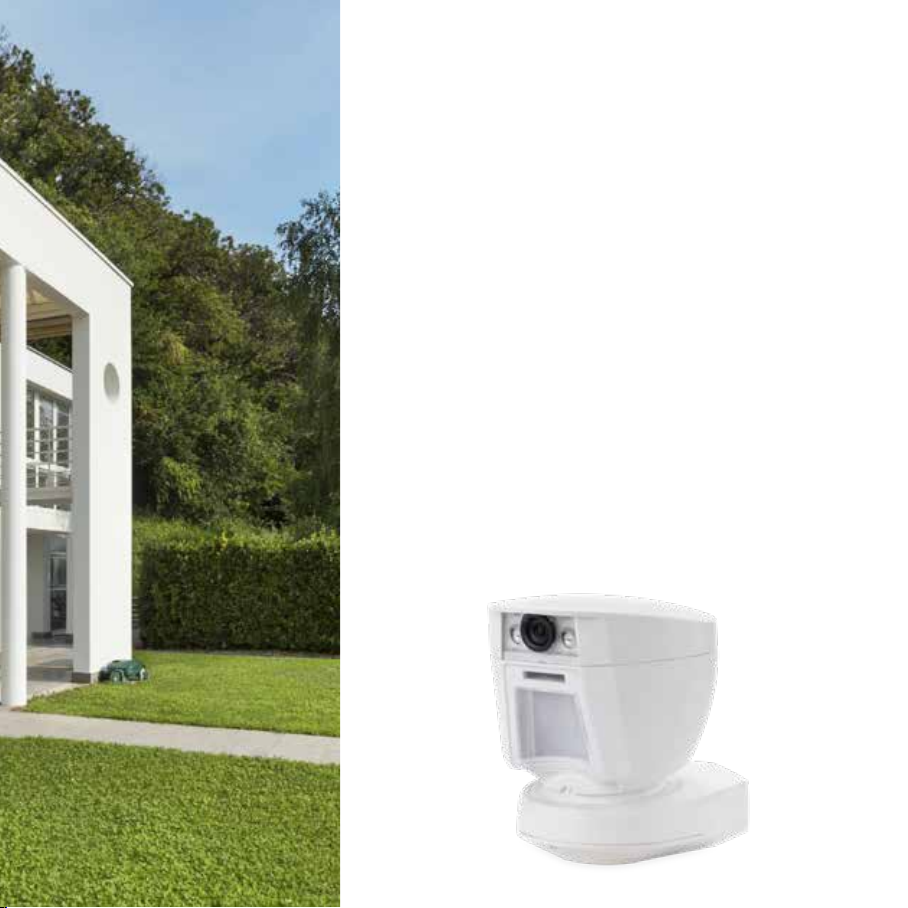

Wireless Outdoor Mirror
PIR Motion Detector with
Integrated Camera

TOWER CAM PG2

TOWER CAM PG2 is an innovative wireless
outdoor PIR mirror detector with integrated
camera that provides the perfect solution for visual
alarm verification. It features several innovative
technologies to overcome demanding outdoor
challenges such as day or night, rain, direct sunlight,
animals, changes of light levels, and more. When
the alarm system is armed and the PIR sensor
detects movement, the detector sends an alert
to the control panel and activates the camera. By
reviewing the images in real time, security staff can
verify the alarm and respond accordingly.

• Longer battery life – 3 years with typical use

* Outdoor Mirror PIR Motion Detector also available without integrated

camera (TOWER-20AM PG2)

ConnectAlarm

The handy mobile app for
PowerMaster Systems

ConnectAlarm is a cloud-based mobile app
that provides home and business owners with
real-time control over their security system,
enhancing their security, mobility and efficiency.

With ConnectAlarm end-users can monitor
their home or business security and take
action from anywhere, at any time, via their
smartphone or tablet.

• Arm/disarm the whole system or selected
partitions

• Control programmable input/output devices
(PGMs) such as smoke detectors, security
doors, smoke machines and elevators

• Get real-time alarm-generated images for
visual verification of an event

• Receive alerts and notifications that increase
property security and first-responders’
effectiveness and safety

20

22

PowerManage Platform

PowerManage is a unique service management
platform that enables central monitoring stations
to efficiently monitor, manage, and control
PowerMaster and selected other Tyco security
systems. An all-in-one receiver, technical
management center, and interactive service
platform, PowerManage runs on standard
professional server hardware and proven
web technologies.

Visual Verification Solution

• Alarm-triggered photos are sent to a central
monitoring station and/or the home/business
owner’s mobile device in real time, enabling
security staff and/or the end-user to determine
the appropriate action

• See inside the home or business and
make informed decisions about events and
notifications, all in real time, from anywhere,
via their smartphone or tablet

24

A Formidable Siren Network

When an alarm occurs – whether triggered by
intrusion, fire, panic or safety devices – the built-in
buzzers on all smoke detectors also sound the alarm.
The louder noise inside the premises is more likely to
be heard by people inside, potentially saving lives.

Indoor Siren

Panic Alert

Outdoor Siren

Wireless Alarm System

Motion Detectors

Carbon Monoxide Detector

Smoke Detector

CUSD POWERG BOOKLET C-800889 (Rev.03)

Contact us for further information:

@

visonic.com

info
www.visonic.com

© 2019 Johnson Controls. All rights reserved.
