Page 1

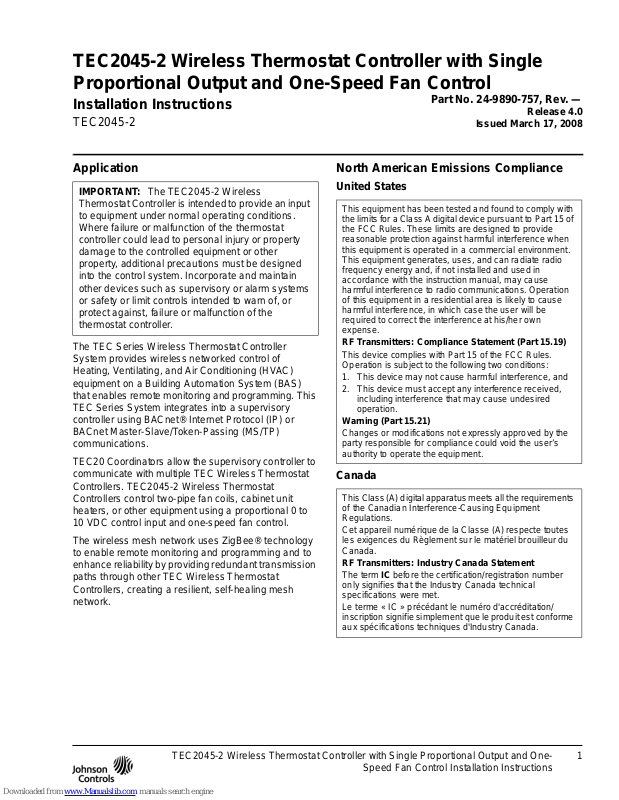

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Installation Instructions

TEC2045-2

Part No. 24-9890-757, Rev. —

Release 4.0

Issued March 17, 2008

Application

IMPORTANT: The TEC2045-2 Wireless

Thermostat Controller is intended to provide an input to equipment under normal operating conditions. Where failure or malfunction of the thermostat controller could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the control system. Incorporate and maintain other devices such as supervisory or alarm systems or safety or limit controls intended to warn of, or protect against, failure or malfunction of the thermostat controller.

The TEC Series Wireless Thermostat Controller System provides wireless networked control of Heating, Ventilating, and Air Conditioning (HVAC) equipment on a Building Automation System (BAS) that enables remote monitoring and programming. This TEC Series System integrates into a supervisory controller using BACnet® Internet Protocol (IP) or BACnet Master-Slave/Token-Passing (MS/TP) communications.

TEC20 Coordinators allow the supervisory controlle r to communicate with multiple TEC Wireless Thermostat Controllers. TEC2045-2 Wireless Thermostat Controllers control two-pipe fan coils, cabinet unit heaters, or other equipment using a proportional 0 to 10 VDC control input and one-speed fan control.

The wireless mesh network uses ZigBee® technology to enable remote monitoring and programming and to enhance reliability by providing redundant transmission paths through other TEC Wireless Thermostat Controllers, creating a resilient, self-healing mesh network.

North American Emissions Compliance

United States

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his/her own expense.

RF Transmitters: Compliance Statement (Part 15.19)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Warning (Part 15.21)

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Canada

This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

RF Transmitters: Industry Canada Statement

The term IC before the certification/registration number only signifies that the Industry Canada technical specifications were met.

Le terme « IC » précédant le numéro d'accréditation/ inscription signifie simplement que le produit est conforme aux spécifications techniques d'Industry Canada.

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-

Speed Fan Control Installation Instructions

Page 2

Mounting

Location Considerations

Locate a thermostat controller:

• on a partitioning wall, approximately 1.5 m (5 ft) above the floor in a location of average temperature

• away from direct sunlight, radiant heat, outside walls, behind doors, air discharge grills, stairwells, or outside doors

• away from steam or water pipes, warm air stacks, unconditioned areas (not heated or cooled), or sources of electrical interference

Allow for vertical air circulation to the thermostat controller.

Wireless Signal Transmission Range

Line-of-sight transmission ranges between a TEC20 Coordinator and a TEC Wireless Thermostat Controller (or between TEC Wireless Thermostat Controllers) can be less than the recommended distances shown in Table 1. The effective transmission range for indoor applications varies because of Radio Frequency (RF) signal absorption and re flectio n due to metal obstructions, walls (or floors), and furniture found

in typical building interiors.

Table 1: Recommended Transmission Ranges

Type Distance

Through Walls 10 m (32.8 ft) Open Space 30 m (98.4 ft)

2. Pull the bottom edge of the cover and open the thermostat controller as illustrated in Figure 1.

v m

r v

: G

I F

Figure 1: Removing the Cover

3. Carefully pull the locking tabs on the right side of the mounting base and unlock the Printed Circuit Board (PCB). Open the PCB to the left as illustrated in Figure 2.

PCB Locking Tabs

For detailed information on locating devices for optimum signal strength, refer to the Wireless Metasys System Location Guide (LIT-12011294), which is available on the Johnson Controls® Portal intranet site.

Mounting the Thermostat Controller

Follow these steps to mount the thermostat controller:

1. Use a Phillips-head screwdriver to loosen the security screw (if installed) on the bottom of the cover.

4. Pull approximately 152 mm (6 in.) of wire from the wall, and insert the wire through the hole in the mounting base.

5. Align the mounting base on the wall, and use the base as a template to mark the two mounting hole

Figure 2: Opening the PCB

locations.

Note: Be sure to position the mounting base so that the arrow on the base points upward to indicate the top of the thermostat controller.

6. Drill a 5 mm (3/16 in.) hole at each of the two marked locations, and tap nylon anchors (include d) flush to the wall surface.

Note: Other means of anchoring the device may be desired, depending on the wall medium.

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Installation Instructions

b _

: G

I F

Page 3

7. Position the mounting base on the wall and use the two mounting screws (included) to secure the base to the surface as illustrated in Figure 3.

Note: Be careful not to overtighten the mounting screws.

Wiring

CAUTION: Risk of Electric Shock.

Disconnect the power supply before making electrical connections to avoid electric shock.

CAUTION: Risk of Property Damage.

Do not apply power to the system before checking all wiring connections. Short circuited or improperly connected wires may result in permanent damage to the equipment.

_ g

n m

: G

I F

Figure 3: Securing the

Mounting Base to the Wall

8. Swing the PCB back to the right, and carefully snap it into the locking tabs on the mounting base.

9. Remove the screw terminal blocks as illustrated in Figure 4.

s k

n m

: G

I F

Figure 4: Removing the Screw Terminal Blocks

IMPORTANT: Make all wiring connections in

accordance with local, national, and regional regulations. Do not exceed the electrical ratings of the thermostat controller.

When replacing an existing thermostat controller, remove and label the wires to identify the terminal functions. When replacing a thermostat controller o f the same model, simply remove the old screw terminal blocks, and reinsert them onto the PCB of the replacement thermostat controller.

To wire the thermostat controller:

1. Strip the ends of each wire 6 mm (1/4 in.), and connect them to the appropriate screw terminals as indicated in Figure 5.

2. Carefully push any excess wire back into the wall.

Note: Seal the hole in the wall with fireproof material to prevent drafts from affecting the ambient temperature readings.

3. Reinsert the screw terminal blocks onto the PCB.

Note: If multiple wires are inserted into the terminals, be sure to properly twist the wires together prior to inserting them into the terminal connectors.

4. Reattach the cover to the mounting base (top sid e first).

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control Installation Instructions

5. Use a Phillips-head screwdriver to reinstall the security screw on the bottom of the cover.

See Figure 5, Figure 6, Figu re 7, and Table 2 for information on wiring the thermostat controllers.

Page 4

Three-Pole

Left Top Connect or

24 V~

Fan

Hot

Two-Pole Right Top Connector

24 V~

Com

BO5

Aux

BO5

Aux

Six-Pole Bottom Connector

Blank

AO1

11 1

BI1

Scom

BI2

14 1516

Figure 5: TEC2045-2 Thermostat Controller

Terminals

UI3

n m

5 4

2 C E T

: G

I F

Table 2: TEC2045-2 Thermostat Controller

Terminals

Terminal Number

Terminal Label

Function

3 Fan Fan On 4 24 V~ Hot 24 VAC 5 24 V~ Com 24 VAC (Common) 6 BO5 Aux Auxiliary Binary Output 7 BO5 Aux Auxiliary Binary Output 10 AO1 Open Cool 11 Blank Close Cool 12 BI1 Configurable Binary Input 1 14 Scom Sensor Common 15 BI2 Configurable Binary Input 2 16 UI3 Configurable Universal Input 3

Remote Inputs

Voltage-Free Contact

• Door

• Remote Override

• Filter Alarm

• Service Alarm

Voltage-Free Contact

• COC/NH Normall y Heat Closed Contact = Cold Water

• COC/NC Normall y Cool Closed Contact = Hot Water

Analog Output

and Valve

0 to 10 VDC 24 VAC Com

24 VAC

Thermostat Power

Power and Fan

24 V~

AO1

Hot

Separate 24 VAC

Power Source for Auxiliary Output

(24 VAC Maxi mum )

24 V~

Com

Fan

BO5 Aux

Aux Load

Voltage-Free Contact

• Remote NSB

• Motion

• Window

Independent Contacts

BI1

Scom

BI2 UI3

- OR -

SS (Suppl y Sensor) COS (Ch ange Over Se nsor)

• Reheat

• Lightin g

• On/Off Actuation

• Exhaus t Fan

Figure 6: TEC2045-2 Thermostat Controller with Separate Power Source for Auxiliary Contact

i d

5 4

2 C E T

: G

I F

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Installation Instructions

Page 5

Power Source for Auxiliary Output

Same 24 VAC

(24 VA C Maximum)

Power and Fan

Analog Output

and Valve

0 to 10 VDC

AO1

24 V~

Hot

Com

Fan

BO5 Aux

Aux Load

24 V~

24 VAC Com

24 VAC

Thermostat Power

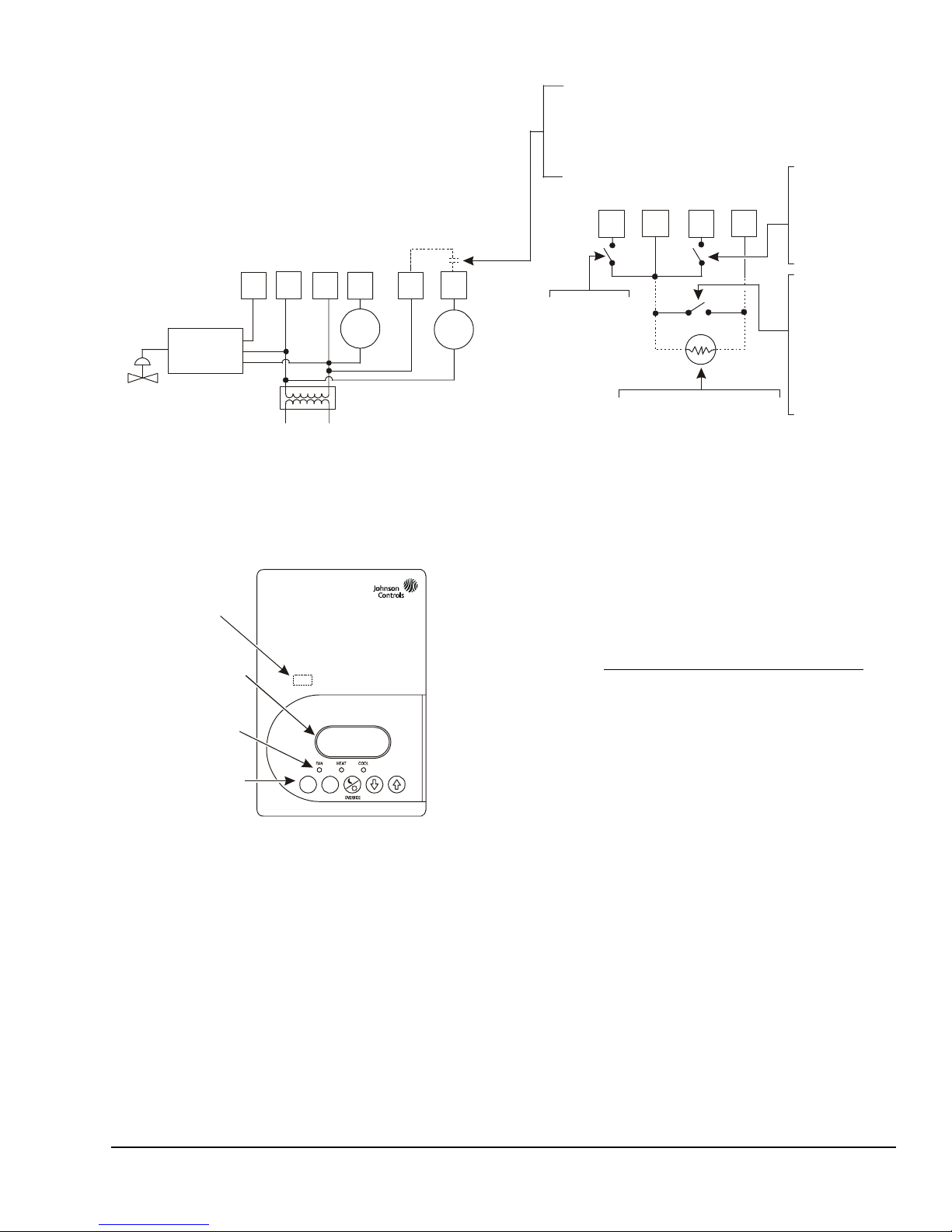

Figure 7: TEC2045-2 Thermostat Controller with Same Power Source for Auxiliary Contact

Setup and Adjustments

Overview

Figure 8 shows the front cover , including fea tures used for setting up and adjusting the thermostat controller.

Status LED

(beneath cover)

Backlit

Plain-Text

LCD

Independent Contacts

• Reheat

• Lighting

• On/Of f Actuation

• Exhaust Fan Remote Inputs

Voltage-Free Contact

e m

s _

4 0

2 C E T

: G

I F

• Door

BI1

Scom

BI2 UI3

• Remote Override

• Filter Alarm

• Service Alarm

Voltage-Free

Voltage-Free Contact

• Remote NSB

• Motion

• Window

- OR -

Contact

• COC/NH Normally Heat Closed Contact

= Cold Water

• COC/NC

Normally Cool

SS (Supply Sensor) COS (Change Over Sensor)

Closed Contact

= Hot Water

• FAN key toggles between ON and AUTO for fan control. ON energizes the fan all the time and AUTO operates the fan only on a call for heating or cooling, for both occupied and unoccupied per iods.

• OVERRIDE key overrides the unoccupied mode to occupied at the local user interface for the specified TOccTime. (TOccTime is defined by selecting the appropriate time period in the Insta ller Configuration Menu.) The OVERRIDE key also allows access to the Installer Configuration Menu. See the Configuring the Thermostat Controller section.

System

Activity

LEDs

Intuitive

Operation

Keys

MODE FAN

Room Temp

70.0ºF

r w

5 4

2 C E T

: G

I F

Figure 8: Front Cover

User Interface Keys

The user interface consists of keys on the front cover (as illustrated in Figure 8). The function of each key is as follows:

• MODE key toggles among the system modes available, as defined by selecting the appr op ria te operation sequence in the Installer Configuration Menu (for example Off, Heat, Cool, Auto).

Note: If one of the binary inputs is configured to operate as a remote override contact, this OVERRIDE key is disabled.

• UP/DOWN arrow keys change the configuration parameters and activate a setpoint adjustment.

Light-Emitting Diodes (LEDs)

Three System Activity LEDs are included to indicate the status and actions of the thermostat controller:

•The FAN LED is on when the fan is on.

•The HEAT LED is on when heating or reheat is on.

•The COOL LED is on when cooling is on.

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control Installation Instructions

Page 6

The Status LED, located beneath the cover, flashes at 5-second intervals to provide indication of the network status of the thermostat controller. See Table 3.

Table 3: Status LED

Flashes per

Condition Indicated 5-Second Interval

1 Power On 2 Power On, Communicating 3 Power On, Communicating, Found

Wireless Network 4 Power On, Communicating, Found

Wireless Network, Communicating with

TEC20 Coordinator

Backlit Liquid Crystal Display (LCD)

The thermostat controller includes a 2- line, 8-character backlit display. Low-level backlighting is present during normal operation, and it brightens when any user interface key is pressed. The backlight returns to low level when the thermostat controller is left unattended for 45 seconds.

Status Display Menu

The Status Display Menu is displayed during normal operation. This menu continuously scrolls through the following parameters:

• Room Temperature

• System Mode

• Occupancy Status (Occupied/Unoccupied/ Override)

• Applicable Alarms – The backlight lights up as an alarm condition is displayed.

Note: An option is available within the Installer Configuration Menu to lock out the scrolling display and show only the Room Temperature parameter.

Configuring the Thermostat Controller

The thermostat controller comes from the factory with default settings for all configurable parameters. The default settings are shown in Table 5. To reconfigure the parameters using the user interface keys, follow the steps in this section.

To access the Installer Configuration Menu, press and hold the center key for approximately 8 seconds. Once the Installer Configuration Menu begins, release and press the center key to scroll through the parameters listed in Table 5. When the desired parameter displays, use the UP/DOWN arrow keys to choose the desired selection option. Then press and release the center key to continue scrolling through the parameters.

Note: Pressing the FAN key during configuration restarts the list of displayed parameters at the first parameter listed in Table 5.

When the thermostat controller is in the Installer Configuration Menu and left unattended for approximately 8 seconds, the thermostat controller reverts to the Status Display Menu.

Configuring Inputs BI1, BI2, and UI3

When BI1 and BI2 are configured for an alarm condition, an alarm condition displays locally when the input closes. An alarm message is included on the scrolling Status Display Menu and when the message is displayed, the backlight momentarily lights up.

The UI3 input provides changeover of hot/cold water switching, or supply air temperature monitoring at the thermostat controller.

Each input can be configured to the Selection Options included in Table 4.

Configuring the Sequence of Operation (SeqOpera)

Choose the appropriate sequence of operation. The modes presented are user-dependent on the sequen ce of operation selected. For applications using a changeover sensor, choose the selection option

(0): Cooling Only. Changeover occurs between Cooling Only and Heating Only . See Figure 9 through

Figure 12 for sequence of operation example.

Table 4: Selection Options for Sequence of Operation

Selection Option Control Curve Terminal Numbers Used

0: Cooling Only See Figure 9. 10: Proportional Cooling 1: Heating Only See Figure 10. 10: Proportional Heating 2: Cooling and Reheat See Figure 11. 6 and 7: Reheat

3: Heating and Reheat See Figure 12. 6 and 7: Reheat

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Installation Instructions

(See Figure 5.)

10: Proportional Cooling

10: Proportional Heating

Page 7

Cooling Setpoint

Device Closed

Device Opened

Proportional

Output

Device Opened

Proportional

Tempe r at ur e Increase

(Increments of 1F°/0.5C°)

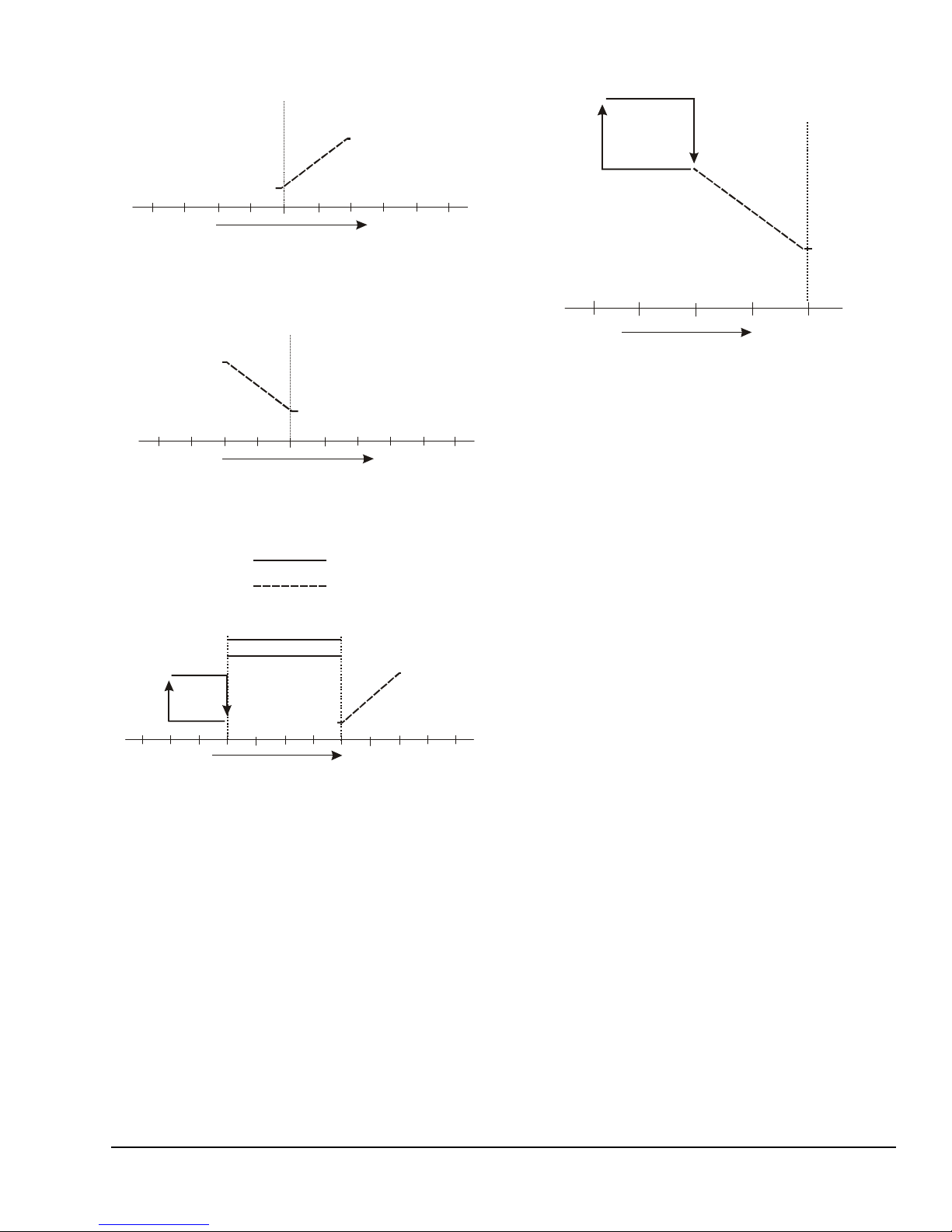

Figure 9: Cooling Only

Heating Setpoint

Device Closed

Temp er at ure Increase

(Increments of 1F°/0.5C°)

Figure 10: Heating Only

Heating Output

Output

Reheat

Off

n _

: G

I F

Off

Proportional

100%

Output

r _

t w

Temperature Increase

(Increments of 1F°/0.5C°)

: G

I F

Figure 12: Heating with Reheat

l n

g n

t h

: G

I F

Heating Setpoint

Cooling Setpoint

Deadband

Reheat

Off

Device

Off

Closed

Tempe r at ur e Increase

(Increments of 1F°/0.5C°)

Figure 11: Cooling with Reheat

Cooling Output

Proportional

Output

Device

Opened

t w

_ g

: G

I F

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control Installation Instructions

Page 8

Configuring the Wireless Mesh Network Settings

Use the following process to configure the wireless mesh network.

1. Select a PAN ID and Channel. Use these same values for every TEC Wireless Thermostat Controller (and the associated TEC20 Coordinator) on the same wireless mesh network. See Table 5.

Table 5: Installer Configuration Menu (Part 1 of 4)

Parameter

Description and Default Selection Options Appearing on Display

Com addr Wireless address at the thermostat

controller; Default: 4

PAN ID Sets the Personal Area Network

Identification (PAN ID) of the

wireless network. All devices on a

network must have the same

PA N ID setting to communicate with

each other. Default: 0 Channel Sets the mesh network channel the

device uses for communication.

Only devices using the same mesh

network channel can communicate

with each other. Default: 10

GET FROM Parameter not available at this time. N/A BI1 Configuration of Binary Input 1.

Default: None

Range: 000 to 254 Addresses of each item on the wireless bus must be uniquely

numbered, increasing from 1. Note: Setting this parameter to 0 disables the function.

Range: 0 to 500 Note: Setting this parameter to 0 disables the function.

Range: 11 to 26

Note: Setting this parameter to 10 disables the function.

(None): No function is associated with an input. (Rem NSB): Remote Night Setback (NSB) via a time clock input, an

occupancy sensor, or from a voltage-free contact. Contact open = Occupied; contact closed = Unoccupied.

(MotionNO*): Temporary occupancy request via a motion detector input. Contact open = Unoccupied. When the contact closes, the thermostat controller TOccTime. Once the TOccTime begins, the thermostat controller remains in the occupied mode if the contact is open, until the TOccTime expires.

(MotionNC*): Temporary occupancy request via a motion detector input. Contact closed = Unoccupied. When the contact opens, the thermostat controller goes into the occupied mode for a specified TOccTime. Once the TOccTime begins, the thermostat controller remains in the occupied mode if the contact is closed, until the TOccTime expires.

(Window**): Cancels the heating or cooling action when a window is open. A Window alarm is displayed indicating that the window needs to be closed to resume heating or cooling.

* These settings disable any local override function. **When this setting is selected, the heating and/or cooling outputs

are enabled only when the contact is closed.

2. Select a Com Address for each TEC Wireless Thermostat Controller (1 to 254). This address must be unique to each TEC Wireless Thermostat Controller on the same wireless network (that is, unique to the PAN ID/Channel combination). See Table 5.

After configuring the wireless mesh network settings, refer to the TEC Series Wireless Thermostat Controller System T echnical Bulletin (LIT-12011414 ) for directions on integrating the TEC Wireless Thermostat Controllers and TEC20 Coordinator with a supervisory controller.

goes into the occupied mode for a specified

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Installation Instructions

Page 9

Table 5: Installer Configuration Menu (Part 2 of 4)

Parameter

Description and Default Selection Options Appearing on Display

BI2 Configuration of Binary Input 2.

Default: None

UI3 Configuration of Universal Input 3.

Default: None

MenuScro Gives the option of having the

display continuously scroll the

parameters.

Default: on AutoMode Enables the Auto function (if

Option 2 is chosen in the SeqOpera

parameter) to be visible within the

MODE key menu. (The MODE key

is the key at the far left of the cover.)

Default: off C or F Provides temperature scale options

for display.

Default: °F

(None): No function is associated with an input. (Door Dry): Door contact only has an effect if BI1 is set to

MotionNO or MotionNC. (See the BI1 parameter earlier in this

table.) The occupancy is now dictated via BI1 and BI2. Any motion detected sets the zone to Occupied status. The thermostat controller remains in the occupied mode until a DoorOpen is detected, at which point the thermostat controller goes to the unoccupied mode. If the door stays open more than the specified door time, the thermostat controller remains unoccupied. (See the DoorTime parameter later in this table.)

(RemOVR): Temporary occupancy request by means of a remote input. This override function is controlled by a manual remote occupancy override. When enabled, this condition disables the override capability of the thermostat controller.

(Filter): A Filter alarm is displayed. This alarm can be connected to a differential pressure switch that monitors a filter.

(Service): A Service alarm is displayed on the thermostat controller when the input is energized. This input can be tied into the air conditioning unit control card, which provides an alarm should there be a malfunction.

(None): No function is associated with an input. (COC/NH): Changeover Contact/Normally Heat: A dry contact input

is used to signal seasonal hot/cold water changeover. The contact closes when cold water is present. Valid only for two-pipe systems.

(COC/NC): Changeover Contact/Normally Cool: A dry contact input is used to signal seasonal hot/cold water changeover. The contact closes when hot water is present. Valid only for two-pipe systems.

(COS): Changeover analog Sensor: Used for hot/cold water changeover switching. Valid only for two-pipe systems.

Note: Choose the selection option (0): Cooling Only for the SeqOpera parameter to allow changeover to occur between Cooling Only and Heating Only. Choose the selection option (2): Cooling and Reheat to allow changeover to occur between Cooling and Reheat and Heating and Reheat.

(SS): Supply Air Sensor Monitoring Note: If UI3 is set to None, COC/NH, or COC/NC, then UI3 Status

is available as a point for integration and Supply Temperature is not available as a point for integration. If UI3 is set to COS or SS, then Supply T e mperat ure is available as a point for integration and

UI3 Status is not available as a point for integration. (off): The scroll is inactive.

(on): The scroll is active.

(on): The Auto function is active (Off-Auto-Heat-Cool). Provides

automatic changeover between heating and cooling.

(off): The auto function is inactive (Off-Heat-Cool).

(°C): Celsius scale (°F): Fahrenheit scale

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control Installation Instructions

Page 10

Table 5: Installer Configuration Menu (Part 3 of 4)

Parameter

Description and Default Selection Options Appearing on Display

Lockout Selectable Lockout Levels for

limiting end user keypad interaction.

Default: 0

SeqOpera Determines the sequence of

operation.

Default: 1

Unocc HT Sets the Unoccupied Heating

setpoint value.

Default: 62.0°F/16.5°C Unocc CL Sets the Unoccupied Cooling

setpoint value.

Default: 80.0°F/26.5°C Heat max Sets the Occupied and Unoccupied

maximum Heating setpoint values.

Default: 90.0°F/32.0°C Cool min Sets the Occupied and Unoccupied

minimum Cooling setpoint values.

Default: 54.0°F/12.0°C Set type Provides the option of temporarily

changing the heating or cooling

setpoint by pressing the UP/DOWN

arrow keys.

Default: permnent TOccTime Sets the duration of the Temporary

Occupancy Time when the heating

or cooling setpoints in the Occupied

mode are established by:

• an Override Function enabled in the Main User Menu (when the thermostat controller is in the Unoccupied mode)

• a temporary heating or cooling setpoint

Default: 2.0 hrs

DoorTime Engages the Unoccupied mode if

the door stays open minimally for the time specified.

Default: 2.0 min

Lockout Level

(0): Cooling Only (Off-Cool). The default is Cool. (1): Heating Only (Off-Heat). The default is Heat. (2): Cooling and Reheat (Off-Auto*-Heat-Cool). The default is Heat. (3): Heating and Reheat (Off-Heat). The default is Heat. * Auto can be disabled with the AutoMode param eter. Note: Choose the selection option (0): Cooling Only when using a

changeover sensor to allow changeover to occur between Cooling Only and Heating Only.

Range: 40.0°F/4.5°C to

90.0°F/32.0°C

Range: 54.0°F/12.0°C to

100.0°F/37.5°C

Range: 40.0°F/4.5°C to

90.0°F/32.0°C

Range: 54.0°F/12.0°C to

100.0°F/37.5°C

(temporar): Local changes to the heating or cooling setpoints are

temporary, and remain effective for the specified TOccTime. (permnent): Local changes to the heating or cooling setpoints are

permanently stored in the thermostat controller memory.

Range: 0.0 to 24.0 hrs in 1-hour increments

Range: 1.0 to 10.0 min

Function

Mode Setting

(0) Access Access Access Access (1) Access Access No Access Access (2) No Access No Access Access Access (3) No Access No Access No Access Access (4) No Access No Access Access No Access (5) No Access No Access No Access No Access

Fan Setting

Local Override

Note: When adjusting the temperature, press the UP/ DOWN arrow keys to

change the temperature in

0.5F°/0.5C° increments; press and hold the UP/DOWN arrow keys to change the temperature in 5.0F°/5.0C° increments.

Occupied Temperature Setpoints

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Installation Instructions

Page 11

Table 5: Installer Configuration Menu (Part 4 of 4)

Parameter

Description and Default Selection Options Appearing on Display

Deadband Sets the minimum deadband

between the heating and cooling

setpoints.

Default: 2.0F°/1.0C°

Cal RS Sets the desired room air sensor

Aux cont Determines the auxiliary contact

DA/RA Choice of direct or reverse acting

Reheat

UI3 dis Displays the supply or changeover

calibration (offset). The offset can

be added to or subtracted from the

actual displayed room temperature.

Default: 0.0F°/0.0C°

function and configuration.

Default: 0

analog output signal.

Default: DA

Sets the duty cycle time for reheat

output (if Option 2, 3, or 5 is chosen

in the SeqOpera parameter).

Default: 0

temperature when UI3 is configured

as an analog input (supply sensor or

changeover sensor). Used as a

diagnostic/service help, to

troubleshoot and diagnose sensor

operation.

Default: -40°F/-40°C

Range: 2.0F°/1.0C° to 5.0F°/2.5C° (adjustable in 1.0F°/0.5C° increments)

Range: -5.0F°/-2.5C° to 5.0F°/2.5C° (adjustable in 1.0F°/0.5C° increments)

(RA): Reverse acting, 0 to 100% = 10 to 0 VDC (DA): Direct acting, 0 to 100% = 0 to 10 VDC

(1): 10 seconds (six cycles per minute), for various equipment with

solid-state relays that withstand short duty cycles such as electric heat.

(0): 15 minutes (four cycles per hour), for various equipment with mechanical relays or contactors controlling mechanical reheat systems.

Used as a diagnostic/service help, to troubleshoot and diagnose sensor operation.

(0) Not used,

or used for reheat

(1) Auxiliary

N.O.

(2) Auxiliary

N.C.

(3) Auxiliary

N.O.

(4) Auxiliary

N.C.

(5) Auxiliary On/Off control through the

auxiliary network command. The output can be commanded through the network for any required auxiliary functions via a separate and dedicated network variable.

If the SeqOpera is set to reheat (Option 2 or 3), ignore this parameter.

Occupied = contact closed

Unoccupied = contact open

Occupied = contact open Unoccupied = contact

closed Occupied and fan On =

contact closed

Unoccupied and fan On or Off = contact open

Occupied and fan On =

contact open

Unoccupied and fan On or Off = contact closed

The output aligns with occupancy.

The output aligns with occupancy and the fan on command.

The output aligns with the secondary network occupancy command.

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control Installation Instructions

Page 12

Troubleshooting

See Table 6 for display messaging. Refer to the

TEC Series Wireless Thermostat Controller System Technical Bulletin (LIT-12011414) for troubleshooting

details.

Accessories

All the accessories in Table 7 include mounting

Note: Review the technical specifications of the accessories prior to their use in an application.

Repair Information

If the TEC2045-2 Wireless Thermostat Controller fails to operate within its specifications, replace the unit. For a replacement thermostat controller, contact the nearest Johnson Controls representative.

hardware; contact the nearest Johnson Controls representative to order any of these parts.

Table 6: Display Messages

Display Function

Service Indicates that there is a service alarm in accordance with the programmable Binary Input (BI2). Filter Indicates that the filter(s) is dirty in accordance with the programmable Binary Input (BI2). Window Indicates that an outside window or door is open and has cancelled the thermostat controller heating or

cooling action in accordance with the programmable Binary Input (BI1).

Table 7: Accessories (Order Separately)

Code Number Description

ACC-INSL-0 Foam Insulation Pad Kit (10 adhesive-backed foam pads) SEN-600-1 Remote Indoor Air Temperature Sensor SEN-600-4 Remote Indoor Air Temperature Sensor with Occupancy Override and LED

TE-6361M-1 TE-636S-1 Strap-Mount Temperature Sensor

Duct Mount Air Temperature Sensor

1. Additional TE-636xx-x Series 10k ohm Johnson Controls Type II Thermistor Sensors are available; refer to the TE-6300 Series Temperature Sensors Product Bulletin (LIT-216320) for more details.

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Installation Instructions

Page 13

Technical Specifications

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control

Power Requirements 19 to 30 VAC, 50/60 Hz, 2 VA (Terminals 4 and 5) at 24 VAC Nominal, Class 2 or

Analog Output Rating 0 to 10 VDC into 2k ohm Resistance (Minimum) Fan Relay Output Rating 30 VAC, 1.0 A Maximum, 15 mA Minimum, 3.0 A In-Rush, Class 2 or SELV Auxiliary Output Rating Triac Output: 30 VAC, 1.0 A Maximum, 3.0 A In-Rush Digital Inputs Voltage-Free Contacts across Terminal Scom to Terminals BI1, BI2, or UI3 Temperature Sensor Type Local 10k ohm Negative T emperature Coef ficient (NTC) Thermistor Wire Size 18 AWG (1.0 mm Diameter) Maximum, 22 AWG (0.6 mm Diameter) Recommended Recommended Transmission

Range RF Band Direct-Sequence Spread-Spectrum Transmission; 2.4 Ghz unlicensed band Transmission Power 10 mW Maximum Resolution ±0.1C°/±0.2F° Temperature Range Backlit Display: -40.0°C/-40.0°F to 50.0°C/122.0°F in 0.5° increments

Accuracy ±0.5C°/±0.9F°/ at 21.0°C/70.0°F Typical Calibrated Minimum Deadband 1C°/2F° between Heating and Cooling Ambient Conditions Operating: 0 to 50°C (32 to 122°F); 95% RH Maximum, Noncondensing

Compliance (Pending) United States:

Dimensions (H x W x D) 125 x 86 x 29 mm (4-15/16 x 3-3/8 x 1-1/8 in.) Shipping Weight 0.34 kg (0.75 lb)

Safety Extra-Low Voltage (SELV)

Through Walls: 10 m (30 ft) Line-of-Sight (Open Space): 30 m (100 ft)

Heating Control: 4.5°C/40.0°F to 32.0°C/90.0°F Cooling Control: 12.0°C/54.0°F to 38.0°C/100.0°F

Storage: -30 to 50°C (-22 to 122°F); 95% RH Maximum, Noncondensing

UL Listed, File E27734, CCN XAPX, Under UL 873, Temperature Indicating and Regulating Equipment

FCC Compliant to Part 15.247 Regulations for Low Power Unlicensed Transmitters Transmitter FCC Identification: (pending)

Canada:

UL Listed, File E27734, CCN XAPX7, Under CAN/CSA C22.2 No. 24, Temperature Indicating and Regulating Equipment

Industry Canada, ICES-003 Industry Canada (IC) Identification: (pending)

The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.

TEC2045-2 Wireless Thermostat Controller with Single Proportional Output and One-Speed Fan Control Installation Instructions

Published in U.S.A. www.johnsoncontrols.com

Building Efficiency

507 E. Michigan Street, Milwaukee, WI 53202

Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc.
