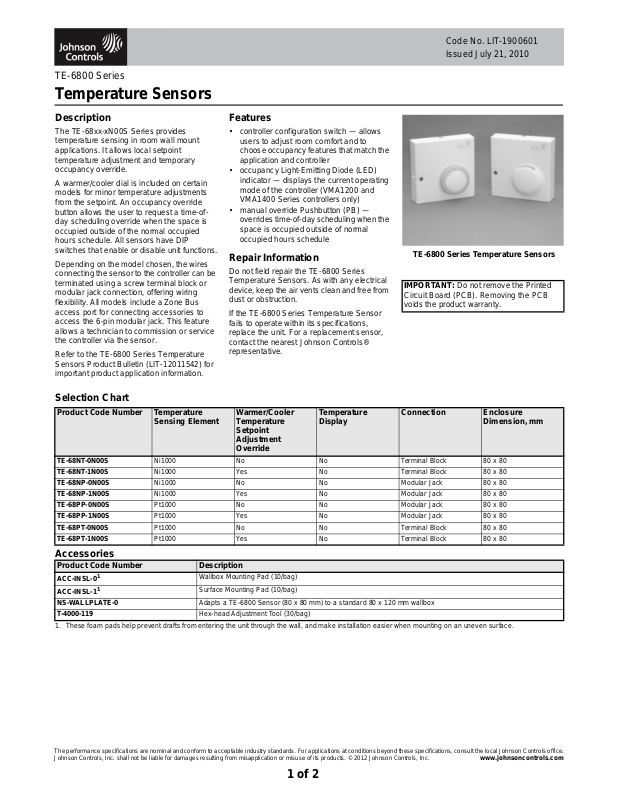

Johnson Controls TE-6800 Series Catalog Page

TE-6800 Series

TE-6800 Series Temperature Sensors

Temperature Sensors

Code No. LIT-1900601
Issued July 21, 2010

Description

The TE-68xx-xN00S Series provides
temperature sensing in room wall mount
applications. It allows local setpoint
temperature adjustment and temporary
occupancy override.

A warmer/cooler dial is included on certain
models for minor temperature adjustments
from the setpoint. An occupancy override
button allows the user to request a time-of­day scheduling override when the space is
occupied outside of the normal occupied
hours schedule. All sensors have DIP
switches that enable or disable unit functions.

Depending on the model chosen, the wires
connecting the sensor to the controller can be
terminated using a screw terminal block or
modular jack connection, offering wiring
flexibility. All models include a Zone Bus
access port for connecting accessories to
access the 6-pin modular jack. This feature
allows a technician to commission or service
the controller via the sensor.

Refer to the TE-6800 Series Temperature
Sensors Product Bulletin (LIT-12011542) for
important product application information.

Features

• controller configuration switch — allows
users to adjust room comfort and to
choose occupancy features that match the
application and controller

• occupancy Light-Emitting Diode (LED)
indicator — displays the current operating
mode of the controller (VMA1200 and
VMA1400 Series controllers only)

• manual override Pushbutton (PB) —
overrides time-of-day scheduling when the
space is occupied outside of normal
occupied hours schedule

Repair Information

Do not field repair the TE-6800 Series
Temperature Sensors. As with any electrical
device, keep the air vents clean and free from
dust or obstruction.

If the TE-6800 Series Temperature Sensor
fails to operate within its specifications,
replace the unit. For a replacement sensor,
contact the nearest Johnson Controls®
representative.

IMPORTANT: Do not remove the Printed
Circuit Board (PCB). Removing the PCB
voids the product warranty.

Selection Chart

Product Code Number Temperature

Sensing Element

TE-68NT-0N00S Ni1000 No No Terminal Block 80 x 80
TE-68NT-1N00S Ni1000 Yes No Terminal Block 80 x 80
TE-68NP-0N00S Ni1000 No No Modular Jack 80 x 80
TE-68NP-1N00S Ni1000 Yes No Modular Jack 80 x 80
TE-68PP-0N00S Pt1000 No No Modular Jack 80 x 80
TE-68PP-1N00S Pt1000 Yes No Modular Jack 80 x 80
TE-68PT-0N00S Pt1000 No No Terminal Block 80 x 80
TE-68PT-1N00S Pt1000 Yes No Terminal Block 80 x 80

Warmer/Cooler
Temperature
Setpoint
Adjustment
Override

Temperature
Display

Connection Enclosure

Dimension, mm

Accessories

Product Code Number Description

ACC-INSL-0
ACC-INSL-1

NS-WALLPLATE-0 Adapts a TE-6800 Sensor (80 x 80 mm) to a standard 80 x 120 mm wallbox
T-4000-119 Hex-head Adjustment Tool (30/bag)

1. These foam pads help prevent drafts from entering the unit through the wall, and make installation easier when mounting on an uneven surface.

1
1

Wallbox Mounting Pad (10/bag)
Surface Mounting Pad (10/bag)

The performance specifications are nomina l and conf orm to accep table industr y standar ds. For ap plications a t condition s beyond th ese specification s, consult the local Johnson Controls o ffice.
Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. © 2012 Johnson Controls, Inc.

www.johnsoncontrols.com

1 of 2

TE-6800 Series Temperature Sensors (Continued)

Technical Specifications

TE-6800 Series Temperature Sensors

Nickel Sensor Temperature Sensor 1000 ohm thin-film nickel

Temperature Coefficient Approximately 3 ohms per F° (5.4 ohms per C°)
Reference Resistance 1000 ohms at 70°F (21°C)
Accuracy ±0.34F° at 70°F (±0.18C° at 21 ° C )

Platinum Sensor Temperature Sensor 1000 ohm thin-film platinum

Temperature Coefficient Approximately 2 ohms per F° (3.9 ohms per C°)
Reference Resistance 1000 ohms at 32°F (0°C)
Accuracy ±0.35F° at 70°F (±0.19C° at 21 ° C )

Setpoint Range Single Adjustment Warmer/Cooler
Sensor Response Time 10 minutes at 10 feet per minute
Field Connections Modular Jack 8-position modular jack connector

Terminal Block Screw type terminals for 18 to 24 AWG wire

Zone Bus Access 6-pin connector with front bottom access for a laptop with HVAC PRO software and CVTPRO converter
Manual Override Integral momentary push button (DIP switch selectable)
LED Light Green LED light indicates two modes of operation (VMA1200 and VMA1400 Series controller s only)
Ambient Operating

Conditions
Ambient Storage

Conditions
Materials White thermoplastic
Accessory NS-WALLPLATE-0 Adapts a TE-6800 Sensor (80 x 80 mm) to a standard 80 x 120 mm wallbox
Dimensions

(H x W x D)
Shipping Weight 1 lb (0.5 kg)

Compliance

32 to 131°F (0 to 55°C)
10 to 95% RH, noncondensing; 86°F (30°C) maximum dew point

-40 to 140°F (-40 to 60°C)
5 to 95% RH, noncondensing; 86°F (30°C) maximum dew point

3-1/4 x 3-1/4 x 1-7/16 in. (80 x 80 x 36 mm)

United States UL Listed, File E107041,

Canada UL Listed, File E107041,

Europe CE Mark – Johnson Controls, Inc. declares that the TE-6800 Series Temperature Sensors

Australia and New Zealand C-Tick Mark, Australia/NZ Emissions Compliant

CCN PAZX, Under UL 916, Energy Management Equi pment

CCN PAZX7, Under CAN/CSA C22.2 No. 205, Signal Equi pment

are in compliance with the essential requirements and other relevant provision s of the EMC
Directive 2004/108/EC
