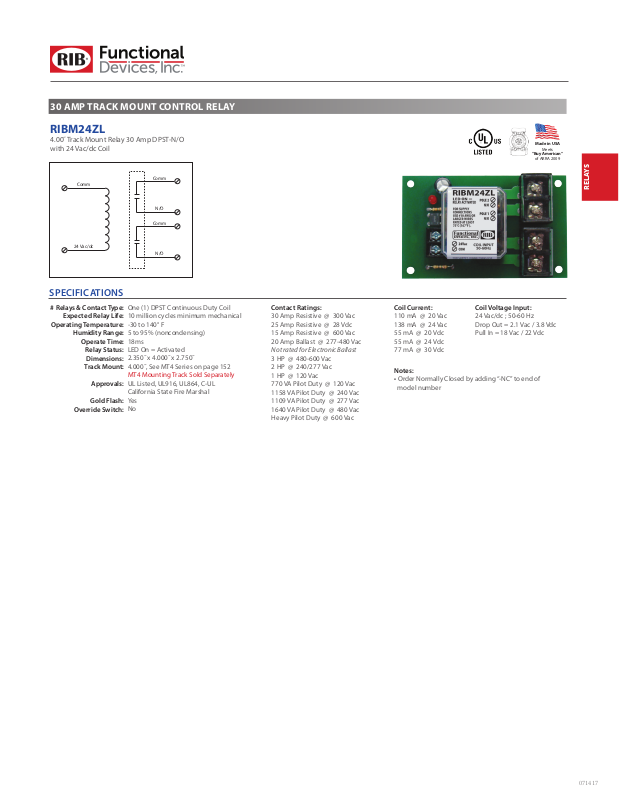

30 AMP TRACK MOUNT CONTROL RELAY
RIBM24ZL
4.00˝ Track Mount Relay 30 Amp DPST-N/O
with 24 Vac/dc Coil
Made in USA
Meets
“Buy American”
of ARRA 2009
Comm
24 Vac/dc
SPECIFICATIONS
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Relay Status:
Dimensions:
Track Mount:
Approvals:
Gold Flash:
Override Switch:
Comm
N/O
Comm
N/O
One (1) DPST Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
18ms
LED On = Activated
2.350˝ x 4.000˝ x 2.750˝
4.000˝, See MT4 Series on page 152
MT4 Mounting Track Sold Separately
UL Listed, UL916, UL864, C-UL
California State Fire Marshal
Yes
No
Contact Ratings:
30 Amp Resistive @ 300 Vac
25 Amp Resistive @ 28 Vdc
15 Amp Resistive @ 600 Vac
20 Amp Ballast @ 277-480 Vac
Not rated for Electronic Ballast
3 HP @ 480-600 Vac
2 HP @ 240/277 Vac
1 HP @ 120 Vac
770 VA Pilot Duty @ 120 Vac
1158 VA Pilot Duty @ 240 Vac
1109 VA Pilot Duty @ 277 Vac
1640 VA Pilot Duty @ 480 Vac
Heavy Pilot Duty @ 600 Vac
Coil Current:
110 mA @ 20 Vac
138 mA @ 24 Vac
55 mA @ 20 Vdc
Coil Voltage Input:
24 Vac/dc ; 50-60 Hz
Drop Out = 2.1 Vac / 3.8 Vdc
Pull In = 18 Vac / 22 Vdc
55 mA @ 24 Vdc
77 mA @ 30 Vdc
Notes:
• Order Normally Closed by adding “-NC” to end of
model number
071417
