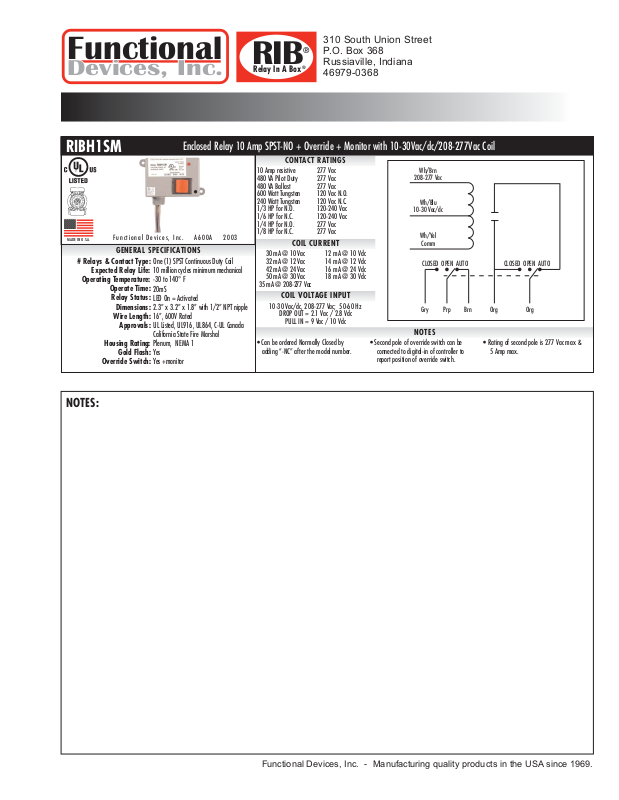

Johnson Controls RIBH1SM Data Sheet

NOTES

RIB

Relay In A Box

®

®

Devices, Inc.

Functional

310 South Union Street
P. O. Box 368
Russiaville, Indiana
46979-0368

NOTES:

Functional Devices, Inc. - Manufacturing quality products in the USA since 1969.

RIBH1SM

Functional Devices, Inc. A600A 2003

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Operate Time:

Relay Status:

Dimensions:

Wire Length:

Approvals:

Housing Rating:

Gold Flash:

Override Switch:

One (1) SPST Continuous Duty Coil
10 million cycles minimum mechanical

-30 to 140° F
20mS
LED On = Activated

2.3” x 3.2” x 1.8” with 1/2” NPT nipple
16”, 600V Rated
UL Listed, UL916, UL864, C-UL Canada
California State Fire Marshal
Plenum, NEMA 1
Yes
Yes +monitor

10 Amp resistive
480 VA Pilot Duty
480 VA Ballast
600 Watt Tungsten
240 Watt Tungsten
1/3 HP for N.O.
1/6 HP for N.C.
1/4 HP for N.O.
1/8 HP for N.C.

277 Vac
277 Vac
277 Vac
120 Vac N.O.
120 Vac N.C.
120-240 Vac
120-240 Vac
277 Vac
277 Vac

COIL CURRENT

COIL VOLTAGE INPUT

CONTACT RATINGS

30 mA @ 10 Vac
32 mA @ 12 Vac
42 mA @ 24 Vac
50 mA @ 30 Vac

35 mA @ 208-277 Vac

12 mA @ 10 Vdc
14 mA @ 12 Vdc
16 mA @ 24 Vdc
18 mA @ 30 Vdc

10-30 Vac/dc, 208-277 Vac; 50-60 Hz

DROP OUT = 2.1 Vac / 2.8 Vdc

PULL IN = 9 Vac / 10 Vdc

• Can be ordered Normally Closed by
adding “-NC” after the model number.

• Second pole of override switch can be
connected to digital-in of controller to
report position of override switch.

• Rating of second pole is 277 Vac max &
5 Amp max.

GENERAL SPECIFICATIONS

Enclosed Relay 10 Amp SPST-NO + Override + Monitor with 10-30Vac/dc/208-277Vac Coil

MADE IN U.S.A.

******

*****

******

*****

******

*****

******

*****

******

Wh/Brn

208-277 Vac

Wh/Blu

10-30 Vac/dc

Wh/Yel

Comm

CLOSED OPEN AUTO

CLOSED OPEN AUTO

BrnPrpGry

OrgOrg
