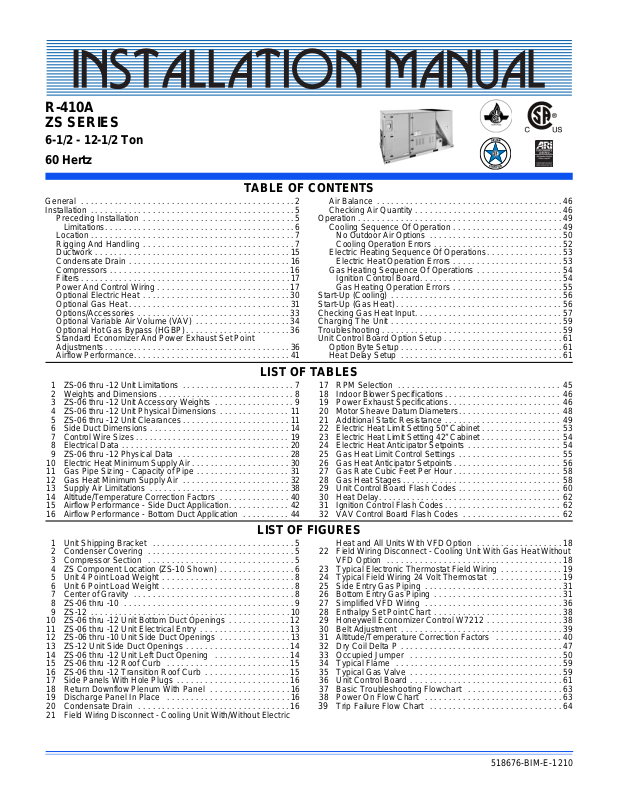

Johnson Controls r-410a User Manual

R-410A
ZS SERIES

6-1/2 - 12-1/2 Ton
60 Hertz

TABLE OF CONTENTS

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preceding Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Rigging And Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Ductwork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Condensate Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Compressors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Power And Control Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Optional Electric Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Optional Gas Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Options/Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Optional Variable Air Volume (VAV) . . . . . . . . . . . . . . . . . . . . 34

Optional Hot Gas Bypass (HGBP). . . . . . . . . . . . . . . . . . . . . . 36

Standard Economizer And Power Exhaust Set Point 

Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Airflow Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

LIST OF TABLES

1 ZS-06 thru -12 Unit Limitations . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3 ZS-06 thru -12 Unit Accessory Weights . . . . . . . . . . . . . . . . . 9

4 ZS-06 thru -12 Unit Physical Dimensions . . . . . . . . . . . . . . . 11

5 ZS-06 thru -12 Unit Clearances . . . . . . . . . . . . . . . . . . . . . . . 11

6 Side Duct Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7 Control Wire Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8 Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9 ZS-06 thru -12 Physical Data . . . . . . . . . . . . . . . . . . . . . . . . 28

10 Electric Heat Minimum Supply Air . . . . . . . . . . . . . . . . . . . . . 30

11 Gas Pipe Sizing - Capacity of Pipe . . . . . . . . . . . . . . . . . . . . 31

12 Gas Heat Minimum Supply Air . . . . . . . . . . . . . . . . . . . . . . . 32

13 Supply Air Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

14 Altitude/Temperature Correction Factors . . . . . . . . . . . . . . . 40

15 Airflow Performance - Side Duct Application . . . . . . . . . . . . . 42

16 Airflow Performance - Bottom Duct Application . . . . . . . . . . 44

LIST OF FIGURES

1 Unit Shipping Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Condenser Covering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3 Compressor Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

4 ZS Component Location (ZS-10 Shown) . . . . . . . . . . . . . . . . 6

5 Unit 4 Point Load Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6 Unit 6 Point Load Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Center of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

8 ZS-06 thru -10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

9 ZS-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

10 ZS-06 thru -12 Unit Bottom Duct Openings . . . . . . . . . . . . .12

11 ZS-06 thru -12 Unit Electrical Entry . . . . . . . . . . . . . . . . . . . 13

12 ZS-06 thru -10 Unit Side Duct Openings . . . . . . . . . . . . . . .13

13 ZS-12 Unit Side Duct Openings . . . . . . . . . . . . . . . . . . . . . .14

14 ZS-06 thru -12 Unit Left Duct Opening . . . . . . . . . . . . . . . . 14

15 ZS-06 thru -12 Roof Curb . . . . . . . . . . . . . . . . . . . . . . . . . .15

16 ZS-06 thru -12 Transition Roof Curb . . . . . . . . . . . . . . . . . . 15

17 Side Panels With Hole Plugs . . . . . . . . . . . . . . . . . . . . . . . . 16

18 Return Downflow Plenum With Panel . . . . . . . . . . . . . . . . . 16

19 Discharge Panel In Place . . . . . . . . . . . . . . . . . . . . . . . . . .16

20 Condensate Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

21 Field Wiring Disconnect - Cooling Unit With/Without Electri c

Air Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Checking Air Quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Cooling Sequence Of Operation . . . . . . . . . . . . . . . . . . . . . . . 49

No Outdoor Air Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Cooling Operation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Electric Heating Sequence Of Operations. . . . . . . . . . . . . . . . 53

Electric Heat Operation Errors . . . . . . . . . . . . . . . . . . . . . . . 53

Gas Heating Sequence Of Operations . . . . . . . . . . . . . . . . . . 54

Ignition Control Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Gas Heating Operation Errors . . . . . . . . . . . . . . . . . . . . . . . 55

Start-Up (Cooling) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Start-Up (Gas Heat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Checking Gas Heat Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Charging The Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Unit Control Board Option Setup . . . . . . . . . . . . . . . . . . . . . . . . . 61

Option Byte Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Heat Delay Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

17 RPM Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

18 Indoor Blower Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 46

19 Power Exhaust Specifications . . . . . . . . . . . . . . . . . . . . . . . . 46

20 Motor Sheave Datum Diameters . . . . . . . . . . . . . . . . . . . . . . 48

21 Additional Static Resistance . . . . . . . . . . . . . . . . . . . . . . . . . 49

22 Electric Heat Limit Setting 50” Cabinet . . . . . . . . . . . . . . . . . 53

23 Electric Heat Limit Setting 42” Cabinet . . . . . . . . . . . . . . . . . 54

24 Electric Heat Anticipator Setpoints . . . . . . . . . . . . . . . . . . . . 54

25 Gas Heat Limit Control Settings . . . . . . . . . . . . . . . . . . . . . . 55

26 Gas Heat Anticipator Setpoints . . . . . . . . . . . . . . . . . . . . . . . 56

27 Gas Rate Cubic Feet Per Hour . . . . . . . . . . . . . . . . . . . . . . . 58

28 Gas Heat Stages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

29 Unit Control Board Flash Codes . . . . . . . . . . . . . . . . . . . . . . 60

30 Heat Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

31 Ignition Control Flash Codes . . . . . . . . . . . . . . . . . . . . . . . . . 62

32 VAV Control Board Flash Codes . . . . . . . . . . . . . . . . . . . . . 62

Heat and All Units With VFD Option . . . . . . . . . . . . . . . . . . 18

22 Field Wiring Disconnect - Cooling Unit With Gas Heat Without

VFD Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

23 Typical Electronic Thermostat Field Wiring . . . . . . . . . . . . . 19

24 Typical Field Wiring 24 Volt Thermostat . . . . . . . . . . . . . . . 19

25 Side Entry Gas Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

26 Bottom Entry Gas Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

27 Simplified VFD Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

28 Enthalpy Set Point Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

29 Honeywell Economizer Control W7212 . . . . . . . . . . . . . . . . 38

30 Belt Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

31 Altitude/Temperature Correction Factors . . . . . . . . . . . . . . 40

32 Dry Coil Delta P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

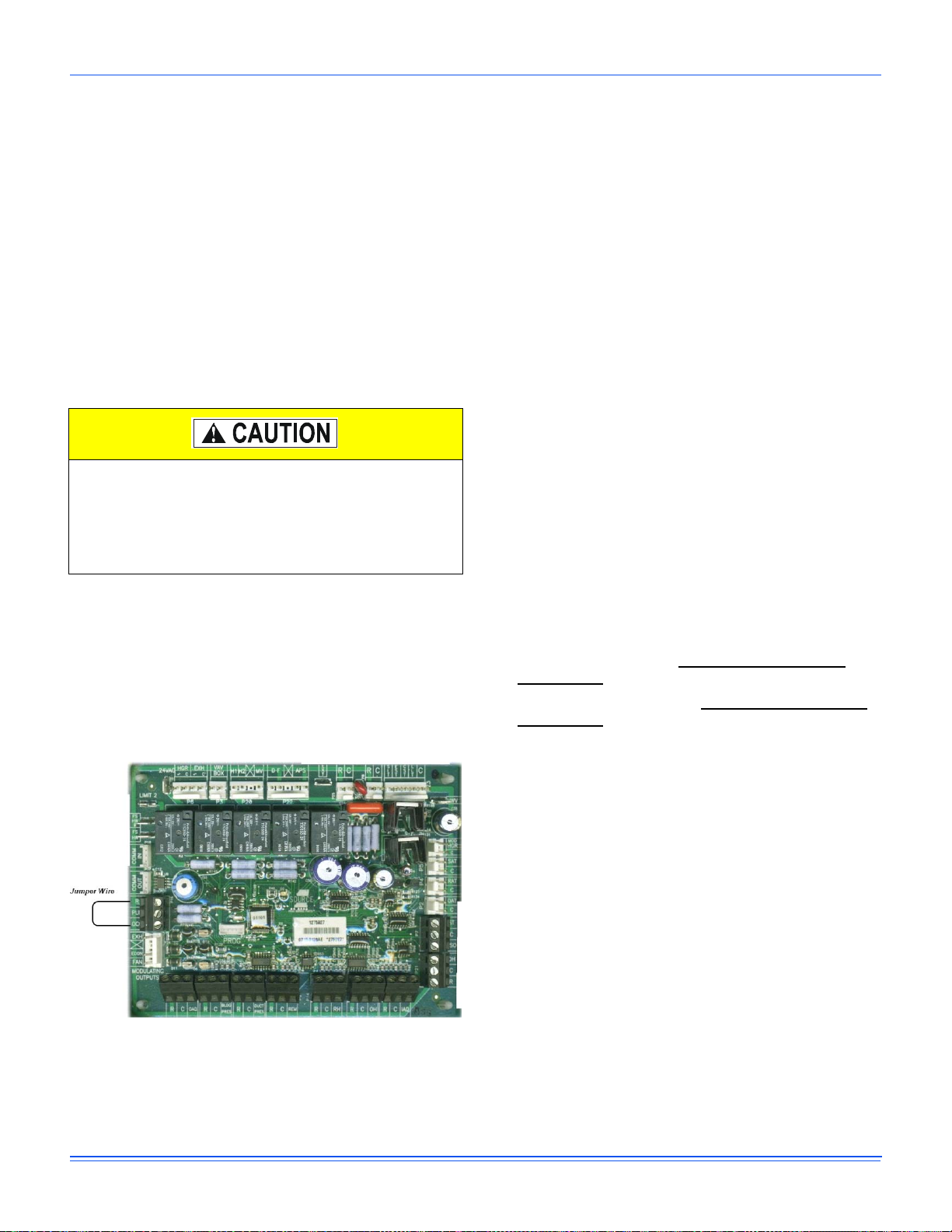

33 Occupied Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

34 Typical Flame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

35 Typical Gas Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

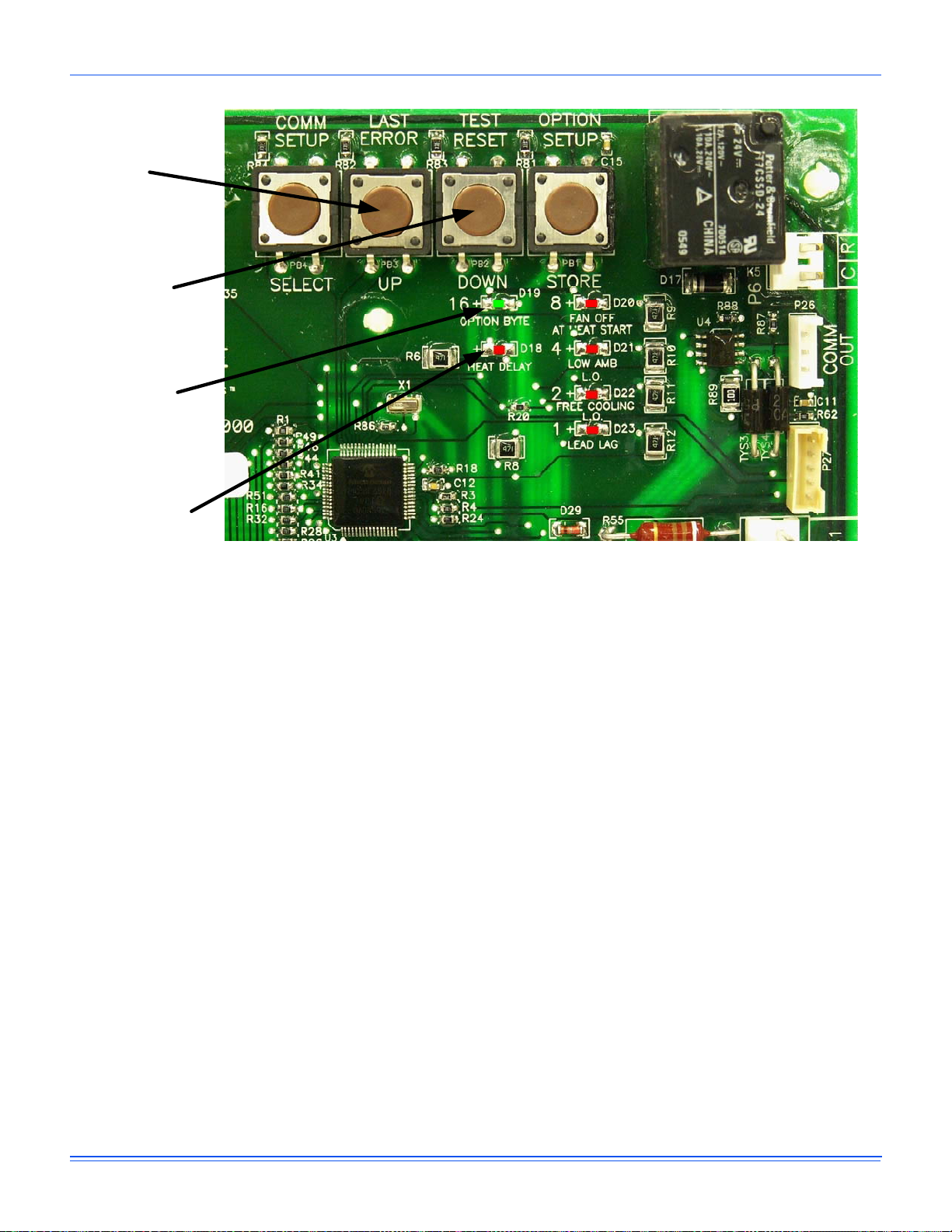

36 Unit Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

37 Basic Troubleshooting Flowchart . . . . . . . . . . . . . . . . . . . . 63

38 Power On Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

39 Trip Failure Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

518676-BIM-E-1210

518676-BIM-E-1210

General

UP ZS units are single package air conditioners with optional
gas heating designed for outdoor installation on a rooftop or
slab and for non-residential use. These units can be equipped
with factory or field installed electric heaters for heating
applications.

These units are completely assembled on rigid, permanently
attached base rails. All piping, refrigerant charge, and electrical
wiring is factory installed and tested. The units require electric
power, gas supply (where applicable), and duct connections.
The electric heaters have nickel-chrome elements and utilize
single-point power connection.

Before performing service or maintenance operations on
unit, turn off main power switch to unit. Electrical shock
could cause personal injury. Improper installation,
adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to this manual.
For assistance or additional information consult a
qualified installer, service agency or the gas supplier.

Safety Considerations

This is a safety alert symbol. When you see this symbol
on labels or in manuals, be alert to the potential for
personal injury.

This is a safety alert symbol. When you see this symbol on
labels or in manuals, be alert to the potential for personal injury.

Understand and pay particular attention the signal words

DANGER, WARNING or CAUTION.
DANGER indicates an imminently hazardous situation, which,

if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation, which,

if not avoided, could result in death or serious injury
CAUTION indicates a potentially hazardous situation, which, if

not avoided may result in minor or moderate injury
used to alert against unsafe practices and hazards involving
only property damage.

Improper installation may create a condition where the
operation of the product could cause personal injury or
property damage. Improper installation, adjustment,
alteration, service or maintenance can cause injury or
property damage. Refer to this manual for assistance or
for additional information, consult a qualified contractor,
installer or service agency.

This product must be installed in strict compliance with
the installation instructions and any applicable local,
state and national codes including, but not limited to
building, electrical, and mechanical codes.

.

. It is also

This system uses R-410A Refrigerant which operates at
higher pressures than R-22. No other refrigerant may be
used in this system. Gage sets, hoses, refrigerant
containers and recovery systems must be designed to
handle R-410A. If you are unsure, consult the equipment
manufacturer. Failure to use R-410A compatible servicing
equipment may result in property damage or injury.

If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage,
personal injury or loss of life.

Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:
a. Do not try to light any appliance.
b. Do not touch any electrical switch; do not use any

phone in your building.

c. Immediately call your gas su pplier from a neighbor’s

phone. Follow the gas supplier’s instructions.

d. If you cannot reach your gas supplier, call the fire

department.

Installation and service must be performed by a qualified
installer, service agency or the gas supplier.

Due to system pressure, moving parts, and electrical
components, installation and servicing of air conditioning
equipment can be hazardous. Only qualified, trained service
personnel should install, repair, or service this equipment.
Untrained personnel can perform basic maintenance functions
of cleaning coils and filters and replacing filters.

Observe all precautions in the literature, labels, and tags
accompanying the equipment whenever working on air
conditioning equipment. Be sure to follow all other applicable
safety precautions and codes including ANSI Z223.1 or CSA­B149.1- latest edition.

2 Johnson Controls Unitary Products

518676-BIM-E-1210

Wear safety glasses and work gloves. Use quenching cloth and
have a fire extinguisher available during brazing operations.

Inspection

As soon as a unit is received, it should be inspected for possible
damage during transit. If damage is evident, the extent of th e
damage should be noted on the carrier’s freight bill. A separate
request for inspection by the carrier’s agent should be made in
writing.

This product must be installed in strict compliance with
the enclosed installation instructions and any applicable
local, state and national codes including, but not limited
to, building, electrical, and mechanical codes.

The furnace and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing at pressures in excess of 1/2 PSIG.

Pressures greater than 1/2 PSIG will cause gas valve
damage resulting in a hazardous condition. If it is
subjected to a pressure greater than 1/2 PSIG, the gas
valve must be replaced.

The furnace must be isolated from the gas supply piping
system by closing its individual manual shut-off valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 PSIG

Reference

Additional information is available in the following reference
forms:

• Technical Guide - ZS-06 thru -12, 528197

• General Installation - ZS-06 thru -12, 518676

• Pre-start & Post-start Check List

• Economizer Accessory ­Downflow Factory Installed
Downflow Field Installed
Horizontal Field Installed

• Motorized Outdoor Air Damper

• Manual Outdoor Air Damper (0-100%)

• Manual Outdoor Air Damper (0-35%)

• Gas Heat Propane Conversion Kit

• Gas Heat High Altitude Kit (Natural Gas)

• Gas Heat High Altitude Kit (Propane)

• –60F Gas Heat Kit

• Electric Heater Accessory 50” cabinet

• Electric Heater Accessory 42” cabinet

Renewal Parts

Contact your local UP parts distribution center for authorized
replacement parts.

Approvals

Design certified by CSA as follows:

1. For use as a cooling only unit, cooling un it wi th
supplemental electric heat or a forced air furnace.

2. For outdoor installation only.

3. For installation on combustible material and may be
installed directly on combustible flooring or, in the U.S., on
wood flooring or Class A, Class B or Class C roof covering
materials.

4. For use with natural gas (convertible to LP w it h ki t).

This product must be installed in strict compliance with
the enclosed installation instructions and any applicable
local, state, and national codes including, but not limited
to, building, electrical, and mechanical codes.

Improper installation may create a condition where the
operation of the product could cause personal injury or
property damage.

This system uses R-410A Refrigerant which operates at
higher pressures than R-22. No other refrigerant may be
used in this system.

Johnson Controls Unitary Products 3

518676-BIM-E-1210

Z S -10 N18 A T A AA 5 0 1 2 4 A

Product Category

Z = A/C, Single Pkg., R-410A

A = Std. Motor

Airflow

B = Std. Motor/Econo./Barometric Relief (Downflow

Only)
C = Std. Motor/Econo./Power Exhaust (Downflow Only)
D = Std. Motor/Motorized Damper (Downflow Only)
E = Std. Motor/Horizontal Economizer (No Baro.)
F = Std. Motor/Slab Econo./Power Exhaust

(Downflow Only)
G = Std. Motor/Slab Econo./Barometric Relief

(Downflow Only)
N = Hi Static
P = Hi Static/Econo./Barometric Relief

(Downflow Only)
Q = Hi Static/Econo./Power Exhaust

(Downflow Only)
R = Hi Static/Motorized Damper (Downflow Only)
S = Hi Static/Horizontal Economizer (No Baro.)
T = Hi Static/Slab Econo./Power Exhaust

(Downflow Only)
U = Hi Static/Slab Econo./Barometric Relief

(Downflow only)

Product Generation

5 = Fifth Generation

C00 = Cooling Only. No heat installed

Heat Type and Nominal Heat Capacity

N12 = 120 MBH Input Aluminized Steel
N18 = 180 MBH Input Aluminized Steel
N24 = 240 MBH Input Aluminized Steel
S12 = 120 MBH Input Stainless Steel
S18 = 180 MBH Input Stainless Steel
S24 = 240 MBH Input Stainless Steel

E09 = 9 KW
E18 = 18 KW
E24 = 24 KW
E36 = 36 KW
E54 = 54 KW

Gas Heat Options

Electric Heat Options

-06 = 6.5 Ton

Nominal Cooling Capacity

-07 = 7.5 Ton

-08 = 8.5 Ton

-10 = 10.0 Ton

-12 = 12.5 Ton

Product Identifier

S = 11.2 + EER A/C

Voltage

T = 208/230-3-60
W = 460-3-60
X = 575-3-60

Product Style

A = Style A
B = Style B

A = No Options Installed

Installation Options

B = Option 1
C = Option 2
D = Options 1 & 2
E = Option 3
F = Option 4
G = Options 1 & 3
H = Options 1 & 4
J = Options 1, 2 & 3
K = Options 1, 2, & 4
L = Options 1,3 & 4
M = Options 1, 2, 3, & 4
N = Options 2 & 3
P = Options 2 & 4
Q = Options 2, 3, & 4
R = Options 3 & 4
S = Option 5
T = Options 1 & 5
U = Options 1, 3, & 5
V = Options 1, 4, & 5
W = Options 1, 3, 4, & 5
X = Options 3 &

5
Y = Options 4 & 5
Z = Options 3, 4 & 5

1 = Disconnect
2 = Non-Pwr'd Conv. Outlet
3 = Smoke Detector S.A.
4 = Smoke Detector R.A.
5 = Pwr'd Conv. Outlet

Options

AA = None
AB = Phase Monitor
AC = Coil Guard
AD = Dirty Filter Switch
AE = Phase Monitor & Coil Guard
AF = Phase Monitor & Dirty Filter Switch
AG = Coil Guard & Dirty Filter Switch
AH = Phase Monitor, Coil Guard & Dirty Filter Switch

Additional Options

TA = Technicoat Condenser Coil
TJ = Technicoat Evaporator Coil
TS = Technicoat Evaporator & Condenser Coils

6.5-12.5 Ton Single Package Model Number Nomenclature

ZZ = If desired option combination is not listed above, ZZ will be assigned and configuration options will be

located in digits 15-18.

SS Drain Pan

Configuration Options (not required for all units)

These four digits will not be assigned until a quote is requested, or an order placed.

CPC Controller, DFS, APS

Johnson Controller UNT 1126 (N2 protocol), DFS, APS

Honeywell Controller, DFS, APS

Novar Controller, DFS, APS

Simplicity IntelliComfort Controller

Simplicity IntelliComfort Controller w/Simplicity®LINC

2" Pleated filters

BAS Ready Economizer (2-10 V.D.C. Actuator without a Controller)

Shipping Bag

Hot Gas Bypass (Standard on VAV, Optional on CV)

Variable Air Volume, VFD (not available with factory installed BAS options)

Variable Air Volume, VFD with Simplicity®LINC (not available with factory installed BAS options)

Variable Air Volume, VFD (BAS ready)

Variable Air Volume, VFD and Manual Bypass (BAS ready)

Variable Air Volume, VFD Ready (for customer-provided, field-installed drive)

Variable Air Volume, VFD Ready with Simplicity®LINC
(for customer-provided, field-installed drive)

Variable Air Volume, VFD and Manual Bypass with Simplicity®LINC
(not available with factory installed BAS options)

Variable Air Volume, VFD and Manual Bypass
(not available with factory installed BAS options)

Any Combination of Additional Options that Don’t Have an Option Code Pre-assigned

4" Pleated filters

Nomenclature

4 Johnson Controls Unitary Products

518676-BIM-E-1210

Bracket
Screws

Turn down

Condenser
Coil External
Protective
Covering

Barometric
Relief Hood
in Shipping
Location
(if Included)

Toolless
Doorknobs

Installation
Instruction
Packet

Installation

Installation Safety Information

Read these instructions before continuing this appliance
installation. This is an outdoor combination heating and cooling
unit. The installer must assure that these instructions are made
available to the consumer and with instructions to retain them
for future reference.

1. Refer to the unit rating plate for the approved type of gas
for this product.

2. Install this unit only in a location and position as specified
on Page 7 of these instructions.

3. Never test for gas leaks with an open flame. Use
commercially available soap solution made specifically for
the detection of leaks when checking all connections, as
specified on Pages 5, 32, 33 and 57 of these instructions.

4. Always install furnace to operate within the furnace's
intended temperature-rise range with the duct system and
within the allowable external static pressure range, as
specified on the unit name/rating plate, specified on
Page 59 of these instructions.

5. This equipment is not to be used for temporary heating of
buildings or structures under construction.

3. Remove the condenser coil external protective covering
prior to operation.

4. Remove the toolless doorknobs and instruction packet
prior to installation.

Figure 2: Condenser Covering

Preceding Installation

1. Remove the two screws holding the brackets in the front,

Figure 1: Unit Shipping Bracket

2. Turn each bracket toward the ground and the protective

Johnson Controls Unitary Products 5

FIRE OR EXPLOSION HAZARD
Failure to follow the safety warning exactly could result

in serious injury, death or property damage.
Never test for gas leaks with an open flame. use a

commercially available soap solution made specifically
for the detection of leaks to check all connections. A fire
or explosion may result causing property damage,
personal injury or loss of life.

rear and compressor side fork-lift slots.

plywood covering will drop to the ground.

Figure 3: Compressor Section

5. If a factory option convenience outlet is installed, the
weatherproof outlet cover must be field installed. The cover
shall be located behind the filter access panel. To install
the cover, remove the shipping label covering the
convenience outlet, follow the instructions on the back of
the weatherproof cover box, and attach the cover to the
unit using the (4) screws provided.

208/230-3-60 and 380/415-3-50 units with factory
installed Powered Convenience Outlet Option are wired
for 230v and 415v power supply respectively. Change
Tap on transformer for 208-3-60 or 380 -3-50 operation.
See unit wiring diagram.

518676-BIM-E-1210

Roof curbs in eight- and
fourteen-inch heights. Roof
curbs for transitioning from
DHB/DUC/HC/DUS footprint to
the ZS Series footprints are
also available (field-installed
accessory)

Base rails w/forklift
slots (three sides)
and lifting holes

Compressor #2
access (high­efficiency
compressor
w/crankcase
heater)

Dual stage
cooling for
maximum
comfort

Second model
nameplate
inside hinged
access panel

Terminal block for
hi-voltage connection

Simplicity® control board
w/screw connector for T-stat
wiring and network connections

Disconnect location
(optional disconnect switch)

Filter drier
(solid core)

Slide-out motor and
blower assembly for
easy adjustment
and service

Belt-drive
blower motor

Power ventor motor

20-gauge alumi­nized steel tubular
heat exchanger for
long life (stainless
steel option)

Two-s

tage gas
heating to maintain
warm, comfortable
temperature

Intelligent control
board for safe and
efficient operation

Compressor #1 access
(high-efficiency compressor
w/crankcase heater)

Toolless
door latch

Side entry power
and control wiring
knockouts

VFD Location (Optional)

Filter access
(2” or 4” Filter Options)

Micro-Channel Aluminum Tube
Aluminum Fin Condenser

Slide-out drain pan
with 3/4” NPT,
female connection

Limitations

These units must be installed in accordance with the following:
In U.S.A.:

1. National Electrical Code, ANSI/NFPA No. 70 - Latest
Edition

2. National Fuel Gas Code, ANSI Z223.1 - Latest Edition

3. Gas-Fired Central Furnace Standard, ANSI Z21.47a. ­Latest Edition

4. Local building codes, and

5. Local gas utility requirements

In Canada:

1. Canadian Electrical Code, CSA C22.1

2. Installation Codes, CSA - B149.1.

3. Local plumbing and waste water codes, and

4. Other applicable local codes.

Refer to unit application data found in this document.
After installation, gas fired units must be adjusted to obtain a

temperature rise within the range specified on the unit rating
plate.

If components are to be added to a unit to meet local codes,
they are to be installed at the dealer’s and/or customer’s
expense.

Size of unit for proposed installation should be based on heat
loss/heat gain calculation made according to the methods of Air
Conditioning Contractors of America (ACCA).

This furnace is not to be used for temporary heating of buildings
or structures under construction.

The Simplicity® control board used in this product will
effectively operate the cooling system down to 0°F when
this product is applied in a comfort cooling application
for people. An economizer is typically included in this
type of application. When applying this product for
process cooling applications (computer rooms,
switchgear, etc.), please reference applications bulletin
AE-011-07 or call the applications department for
Unitary Products @ 1-877-UPG-SERV for guidance.
Additional accessories may be needed for stable
operation at temperatures below 30° F.

Figure 4: ZS Component Location (ZS-10 Shown )

6 Johnson Controls Unitary Products

Table 1: ZS-06 thru -12 Unit Limitations

518676-BIM-E-1210

Size

(Tons)

-06

(6.5)

-07

(7.5)

-08

(8.5)

-10

(10)

-12

(12.5)

Model Unit Voltage

208/230-3-60 187 252 125

ZS

ZS

ZS

ZS

ZS

460-3-60 432 504 125
575-3-60 540 630 125

208/230-3-60 187 252 125

460-3-60 432 504 125
575-3-60 540 630 125

208/230-3-60 187 252 125

460-3-60 432 504 125
575-3-60 540 630 125

208/230-3-60 187 252 125

460-3-60 432 504 125
575-3-60 540 630 125

208/230-3-60 187 252 125

460-3-60 432 504 125
575-3-60 540 630 125

Location

Use the following guidelines to select a suitable location for
these units:

1. Unit is designed for outdoor installation only.

2. Condenser coils must have an unlimited supply of air.
Where a choice of location is possible, position the unit on
either north or east side of building.

3. Suitable for mounting on roof curb.

4. For ground level installation, use a level concrete slab with
a minimum thickness of 4 inches. The length and width
should be at least 6 inches greater than the unit base rails.
Do not tie slab to the building foundation.

5. Roof structures must be able to support the weight of the
unit and its options/accessories. Unit must be installed on a
solid, level roof curb or appropriate angle iron frame.

6. Maintain level tolerance to 1/2” across the entire width and
length of unit.

Unit Limitations

Applied Voltage Outdoor DB Temp

Min Max Max (°F)

Clearances

All units require particular clearances for proper operation and
service. Installer must make provisions for adequate
combustion and ventilation air in accordance with section 5.3 of
Air for Combustion and Ventilation of the National Fuel Gas
Code, ANSI Z223.1 – Latest Edition (in U.S.A.), or Sections 7.2,

7.3, or 7.4 of Gas Installation Codes, CSA-B149.1 (in Canada) ­Latest Edition, and/or applicable provisions of the local building
codes. Refer to Table 5 for clearances required for combustible
construction, servicing, and proper unit operation.

Do not permit overhanging structures or shrubs to
obstruct condenser air discharge outlet, combustion air
inlet or vent outlets.

Rigging And Handling

Exercise care when moving the unit. Do not remove any
packaging until the unit is near the place of installation. Rig the
unit by attaching chain or cable slings to the lifting holes

Excessive exposure of this furnace to contaminated
combustion air may result in equipment damage or
personal injury. Typical contaminates include:

provided in the base rails. Spreader bars, whose length
exceeds the largest dimension across the unit, MUST be used
across the top of the unit.

permanent wave solution, chlorinated waxes and
cleaners, chlorine based swimming pool chemicals,
water softening chemicals, carbon tetrachloride,
Halogen type refrigerants, cleaning solvents (e.g.
perchloroethylene), printing inks, paint removers,
varnishes, hydrochloric acid, cements and glues,
antistatic fabric softeners for clothes dryers, masonry

If a unit is to be installed on a roof curb other than a UP
roof curb, gasketing must be applied to all surfaces that
come in contact with the unit underside.

acid washing materials.

Johnson Controls Unitary Products 7

518676-BIM-E-1210

D

A

CB

LEFT

FRONT

D

A

C

B

E

F

LEFT

FRONT

X

Y

LEFT

FRONT

Before lifting, make sure the unit weight is distributed
equally on the rigging cables so it will lift evenly.

Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.

LENGTH OF FORKS MUST BE A MINIMUM OF 60 INCHES.

All panels must be secured in place when the unit is
lifted.

The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.

Figure 6: Unit 6 Point Load Weight

Figure 5: Unit 4 Point Load Weight
Table 2: Weights and Dimensions

Size

(Tons)

-06

(6.5)

-07

(7.5)

-08

(8.5)

-10

(10)

-12

(12.5)

Model

ZS 865 860 38 24 200 149 218 292 140 114 95 138 167 205

ZS 885 860 38 24 205 153 223 299 144 117 97 142 171 210

ZS 1025 1020 38 24 238 177 258 347 167 136 113 164 198 243

ZS 1065 1060 38 24 247 184 268 360 173 141 117 171 206 253

ZS 1258 1253 47 25 251 280 381 341 164 176 190 259 240 223

Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)

ShippingOperatingX Y ABCDABCDEF

Figure 7: Center of Gravity

8 Johnson Controls Unitary Products

Table 3: ZS-06 thru -12 Unit Accessory Weights

Ø 24.47 TYP. 2 PL.

15.38

15.38

59.00

15.25

29.69

59

LEFT

11 3/8

21 3/16

89

27 5/16

4 3/16

FRONT

See detail A for gas inlet

A

See detail B for drain location

B

C

D

E

F

Unit Accessory

Economizer 90 85

Power Exhaust 40 35

Electric Heat

Gas Heat

Variable Frequency Drive

1

2

3

1. Weight given is for the maximum heater size available
(54KW).

2. Weight given is for the maximum number of tube heat
exchangers available (8 tube).

3. Weight includes mounting hardware, controls and manual
bypass option.

Weight (lbs.)

Shipping Operating

49 49

110 110

30 30

518676-BIM-E-1210

Figure 8: ZS-06 thru -10

Johnson Controls Unitary Products 9

518676-BIM-E-1210

FRONT

See detail B for drain location

See detail A for gas inlet

C

D

E

F

B

4 3/16

27 5/16

89

21 3/16

11 3/8

A

LEFT

59

14.92

58.09

14.92

14.92

29.95

30.11

45.64

Ø 24.47 TYP. 4 PL.

Figure 9: ZS-12

10 Johnson Controls Unitary Products

Table 4: ZS-06 thru -12 Unit Physical Dimensions

42” CABINET

Ø 3.126

Ø 2.000

3.184

4.727

7.705

14.594

Gas Pipe Inlet

Gas Exhaust Vent

50 3/4” CABINET

Ø 3.126

Ø 2.000

3.184

4.737

7.715

17.541

Gas Pipe Inlet

Gas Exhaust Vent

3/4” FPT

Unit Model Number

ZS-06 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZS-07 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZS-08 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZS-10 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZS-12 50 3/4 119 1/2 30 3/16 24 3/16 17 3/16 6 3/16

ABCDEF

Detail A

518676-BIM-E-1210

Dimension (in.)

Detail B

Table 5: ZS-06 thru -12 Unit Clearances

5-3/8

Direction Distance (in.) Direction Distance (in.)

Top

1

72 Right 12
Front 36 Left 36
Rear 36 Bottom

1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air discharge outlet.

2. Units may be installed on combustable floors made from wood or class A, B or C roof covering materials.

2

0

Johnson Controls Unitary Products 11

518676-BIM-E-1210

Bottom power, control

and convenience outlet

wiring entry

Bottom condensate drain

Bottom gas
supply entry

FRONT

RETURN

AIR

SUPPLY

AIR

RIGHT

LEFT

20 1/8

19 1/8

17 1/8

6 13/16

6 13/16

32 11/16

14 1/2

16 3/8

18 1/16

25 9/16

12 5/16

27 1/2

24

21

18

89

Ø 2.469

3X Ø 0.875

TOP VIEW

Figure 10: ZS-06 thru -12 Unit Bottom Duct Openings

12 Johnson Controls Unitary Products

Figure 11: ZS-06 thru -12 Unit Electrical Entry

Disconnect Swith Cover

Power Entry Ø 2-1/2

Control Entry Ø 7/8

Power Entry Ø 2-1/2

Convenience Outlet Cover

Convenience Outlet
Power Entry Ø 7/8

FRONT

Dot Plugs

5-5/32

31-11/16

2-31/32

18-1/4

Return

Air

Supply

Air

A

B

C

D

518676-BIM-E-1210

Figure 12: ZS-06 thru -10 Unit Side Duct Openings

Johnson Controls Unitary Products 13

518676-BIM-E-1210

Dot Plugs

2-7/8

5-5/32

D

C

31-5/8

18-1/4

B

A

4-5/16

30-3/8

Figure 13: ZS-12 Unit Side Duct Openings
Table 6: Side Duct Dimensions

Unit Model Number

ZS-06 27 3/4 12 1/16 27 1/2 16
ZS-07 27 3/4 12 1/16 27 1/2 16
ZS-08 28 1/4 18 1/16 28 1/4 18 1/4
ZS-10 28 1/4 18 1/16 28 1/4 18 1/4
ZS-12 28 1/4 18 1/16 28 1/4 18 1/4

ABCD

Dimension (in.)

Figure 14: ZS-06 thru -12 Unit Left Duct Opening

14 Johnson Controls Unitary Products

RIGHT

518676-BIM-E-1210

20

2 TYP.

30

50-1/2

Figure 15: ZS-06 thru -12 Roof Curb

6

80-5/8

50-1/2

20

RETURN

30-1/2

SUPPLY

8 or 14

2TYP

INSULATED DECK UNDER

COMPRESSOR SECTION

FRONT

4

23

INSULATED DECK UNDER

CONDENSER SECTION

RETURN

76-5/8

94

FRONT

Figure 16: ZS-06 thru -12 Transition Roof Curb

Ductwork

Ductwork should be designed and sized according to the
methods in Manual D of the Air Conditioning Contractors of
America (ACCA) or as recommended by any other recognized
authority such as ASHRAE or SMACNA.

A closed return duct system should be used. This will not
preclude use of economizers or outdoor fresh air intake. The

59-1/4

64-1/4

80-5/8

10

RIGHT

26

SUPPLY

supply and return air duct connections at the unit should be
made with flexible joints to minimize noise.

The supply and return air duct systems should be designed for
the CFM and static pressure requirements of the job. They
should NOT be sized to match the dimensions of the duct
connections on the unit.

Refer to Figure 10 for bottom air duct openings. Refer to
Figures 12, 13 and Table 6 for side air duct openings.

Johnson Controls Unitary Products 15

518676-BIM-E-1210

OPTIONAL COIL

GUARD

3" Minimum

Duct Covers

Units are shipped with the side duct openings covered and a
covering over the bottom of the unit. For bottom duct
application, no duct cover changes are necessary. For side
duct application, remove the side duct covers and install over
the bottom duct openings. The panels removed from the side
duct connections are designed to be reused by securing each
panel to its respective downflow opening. But keep in mind that
the supply panel is installed with the painted surface UP, facing
the heat exchanger, while the return panel is installed with the
painted surface DOWN, facing the downflow duct opening. The
supply panel is secured with the bracket (already in place from
the factory) and two screws. It’s a snug fit for the panel when
sliding it between the heat exchanger and unit bottom, but there
is room. The return panel is secured with four screws.

When fastening ductwork to side duct flanges on unit,
insert screws through duct flanges only. DO NOT insert
screws through casing. Outdoor ductwork must be
insulated and water-proofed.

Figure 19: Discharge Panel In Place

Condensate Drain

The side condensate drain is reversible and maybe re-oriented to
the rear of the cabinet to facilitate condensate piping. A
condensate drain connection is available through the base pan
for piping inside the roof curb. Trap the connection per Figure 20.
The trap and drain lines should be protected from freezing.

Plumbing must conform to local codes. Use a sealing compound
on male pipe threads. Install condensate drain line from the 3/4
inch NPT female connection on the unit to an open drain.

Figure 17: Side Panels With Hole Plugs
NOTE: Orientation. Panel is “insulation” side up.

Figure 20: Condensate Drain

Compressors

The scroll compressor used in this product is specifically
designed to operate with R-410A Refrigerant and cannot be
interchanged.

This system uses R-410A Refrigerant which operates at
higher pressures than R-22. No other refrigerant may be

Figure 18: Return Downflow Plenum With Panel

16 Johnson Controls Unitary Products

used in this system.

The compressor also uses a polyolester (POE oil), Mobil 3MA
POE. This oil is extremely hygroscopic, meaning it absorbs water
readily. POE oil can absorb 15 times as much water as other oils
designed for HCFC and CFC refrigerants. Take all necessary
precautions to avoid exposure of the oil to the atmosphere.

Do not leave the system open to the atmosphere. Unit
damage could occur due to moisture being absorbed by
the POE oil in the system. This type of oil is highly
susceptible to moisture absorption

POE (polyolester) compressor lubricants are known to cause
long term damage to some synthetic roofing materials.

Exposure, even if immediately cleaned up, may cause
embrittlement (leading to cracking) to occur in one year
or more. When performing any service that may risk
exposure of compressor oil to the roof, take precautions
to protect roofing.

Procedures which risk oil leakage include, but are not limited to,
compressor replacement, repairing refrigerant leaks, replacing
refrigerant components such as filter drier, pressure switch,
metering device or coil.

518676-BIM-E-1210

Voltage tolerances which must be maintained at the
compressor terminals during starting and running conditions are
indicated on the unit Rating Plate and Table 1.

208/230-3-60 and 380/415-3-50 units control
transformers are factory wired for 230v and 415v power
supply respectively. Change tap on transformer for 208­3-60 or 380-3-50 operation. See unit wiring diagram.

The internal wiring harnesses furnished with this unit are an
integral part of the design certified unit. Field alteration to
comply with electrical codes should not be required. If any of
the wire supplied with the unit must be replaced, replacement
wire must be of the type shown on the wiring diagram and the
same minimum gauge as the replaced wire.

A disconnect must be utilized for these units. Factory installed
disconnects are available. If installing a disconnect (field
supplied or Unitary Products supplied accessory), refer to
Figure 4 for the recommended mounting location.

Units are shipped with compressor mountings which are
factory-adjusted and ready for operation.

Do not loosen compressor mounting bolts.

Filters

Two-inch filters are supplied with each unit. One-inch filters may
be used with no modification to the filter racks. Filters must
always be installed ahead of evaporator coil and must be kept
clean or replaced with same size and type. Dirty filters reduce
the capacity of the unit and result in frosted coils or safety
shutdown. Refer to physical data tables, for the number and
size of filters needed for the unit. The unit should not be
operated without filters properly installed.

Make sure that panel latches are properly positioned on
the unit to maintain an airtight seal.

Power And Control Wiring

Field wiring to the unit, fuses, and disconnects must conform to
provisions of National Electrical Code (NEC), ANSI/NFPA No.
70 – Latest Edition (in U.S.A.), current Canadian Electrical
Code C221, and/or local ordinances. The unit must be
electrically grounded in accordance with NEC and CEC as
specified above and/or local codes.

Avoid damage to internal components if drilling holes for
disconnect mounting.

NOTE: Since not all local codes allow the mounting of a

disconnect on the unit, please confirm compliance with
local code before mounting a disconnect on the unit.

Electrical line must be sized properly to carry the load. USE
COPPER CONDUCTORS ONLY. Each unit must be wired with
a separate branch circuit fed directly from the meter panel and
properly fused.

Refer to Figures 21, 22, 23 and 24 for typical field wiring and to
the appropriate unit wiring diagram mounted inside control
doors for control circuit and power wiring information.

When connecting electrical power and control wiring to
the unit, water-proof connectors must be used so that
water or moisture cannot be drawn into the unit during
normal operation. The above water-proofing conditions
will also apply when installing a field supplied disconnect
switch.

Power Wiring Detail

Units are factory wired for the voltage shown on the unit
nameplate. Refer to Electrical Data Table 8 to size power
wiring, fuses, and disconnect switch.

Johnson Controls Unitary Products 17

518676-BIM-E-1210

THREE

PHASE
POWER
SUPPLY

FACTORY OR FIELD

SUPPLIED DISCONNECT

GROUND

LUG

TERMINAL BLOCK TB1

L1

T1

L2

T2

T3

L3

THREE

PHASE
POWER

SUPPLY

FACTORY OR FIELD

SUPPLIED DISCONNECT

GROUND

LUG

CONTACTOR 1M

Power wiring is brought into the unit through the side of the unit
or the basepan inside the curb.

Figure 21: Field Wiring Disconnect - Cooling Unit With/Without Electric Heat and All Units With VFD Option

Figure 22: Field Wiring Disconnect - Cooling Unit With Gas Heat Without VFD Option

18 Johnson Controls Unitary Products

518676-BIM-E-1210

208/230-3-60 and 380/415-3-50 units control
transformers are factory wired for 230v and 415v power
supply respectively. Change tap on transformer for 208­3-60 or 380-3-50 operation. See unit wiring diagram.

W2

RC

RH

Y1

Y2

W1

G

C

X1

X3

X4

A1

A2

T

T

W2

Y1

Y2

W1

G

C

OCC

X

R

2

TO REMOTE SENSOR
2ET04701324 IF USED

24 Volt

Transformer

THERMOSTAT

1

TERMINALS

UNIT TERMINALS

STRIP TB1

1

Electronic programmable Thermostat 2ET0770010024 (includes subbase).

2

Terminals A1 and A2 provide a relay output to close the outdoor economizer

dampers when the thermostat switches to the set-back position.

OCC

W1

W2

Y1

G

Y2

X

R

SD

C

REMOTE

MIN POS

W1

W2

Y1

G

Y2

C

RH

RC

UNIT CONTROL

BOARD

T-S TAT

Thermostat Wiring (Not applicable to units with VFD)

The thermostat should be located on an inside wall
approximately 56 inch above the floor where it will not be
subject to drafts, sun exposure or heat from electrical fixtures or
appliances. Follow the manufacturer's instructions enclosed
with thermostat for general installation procedure. Seven (7)
color-coded, insulated wires should be used to connect the

thermostat to the unit. Refer to Table 7 for control wire sizing
and maximum length.

Table 7: Control Wire Sizes

Wire Size Maximum Length

18 AWG 150 Feet

1. From the unit to the thermostat and back to the unit.

1

Figure 23: Typical Electronic Thermostat Field Wiring

Figure 24: Typical Field Wiring 24 Volt Thermostat

Johnson Controls Unitary Products 19

518676-BIM-E-1210

Table 8: Electrical Data
ZS-06 thru -12 Standard Motor - Without Powered Convenience Outlet

OD Fan

Motors

(each)

Size

(Tons)

Volt

Compressors

(each)

RLA LRA MCC FLA FLA FLA FLA Model kW Stages Amps

208 9.3 68 14.5 1.5 6.0 5.5 0

230 9.3 68 14.5 1.5 6.0 5.5 0

-06

(6.5)

460 4.9 34 7.7 0.8 3.0 2.2 0

575 3.8 28 6 0.6 2.4 1.8 0

208 11.9 88 18.5 3.5 6.0 5.5 0

230 11.9 88 18.5 3.5 6.0 5.5 0

-07

(7.5)

460 5.2 44 8.1 1.6 3.0 2.2 0

575 4.8 36 7.5 1.3 2.4 1.8 0

208 12.2 88 19 3.5 6.8 5.5 0

230 12.2 88 19 3.5 6.8 5.5 0

-08

(8.5)

460 5.8 44 9 1.6 3.4 2.2 0

575 4.4 36 5.5 1.3 2.7 1.8 0

Supply
Blower

Motor

Pwr
Exh

Motor

Pwr

Conv

Outlet

Electric Heat Option

None---29.935.435 40

E09 6.8 1 18.9 31.1 38 35 40
E18 13.5 2 37.5 54.3 61.2 60 70
E24 18 2 50.0 70 76.8 70 80
E36 25.5 2 70.8 96 102.9 100 110

None---29.935.435 40

E09 9 1 21.7 34.6 41.4 35 45
E18 18 2 43.3 61.6 68.5 70 70
E24 24 2 57.7 79.7 86.5 80 90
E36 34 2 81.8 109.7 116.6 110 125

None---15.617.820 20

E09 9 1 10.8 17.3 20 20 20
E18 18 2 21.7 30.8 33.6 35 35
E24 24 2 28.9 39.8 42.6 40 45
E36 34 2 40.9 54.9 57.6 60 60

None---12.214 15 15

E09 9 1 8.7 13.8 16.1 15 20
E18 18 2 17.3 24.7 26.9 25 30
E24 24 2 23.1 31.9 34.1 35 35
E36 34 2 32.7 43.9 46.1 45 50

None---39.845.350 50

E09 6.8 1 18.9 39.8 45.3 50 50
E18 13.5 2 37.5 54.3 61.2 60 70
E24 18 2 50.0 70 76.8 70 80
E36 25.5 2 70.8 96 102.9 100 110

None---39.845.350 50

E09 9 1 21.7 39.8 45.3 50 50
E18 18 2 43.3 61.6 68.5 70 70
E24 24 2 57.7 79.7 86.5 80 90
E36 34 2 81.8 109.7 116.6 110 125

None---17.920.120 25

E09 9 1 10.8 17.9 20.1 20 25
E18 18 2 21.7 30.8 33.6 35 35
E24 24 2 28.9 39.8 42.6 40 45
E36 34 2 40.9 54.9 57.6 60 60

None---15.817.620 20

E09 9 1 8.7 15.8 17.6 20 20
E18 18 2 17.3 24.7 26.9 25 30
E24 24 2 23.1 31.9 34.1 35 35
E36 34 2 32.7 43.9 46.1 45 50

None---41.346.850 50

E09 6.8 1 18.9 41.3 46.8 50 50
E18 13.5 2 37.5 55.3 62.2 60 70
E24 18 2 50.0 71 77.8 80 80
E36 25.5 2 70.8 97 103.9 100 110

None---41.346.850 50

E09 9 1 21.7 41.3 46.8 50 50
E18 18 2 43.3 62.6 69.5 70 70
E24 24 2 57.7 80.7 87.5 90 90
E36 34 2 81.8 110.7 117.6 125 125

None---19.721.925 25

E09 9 1 10.8 19.7 21.9 25 25
E18 18 2 21.7 31.3 34.1 35 35
E24 24 2 28.9 40.3 43.1 45 45
E36 34 2 40.9 55.4 58.1 60 60

None---15.217 20 20

E09 9 1 8.7 15.2 17 20 20
E18 18 2 17.3 25 27.3 25 30
E24 24 2 23.1 32.2 34.5 35 35
E36 34 2 32.7 44.3 46.5 45 50

MCA

(Amps)

1

Max Fuse

MCA

1

w/Pwr

(Amps)

Exh

Breaker

(Amps)

Size

Max Fuse

2

/

3

Breaker

Size w/

Pwr Exh

(Amps)

2

/

3

20 Johnson Controls Unitary Products

ZS-06 thru -12 Standard Motor - Without Powered Convenience Outlet (Continued)

Compressors

Size

Volt

(Tons)

208 13.9 110 21.7 3.5 6.8 5.5 0

230 13.9 110 21.7 3.5 6.8 5.5 0

-10

(10)

460 7.4 55 11.5 1.6 3.4 2.2 0

575 5.6 43 8.7 1.3 2.7 1.8 0

208 23.1 160 36 3.5 9.6 5.5 0

230 23.1 160 36 3.5 9.6 5.5 0

-12

(12.5)

460 12.2 87 19 1.6 4.8 2.2 0

575 8.7 62 13.5 1.3 3.9 1.8 0

(each)

RLA LRA MCC FLA FLA FLA FLA Model kW Stages Amps

OD Fan

Motors

(each)

1. Minimum Circuit Ampacity.

2. Dual Element, Time Delay Type.

3. HACR type per NEC.

Supply
Blower

Motor

Pwr
Exh

Motor

Pwr

Conv

Outlet

Electric Heat Option

None---45.150.650 60

E18 13.5 2 37.5 55.3 62.2 60 70
E24 18 2 50.0 71 77.8 80 80
E36 25.5 2 70.8 97 103.9 100 110
E54 40.6 2 112.7 149.4 156.2 150 175

None---45.150.650 60

E18 18 2 43.3 62.6 69.5 70 70
E24 24 2 57.7 80.7 87.5 90 90
E36 34 2 81.8 110.7 117.6 125 125
E54 54 2 129.9 138.4 145.3 150 175

None---23.325.530 30

E18 18 2 21.7 31.3 34.1 35 35
E24 24 2 28.9 40.3 43.1 45 45
E36 34 2 40.9 55.4 58.1 60 60
E54 54 2 65.0 69.2 72 80 80

None---17.919.720 25

E18 18 2 17.3 25 27.3 25 30
E24 24 2 23.1 32.2 34.5 35 35
E36 34 2 32.7 44.3 46.5 45 50
E54 54 2 52.0 55.3 57.6 60 60

None - - - 75.6 81.1 90 100

E18 13.5 2 37.5 75.6 81.1 90 100
E24 18 2 50.0 75.6 81.3 90 100
E36 25.5 2 70.8 100.5 107.4 110 110
E54 40.6 2 112.7 152.9 159.7 175 175

None - - - 75.6 81.1 90 100

E18 18 2 43.3 75.6 81.1 90 100
E24 24 2 57.7 84.2 91.0 90 100
E36 34 2 81.8 114.2 121.1 125 125
E54 54 2 129.9 141.9 148.8 175 175

None---38.740.950 50

E18 18 2 21.7 38.7 40.9 50 50
E24 24 2 28.9 42.1 44.8 50 50
E36 34 2 40.9 57.1 59.9 60 60
E54 54 2 65.0 71.0 73.7 80 80

None---28.730.535 35

E18 18 2 17.3 28.7 30.5 35 35
E24 24 2 23.1 33.7 36.0 35 40
E36 34 2 32.7 45.8 48.0 50 50
E54 54 2 52.0 56.8 59.1 70 70

MCA

(Amps)

518676-BIM-E-1210

1

MCA
w/Pwr

Exh

Max Fuse

Breaker

(Amps)

1

(Amps)

Size

Max Fuse

2

/

3

Breaker

Size w/

Pwr Exh

(Amps)

2

/

3
