Page 1
Master Catalog 125
Pressure Controls Section P
Installation Bulletin P100
Issue Date 0201
I
NSTALLATION BULLETIN
P100 Series Encapsulated Pressure Controls
A high pressure manual reset lockout is available on
some models. See Figures 1, 2 and 3, and refer to
Table 1 for standard models available from your
Johnson Controls/PENN sales representative.
Additional pressure connection styles, pressure
setpoints, and electrical ratings are available on
non-standard models, in quantity orders only. Contact
your Johnson Controls/PENN sales reprentative or
distributor, or Refrigeration Application Engineering at
(800) 275-5676 to order non-standard P100 pressure
controls.

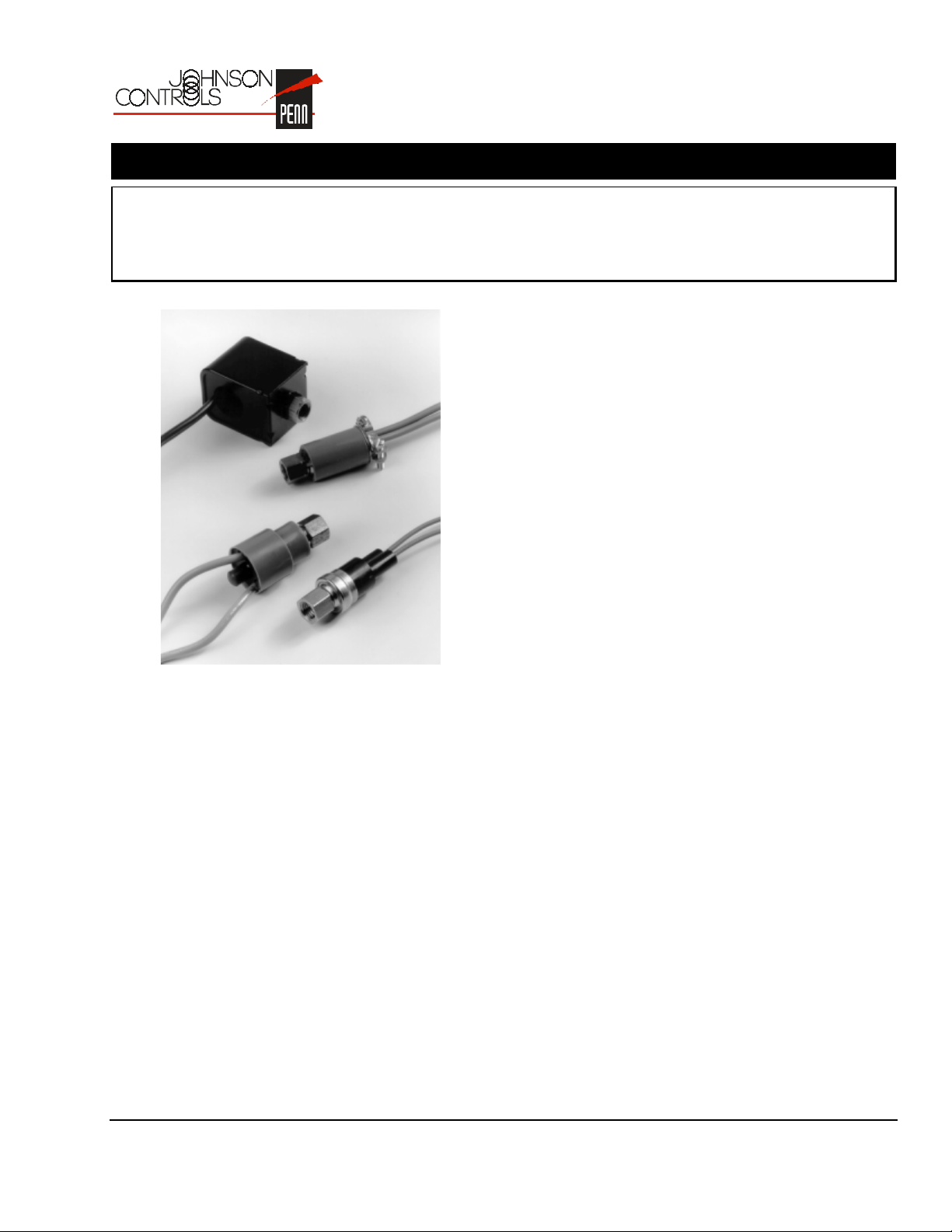

Figure 1: Examples of Standard P100
Encapsulated Pressure Controls
pplication
A
The P100 Series Encapsulated Pressure Controls are
compact, economical, direct-mount, snap-action,
On/Off pressure controls, available in a wide variety of
factory-calibrated, non-adjustable pressure setpoints.
The P100 controls are designed primarily for direct or
pilot duty control of motors and other refrigeration or
air conditioning application loads requiring precise,
repeatable pressure control over a wide range of
ambient conditions.
Standard P100 models come with 1/4 in. SAE female
flare fitting with integral Schrader valve depressor and
48 in., No. 18 American Wire Guage (AWG) insulated,
stranded-copper wire leads. See Figures 3 and 4.
peration
O
A bowed, stainless steel, snap-acting disc reverses its
curvature when pressurized to the specified actuation
setpoint. When the disc snaps, it drives a set of
electrical contacts open or closed, depending on the
control’s switch action.
When the applied pressure returns to the specified
deactuation setpoint on
snap-acting disc and electrical contacts return to their
original postion.
On high pressure
remains in the reversed position and the electrical
contacts remain open until
pressure is reached
pushed. After deactuation pressure is reached, push
the manual reset button to return the contacts to the
closed position.
A “trip free” internal latching mechanism on manual
reset controls does not allow the control to be reset
until the system pressure reaches the specified
deactuation setpoint, even if the reset button is held
fully depressed.
automatic reset controls
manual reset controls
the deactuation
both
the manual reset button is
and
, the disc
, the
The standard P100 models listed in Table 1 are
UL Recognized as
devices
© 2001 Johnson Controls, Inc.
.
Part No. 24-7664-2047, Rev. — www.johnsoncontrols.com
Code No. LIT-125511
refrigerant pressure limiting
1
Page 2
imensions
D
2-7/16
(62)
Female Flare Fitting with
Schrader Valve Depressor
9/16
(14)
1/4 in. SAE

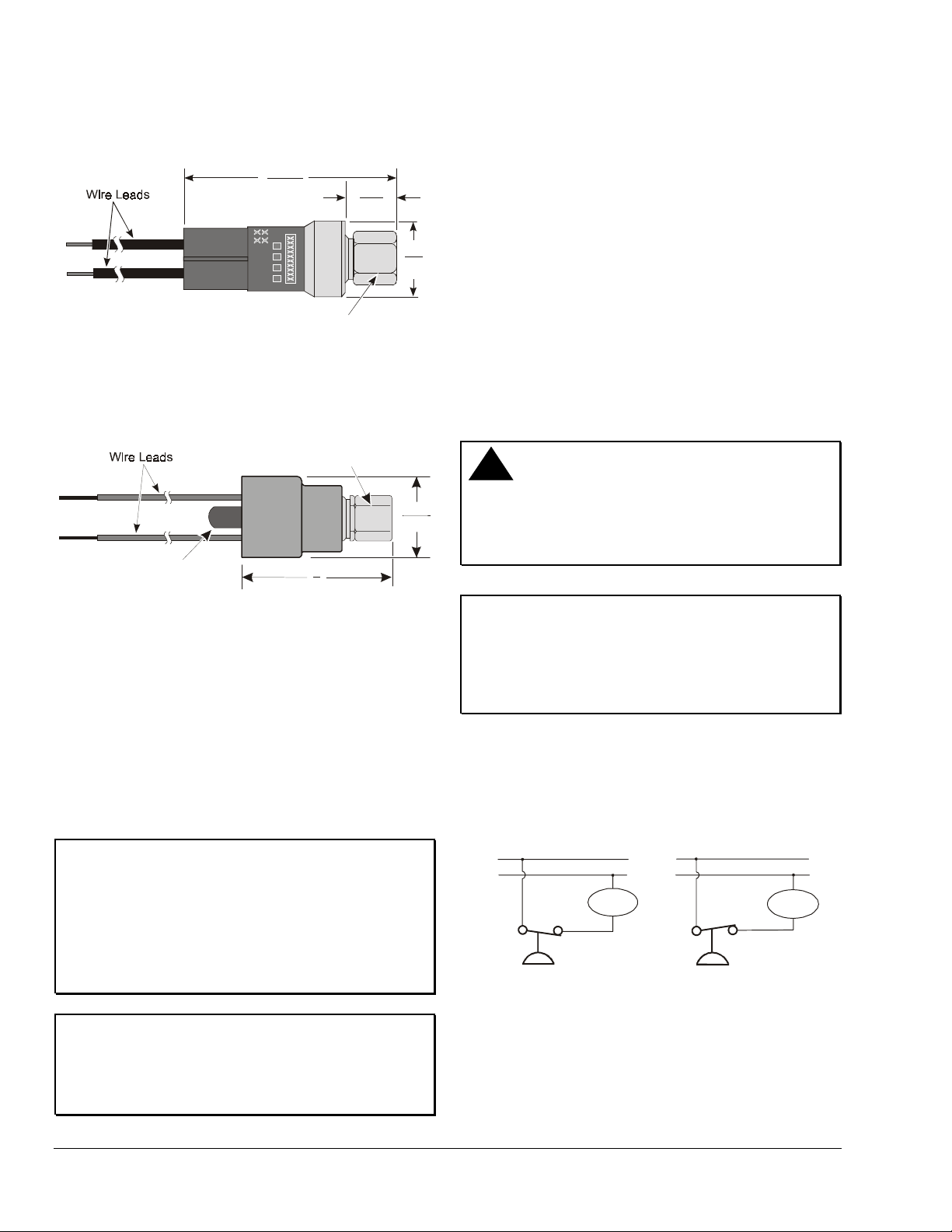

Figure 2: Dimensions of Standard P100AP, CP
Type Pressure Controls, in. (mm)
1/4 in. SAE Female
Flare Fitting with
Schrader Valve Depressor
Manual Reset
Button
2
(51)
7/8
(22)
1-1/8
(29)
Do Not Overtighten Flare Nuts on Pressure
Connection Fittings.
Overtightening flare connections
may damage the threads on the flare nuts or flare
connectors and result in refrigerant leaks. Do not
exceed 9 lb.ft (12 N.m) of torque when tightening
brass flare connections.
Avoid Severe Pressure Pulsation on High-Side
Pressure Connections.
Install P100 controls on
pressure tap points away from the compressor
discharge to minimize the effects of pressure pulsation
from reciprocating compressors.
iring
W
!
WARNING:
Risk of Electrical Shock.
Disconnect power supply before
making electrical connections to
avoid possible electrical shock
or equipment damage.
Figure 3: Dimensions of Standard P100DA,
Type Pressure Control, in. (mm)
ounting
M
The compact size and lightweight construction of the
P100 series controls allows mounting the control
directly to the refrigeration piping or almost any other
convenient pressure tap point on the system. Observe
the following guidelines when installing the
P100 controls.
IMPORTANT: If these controls are installed on
equipment containing hazardous
or regulated materials, such as
refrigerants or lubricants, the
installer and user should observe
all regulations governing the
handling and containment of
those materials.
IMPORTANT: Pressure tap points should be
located on the top side of the
refrigerant lines. This reduces the
possibility of sediment
accumulating in the control.
IMPORTANT: Make all wiring connections in
accordance with the National
Electrical Code and all local
regulations. Use copper
conductors only. Do not exceed
the control’s electrical rating.
Standard P100 Encapsulated Pressure Controls are
available with several switch options. Check the label
on the control body for model number. Refer to the
following guidelines, diagrams, and the electrical
ratings in Table 2 when wiring the standard P100
controls.
L1
L2
Load
Open-low switch action:
opens on pressure drop.
L1
L2
Load
Open-high switch action:
opens on pressure rise.
Figure 4: Wiring Diagrams for P100 Control Models
with an SPST Switch
—P100 Series Encapsulated Pressure Controls Installation Bulletin
2 P
Page 3
IMPORTANT: After mounting and wiring
control, attach a reliable set of
gauges to the controlled
equipment and operate the
equipment at least three cycles
at the pressures necessary to
verify control setpoints and
proper operation.
epairs and Replacement
R
Field repairs to the P100 pressure controls must not
be made. For a replacement control, contact an
authorized Johnson Controls/PENN Sales
Representative or Distributor, or Refrigeration
Application Engineering at (800) 275-5676.
Do not exceed manufacturers’
recommended pressure ratings
for the controlled equipment or
any of its components when
operating the controlled
equipment.
rdering Information
O
Standard P100 control model features are listed in
Table 1 and are available in single and quantity orders
through your Johnson Controls/PENN Sales
Reprentative or Distributor.
Non-standard P100 controls, built to customer
specifications, are also available (with quantity orders
only). Contact your Johnson Controls/PENN Sales
Reprentative or Distributor, or Refrigeration Application
Engineering at (800) 275-5676 for ordering
non-standard P100 pressure controls.
Table 1: Standard P100 Controls Available Through Most Authorized
Johnson Controls/PENN Distributors
Switch
Number
P100AP-201C
P100AP-2C
P100AP-3C*
P100AP-4C*
P100AC-1C†
P100AC-2C†
P100CP-1C
P100CP-2C
P100CC-9C†
P100DA-1C
P100DA-2C
P100DA-35C
P100DC-3C††
*
Models are designed for condensor fan cycling.
† Includes conduit clamp for 3/8 in. flexible metal conduit. (See Figure 1.)
†† Includes conduit box with opening for 1/2 in. conduit connector. (See Figure 1.)
Action
Open on
Pressure
Drop
Open on
Pressure
Rise
Setpoints—psig (kPa) Replaces:Product Code
Opens Closes Gemline Ranco Robert shaw Saginomiya
10 (69) 32 (221) - MPL-7011 3100-050 -
35 (241) 60 (414) - MPL-7004 3100-004 -
150 (1034) 225 (1551) - MPF-7008 - ABC-AA01
170 (1172) 250 (1724) - - - -
5 (34) 20 (138) - MPL-7001 - -
15 (103) 30 (207) - MPL-7002 - -
400 (2758) 300 (2068) PC151 MPH-7107 3100-151 -
425 (2930) 325 (2241) PC100 MPH-7108 3100-100 -
275 (1896) 175 (1207) - - 3100-112 -
410 (2827) Lockout
Manual Reset
475 (3275) Lockout
Manual Reset
350 (2413)
375 (2586) Lockout
Lockout
Manual Reset
Manual Reset
PC103 - 3100-103 -
- - 3100-106 -
-- - -
-- - -
—P100 Series Encapsulated Pressure Controls Installation Bulletin
P
3
Page 4
Table 2: P100 Controls Standard Duty Electrical Contact Ratings
Switch Action—Model Numbers SPST—P100AC, AP, CC, DA, and DC
Motor Ratings 120V 240V
AC Full Load Ampere
AC Locked Rotor Ampere
Non-Inductive Ampere
Inductive Ampere
Pilot Duty
pecifications
S
5.8 2.9
34.8 15.0
--
--
375 VA
Product
Electrical Ratings
Burst Pressure
Maximum Overpressure
Refrigerant Temperature
Ambient Temperature
Dielectric Strength
Agency Listings
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these
specifications, contact Johnson Controls/PENN Refrigeration Application Engineering at (800) 275-5676. Johnson Controls, Inc. shall not be
liable for damages resulting from misapplication or misuse of its products.
P100 Encapsulated Pressure Controls
120 and 240 VAC at 50/60 Hz (See Table 2 for ampere ratings.)
3500 psi (24,130 kPa)
250 psi (1724 kPa) overpressure rating for P100 controls with
5 to 100 psi (34 to 690 kPa) working pressure
600 psi (4137 kPa) overpressure rating for P100 controls with
100 to 500 psi (690 to 3447 kPa) working pressure
-65 to 275°F (-54 to 135°C)
Operating: -20 to 150°F (-29 to 66°C)
Shipping: -40 to 185°F (-40 to 85°C)
750 Vrms across open contacts
1550 Vrms (minimum) Terminals to Fitting
UL Recognition (US): File SA516, CCN SDFY2
UL Recognition (Canada): File SA516, CCN SDFY8
Controls Group
507 E. Michigan Street
P.O. Box 423 Printed in U.S.A.
Milwaukee, WI 53201 www.johnsoncontrols.com
—P100 Series Encapsulated Pressure Controls Installation Bulletin
4 P
