Figure 1: VSD Series II Open Drive
VSD Series II Variable Speed Open Drives
Product Bulletin
Refer to the QuickLIT website for the most up-to-date version of this document.
Code No. LIT-12011824
Issued September 2016
The Johnson Controls® VSD Series II Variable Speed
Open Drives, powered by Eaton® technology, are
specifically engineered for HVAC, pump, and fluid
control applications. The ultra-efficient DC capacitor
and power structure allows the drives to consume less
energy, lowering greenhouse gases.
The I/O configuration is designed
in mind by including removable terminal blocks. The
main, easily removable, control board used for all drive
frames with six digital IN,
OUT , three relay OUT,
communication boards. In addition, the control board
has built-in RS-485 and Ethernet communicat ion .
These drives continue the tradition of robust
performance and raise the bar on features and
functionality, ensuring the best solution at the right
price.
Table 1: VSD Series II Open Drive Features and Benefits
Features Benefits
Patented Active Energy Control Algorithm
HAND/OFF/AUTO and DRIVE/BYPASS
Selector on Keypad
Copy/Paste Function
Versatile Keypad
EMI/RFI Filters Standard on All Drives
(Frame 4 though Frame 9)
Motor Overload, Underload, and Stall
Protections
BACnet® MS/TP, BACnet IP, Modbus®, and
N2 Network Protocols
and two expansion slots for I/O or
with wiring ergonomics
two analog IN, one analog
Achieves an additional 2% to 8% energy savings when compared to
competitive products.
Simplifies control.
Allows the transfer of parameter settings from one drive to the next.
Displays up to nine monitored parameters simultaneously.
Meet EMC Category 2 requirements.
Protect against premature motor failure.
Provide a wide variety of communication protocols to meet the needs
of many applications.
VSD Series II Variable Speed Open Drives are
selected using VSD Series II code numbers and
standard Johnson Controls order entry tools.
VSD Series II Variable Speed Open Drives Product Bulletin
1
Additional VSD Series II Open Drive Features
• Integrated DC link choke standard on drives from
frame 4 through frame 9
• Anti-trip DC bus regulation
• Input surge protection against voltage spikes
varistor input
• Additional I/O and communication cards provide
plug-and-play functionality
• Remote mount keypad kit available
• NEMA Type 1 and NEMA Type 12 available
• Real-time clock with PLC functionality
• Two independent PID functions
• On-screen troubleshooting diagnostics with
embedded manual assistance
• Onboard RS-485 (BACnet, N2, Modbus)
IMPORTANT: Use this VSD Series II Variable
Speed Open Drive only as an operating control.
Where failure or malfunction of the series II open
drive could lead to personal injury or property
damage to the controlled equipment or other
property, additional precautions must be designed
into the control system. Incorporate and maintain
other devices, such as supervisory or alarm systems
or safety or limit controls, intended to warn of or
protect against failure or malfunction of the series II
open drive.
Onboard Network Communication
Metasys® System
Each VSD Series II Variable Speed Open Drive
provides communication between the drive and a
Johnson Controls Metasys N2 network. With this
connection, the drives can be controlled, monitored
and programmed from the Metasys system. N2 can be
selected and programmed by the drive keypad.
• Onboard Ethernet-based communications
(BACnet/IP, Modbus/TCP)
• Standard NEMA Type 12 keypad on all drives
• Quickstart wizard built into programming of drive
ensures a smooth startup
• I/O connections with simple quick connection
terminals
• Control logic can be powered from an external 24V
power supply to simulate internal drive functions
and fieldbus, if necessary, used for testing and
software downloads

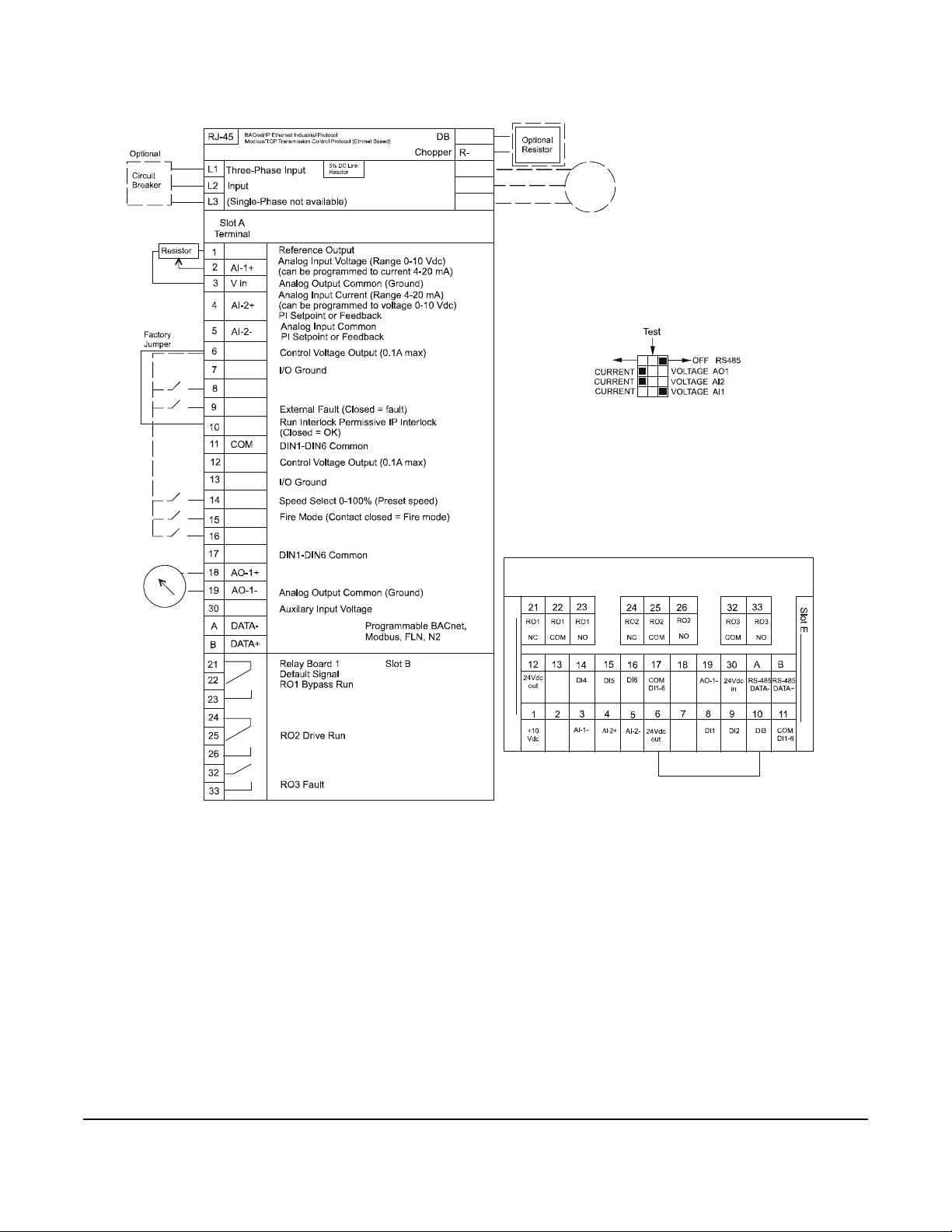

• Standard I/O,6DI, 2AI, 1AO 2 Form C RO (NO/NC),
1 Form A RO (NO)
• Hard-wired external/damper interlock
BACnet
The VSD Series II V ariable S peed Open Drives provide
communication to BACnet® networks. Data transfer is
master-slave/token passing (MS/TP)
RS-485.
BACnet IP
100 base T interface
Modbus TCP
Ethernet-based protocol
Modbus RTU
Each VSD Series II Variable Speed Open Drives
provide communication to Modbus RTU RS-485 as a
slave on a Modbus network. Other communication
parameters include an address range from 1 – 247; a
parity of None, Odd or Even; and the stop bit is 1.
VSD Series II Variable Speed Open Drives Product Bulletin
2
Table 2: VSD Series II Open Drives Selection
Chart
Code Number V S 0 0A—0 0 0 0 0
Base Product VS = Series II Variable Speed
Amps/hp/kW 3D4 = 3.4 A, 1.5 hp, 1.1 kW
Voltage 2 = 230 V
Enclosure Rating 1 = NEMA Type 1 (IP21)
Drive Style 0 = None (Open Drive)
Revision # B = Rev. 2 (Americas)
Separator (—)
Communications 0 = STD (BACnet/Legacy N2/Modbus)
Options 00 = None
1. 208 – 240 Volts 3-phase.
2. 380 – 480 Volts 3-phase.
3. Contact your local Johnson Controls representative for product availability.
Open Drive prefix
1
3D7 = 3.7 A, 3/4 hp, 0.55 kW
4D8 = 4.8 A, 1 hp, 1.1 kW
4D8 = 4.8 A, 2 hp, 1.5 kW
5D6 = 5.6 A, 3 hp, 2.2 kW
6D6 = 6.6 A, 1.5 hp, 1.1 kW
8D0 = 8 A, 2 hp, 1.5 kW
8D0 = 8 A, 4 hp, 3 kW
011 = 11 A, 3 hp, 2.2 kW
012 = 12 A, 4 hp, 3 kW
012 = 12 A, 7.5 hp, 5.5 kW
016 = 16 A, 10 hp, 7.5 kW
018 = 18 A, 5 hp, 4 kW
023 = 23 A, 15 hp, 11 kW
024 = 24 A, 7.5 hp, 5.5 kW
031 = 31 A, 10 hp, 7.5 kW
031 = 31 A, 20 hp, 15 kW
038 = 38 A, 25 hp, 18.5 kW
046 = 46 A, 30 hp, 22 kW
048 = 48 A, 15 hp, 11 kW
061 = 61 A, 40 hp, 30 kW
062 = 62 A, 20 hp, 15 kW
072 = 72 A, 50 hp, 37 kW
075 = 75 A, 25 hp, 18.5 kW
087 = 87 A, 60 hp, 45 kW
088 = 88 A, 30 hp, 22 kW
105 = 105 A, 40 hp, 30 kW
105 = 105 A, 75 hp, 55 kW
140 = 140 A, 50 hp, 37 kW
140 = 140 A, 100 hp, 75 kW
170 = 170 A, 60 hp, 45 kW
170 = 170 A, 125 hp, 90 kW
205 = 205 A, 75 hp, 55 kW
205 = 205 A, 150 hp, 110 kW
261 = 261 A, 100 hp, 75 kW
261 = 261 A, 200 hp, 132 kW
310 = 310 A, 125 hp, 90 kW
310 = 310 A, 250 hp, 160 kW
2
1
2
2
1
1
2
1
1
2
2
1
2
1
1
2
2
2
1
2
1
2
1
2
1
1
2
1
2
1
2
1
2
1
2
1
2
4 = 480 V
2 = NEMA Type 12 (IP54)
D = Rev. 2 (Canada)
S = SA Bus, CS Card (added to JC-VSD)
L = L
ONWORKS® Network, C4 Card (added)
3
VSD Series II Variable Speed Open Drives Product Bulletin
3
Table 3: VSD Series II 208/230 V Open Drives - Frame 4
Code Number
VS3D7210B-00000 VSD Series II, 3/4 hp (0.55 kW), 208 – 230 VAC, Type 1 3.7
VS3D7210B-S0000 VSD Series II, 3/4 hp (0.55 kW), 208 – 230 VAC, Type 1, SA Bus 3.7
VS3D7210B-L0000 VSD Series II, 3/4 hp (0.55 kW), 208 – 230 VAC, Type 1, LON 3.7
VS3D7220B-00000 VSD Series II, 3/4 hp (0.55 kW), 208 – 230 VAC, Type 12 3.7
VS3D7220B-S0000 VSD Series II, 3/4 hp (0.55 kW), 208 – 230 VAC, Type 12, SA Bus 3.7
VS3D7220B-L0000 VSD Series II, 3/4 hp (0.55 kW), 208 – 230 VAC, Type 12, LON 3.7
VS4D8210B-00000 VSD Series II, 1 hp (1.1 kW), 208 – 230 VAC, Ty pe 1 4.8
VS4D8210B-S0000 VSD Series II, 1 hp (1.1 kW), 208 – 230 VAC, Type 1, SA Bus 4.8
VS4D8210B-L0000 VSD Series II, 1 hp (1.1 kW), 208 – 230 VAC, Type 1, LON 4.8
VS4D8220B-00000 VSD Series II, 1 hp (1.1 kW), 208 – 230 VAC, Ty pe 12 4.8
VS4D8220B-S0000 VSD Series II, 1 hp (1.1 kW), 208 – 230 VAC, Type 12, SA Bus 4.8
VS4D8220B-L0000 VSD Series II, 1 hp (1.1 kW), 208 – 230 VAC, Type 12, LON 4.8
VS6D6210B-00000 VSD Series II, 1.5 hp (1.1 kW), 208 – 230 VAC, Type 1 6.6
VS6D6210B-S0000 VSD Series II, 1.5 hp (1.1 kW), 208 – 230 VAC, Type 1, SA Bus 6.6
VS6D6210B-L0000 VSD Series II, 1.5 hp (1.1 kW), 208 – 230 VAC, Type 1, LON 6.6
VS6D6220B-00000 VSD Series II, 1.5 hp (1.1 kW), 208 – 230 VAC, Type 12 6.6
VS6D6220B-S0000 VSD Series II, 1.5 hp (1.1 kW), 208 – 230 VAC, Type 12, SA Bus 6.6
VS6D6220B-L0000 VSD Series II, 1.5 hp (1.1 kW), 208 – 230 VAC, Type 12, LON 6.6
VS8D0210B-00000 VSD Series II, 2 hp (1.5 kW), 208 – 230 VAC, Ty pe 1 8
VS8D0210B-S0000 VSD Series II, 2 hp (1.5 kW), 208 – 230 VAC, Type 1, SA Bus 8
VS8D0210B-L0000 VSD Series II, 2 hp (1.5 kW), 208 – 230 VAC, Type 1, LON 8
VS8D0220B-00000 VSD Series II, 2 hp (1.5 kW), 208 – 230 VAC, Ty pe 12 8
VS8D0220B-S0000 VSD Series II, 2 hp (1.5 kW), 208 – 230 VAC, Type 12, SA Bus 8
VS8D0220B-L0000 VSD Series II, 2 hp (1.5 kW), 208 – 230 VAC, Type 12, LON 8
VS011210B-00000 VSD Series II, 3 hp (2.2 kW), 208 – 230 VAC, Type 1 11
VS011210B-S0000 VSD Series II, 3 hp (2.2 kW), 208 – 230 VAC, Type 1, SA Bus 11
VS011210B-L0000 VSD Series II, 3 hp (2.2 kW), 208 – 230 VAC, Type 1, LON 11
VS011220B-00000 VSD Series II, 3 hp (2.2 kW), 208 – 230 VAC, Type 12 11
VS011220B-S0000 VSD Series II, 3 hp (2.2 kW), 208 – 230 VAC, Type 12, SA Bus 11
VS011220B-L0000 VSD Series II, 3 hp (2.2 kW), 208 – 230 VAC, Type 12, LON 11
VS012210B-00000 VSD Series II, 4 hp (3 kW), 208 – 230 VAC, Type 1 12
VS012210B-S0000 VSD Series II, 4 hp (3 kW), 208 – 230 VAC, Type 1, SA Bus 12
VS012210B-L0000 VSD Series II, 4 hp (3 kW), 208 – 230 VA C, Type 1, LON 12
VS012220B-00000 VSD Series II, 4 hp (3 kW), 208 – 230 VAC, Type 12 12
VS012220B-S0000 VSD Series II, 4 hp (3 kW), 208 – 230 VAC, Type 12, SA Bus 12
VS012220B-L0000 VSD Series II, 4 hp (3 kW), 208 – 230 VA C, Type 12, LON 12
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
VSD Series II Variable Speed Open Drives Product Bulletin
4
Table 4: VSD Series II 208/230 V Open Drives - Frame 5
Code Number
VS018210B-00000 VSD Series II, 5 hp (4 kW), 208 – 230 VAC, Type 1 18
VS018210B-S0000 VSD Series II, 5 hp (4 kW), 208 – 230 VAC, Type 1, SA Bus 18
VS018210B-L0000 VSD Series II, 5 hp (4 kW), 208 – 230 VAC, Type 1, LON 18
VS018220B-00000 VSD Series II, 5 hp (4 kW), 208 – 230 VAC, Type 12 18
VS018220B-S0000 VSD Series II, 5 hp (4 kW), 208 – 230 VAC, Type 12, SA Bus 18
VS018220B-L0000 VSD Series II, 5 hp (4 kW), 208 – 230 VAC, Type 12, LON 18
VS024210B-00000 VSD Series II, 7.5 hp (5.5 kW), 208 – 230 VAC, Type 1 24
VS024210B-S0000 VSD Series II, 7.5 hp (5.5 kW), 208 – 230 VAC, Type 1, SA Bus 24
VS024210B-L0000 VSD Series II, 7.5 hp (5.5 kW), 208 – 230 VAC, Ty pe 1, LON 24
VS024220B-00000 VSD Series II, 7.5 hp (5.5 kW), 208 – 230 VAC, Type 12 24
VS024220B-S0000 VSD Series II, 7.5 hp (5.5 kW), 208 – 230 VAC, Type 12, SA Bus 24
VS024220B-L0000 VSD Series II, 7.5 hp (5.5 kW), 208 – 230 VAC, Type 12, LON 24
VS031210B-00000 VSD Series II, 10 hp (7.5 kW), 208 – 230 VAC, Type 1 31
VS031210B-S0000 VSD Series II, 10 hp (7.5 kW), 208 – 230 VAC, Type 1, SA Bus 31
VS031210B-L0000 VSD Series II, 10 hp (7.5 kW), 208 – 230 VAC, Type 1, LON 31
VS031220B-00000 VSD Series II, 10 hp (7.5 kW), 208 – 230 VAC, Type 12 31
VS031220B-S0000 VSD Series II, 10 hp (7.5 kW), 208 – 230 VAC, Type 12, SA Bus 31
VS031220B-L0000 VSD Series II, 10 hp (7.5 kW), 208 – 230 VAC, Type 12, LON 31
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
Table 5: VSD Series II 208/230 V Open Drives - Frame 6
Code Number
VS048210B-00000 VSD Series II, 15 hp (11 kW), 208 – 230 VAC, Type 1 48
VS048210B-S0000 VSD Series II, 15 hp (11 kW), 208 – 230 VAC, Type 1, SA Bus 48
VS048210B-L0000 VSD Series II, 15 hp (11 kW), 208 – 230 VAC, Type 1, LON 48
VS048220B-00000 VSD Series II, 15 hp (11 kW), 208 – 230 VAC, Type 12 48
VS048220B-S0000 VSD Series II, 15 hp (11 kW), 208 – 230 VAC, Type 12, SA Bus 4 8
VS048220B-L0000 VSD Series II, 15 hp (11 kW), 208 – 230 VAC, Type 12, LON 48
VS062210B-00000 VSD Series II, 20 hp (15 kW), 208 – 230 VAC, Type 1 62
VS062210B-S0000 VSD Series II, 20 hp (15 kW), 208 – 230 VAC, Type 1, SA Bus 62
VS062210B-L0000 VSD Series II, 20 hp (15 kW), 208 – 230 VAC, Type 1, LON 62
VS062220B-00000 VSD Series II, 20 hp (15 kW), 208 – 230 VAC, Type 12 62
VS062220B-S0000 VSD Series II, 20 hp (15 kW), 208 – 230 VAC, Type 12, SA Bus 62
VS062220B-L0000 VSD Series II, 20 hp (15 kW), 208 – 230 VAC, Type 12, LON 62
1. All horsepower and current ratings are Variable Torque (VT).
Description
1
Current (A)
1
VSD Series II Variable Speed Open Drives Product Bulletin
5
Table 6: VSD Series II 208/230 V Open Drives - Frame 7
Code Number
VS075210B-00000 VSD Series II, 25 hp (18.5 kW), 208 – 230 VAC, Type 1 75
VS075210B-S0000 VSD Series II, 25 hp (18.5 kW), 208 – 230 VAC, Type 1, SA Bus 75
VS075210B-L0000 VSD Series II, 25 hp (18.5 kW), 208 – 230 VAC, Type 1, LON 75
VS075220B-00000 VSD Series II, 25 hp (18.5 kW), 208 – 230 VAC, Type 12 75
VS075220B-S0000 VSD Series II, 25 hp (18.5 kW), 208 – 230 VAC, Type 12, SA Bus 75
VS075220B-L0000 VSD Series II, 25 hp (18.5 kW), 208 – 230 VAC, Type 12, LON 75
VS088210B-00000 VSD Series II, 30 hp (22 kW), 208 – 230 VAC, Type 1 88
VS088210B-S0000 VSD Series II, 30 hp (22 kW), 208 – 230 VAC, Type 1, SA Bus 88
VS088210B-L0000 VSD Series II, 30 hp (22 kW), 208 – 230 VAC, Type 1, LON 88
VS088220B-00000 VSD Series II, 30 hp (22 kW), 208 – 230 VAC, Type 12 88
VS088220B-S0000 VSD Series II, 30 hp (22 kW), 208 – 230 VAC, Type 12, SA Bus 88
VS088220B-L0000 VSD Series II, 30 hp (22 kW), 208 – 230 VAC, Type 12, LON 88
VS105210B-00000 VSD Series II, 40 hp (30 kW), 208 – 230 VAC, Type 1 105
VS105210B-S0000 VSD Series II, 40 hp (30 kW), 208 – 230 VAC, Type 1, SA Bus 105
VS105210B-L0000 VSD Series II, 40 hp (30 kW), 208 – 230 VAC, Type 1, LON 105
VS105220B-00000 VSD Series II, 40 hp (30 kW), 208 – 230 VAC, Type 12 105
VS105220B-S0000 VSD Series II, 40 hp (30 kW), 208 – 230 VAC, Type 12, SA Bus 105
VS105220B-L0000 VSD Series II, 40 hp (30 kW), 208 – 230 VAC, Type 12, LON 105
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
VSD Series II Variable Speed Open Drives Product Bulletin
6
Table 7: VSD Series II 208/230 V Open Drives - Frame 8
Code Number
VS140210B-00000 VSD Series II, 50 hp (37 kW), 208 – 230 VAC, Type 1 140
VS140210B-S0000 VSD Series II, 50 hp (37 kW), 208 – 230 VAC, Type 1, SA Bus 140
VS140210B-L0000 VSD Series II, 50 hp (37 kW), 208 – 230 VAC, Type 1, LON 140
VS140220B-00000 VSD Series II, 50 hp (37 kW), 208 – 230 VAC, Type 12 140
VS140220B-S0000 VSD Series II, 50 hp (37 kW), 208 – 230 VAC, Type 12, SA Bus 140
VS140220B-L0000 VSD Series II, 50 hp (37 kW), 208 – 230 VAC, Type 12, LON 140
VS170210B-00000 VSD Series II, 60 hp (45 kW), 208 – 230 VAC, Type 1 170
VS170210B-S0000 VSD Series II, 60 hp (45 kW), 208 – 230 VAC, Type 1, SA Bus 170
VS170210B-L0000 VSD Series II, 60 hp (45 kW), 208 – 230 VAC, Type 1, LON 170
VS170220B-00000 VSD Series II, 60 hp (45 kW), 208 – 230 VAC, Type 12 170
VS170220B-S0000 VSD Series II, 60 hp (45 kW), 208 – 230 VAC, Type 12, SA Bus 170
VS170220B-L0000 VSD Series II, 60 hp (45 kW), 208 – 230 VAC, Type 12, LON 170
VS205210B-00000 VSD Series II, 75 hp (55 kW), 208 – 230 VAC, Type 1 205
VS205210B-S0000 VSD Series II, 75 hp (55 kW), 208 – 230 VAC, Type 1, SA Bus 205
VS205210B-L0000 VSD Series II, 75 hp (55 kW), 208 – 230 VAC, Type 1, LON 205
VS205220B-00000 VSD Series II, 75 hp (55 kW), 208 – 230 VAC, Type 12 205
VS205220B-S0000 VSD Series II, 75 hp (55 kW), 208 – 230 VAC, Type 12, SA Bus 205
VS205220B-L0000 VSD Series II, 75 hp (55 kW), 208 – 230 VAC, Type 12, LON 205
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
Table 8: VSD Series II 208/230 V Open Drives - Frame 9
Code Number
VS261210B-00000 VSD Series II, 100 hp (75 kW), 208 – 230 VAC, Type 1 261
VS261210B-S0000 VSD Series II, 100 hp (75 kW), 208 – 230 VAC, Type 1, SA Bus 261
VS261210B-L0000 VSD Series II, 100 hp (75 kW), 208 – 230 VAC, Type 1, LON 261
VS261220B-00000 VSD Series II, 100 hp (75 kW), 208 – 230 VAC, Type 12 261
VS261220B-S0000 VSD Series II, 100 hp (75 kW), 208 – 230 VAC, Type 12, SA Bus 261
VS261220B-L0000 VSD Series II, 100 hp (75 kW), 208 – 230 VAC, Type 12, LON 261
VS310210B-00000 VSD Series II, 125 hp (90 kW), 208 – 230 VAC, Type 1 301
VS310210B-S0000 VSD Series II, 125 hp (90 kW), 208 – 230 VAC, Type 1, SA Bus 301
VS310210B-L0000 VSD Series II, 125 hp (90 kW), 208 – 230 VAC, Type 1, LON 301
VS310220B-00000 VSD Series II, 125 hp (90 kW), 208 – 230 VAC, Type 12 301
VS310220B-S0000 VSD Series II, 125 hp (90 kW), 208 – 230 VAC, Type 12, SA Bus 301
VS310220B-L0000 VSD Series II, 125 hp (90 kW), 208 – 230 VAC, Type 12, LON 301
1. All horsepower and current ratings are Variable Torque (VT).
Description
1
Current (A)
1
VSD Series II Variable Speed Open Drives Product Bulletin
7
Table 9: VSD Series II 480 V Open Drives - Frame 4
Code Number
VS3D4410B-00000 VSD Series II, 1.5 hp (1.1 kW), 480 VAC, Type 1 3.4
VS3D4410B-S0000 VSD Series II, 1.5 hp (1.1 kW), 480 VAC, Type 1, SA Bus 3.4
VS3D4410B-L0000 VSD Series II, 1.5 hp (1.1 kW), 480 VAC, Type 1, LON 3.4
VS3D4420B-00000 VSD Series II, 1.5 hp (1.1 kW), 480 VAC, Type 12 3.4
VS3D4420B-S0000 VSD Series II, 1.5 hp (1.1 kW), 480 VAC, Type 12, SA Bus 3.4
VS3D4420B-L0000 VSD Series II, 1.5 hp (1.1 kW), 480 VAC, Type 12, LON 3.4
VS4D8410B-00000 VSD Series II, 2 hp (1.5 kW), 480 VAC, Type 1 4.8
VS4D8410B-S0000 VSD Series II, 2 hp (1.5 kW), 480 VAC, Type 1, SA Bus 4.8
VS4D8410B-L0000 VSD Series II, 2 hp (1.5 kW), 480 VAC, Type 1, LON 4.8
VS4D8420B-00000 VSD Series II, 2 hp (1.5 kW), 480 VAC, Type 12 4.8
VS4D8420B-S0000 VSD Series II, 2 hp (1.5 kW), 480 VAC, Type 12, SA Bus 4.8
VS4D8420B-L0000 VSD Series II, 2 hp (1.5 kW), 480 VAC, Type 12, LON 4.8
VS5D6410B-00000 VSD Series II, 3 hp (2.2 kW), 480 VAC, Type 1 5.6
VS5D6410B-S0000 VSD Series II, 3 hp (2.2 kW), 480 VAC, Type 1, SA Bus 5.6
VS5D6410B-L0000 VSD Series II, 3 hp (2.2 kW), 480 VAC, Type 1, LON 5.6
VS5D6420B-00000 VSD Series II, 3 hp (2.2 kW), 480 VAC, Type 12 5.6
VS5D6420B-S0000 VSD Series II, 3 hp (2.2 kW), 480 VAC, Type 12, SA Bus 5.6
VS5D6420B-L0000 VSD Series II, 3 hp (2.2 kW), 480 VAC, Type 12, LON 5.6
VS8D0410B-00000 VSD Series II, 4 hp (3 kW), 480 VAC, Type 1 8
VS8D0410B-S0000 VSD Series II, 4 hp (3 kW), 480 VAC, Type 1, SA Bus 8
VS8D0410B-L0000 VSD Series II, 4 hp (3 kW), 480 VAC, Type 1, LON 8
VS8D0420B-00000 VSD Series II, 4 hp (3 kW), 480 VAC, Type 12 8
VS8D0420B-S0000 VSD Series II, 4 hp (3 kW), 480 VAC, Type 12, SA Bus 8
VS8D0420B-L0000 VSD Series II, 4 hp (3 kW), 480 VAC, Type 12, LON 8
VS9D6410B-00000 VSD Series II, 5 hp (4 kW), 480 VAC, Type 1 9.6
VS9D6410B-S0000 VSD Series II, 5 hp (4 kW), 480 VAC, Type 1, SA Bus 9.6
VS9D6410B-L0000 VSD Series II, 5 hp (4 kW), 480 VAC, Type 1, LON 9.6
VS9D6420B-00000 VSD Series II, 5 hp (4 kW), 480 VAC, Type 12 9.6
VS9D6420B-S0000 VSD Series II, 5 hp (4 kW), 480 VAC, Type 12, SA Bus 9.6
VS9D6420B-L0000 VSD Series II, 5 hp (4 kW), 480 VAC, Type 12, LON 9.6
VS012410B-00000 VSD Series II, 7.5 hp (5.5 kW), 480 VAC, Type 1 12
VS012410B-S0000 VSD Series II, 7.5 hp (5.5 kW), 480 VAC, Type 1, SA Bus 12
VS012410B-L0000 VSD Series II, 7.5 hp (5.5 kW), 480 VAC, Type 1, LON 12
VS012420B-00000 VSD Series II, 7.5 hp (5.5 kW), 480 VAC, Type 12 12
VS012420B-S0000 VSD Series II, 7.5 hp (5.5 kW), 480 VAC, Type 12, SA Bus 12
VS012420B-L0000 VSD Series II, 7.5 hp (5.5 kW), 480 VAC, Type 12, LON 12
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
VSD Series II Variable Speed Open Drives Product Bulletin
8
Table 10: VSD Series II 480 V Open Drives - Frame 5
Code Number
VS016410B-00000 VSD Series II, 10 hp (7.5 kW), 480 VAC, Type 1 16
VS016410B-S0000 VSD Series II, 10 hp (7.5 kW), 480 VAC, Type 1, SA Bus 16
VS016410B-L0000 VSD Series II, 10 hp (7.5 kW), 480 VAC, Type 1, LON 16
VS016420B-00000 VSD Series II, 10 hp (7.5 kW), 480 VAC, Type 12 16
VS016420B-S0000 VSD Series II, 10 hp (7.5 kW), 480 VAC, Type 12, SA Bus 16
VS016420B-L0000 VSD Series II, 10 hp (7.5 kW), 480 VAC, Type 12, LON 16
VS023410B-00000 VSD Series II, 15 hp (11 kW), 480 VAC, Type 1 23
VS023410B-S0000 VSD Series II, 15 hp (11 kW), 480 VAC, Type 1, SA Bus 23
VS023410B-L0000 VSD Series II, 15 hp (11 kW), 480 VAC, Type 1, LON 23
VS023420B-00000 VSD Series II, 15 hp (11 kW), 480 VAC, Type 12 23
VS023420B-S0000 VSD Series II, 15 hp (11 kW), 480 VAC, Type 12, SA Bus 23
VS023420B-L0000 VSD Series II, 15 hp (11 kW), 480 VAC, Type 12, LON 23
VS031410B-00000 VSD Series II, 20 hp (15 kW), 480 VAC, Type 1 31
VS031410B-S0000 VSD Series II, 20 hp (15 kW), 480 VAC, Type 1, SA Bus 31
VS031410B-L0000 VSD Series II, 20 hp (15 kW), 480 VAC, Type 1, LON 31
VS031420B-00000 VSD Series II, 20 hp (15 kW), 480 VAC, Type 12 31
VS031420B-S0000 VSD Series II, 20 hp (15 kW), 480 VAC, Type 12, SA Bus 31
VS031420B-L0000 VSD Series II, 20 hp (15 kW), 480 VAC, Type 12, LON 31
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
Table 11: VSD Series II 480 V Open Drives - Frame 6
Code Number
VS038410B-00000 VSD Series II, 25 hp (18.5 kW), 480 VAC, Type 1 38
VS038410B-S0000 VSD Series II, 25 hp (18.5 kW), 480 VAC, Type 1, SA Bus 38
VS038410B-L0000 VSD Series II, 25 hp (18.5 kW), 480 VAC, Type 1, LON 38
VS038420B-00000 VSD Series II, 25 hp (18.5 kW), 480 VAC, Type 12 38
VS038420B-S0000 VSD Series II, 25 hp (18.5 kW), 480 VAC, Type 12, SA Bus 38
VS038420B-L0000 VSD Series II, 25 hp (18.5 kW), 480 VAC, Type 12, LON 38
VS046410B-00000 VSD Series II, 30 hp (22 kW), 480 VAC, Type 1 46
VS046410B-S0000 VSD Series II, 30 hp (22 kW), 480 VAC, Type 1, SA Bus 46
VS046410B-L0000 VSD Series II, 30 hp (22 kW), 480 VAC, Type 1, LON 46
VS046420B-00000 VSD Series II, 30 hp (22 kW), 480 VAC, Type 12 46
VS046420B-S0000 VSD Series II, 30 hp (22 kW), 480 VAC, Type 12, SA Bus 46
VS046420B-L0000 VSD Series II, 30 hp (22 kW), 480 VAC, Type 12, LON 46
VS061410B-00000 VSD Series II, 40 hp (30 kW), 480 VAC, Type 1 61
VS061410B-S0000 VSD Series II, 40 hp (30 kW), 480 VAC, Type 1, SA Bus 61
VS061410B-L0000 VSD Series II, 40 hp (30 kW), 480 VAC, Type 1, LON 61
VS061420B-00000 VSD Series II, 40 hp (30 kW), 480 VAC, Type 12 61
VS061420B-S0000 VSD Series II, 40 hp (30 kW), 480 VAC, Type 12, SA Bus 61
VS061420B-L0000 VSD Series II, 40 hp (30 kW), 480 VAC, Type 12, LON 61
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
VSD Series II Variable Speed Open Drives Product Bulletin
9
Table 12: VSD Series II 480 V Open Drives - Frame 7
Code Number
VS072410B-00000 VSD Series II, 50 hp (37 kW), 480 VAC, Type 1 72
VS072410B-S0000 VSD Series II, 50 hp (37 kW), 480 VAC, Type 1, SA Bus 72
VS072410B-L0000 VSD Series II, 50 hp (37 kW), 480 VAC, Type 1, LON 72
VS072420B-00000 VSD Series II, 50 hp (37 kW), 480 VAC, Type 12 72
VS072420B-S0000 VSD Series II, 50 hp (37 kW), 480 VAC, Type 12, SA Bus 72
VS072420B-L0000 VSD Series II, 50 hp (37 kW), 480 VAC, Type 12, LON 72
VS087410B-00000 VSD Series II, 60 hp (45 kW), 480 VAC, Type 1 87
VS087410B-S0000 VSD Series II, 60 hp (45 kW), 480 VAC, Type 1, SA Bus 87
VS087410B-L0000 VSD Series II, 60 hp (45 kW), 480 VAC, Type 1, LON 87
VS087420B-00000 VSD Series II, 60 hp (45 kW), 480 VAC, Type 12 87
VS087420B-S0000 VSD Series II, 60 hp (45 kW), 480 VAC, Type 12, SA Bus 87
VS087420B-L0000 VSD Series II, 60 hp (45 kW), 480 VAC, Type 12, LON 87
VS105410B-00000 VSD Series II, 75 hp (55 kW), 480 VAC, Type 1 105
VS105410B-S0000 VSD Series II, 75 hp (55 kW), 480 VAC, Type 1, SA Bus 105
VS105410B-L0000 VSD Series II, 75 hp (55 kW), 480 VAC, Type 1, LON 105
VS105420B-00000 VSD Series II, 75 hp (55 kW), 480 VAC, Type 12 105
VS105420B-S0000 VSD Series II, 75 hp (55 kW), 480 VAC, Type 12, SA Bus 105
VS105420B-L0000 VSD Series II, 75 hp (55 kW), 480 VAC, Type 12, LON 105
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
Table 13: VSD Series II 480 V Open Drives - Frame 8
Code Number
VS140410B-00000 VSD Series II, 100 hp (75 kW), 480 VAC, Type 1 140
VS140410B-S0000 VSD Series II, 100 hp (75 kW), 480 VAC, Type 1, SA Bus 140
VS140410B-L0000 VSD Series II, 100 hp (75 kW), 480 VAC, Type 1, LON 140
VS140420B-00000 VSD Series II, 100 hp (75 kW), 480 VAC, Type 12 140
VS140420B-S0000 VSD Series II, 100 hp (75 kW), 480 VAC, Type 12, SA Bus 140
VS140420B-L0000 VSD Series II, 100 hp (75 kW), 480 VAC, Type 12, LON 140
VS170410B-00000 VSD Series II, 125 hp (90 kW), 480 VAC, Type 1 170
VS170410B-S0000 VSD Series II, 125 hp (90 kW), 480 VAC, Type 1, SA Bus 170
VS170410B-L0000 VSD Series II, 125 hp (90 kW), 480 VAC, Type 1, LON 170
VS170420B-00000 VSD Series II, 125 hp (90 kW), 480 VAC, Type 12 170
VS170420B-S0000 VSD Series II, 125 hp (90 kW), 480 VAC, Type 12, SA Bus 170
VS170420B-L0000 VSD Series II, 125 hp (90 kW), 480 VAC, Type 12, LON 170
VS205410B-00000 VSD Series II, 150 hp (110 kW), 480 VAC, Type 1 205
VS205410B-S0000 VSD Series II, 150 hp (110 kW), 480 VAC, Type 1, SA Bus 205
VS205410B-L0000 VSD Series II, 150 hp (110 kW), 480 VAC, Type 1, LON 205
VS205420B-00000 VSD Series II, 150 hp (110 kW), 480 VAC, Type 12 205
VS205420B-S0000 VSD Series II, 150 hp (110 kW), 480 VAC, Type 12, SA Bus 205
VS205420B-L0000 VSD Series II, 150 hp (110 kW), 480 VAC, Type 12, LON 205
Description
1
Current (A)
1
1. All horsepower and current ratings are Variable Torque (VT).
VSD Series II Variable Speed Open Drives Product Bulletin
10
Table 14: VSD Series II 480 V Open Drives - Frame 9
Code Number
VS261410B-00000 VSD Series II, 200 hp (132 kW), 480 VAC, Type 1 261
VS261410B-S0000 VSD Series II, 200 hp (132 kW), 480 VAC, Type 1, SA Bus 261
VS261410B-L0000 VSD Series II, 200 hp (132 kW), 480 VAC, Type 1, LON 261
VS261420B-00000 VSD Series II, 200 hp (132 kW), 480 VAC, Type 12 261
VS261420B-S0000 VSD Series II, 200 hp (132 kW), 480 VAC, Type 12, SA Bus 261
VS261420B-L0000 VSD Series II, 200 hp (132 kW), 480 VAC, Type 12, LON 261
VS310410B-00000 VSD Series II, 250 hp (160 kW), 480 VAC, Type 1 310
VS310410B-S0000 VSD Series II, 250 hp (160 kW), 480 VAC, Type 1, SA Bus 310
VS310410B-L0000 VSD Series II, 250 hp (160 kW), 480 VAC, Type 1, LON 310
VS310420B-00000 VSD Series II, 250 hp (160 kW), 480 VAC, Type 12 310
VS310420B-S0000 VSD Series II, 250 hp (160 kW), 480 VAC, Type 12, SA Bus 310
VS310420B-L0000 VSD Series II, 250 hp (160 kW), 480 VAC, Type 12, LON 310
1. All horsepower and current ratings are Variable Torque (VT).
Description
1
Current (A)
1
VSD Series II Accessories and Replacement Parts
Table 15: Conversion Kits
Code Number Description
VS-FS4-N12KIT Frame 4, Type 1 to Type 12 Conversion Kit –Type 12/IP54 Cover with Gasket and Plastic Plugs
VS-FS5-N12KIT Frame 5, Type 1 to Type 12 Conversion Kit – Type 12/IP54 Cover with Gasket and Plastic Plugs
VS-FS6-N12KIT Frame 6, Type 1 to Type 12 Conversion Kit – Type 12/IP54 Cover with Gasket and Plastic Plugs
Table 16: Demonstration Kits
Code Number Description
VS-DEMO2 VSD Series II Bypass Demonstration Kit
VSM2-DEMO VSD Micro Series II Bypass Demonstration Kit
Table 17: Power Supplies, Cables, and Keypads
Code Number Description
VS-KEYPAD-SER2 VSD Series II Graphic Hands-Off/Auto Keypad
VS-RMT-KEYPAD2 VSD Series II Remote Keypad Kit
VS-REM-USB-LOAD Remote Download USB to RJ-485 Cable with Software Driver Disk
VSD Series II Variable Speed Open Drives Product Bulletin
11
Table 18: Fans
Code Number Description
VS-FS4-FAN Frame 4, Main Fan
VS-FS5-FAN Frame 5, Main Fan
VS-FS6-FAN Frame 6, Main Fan
VS-FS7-FAN Frame 7, Main Fan
VS-FS8-FAN Frame 8, Main Fan
VS-FS9-FAN Frame 9, Main Fan
VS-FS4-INT-FAN Frame 4, Internal Fan
VS-FS5-INT-FAN Frame 5, Internal Fan
VS-FS6-INT-FAN Frame 6, Internal Fan
VS-FS7-INT-FAN Frame 7, Internal Fan
VS-FS8-INT-FAN Frame 8, Internal Fan
VS-FS9-INT-FAN Frame 9, Internal Fan
Table 19: Flange Kits
Code Number Description
VS-FS4-N12FLKIT Frame 4, Type 12/IP54 Flange Kit
VS-FS5-N12FLKIT Frame 5, Type 12/IP54 Flange Kit
VS-FS6-N12FLKIT Frame 6, Type 12/IP54 Flange Kit
VS-FS7-N12FLKIT Frame 7, Type 12/IP54 Flange Kit
Table 20: Communication Cards, Auxiliary Contacts, and I/O Cards
Code Number Description
VS-XMX-B1 I/O Expander Card, 6 DI/DO, Slot D/E
VS-XMX-B2 I/O Expander Card, 2 RO and Thermistor, Slot D/E
VS-XMX-B4 I/O Expander Card, 1 AI, 2 AO (Isolated), Slot D/E
VS-XMX-B5 I/O Expander Card, 3 RO, Slot D/E
VS-XMX-B9 I/O Expander Card, 1 RO, 5 DI (42 to 240 VAC), Slot D/E
VS-XMX-BF I/O Expander Card, 1 AO, 1 DO, 1 RO, Slot D/E
VS-XMX-C4 L
VS-XMX-CS SA Bus Communications Card
VS-XMX-F1 I/O Expander Card, 3 RO, Slot B
VS-XMX-F2 I/O Expander Card, 2 RO and Thermistor Input, Slot B
VS-XMX-K9-FS4-5 Auxiliary Contact Kit for IPASS Sizes B and C (Output and Bypass)
VS-XMX-K9-FS6-9 Auxiliary Contact Kit for IPASS Sizes D, F, and G (Output and Bypass)
ONWORKS® Communications Card, Slot D/E
VSD Series II Variable Speed Open Drives Product Bulletin
12
Table 21: Micro Drives
Code Number Description
VSM2-IP21-FS1 VSM II Type 1 / IP21 Kit – FS1
VSM2-IP21-FS2 VSM II Type 1 / IP21 Kit – FS2
VSM2-IP21-FS3 VSM II Type 1 / IP21 Kit – FS3
VSM2-KEYADAPTER VSM II Remote Mounting Kit – Bezel and Cable
VSM2-PCADAPTER VSM II Computer Connection Module
VSM2-RJADAPTER VSM II RJ45 Adapter Module
VSM2-TEXTKEYPAD VSM II Keypad
Table 22: Power Supplies
Code Number Description
VS-PSG60E Power Supply – 1 Phase, 90–264 VAC, 24 VDC @ 2.5 A
VS-PSG120E Power Supply – 1 Phase, 90–264 VAC, 24 VDC @ 5 A
VS-PSG240E Power Supply – 1 Phase, 85–264 VAC, 24 VDC @ 10 A
VS-PSG60F24 Power Supply – 3 Ph ase, 24 VDC, 60 W, IP20, Metal Case
VS-PSG120 F24 Power Supply – 3 Phase, 24 VDC, 120 W, IP20 Metal Case
VS-PSG240 F24 Power Supply – 3 Phase, 24 VDC, 240 W, IP20 Metal Case
Table 23: Lights, Selector Switches, Relays
Code Number Description
VS-M22-L-A-W Indicator Li ght, Amber, 12–30 V AC/DC
VS-M22-L-G-G Indicator Light, Green, 12–30 V AC/DC
VS-M22-L-R-R Indicator Light, Red, 12–30 V AC/DC
VS-M22-L-W-W Indicator Light, White, 12–30 V AC/DC
VS-M22-WRK3 Non-Illuminated 3-Position Maintained Selector Switch, Thumb Grip, Black Bezel
VS-M22-CK20 Contact Block, 2 N.O. Cage Clamp
VS-M22-WVK-K10 Non-Illuminated Vertical Position Maintained Selector Switch, Thumb Grip, Black Bezel, 1 N.O.
VS-M22-IVS DIN Rail Mounting Adapter
VS-M22-WRK3-K20 Non-Illuminated 3-Position Maintained Selector Switch, Thumb Grip, Silver Bezel, 2 N.O.
VS-D2RR4A Ice Cube Relay, 4-Pole Double-Throw Switch, 6A, 120 VAC Coil
VS-D2PA6 4-Pole Socket for 2- and 4-Pole D2 Relays
VSD Series II Variable Speed Open Drives Product Bulletin
13
Table 24: Manual Motor Protect ors and Acc e ss o ri es
Code Number Description
VS-XTPR2P5BC1 Manual Motor Protector, Rotary Frame B, Class 10, 1.6–2.5 A
VS-XTPR6P3BC1 Manual Motor Protector, Rotary Frame B, Class 10, 4–6.3 A
VS-XTPR004BC1 Manual Motor Protector, Rotary Frame B, Class 10, 2.5–4 A
VS-XTPR010BC1 Manual Motor Protector, Rotary Frame B, Class 10, 6.3–10 A
VS-XTPR012BC1 Manual Motor Protector, Rotary Frame B, Class 10, 8–12 A
VS-XTPR016DC1 Manual Motor Protector, Rotary Frame D, Class 10, 10–16 A
VS-XTPR025DC1 Manual Motor Protector, Rotary Frame D, Class 10, 16–25 A
VS-XTPR032DC1 Manual Motor Protector, Rotary Frame D, Class 10, 25–32 A
VS-XTPR040DC1 Manual Motor Protector, Rotary Frame D, Class 10, 32–40 A
VS-XTPR050DC1 Manual Motor Protector, Rotary Frame D, Class 10, 40–50 A
VS-XTPR058DC1 Manual Motor Protector, Rotary Frame D, Class 10, 50–58 A
VS-XTPAXLSA Manual Motor Protector, Accessory, Line Side Adapter
VS-XTPAXLSAD Manual Motor Protector, Accessory, Line Side Adapter Frame D
VS-XTPAXRHMB Rotary Handle Mechanism IP65 Black
VS-XTPAXRHMSFT Manual Motor Protector, Accessory Rotary Handle Mech Shaft
VS-XTPAXMBM Manual Motor Protector, Shaft Supporter, Metal
Table 25: Contactors, Overloads (Part 1 of 2)
Code Number Description
VS-XTCE007B01A Contactor, 3-Phase, Full-Voltage, Non-Returning, 7A
VS-XTCE009B01A Contactor, 3-Phase, Full-Voltage, Non-Returning, 9A
VS-XTCE012B01A Contactor, 3-Phase, Full-Voltage, Non-Returning, 12A
VS-XTCE018C01A Contactor, 3-Phase, Full-Voltage, Non-Returning, 18A
VS-XTCE025C01A Contactor, 3-Phase, Full-Voltage, Non-Returning, 25A
VS-XTCE032C01A Contactor, 3-Phase, Full-Voltage, Non-Returning, 32A
VS-XTCE040C01A Contactor, 3-Phase, Full-Voltage, Non-Returning, 40A
VS-XTCE050DS1A Contactor, 3-Phase, Full-Voltage, Non-Returning, 50A
VS-XTCE065DS1A Contactor, 3-Phase, Full-Voltage, Non-Returning, 65A
VS-XTCE080FS1A Contactor, 3-Phase, Full-Voltage, Non-Returning, 80A
VS-XTCE095FS1A Contactor, 3-Phase, Full-Voltage, Non-Returning, 95A
VS-XTCE0115GS1A Contactor, 3-Phase, Full-Voltage, Non-Returning, 115A
VS-XTCE0170GS1A Contactor, 3-Phase, Full-Voltage, Non-Returning, 170A
VS-XTCEXRSBB Contactor Accessory, RC Suppressor, Frame B, 110–240 V
VS-XTCEXRSBC Contactor Accessory, RC Suppressor, Frame B, 240–500 V
VS-XTCEXRSCA Contactor Accessory, RC Suppressor, Frame C, 110–130 V
VS-XTCEXRSCC Contactor Accessory, RC Suppressor, Frame C, 240–500 V
VS-XTCEXRSFA Contactor Accessory, RC Suppressor, Frame F, 110–130 V
VS-XTCEXFAC11 Contactor Accessory, Front Auxiliary Seq A, Frame B-C, 1 N.O. 1 N.C.
VS-XTCEXPBB Contactor Accessory, Paralleling Bridge, Frame B
VS-XTCEXPBC Contactor Accessory, Paralleling Bridge, Frame C
VSD Series II Variable Speed Open Drives Product Bulletin
14
Table 25: Contactors, Overloads (Part 2 of 2)
Code Number Description
VS-XTCEXPBD Contactor Accessory, Paralleling Bridge, Frame D
VS-XTCEXPBG Contactor Accessory, Paralleling Bridge, Frame G
VS-XTOB004BC1 IEC Overload Frame B Class 10, 2.4–4 A
VS-XTOB006BC1 IEC Overload Frame B Class 10, 4–6 A
VS-XTOB010BC1 IEC Overload Frame B Class 10, 6–10 A
VS-XTOB012BC1 IEC Overload Frame B Class 10, 9–12 A
VS-XTOB016CC1 IEC Overload Frame C Class 10, 10–16 A
VS-XTOB024CC1 IEC Overload Frame C Class 10, 16–24 A
VS-XTOB032CC1 IEC Overload Frame C Class 10, 24–32 A
VS-XTOB040DC1 IEC Overload Frame D Class 10, 24–40 A
VS-XTOB057DC1 IEC Overload Frame D Class 10, 40–57 A
VS-XTOB065DC1 IEC Overload Frame D Class 10, 50–65 A
VS-XTOB070GC1S IEC Overload Frame G Class 10, 50–70 A, Sep Mnt
VS-XTOB100GC1S IEC Overload Frame G Class 10
VS-XTOB125GC1S IEC Overload Frame G Class 10
VS-XTOB150GC1S IEC Overload Frame G Class 10
VS-XTOB2P4BC1 IEC Overload Frame B Class 10
VS-XTOB175GC1S IEC Overload Frame G Class 10
VS-XTCE007B01TD Contactor, 3-Phase , Fu ll-Voltage, Non-Returning, 7A, Frame B, 1 N.C. Switch, 24 VDC Coil
VS-XTCE009B01TD Contactor, 3-Phase , Fu ll-Voltage, Non-Returning, 9A, Frame B, 1 N.C. Switch, 24 VDC Coil
VS-XTCE012B01TD Contactor, 3-Phase , Fu ll-Voltage, Non-Returning, 12A, Frame B, 1 N.C. Switch, 24 VDC Coil
VS-XTCE018C01TD Contactor, 3-Phase , Fu ll-Voltage, Non-Returning, 18A, Frame B, 1 N.C. Switch, 24 VDC Coil
VS-XTCE025C01TD Contactor, 3-Phase , Fu ll-Voltage, Non-Returning, 25A, Frame B, 1 N.C. Switch, 24 VDC Coil
VS-XTCE032C01TD Contactor, 3-Phase , Fu ll-Voltage, Non-Returning, 32A, Frame B, 1 N.C. Switch, 24 VDC Coil
VS-XTCE040D00TD Contactor, 3-Phase , Full-Voltage, Non-Returning, 40A, Frame B, 24 VDC Coil
VS-XTCE050D00TD Contactor, 3-Phase , Full-Voltage, Non-Returning, 50A, Frame B, 24 VDC Coil
VS-XTCE065D00TD Contactor, 3-Phase , Full-Voltage, Non-Returning, 65A, Frame B, 24 VDC Coil
VS-XTCE080F00TD Contactor, 3-Phase, Full-Voltage, Non-Returni ng, 80A, Frame F, 24 VDC Coil
VS-XTCE095F00TD Contactor, 3-Phase, Full-Voltage, Non-Returni ng, 95A, Frame F, 24 VDC Coil
VS-XTCE115G00TD Contactor, 3-Phase, Full-Voltage, Non-Returning, 115A, Frame G, 24 VDC Coil
VS-XTCEXFAC11 Contactor Accessory, Front Aux Seq A, Frame B-C
VS-XTCEXFAG11 Contactor Accessory, Front Aux Seq A, Frame D-G
VS-XTCEXPBB Contactor Accessory, Paralleling Bridge, Frame B
VS-XTCEXPBC Contactor Accessory, Paralleling Bridge, Frame C
VS-XTCEXPBD Contactor Accessory, Paralleling Bridge, Frame D
VS-XTCEXPBG Contactor Accessory, Paralleling Bridge, Frame G
VSD Series II Variable Speed Open Drives Product Bulletin
15
Table 26: FP Series II Spares
Code Number Description
VS-HFD3080L Type HFD (Eaton term), 3-Pole, 80A Trip, 600 V Class, 65KA at 480 V, Line
VS-HFD3100L Type HFD, 3-Pole, 100A, 600 V Class, 65KA at 480 V, Line
VS-HFD3110L Type HFD, 3-Pole, 110A, 600 V Class, 65KA at 480 V, Line
VS-HFD3125L Type HFD, 3-Pole, 125A Trip, 600 V Class, 65KA at 480 V, Line
VS-HFDMP3080JL HFD Motor Protector, 3-Pole Switch, 80A, Overload 10–30 with Phase Imbalance
VS-HFDMP3100JL HFD Motor Protector, 3-Pole Switch, 100A, Overload 10–30 with Phase Imbalance
VS-HFDMP3160JL HFD Motor Protector, 3-Pole Switch, 160A, Overload 10–30 with Phase Imbalance
VS-FHMVD06B Black Handle, 6 in. Shaft, F Frame
VS-PHR2N12F Pistol Handle, Red, Size 2, NEMA 3R/12, For Front Oper
VS-SHR0N12 Selector Handle, Red, Size 0, NEMA 3R/12 (A, B, and C Frame)
VS-SF200PH10X10 Shaft 200 mm (7.9 in.), Use with Size 1 or 2 Pistol Handle, 10x10
VS-SF200SH5X5 Shaft 200 mm (7.9 in.), Use with Selector Handles for R5/R9, 5x5
VS-SF320 PH10X10 Shaft 320 mm (12.6 in.), Use with Size 1 or 2 Pistol Handle, 10x10
VS-SF320SH5X5 Shaft 320 mm (12.6 in.), Use with Selector Handles for R5/R9, 5x5
VS-DHR5 Direct Handle, for R5 Type Rotary Disconnects
VS-DHR9 Direct Handle, for R9 Type Rotary Disconnects (C Frame Only)
VS-DHR9DE Direct Handle, for R9 Type Rotary Disconnects (Frames D and E)
VS-R5A3030U UL508, A-Frame, 3-Pole Switch, 30 A, Non-Fusible Rotary Disconnect
VS-5B3060U UL508, B-Frame, 3-Pole Switch, 60 A, Non-Fusible Rotary Disconnect
VS-R9C3100U UL98, C-Frame, 3-Pole Switch, 100 A, Non-Fusible Rotary Disconnect
VS-R9D3100U UL98, D-Frame, 3-Pole Switch, 100 A, Non-Fusible Rotary Switch
VS-R93200U UL98, D-Frame, 3-Pole Switch, 200 A, Non-Fusible Rotary Switch
VS-R9K3100FJ UL98, K-Frame, 3-Pole, 100 A, J-Fusible Rotary Disconnect
VS-C075E5EFB 75 VA Type MTE Control Transformer with Primary Fuse Block
VS- C0200E5E 200 VA Type MTE Control Transformer
VS- C0200E5EFB 200 VA Type MTE Control Transformer with Primary Fuse Block
VS- C0350E5EFB 350 VA Type MTE Control Transformer with Primary Fuse Block
VS-C0500E5EFB 500 VA Type MTE Control Transformer with Primary Fuse Block
VSD Series II Variable Speed Open Drives Product Bulletin
16
VSD Series II Option Boards
The VSD Series II Drives can accommodate a wide
selection of expander and adapter option boards to
The VSD Series II factory installed standard board
configuration includes an A9 I/O board and an A2 relay
output board, which are installed in slots A and B.
customize the drive for your application needs. The
drive's control unit is designed to accept a total of five
option boards.
Table 27: Option Boards
Description Allowed Slot
Locations
I/O Cards 3 Relay (Qty 2 Form C relay, qty 1
Form A Relay) (replacement only
- included with Variable Speed
Series II Drive)
2 Relay and 1 Thermistor (Not
available with L3 and L4 pilot
light option.) (replaces standard
slot B relay board.)
Extended I/O Cards 6 Digital Outputs (DI), 6 Digital
Outputs (DO), 1 ext +24 VDC/EXT
+24 VDC Programmable
1 Relay Out (RO) Normally
Closed/Normally Open (N.C./
N.O.), 1 RO (N.O.), 1 Thermistor
1 Analog Input (AI) (mA isolated),
2 Analog Output (AO) (mA
isolated)
Card - 3 Relay Dry Contact D, E VS-XMX-B5
1 RO (N.O.), 5 DI (42 – 240 VAC
Input)
Expander IO - 1 AO, 1 DO, 1 RO D, E VS-XMX-BF
SA Bus (JC-VSD Only) D, E VS-XMX-CS
ONWORKS Network D, E VS-XMX-C4
L
B VS-XMX-F1
B VS-XMX-F2
D, E VS-XMX-B1
D, E VS-XMX-B2
D, E VS-XMX-B4
D, E VS-XMX-B9
Option Number
1
1. The option card must be installed in one of the slots listed for that card.
VSD Series II Variable Speed Open Drives Product Bulletin
17
Dimensions

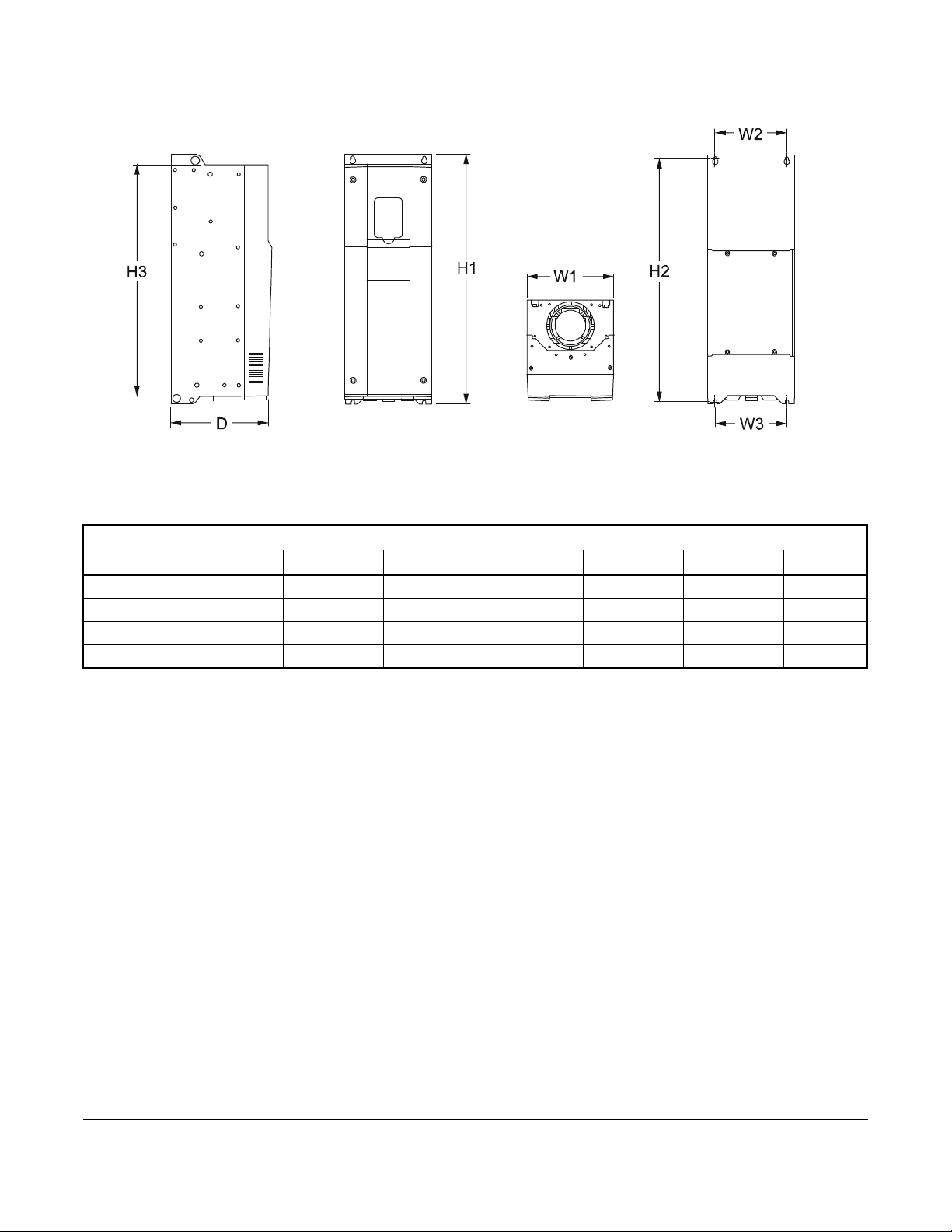

Figure 2: VSD Series II Open Drives Frame 4 – Frame 7
FIG:Frame 4
_
7
Table 28: VSD Series II Open Drives Frame 4 – Frame 7
Frame Size Dimensions in. (mm), approximate
H1 H2 H3 D W1 W2 W3
FR4 12.89 (327.5) 12.32 (313) 11.22 (285) 7.77 (197.3) 5.04 (128) 3.94 (100) 3.94 (100)
FR5 16.50 (419) 15.98 (406) 15.04 (382) 8.73 (221.6) 5.67 (144) 4.53 (115) 3.94 (100)
FR6 21.93 (557) 21.28 (540.5) 20.24 (514) 9.29 (236) 7.68 (195) 5.83 (148) 5.83 (148)
FR7 25.98 (660) 25.39 (645) 24.29 (617) 10.49 (266.5) 9.06 (230) 7.48 (190) 7.48 (190)
VSD Series II Variable Speed Open Drives Product Bulletin
18

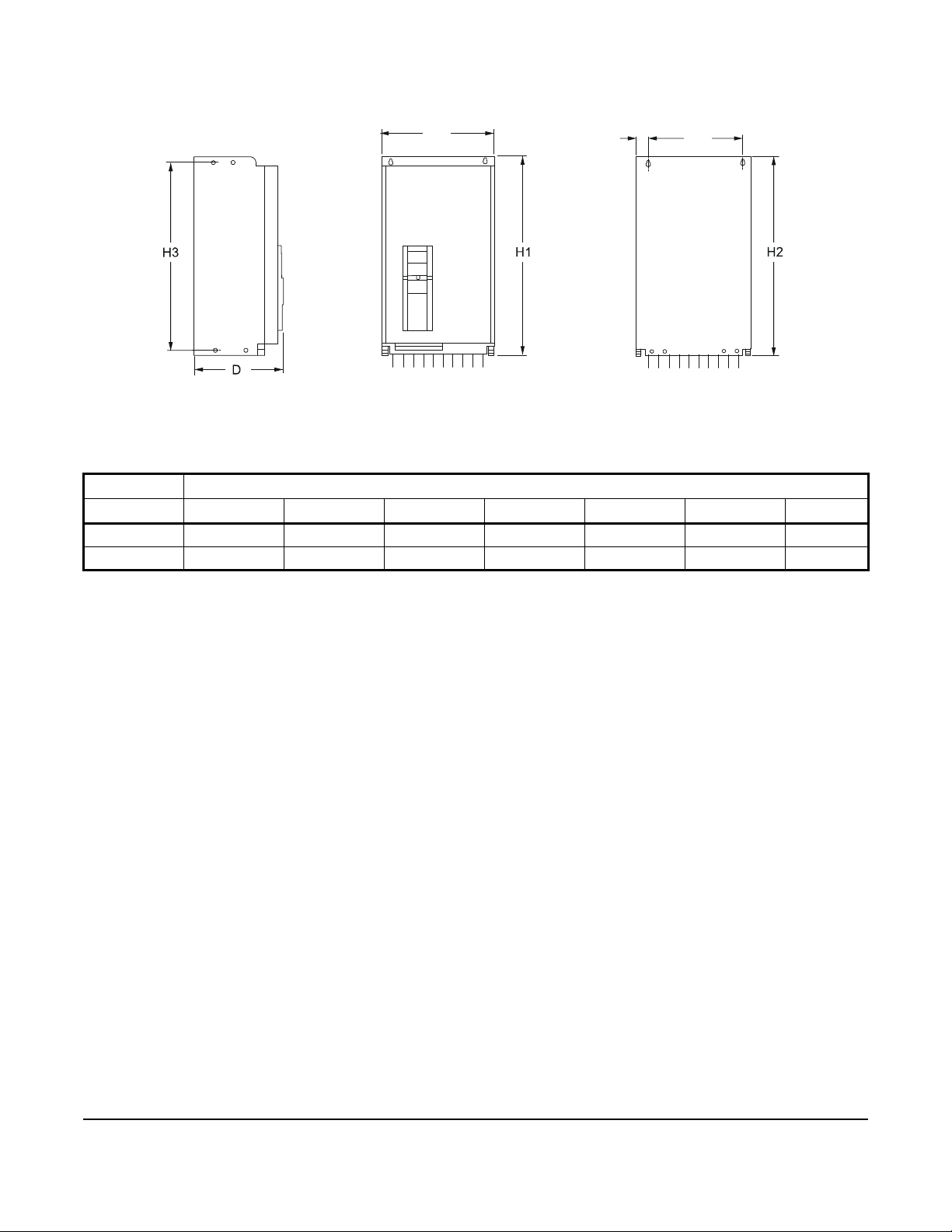

Figure 3: VSD Series II Open Drives Frames 8 and 9
W3
W1
W2
FIG
:Frame
8_9
Table 29: VSD Series II Open Drives Frames 8 and 9
Frame Size Dimensions in. (mm), approximate
H1 H2 H3 D W1 W2 W3
FR8 38.02 (965.7) 37.26 (946.4) 37.26 (946.4) 13.76 (349.6) 11.42 (290.1) 9.29 (236) 1.42 (36)
FR9 33.09 (890.4) 31.89 (810) 31.89 (810) 14.63 (371.6) 18.90 (480) 15.75 (400) 1.57 (40)
VSD Series II Variable Speed Open Drives Product Bulletin
19
Wiring Diagram
Figure 4: VSD Series II Open Drives Circuit Diagram
Motor
Three-Phase
Output
R+
U (T1)
V (T2)
W (T3)
Factory Default Signal
+10V
24V out
GND
DIN1
DIN2
DIN3
24V out
GND
DIN4
DIN5
DIN6
ST ART/STOP (Contact close = st art)
CMB
24Vdc
in
Force Bypass (Contact closed = bypass)
Outp ut Frequ ency (0-20 mA)
RS-485 DATA-
RS-485 DATA+
24 Vdc/8A
250 Vdc/8A
125 Vdc/0.4A
AI-1+
GND
GND
AO-1+
Slot D
Terminal Blo ck Layout
Factory Jumper
External Interlock
Analog
ON
FIG:Circuit Diagram
VSD Series II Variable Speed Open Drives Product Bulletin
20
Technical Specifications
VSD Series II Variable Speed Open Drives (Part 1 of 3)
Input Voltage (Vin) 200 – 240 VAC, 380 – 480 VAC, -10%/+10%
Input Frequency (fin) 50/60 Hz (Variation Up to 47-66 Hz)
Connection to Power Once Per Minute or Less (Typical Operation)
Current Withstand Rating 100 kAIC
Output Voltage 0 to V
Continuous Output Current Ambient Temperature Maximum 104°F (40°C), Overload 1.1 x I
(1 min./10 min.)
Overload Current 110% (1 min./10 min.)
Initial Output Current 150% for 2 Seconds
Output Frequency 0 to 320 Hz
Frequency Resolution 0.01 Hz
Control Method Frequency Control (V/f) Open Loop Sensorless Vector Control
Switching Frequency 1 – 310 A
Frame 4 – 9: default 6 kHz
Frequency Reference Analog Input: Resolution 0.1% (10 bit),
Accuracy +/-1%
Panel Reference: Resolution 0.01 Hz
Field Weakening Point 8 to 320 Hz
Acceleration Time 0.1 to 3,000 s
Deceleration Time 0.1 to 3,000 s
Braking Torque DC Brake: 30% x T
Ambient Operating Temperature 14 (No Frost) to 104°F (-10 to 40°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Relative Humidity 0 to 95% RH, Noncondensing, Noncorrosive,
No Dripping Water
Air Quality Chemical Vapors: IEC 60721-3-3, Unit In Operation, Class 3C2;
Mechanical Particles: IEC 60721-3-3, Unit In Operation, Class 3S2
Altitude 100% Load Capacity (No Derating) Up to 3,280 ft (1,000 m);
1% Derating for Each 328 ft (100 m) Above 3,280 ft (1,000 m);
Maximum 9,842 ft (3,000 m)
Vibration Frame 4 – 9, EN 61800-5-1, EN 60068-2-6; 5 to 150 Hz, Displacement
Amplitude 1 mm (Peak) at 5 to 15.8 Hz, Max. Acceleration Amplitude 1 G at
15.8 to 150 Hz
Shock EN 61800-5-1,EN 60068-2-27 United Parcel Service® (UPS) Drop Test (for
Applicable UPS Weights) Storage and Shipping: max. 15 G, 11 ms (in
package)
Enclosure Class NEMA Type 1/IP21 or NEMA Type 12/IP54
EMC (at default settings) Immunity: Fulfills all Electromagnetic Compatibility (EMC) Immunity
Requirements; Emissions: EN 61800-3 (2004), LEVEL H
Emissions EMC Level Dependent: +EMC 2: EN 61800-3 (2004) Category C2, Delivered
with Class C2 EMC Filtering as Default
Analog Input Voltage 0 to 10 V, R = 200 kOhms Differential Resolution 0.1%; Accuracy ±1%, Dip
Switch Selection (Voltage/Current)
Analog Input Current 0 (4) to 20 mA; R
Digital Inputs (6) Positive or Negative Logic; 18 to 30 VDC
Line Voltage In
in
(without Brake Option)
n
- 250 Ohms Differential
i
L
VSD Series II Variable Speed Open Drives Product Bulletin
21
VSD Series II Variable Speed Open Drives (Part 2 of 3)
Auxiliary Voltage 24 V ±10%, Maximum 250 mA
Output Reference Voltage 10 V +3%, Maximum Load 10 mA
Analog Output 0 to 10 V, 0 (4) to 20 mA; R
± 2%, Dip Switch Selection (Voltage/Current)
Relay Outputs 3 Programmable, 2 Form C, 1 Form A Relay Outputs Switching Capacity: 24
VDC/8 A, 250 VAC/8 A, 125 VDC/0.4 A
Hard Wire Jumper Between Terminal 6 and 10 (Factory Default)
Dip Switch Setting Default RS485 = Off
A01 = Current
A12 = Current
A11 = Voltage
Overcurrent Protection Yes
Overvoltage Protection Yes
DC Bus Regulation Anti-trip Yes (Accelerates or Decelerates the Load)
Undervoltage Protection Yes
Earth Fault Protection Yes, in case of earth fault in motor or motor cable, only the frequency
converter is protected.
Input Phase Supervision Yes, trips if any of the input phases are missing
Motor Phase Supervision Yes, trips if any of the output phases are missing
Overtemperature Protection Yes
Motor Overload Protection Yes
Motor Stall Protection Yes
Motor Underload Protection Yes
Short Circuit Protection Yes (of the 24 V and 10 V Reference Voltages)
Surge Protection Yes (Varistor Input)
OHSPD Special Seismic Certification
Pre-Approval
Compliance UL Listed File No 508C; cUL Listed
Warranty 2 Years Standard Terms;
Reliability 500,000 Hours Mean Time Between Failures (MTBF)
Line Voltage (VAC) 230 V (208 to 240 V)
Weight FR4 13.2 lb (6 kg)
FR5 22 lb (10 kg)
FR6 44 lb (20 kg)
FR7 83 lb (37.5 kg)
FR8 154.3 lb (70 kg)
FR9 238 lb (108 kg)
Yes
Safety – EN 61800-5-1 (2007)
CE Mark – Johnson Controls, Inc., declares that the VSD Series II Variable
Speed Open Drives are in compliance with the essentia l requirements and
other relevant provisions of EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EC.
3 Years with Certified Startup
480 V (380 to 500 V)
575 V (525 to 690 V)
max. 500 Ohms; Resolution 10 bit; Accuracy
L
VSD Series II Variable Speed Open Drives Product Bulletin
22
Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc.
All other marks herein are the marks of their respective owners. © 2016 Johnson Controls, Inc.
Building Efficiency
507 E. Michigan Street, Milwaukee, WI 53202
VSD Series II Variable Speed Open Drives (Part 3 of 3)
Voltage/Horsepower/Amperes FR4 230 V, 0.75 to 4 hp, 0.55 to 3 kW, 3.7 to 12 A
480 V, 1.5 to 7.5 hp, 1.1 to 5.5 kW, 3.4 to 12 A
FR5 230 V, 5 to 10 hp, 4 to 7.5 kW, 18 to 31 A
480 V, 10 to 20 hp, 7.5 to 15 kW, 16 to 31 A
FR6 230 V, 15 to 20 hp, 11 to 15 kW, 48 to 62 A
480 V, 25 to 40 hp, 18.5 to 30 kW, 38 to 61 A
FR7 230 V, 25 to 40 hp, 18.5 to 30 kW, 38 to 61 A
480 V, 50 to 75 hp, 37 to 55 kW, 75 to 105 A
FR8 230 V, 50 to 75 hp, 37 to 55 kW, 140 to 205 A
480 V, 100 to 150 hp, 75 to 110 kW, 140 to 205 A
FR9 230 V, 100 to 120 hp, 75 to 90 kW, 261 to 310 A
480 V, 100 to 125 hp, 132 to 160 kW, 261 to 310 A
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these
specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or
misuse of its products.
VSD Series II Variable Speed Open Drives Product Bulletin
Published in U.S.A. www.johnsoncontrols.com
23
Loading...
