MAINTENANCE AND
SERVICE MANUAL
DOWNFLOW/UPFLOW
ELECTRIC FURNACE
MODELS: EB
TABLE OF CONTENTS
CONTACT INFORMATION FOR USA . . . . . . . . . . . . . . . . . . . . . . .1
CONTACT INFORMATION FOR CANADA . . . . . . . . . . . . . . . . . . .1
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
TO OPERATE FURNACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
TO SHUT FURNACE OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SEQUENCE OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
LIMIT CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BLOWER REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
FURNACE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CIRCUIT BREAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BLOWER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
AIR FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
RETURN AIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
WHILE YOU’RE AWAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
AT THE BEGINNING OF EACH HEATING SEASON . . . . . . . . . . . .3
YOUR AUTHORIZED SERVICE TECHNICIAN . . . . . . . . . . . . . . . .3
OPTIONAL AIR CONDITIONING ACCESSORIES . . . . . . . . . . . . . .3
HIGH PERFORMANCE BLOWER ACCESSORY PACKAGE . . . . .3
REPAIR PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
CONTACT INFORMATION FOR USA
• Contact us by mail:
DISTRIBUTED BY:
StyleCrest
801 W. 37th Street
Building #7
Wichita, Ks 67219
MANUFACTURED BY:
Johnson Control, Inc.
5005 York Drive
Norman, OK 73069
The manufacturer recommends that the user read all sections of this manual and keep the manual for future reference.
FOR YOUR SAFETY - Do not store or use gasoline or other fla m-
mable vapors and liquids in the vicinity of this or any other appliance.
For personal safety be sure to turn the electrical power OFF at
the household service box and at the furnace before attempting any service or maintenance operations. Homeowner
should never perform any maintenance which requires opening the furnace electrical panel.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
CONTACT INFORMATION FOR CANADA
• Go to website at www.york.com click on “contact”, then click on
“contact form” and follow the instructions.
• Contact us by mail:
Johnson Controls, Inc.
Consumer Relations
5005 York Drive
Norman, OK 73069
This furnace and its components, including the air conditioning coils
and blowers listed on the A/C accessory sticker were listed in combination as a system by Underwriters Laboratories.
Use of other components not tested in combination with this furnace
may make the equipment in violation of State Codes, may create a
hazard, and may ruin the equipment.
In addition, the National Manufactured Housing Construction and
Safety Standards Act and its Regulations require the use of components listed or certified by a nationally recognized testing laboratory
in all manufactured homes built and sold subject to that act.
SECTION I: INTRODUCTION
To avoid the possibility of electrical shock do not open electrical box
panels.
Johnson Controls Unitary Products 570930-BUM-C-0112
570930-BUM-C-0112
NOTICE
NOTICE
U
L
R
FILTER (IN
DOWNFLOW
ONLY) *
CAVITY
FOR
COIL
THERMOSTAT
WIRES
CIRCUIT
BREAKERS
ELECTRIC
PANEL
FIELD WIRING
PROTECTIVE
SHIELD
Filter in the front panel when louvered doors
are used. Filter located in base for upflow units.
*
SECTION II: TO OPERATE FURNACE
1. Be sure electrical power to furnace is turned on at the house-hold
service box.
2. Set wall thermostat to the desired temperature.
3. If furnace is equipped with Air Conditioning, the System Switch,
located at the wall thermostat, must be turned to HEAT in order for
the furnace to operate in the heating model.
If you have an air conditioner which does not use the furnace blower
for air distribution and operates completely independent of the furnace, the thermostat system must have an interlock to prevent the
furnace and air conditioner from operating at the same time. Such
operation could cause equipment damage, energy waste and overheating of the home.
The interlock system usually contains a heat-cool switch which must be
turned to either HEAT or COOL to activate either heating or cooling
operation.
If an interlock system has not been provided, the electrical supply to the
furnace must be turned OFF at the household service box, when the air
conditioner is being used. When operating the furnace, the electrical
supply to the air conditioner must be turned OFF.
TO SHUT FURNACE OFF
1. Turn thermostat to its lowest setting.
FIGURE 1: Component Locations
SECTION IV: FURNACE OPERATION
CIRCUIT BREAKERS
Furnace will still operate if room temperature falls below thermostat
setting.
2. For complete shut-down, turn off electrical power at the household
service box.
SECTION III: SEQUENCE OF
OPERATION
When room thermostat calls for heat, 24-volt power is supplied to the
heating element switches. As soon as the first heating element switch
closes, the blower starts and power is supplied to the first heating element. Each additional element is staged on in successive intervals.
When the room thermostat is satisfied and no more heat is required, the
elements sequence off in the reverse order and the blower will then turn
off.
LIMIT CONTROLS
Each element has an automatic limit switch which is wired into the circuit and shuts off power to that element if the heat at that point exceeds
the allowable maximum heat.
BLOWER REMOVAL
Your electric furnace is equipped with a unique safety feature - circu it
breakers. These circuit breakers are located behind the door of the furnace, near the bottom of the furnace. See Figure 1. If a component
should fail inside the furnace, the circuit breakers will prevent damage
that can be caused by an electrical short. If the breakers ever trip, they
can be reset by first turning off the power to the furnace at the home's
circuit breaker panel. See Warning below. Then remove the furnace
door and reset the circuit breaker in the furnace. Re-install the furnace
door and turn the power back on at the home's breaker panel. If for
some reason these circuit breakers should trip again, a service technician should be contacted as a problem exists inside the furnace. A list
of authorized service centers is provided with every furnace and will
assist you in obtaining service for your furnace.
Y ou must first de-energize the furnace at the main household power
supply and lock it.
LUBRICATION
The blower motor bearings are factory sealed. Additional lubrication is
not required.
BLOWER ASSEMBLY
Only authorized service technicians should remove the blower.
To remove blower from furnace, turn off power at household service
box, turn furnace circuit breakers OFF. Disconnect wiring to blower, and
remove five (5) screws holding blower in furnace and slide blower out
from front of the furnace. See Figure 1.
Re-install blower in reverse order when assembling back into furnace.
2 Johnson Controls Unitary Products
Every electric furnace comes equipped with a blower capable of operating a heat pump or air conditioner. With the addition of the proper heat
pump, you can enjoy comfort and savings all year long. An air conditioner will also work with your furnace and will provide cool summer
days, at a very low operating cost.
570930-BUM-C-0112
NOTICE
NOTICE
AIR FILTER
The filter supplied with the furnace is a throw-away type. Filters need to
be cleaned frequently. Shake out all loose dirt, and use vacuum cleaner
to clean additionally. This method of cleaning will prolong life of filters.
DO change filters often since clean filters not only provide added comfort, better and cleaner environment, but increase the efficiency of the
furnace as well.
FILTER LOCATION: The furnace's front panel must be removed to gain
access to the filter of the downflow furnace. (See Figure 1.) However,
the filter for the upflow furnace* is located behind the return air grill,
adjacent to the furnace closet or any other location in the return air.
RETURN AIR
Return air must be provided back to the circulating blower in order to
provide air distribution. DO NOT OBSTRUCT ANY RETURN AIR
GRILLE. To do so will cause the furnace heating elements to cycle off
and on repeatedly.
WHILE YOU’RE AWAY
The power supply to your furnace is equipped with either a fused or
breaker type disconnect. In case of an overload, this will interrupt the
operation of your furnace until it is reset or fuse replaced. For this reason it is never practical to assume that the furnace will operate unattended for long periods of time, especially if there is a possibility of
damage to your property because of freezing. So, if you plan to be
away, arrange for someone to check your home every day or so.
AT THE BEGINNING OF EACH HEATING SEASON
Be sure electrical supply to furnace is turned off at the household
service box and furnace circuit breakers before cleaning.
1. Replace filters as discussed previously. Clean dust and lint from in
and around the furnace. Clean dust and lint from blower and blower
compartment.
2. If furnace fails to operate properly:
a. Be sure electrical power is being supplied to furnace. Check
main household power supply.
b. If, after following this procedure, the furnace still fails to oper-
ate, shut off furnace and contact your service technician.
YOUR AUTHORIZED SERVICE TECHNICIAN
Your furnace's best friend is your service technician. If the unit gives
any indication of improper operation, call your authorized service technician. If the service technician is allowed to perform the normal routine
care of your furnace, many times he can detect potential difficulties and
make corrections before trouble develops. Preventive maintenance of
this type will allow you to operate this unit with a minimum of concern
and pay for itself in added years of comfort.
OPTIONAL AIR CONDITIONING ACCESSORIES
This furnace is equipped with a blower and control system to add-on air
conditioning and heat pumps to specified sizes. Insulation and coil shelf
kit (3500-8941 for downflow or 3500-8961/A for upflow) must be
installed when adding on such remote air conditioning systems.
If the controls are located at the top of the unit, the furnace is an
upflow furnace and the airflow is forced up through the furnace and
into the airways.
Failure to install this insulation and coil shelf kit could result in damage to equipment and/or personal injury. Liability and warranty from
the manufacturer could also be void.
HIGH PERFORMANCE BLOWER ACCESSORY
PACKAGE
All EB furnaces are equipped with a blower and control system to addon air conditioning and heat pumps to specified sizes. If the requirement is to achieve more air flow or cooling than specified, then the
blower inside the furnace has to be replaced with an accessory blower
package 3500-7901*. This accessory blower package would deliver air
conditioning up to 5-tons, and heat pump up to 4-tons. Accessory package (3500-7901*) includes blower, insulation, coil shelf, trap, clamps,
etc. Please refer to the installation instructions packed with the accessory package for more information.
All areas around the line sets, drain hoses and other openings in the
furnace should be sealed airtight. Use some moldable compound or
caulking to seal the area. Failure to do so may result in loss of performance and premature compressor failure.
Johnson Controls Unitary Products 3
570930-BUM-C-0112
1
24
25
3
4
5
6
26
9
10
11
7
17
16
15
20
21
22
23
12
27
13
14
19
17
18
29 28
1

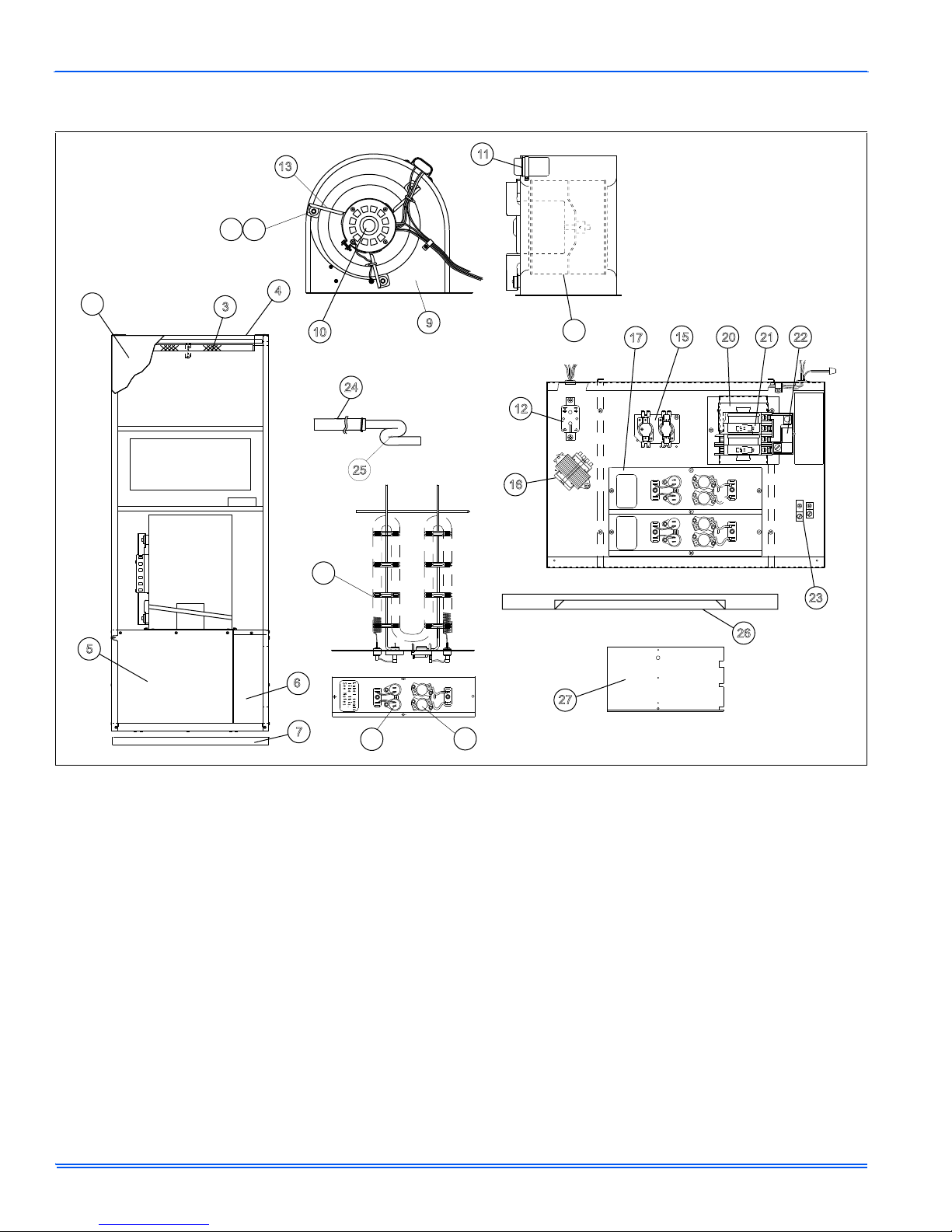

SECTION V: REPAIR PARTS LIST
4 Johnson Controls Unitary Products
570930-BUM-C-0112
ITEM DESCRIPTION EB10D EB12D EB15D <
Front Panel (Insulated) 3501-9111 3501-9111 3501-9111
1
Filter
(20 x 20 x 1) (Front Return Panel) S1-1214-2521 S1-1214-2521 S1-1214-2521
2* (Opt)
Front Panel (Louvered, 4-Ton) (Insul) 3501-9211 3501-9211 3501-9211
Front Panel (Front Return, 5-Ton) 3500-1591 3500-1591 3500-1591
3 Filter (16 x 20 x 1) S1-1214-2511 S1-1214-2511 S1-1214-2511
4 Support Angle (Door) S1-3500-1861 S1-3500-1861 S1-3500-1861
5 Cover, Electric Box S1-3500-2351/A S1-3500-2361/A S1-3500-2361/A
6 Cover (Service Entrance) S1-3500-1271 S1-3500-1271 S1-3500-1271
Sub-base (Optional) S1-3500-1071/B S1-3500-1071/B S1-3500-1071/B
7
Sub-base (M10) (Optional) 3500-5221 3500-5221 3500-5221
8
9 Blower Housing S1-37323744001 S1-37323744001 S1-37323744001
10 Blower Motor S1-02427651000 S1-02427651000 S1-02427651000
11 Capacitor (7.5MFD/370V) S1-02420045700 S1-02420045700 S1-02420045700
12 Relay, Fan S1-3110-3301 S1-3110-3301 S1-3110-3301
13 Motor Mount Assembly Kit (1PC) S1-37319831002 S1-37319831002 S1-37319831002
14 Blower Wheel S1-02632627700 S1-02632627700 S1-02632627700
15 Sequencer S1-3110-3571 S1-3110-3571 S1-3115-3571
16 Transformer (240/24V-40A) S1-3300-3861 S1-3300-3861 S1-3300-3861
Heater Element Assembly w/Limit and Jumper
17
Wire
(9.6Kw)
S1-02541236000
(11.2Kw)
S1-02541238000
(4.8Kw) & (9.6Kw)
S1-02541237000
S1-02541236000
Limit Switch S1-02541249000 (Open
18
200, Close 60)
S1-02541249000 (Open
200, Close 60)
S1-02541249000 (Open
200, Close 60)
19 Fusible Link S1-02435663000 S1-02435663000 S1-02435663000
20 Bracket (Circuit Breaker) 3500-128 3500-128 3500-128
Circuit Breaker (1 Req’d) S1-3500-377P/A --- ---
21
Circuit Breaker (2 Req’d) --- S1-3500-377P/A S1-3500-377P/A
22 Buss Bar (See Note 2) S1-3500-378P S1-3500-378P S1-3500-378P
Ground Lug (Large) 1216-231 1216-231 1216-231
23
Ground Lug (Small) --- --- S1-02521798000
24 Drain Tube (See Note 1) S1-02922184001 S1-02922184001 S1-02922184001
25 Condensate Trap (See Note 1) S1-3240-3051 S1-3240-3051 S1-3240-3051
26 Coil Shelf (See Note 1) 3500-174 3500-174 3500-174
27 Coil Shelf Panel (See Note 1) 3500-171 3500-171 3500-171
28 Ferrule (3 Req’d) S1-02320541000 S1-02320541000 S1-02320541000
29 Grommet (3 Req’d) S1-02814740000 S1-02814740000 S1-02814740000
30 Fuse S1-02532746026 S1-02532746026 S1-02532746026
31* Wiring diagram 570551 570539 570540
NOTE: *Not Shown
New replacement parts shown in bold face type at the first printing of parts list dated 4/10.
Major components and suggested stocking items are shown with shaded item number.
“<“ Across from row indicates a change in that row.
--- Not applicable to specified model.
All parts with three digit suffix numbers are “Special Order” parts. These parts are subject to factory
availability and require extra time for delivery.
1 Not Standard with furnace, contained in accessory kit no. 3500-8941/B.
2 Standard on EB12*.
Johnson Controls Unitary Products 5
570930-BUM-C-0112
ITEM DESCRIPTION EB17D EB20D EB23D <
Front Panel (Louvered, 4-Ton) (Insul) 3501-9211 3501-9211 3501-9211
1
Filter
(20 x 20 x 1) (Front Return Panel) S1-1214-2521 S1-1214-2521 S1-1214-2521
2* (Opt)
Front Panel (Insulated) 3501-9111 3501-9111 3501-9111
Front Panel (Front Return 5-Ton) 3500-1591 3500-1591 3500-1591
3 Filter (16 x 20 x 1) S1-1214-2511 S1-1214-2511 S1-1214-2511
4 Support Angle (Door) S1-3500-1861 S1-3500-1861 S1-3500-1861
5 Cover, Electric Box S1-3500-2361/A S1-3500-2361/A S1-3500-2361/A
6 Cover (Service Entrance) S1-3500-1271 S1-3500-1271 S1-3500-1271
Sub-base (Optional) S1-3500-1071/B S1-3500-1071/B S1-3500-1071/B
7
Sub-base (M10) (Optional) 3500-5221 3500-5221 3500-5221
8
9 Blower Housing S1-37323744001 S1-37323744001 S1-37323744001
10 Blower Motor S1-02427651000 S1-02427651000 S1-02427651000
11 Capacitor (7.5MFD/370V) S1-02420045700 S1-02420045700 S1-02420045700
12 Relay, Fan S1-3110-3301 S1-3110-3301 S1-3110-3301
13 Motor Mount Assembly Kit (1PC) S1-37319831002 S1-37319831002 S1-37319831002
14 Blower Wheel S1-02632627700 S1-02632627700 S1-02632627700
15 Sequencer S1-3115-3571 S1-3120A3571 S1-3120A3571
16 Transformer (240/24V-40A) S1-3300-3861 S1-3300-3861 S1-3300-3861
Heater Element Assembly w/Limit and Jumper
17
Wire
(5.6Kw) & (10.4Kw)
S1-02541239000
S1-02541240000
Limit Switch S1-02541249000 (Open
18
200, Close 60)
2 Ea. (9.6Kw)
S1-02541236000
S1-02541249000 (Open
200, Close 60)
(10.4Kw) & (11.2Kw)
S1-02541240000
S1-02541238000
S1-02541249000 (Open
200, Close 60)
19 Fusible Link S1-02435663000 S1-02435663000 S1-02435663000
20 Bracket (Cir cuit Breaker) 3500-128 3500-128 3500-128
21 Circuit Breaker (2 Req’d) (See Note 2) S1-3500-377P/A S1-3500-377P/A S1-3500-377P/A
22 Buss Bar S1-3500-378P S1-3500-378P S1-3500-378P
Ground Lug (Large) 1216-231 1216-231 1216-231
23
Ground Lug (Small) S1-02521798000 S1-02521798000 S1-02521798000
24 Drain Tube (See Note 1) S1-02922184001 S1-02922184001 S1-02922184001
25 Condensate Trap (See Note 1) S1-3240-3051 S1-3240-3051 S1-3240-3051
26 Coil Shelf (See Note 1) 3500-174 3500-174 3500-174
27 Coil Shelf Panel (See Note 1) 3500-171 3500-171 3500-171
28 Ferrule (3 Req’d) S1-02320541000 S1-02320541000 S1-02320541000
29 Grommet (3 Req’d) S1-02814740000 S1-02814740000 S1-02814740000
30 Fuse S1-02532746026 S1-02532746026 S1-02532746026
31* Wiring diagram 570571 570572 570573
NOTE: *Not Shown
New replacement parts shown in bold face type at the first printing of parts list dated 4/10.
Major components and suggested stocking items are shown with shaded item number.
“<“ Across from row indicates a change in that row .
--- Not applicable to specified model.
All parts with three digit suffix numbers are “Special Order” parts. These parts are subject to fact ory
availability and require extra time for delivery.
1 Not Stand ard with furnace, contained in accessory kit no. 3500-8941/B
6 Johnson Controls Unitary Products
NOTES
570930-BUM-C-0112
Johnson Controls Unitary Products 7
Limited Warranty
Manufactured Housing Furnace
UPG warrants this product to be free from defects in factory workmanship and material under normal use and service and will replace parts that prove to have
such defects according to the ter m s ou tli ned below.
Furnace Model Parts Coverage Labor and Trip Coverage*
EB 2 years 1 years
The warranty period for any replacement part provided here under shall not extend beyond the warranty period stated above.
The warranty period will beg in on the purchase date of the residence w h en the product is installed as original equipment, or the installation date when installed
in a residence previously purchased by the consumer. Return the Warranty Registration Card to UPG promptly after product installation or purchase for your
benefit and protection. The warranty period will begin upon product shipment from UPG in the absence of a recorded Warranty Registration Card.
This warranty applies to the original consumer/purchaser and a ny subsequent purchaser. The warranty does not apply if t he furnace is removed from the original residence, or if the residence has been moved from the original location where the furnace was placed in service.
This warranty applies only to products installed: (1) in the United States of America or Canada; (2) in accordance with UPG recommendations and specifications outlined in the In stallation Manua l provided wi th the produ ct; (3) in ac cordance wi th all natio nal, state/prov incial, and local cod es; and (4 ) in the orig inal
residence.
Exclusions
1. Shipping/freight, or material charges.
2. Damages resulting from transportation, mishandling, improper application, installation or servicing.
3. Damages resulting from accident, abuse, fire, flood, or other acts of nature.
4. Use of the product in a corrosive atmosphere.
5. Alteration, tampering, defacing or removing the product serial number will serve to void the warranty.
6. Damages resulting from inadequacy or interruption of electrical service, improper energy supply, blown fuses, improper wiring external to the unit
or other like damages.
7. Damages resulting from the use of components not approved by UPG.
8. This warranty does not cover consequential damages, incidental damages or incidental expenses including damages to property.
9. Damages caused by failure to perform normal or routine maintenance as set out in the operation and service instructions.
10.Cleaning, replacement of filters, or any other routine maintenance as set out in the User’s Information, Maintenance and Service Manual.
11.Replacement or cleaning of nozzles or orifices.
12.Fuses either internal or external to the product.
13.Excessive fuel or electricity consumption.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE DISCLAIMER OF IMPLIED WARRANTY, SO THAT THE ABOVE
DISCLAIMER MAY NOT APPLY TO YOU.
SOME STATES ALLOW ONLY A PARTIAL LIMITATION ON IMPLIED WARRANTIES, OR LIMIT THE DURATION OF IMPLIED WARRANTIES TO THE
DURATION OF THE EXPRESS WARRANTY. IN SUCH STATES, THE DURATION OF IMPLIED WARRANTIES IS HEREBY EXPRESSLY LIMITED TO THE
DURATION OF THE EXPRESS WARRANTY ON THE FACE HEREOF. IN NO EVENT, WHETHER AS A RESULT OF BREACH OF WARRANTY OR CONTRACT TORT (INCLUDING NEGLIGENCE) STRICT LIABILITY OR O THERWISE, SHALL UPG BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF USE OF THE EQUIPMENT OR ASSOCIATED EQUIPMENT, LOST REVENUES OR
PROFITS, COST OF SUBSTITUTE EQUIPMENT. THIS WARRANTY DOES NOT COVER CONSEQUENTIAL DAMAGES. THE ABOVE LIMITATIONS
SHALL INURE TO THE BENEFIT OF UPG SUPPLIE RS AND SUBCONTRACTORS. THE ABOVE LI MITATION ON CONSEQUENTIAL DAMAGES SHALL
NOT APPLY TO INJURIES TO PERSONS IN THE CASE OF CONSUMER GOODS.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITA TION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENT AL DAMAGES, OR FOR STRICT
LIABILITY IN TORT, SO THAT THE ABOVE EXCLUSIONS AND LIMITATIONS MAY NOT APPLY TO YOU. UPG DOES NOT ASSUME, OR AUTHORIZE
ANY PERSON TO ASSUME FOR UPG ANY LIABILITY FOR THE SALE OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
TO OBTAIN WARRANTY SERVICE
Consult the Authorized Service Center list packed with the furnace installed in th e manufactured home or contact your installing or servicing dealer.
Or, look in the Yellow Pages of the tel ep hone bo ok under Mo bil e Ho mes-o r Man ufac ture d H ous ing- Re pair and Se rv ice fo r the n ame a n d te le ph on e numb er of
the nearest authorized manufactured housing service center. If local authorized service cannot be obtained, or you are unab le to contact your installing dealer,
contact the authorized distribut or in your area. If there is no di stributor in your area, and yo u cannot obtain proper service under the terms of the warranty,
please write: Unitary Products Group (UPG) Customer Relations Department, PO Box 19014, Wichita, KS 67204-9014.
Subject to change without notice. Published in U.S.A. 570930-BUM-C-0112
Copyright © 2012 by Johnson Controls, Inc. All rights reserved. Supersedes: 570930-BUM-B-1010
Johnson Controls Unitar y Products
P.O. Box 19014
Wichita, KS 67204-9014
Loading...
