Johnson Controls 22 SEER User Manual
PREMIUM DUCTLESS SINGLE-SPLIT
INSTALLATION MANUAL
AIR CONDITIONERS AND HEAT PUMPS
MODELS: 22 SEER
3/4 to 3 TONS – 1 PHASE
LIST OF SECTIONS
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SHIPPING AND PACKAGING LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
REQUIRED INSTALLATION TOOLS (NOT SUPPLIED) . . . . . . . . . . . . . . . . . .3
SELECTING THE INSTALLATION LOCATION . . . . . . . . . . . . . . . . . . . . . . . . .3
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
REFRIGERANT LINE SET REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . .6
UNIT DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
TORQUE REQUIREMENTS FOR CAPS AND FASTNERS . . . . . . . . . . . . . . . .9
INDOOR UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
INDOOR UNIT WIRING CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
PIPE FORMING AND DRAIN PIPING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
LIST OF FIGURES
Indoor Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Prevailing Wind Barrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Clearances for Outdoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Condensate Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Typical System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Indoor Unit Mounting Brackets with Weights & Dimensions . . . . . . . . . . . . . . . . .8
Outdoor Unit Weights & Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Mounting Bracket Spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Masonry Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
PVC Wall Sleeve Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Indoor Unit Wall Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Indoor Electrical Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Drain Piping Outlets Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Proper and Improper Drain Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Left or Right Side Exits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Right or Right Rear Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Left or Left Rear Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Drain Hose Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Drain Hose Insulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Pipe Cutting Approved Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Deburring Line Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Flaring Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Proper and Improper Flaring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Connections at Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Flare Nuts Tighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Indoor Unit Attachment to Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Proper and Improper Drain Hose Installation Application . . . . . . . . . . . . . . . . . .13
Indoor Unit Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Outdoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Outdoor Unit Slab or Frame Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Outdoor Unit Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Outdoor Unit Wiring Terminal Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Indoor/Outdoor Piping Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FLARING WORK AND PIPING CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . 12
INDOOR UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
OUTDOOR UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
OUTDOOR UNIT WIRING CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PURGING PROCEDURE, LEAK TEST AND TEST RUN . . . . . . . . . . . . . . . . 16
TEST OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
EMERGENCY OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
INSTALLATION AND MAINTENANCE OF
HEALTHY FILTER (ACCESSORY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

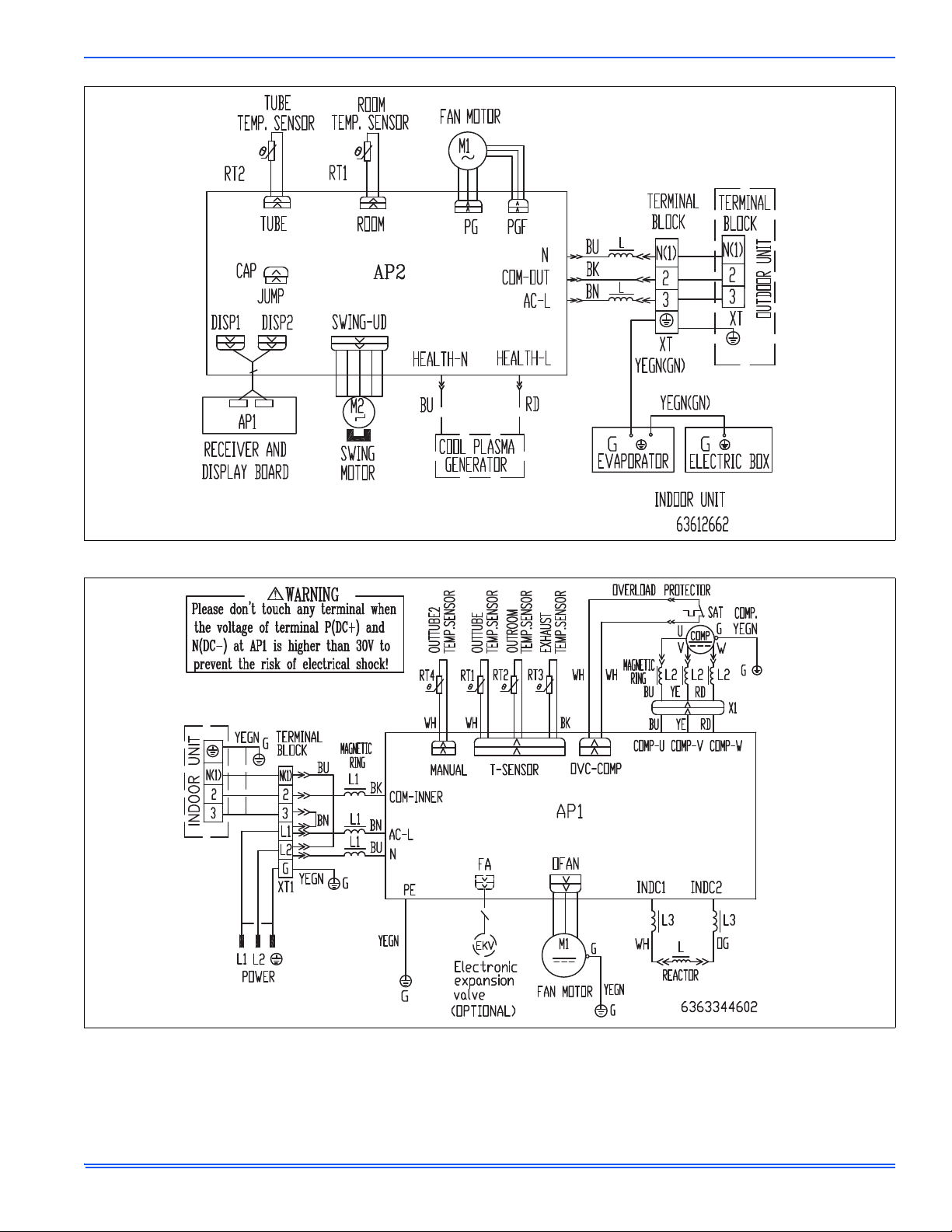

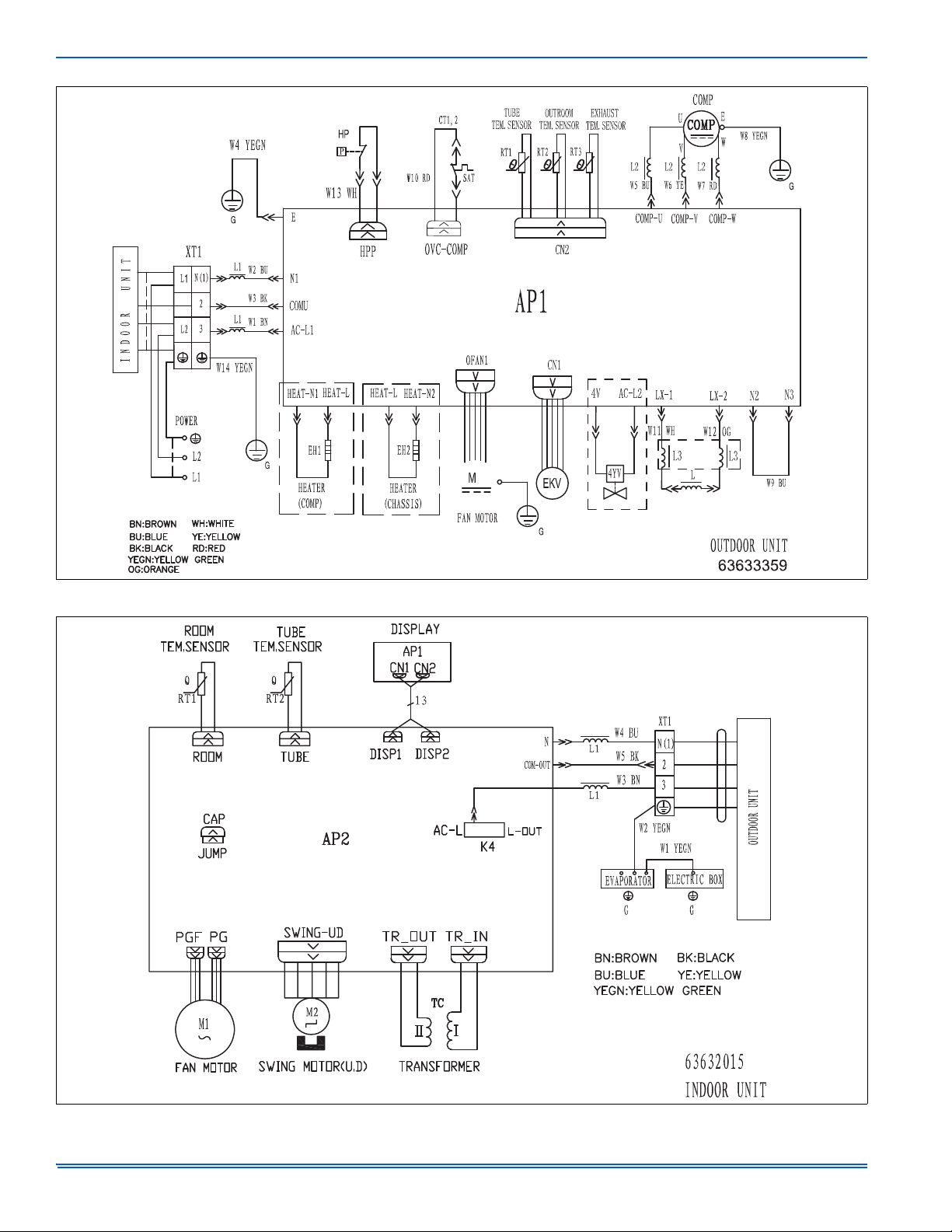

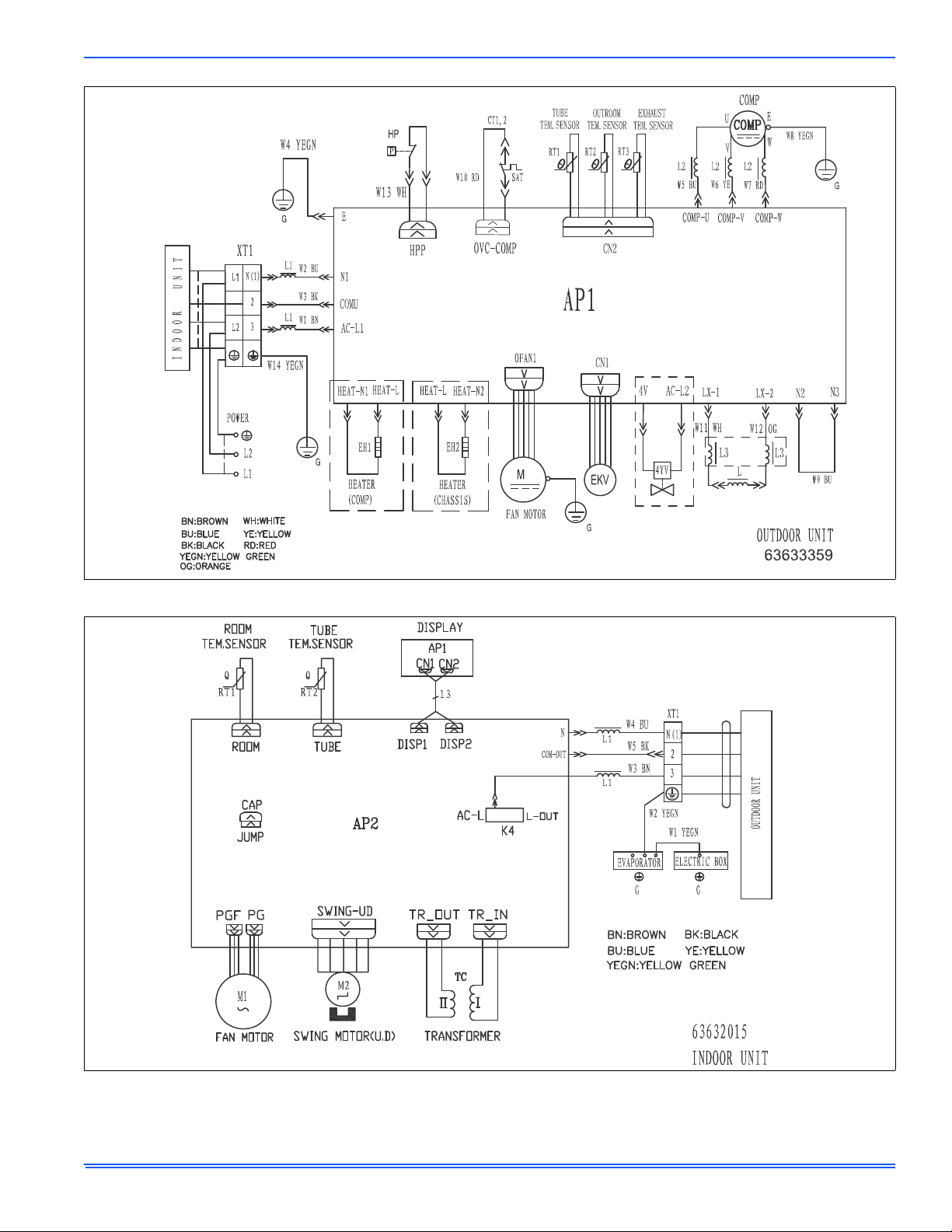

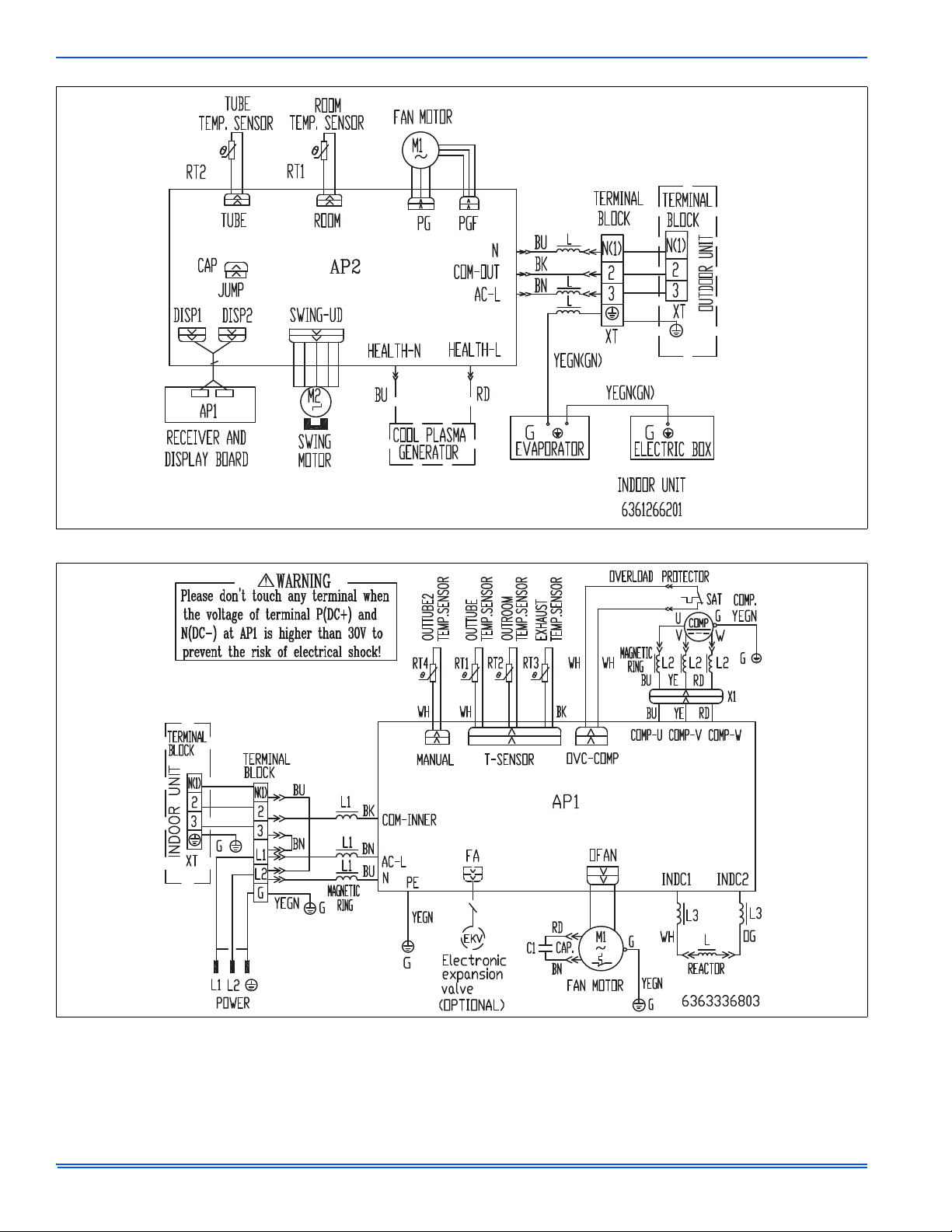

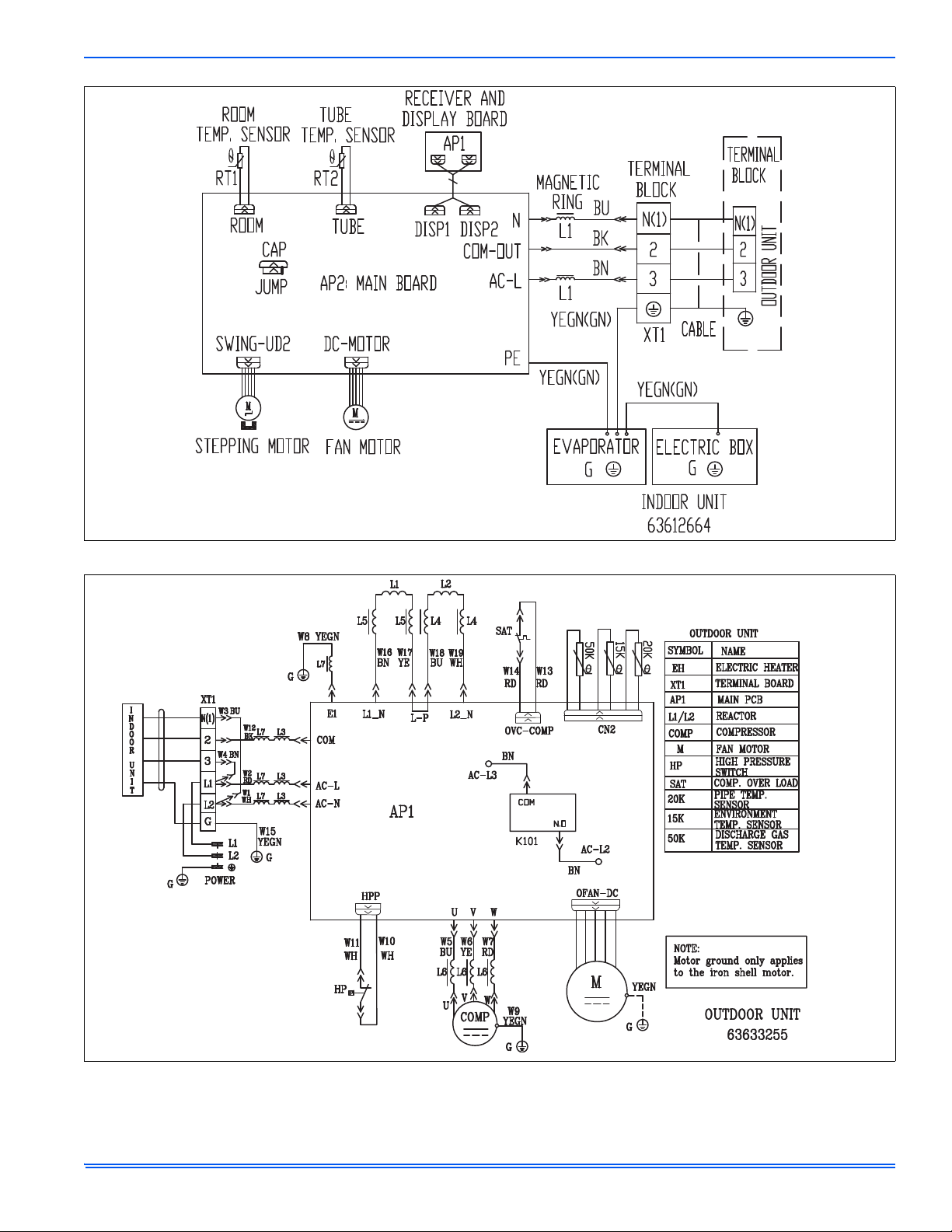

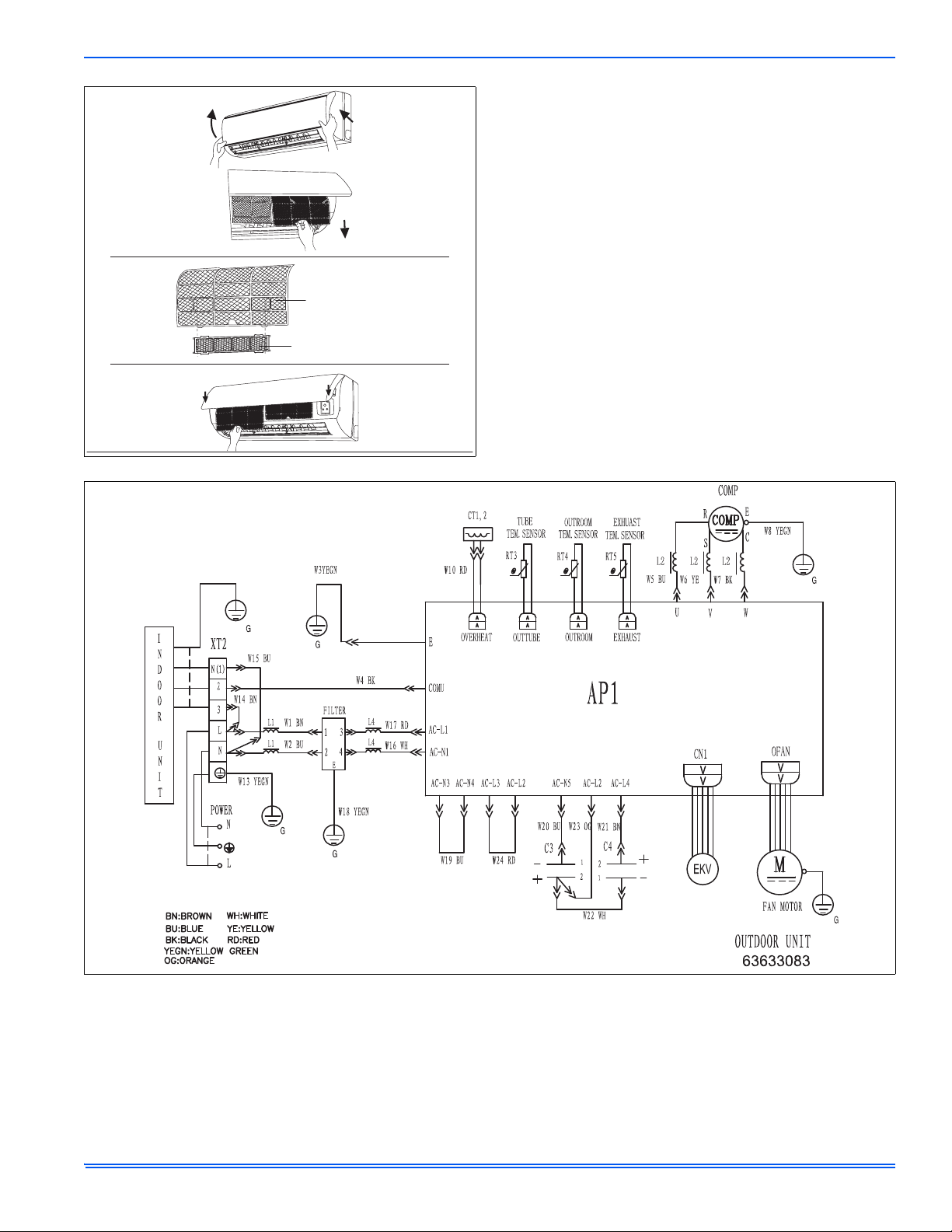

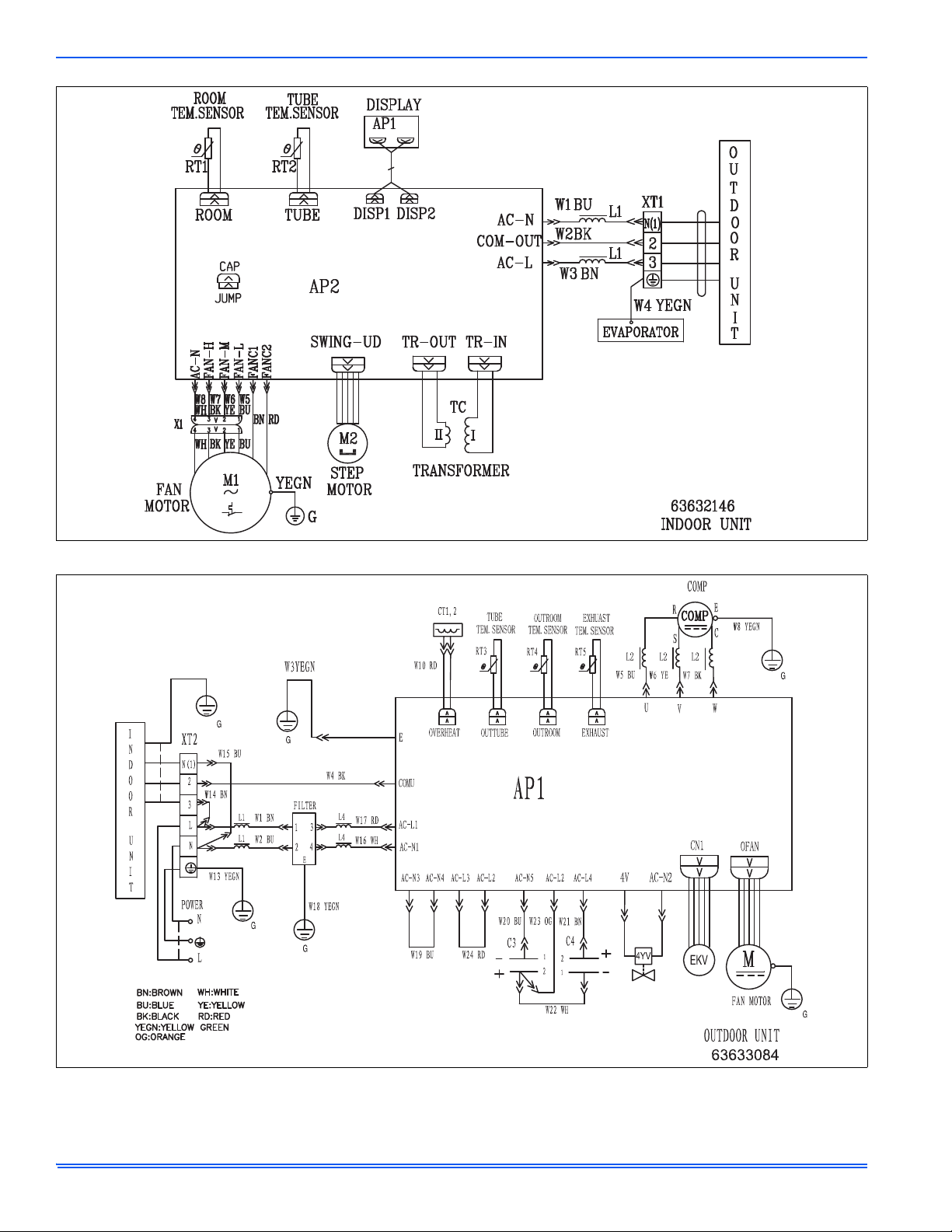

TYPICAL UNIT WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
INDOOR AND OUTDOOR UNITS ERROR CODES . . . . . . . . . . . . . . . . . . . . . 31
Outdoor Line Set Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

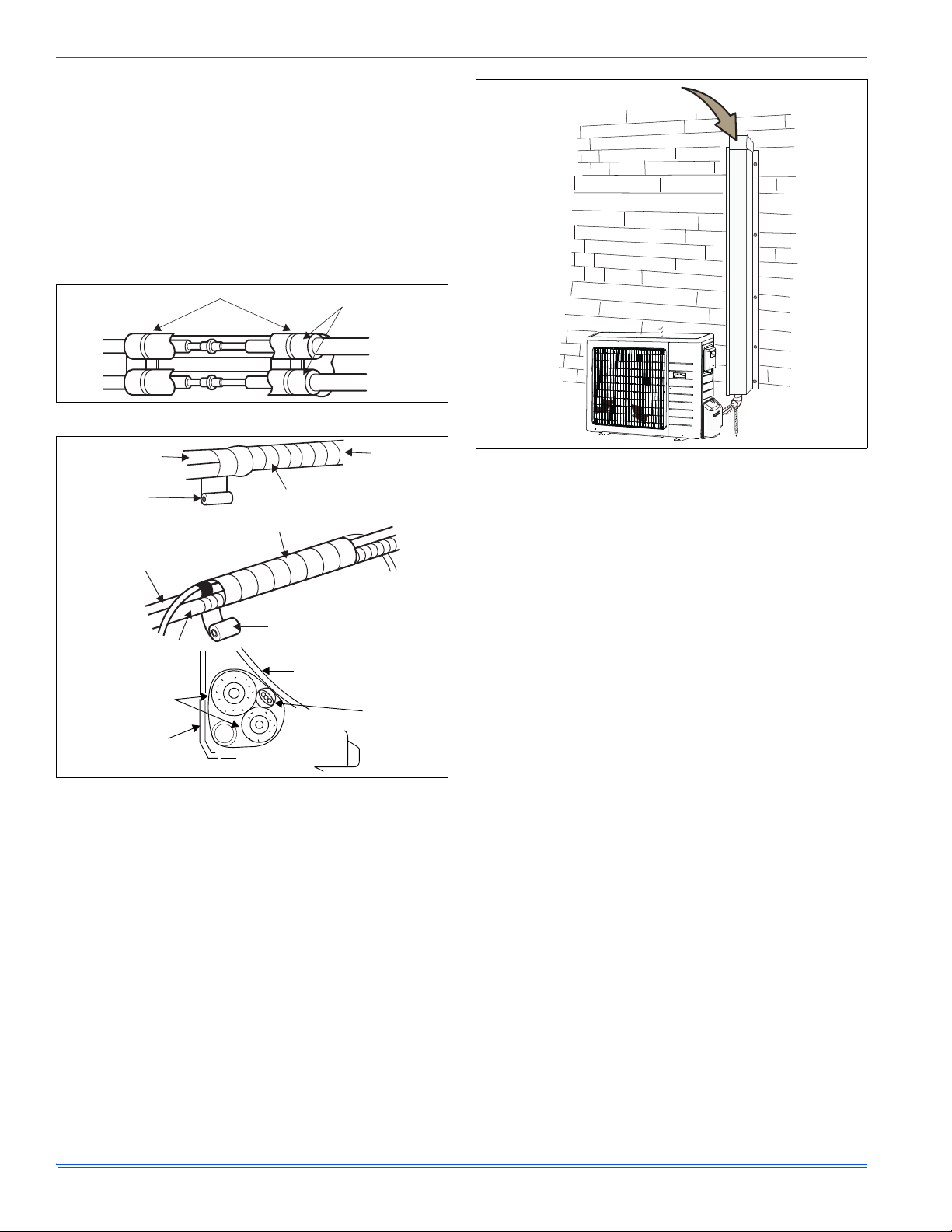

Line Set Connection Insulation and Taping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Utility Bundle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Exterior Wall Utility Cover (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

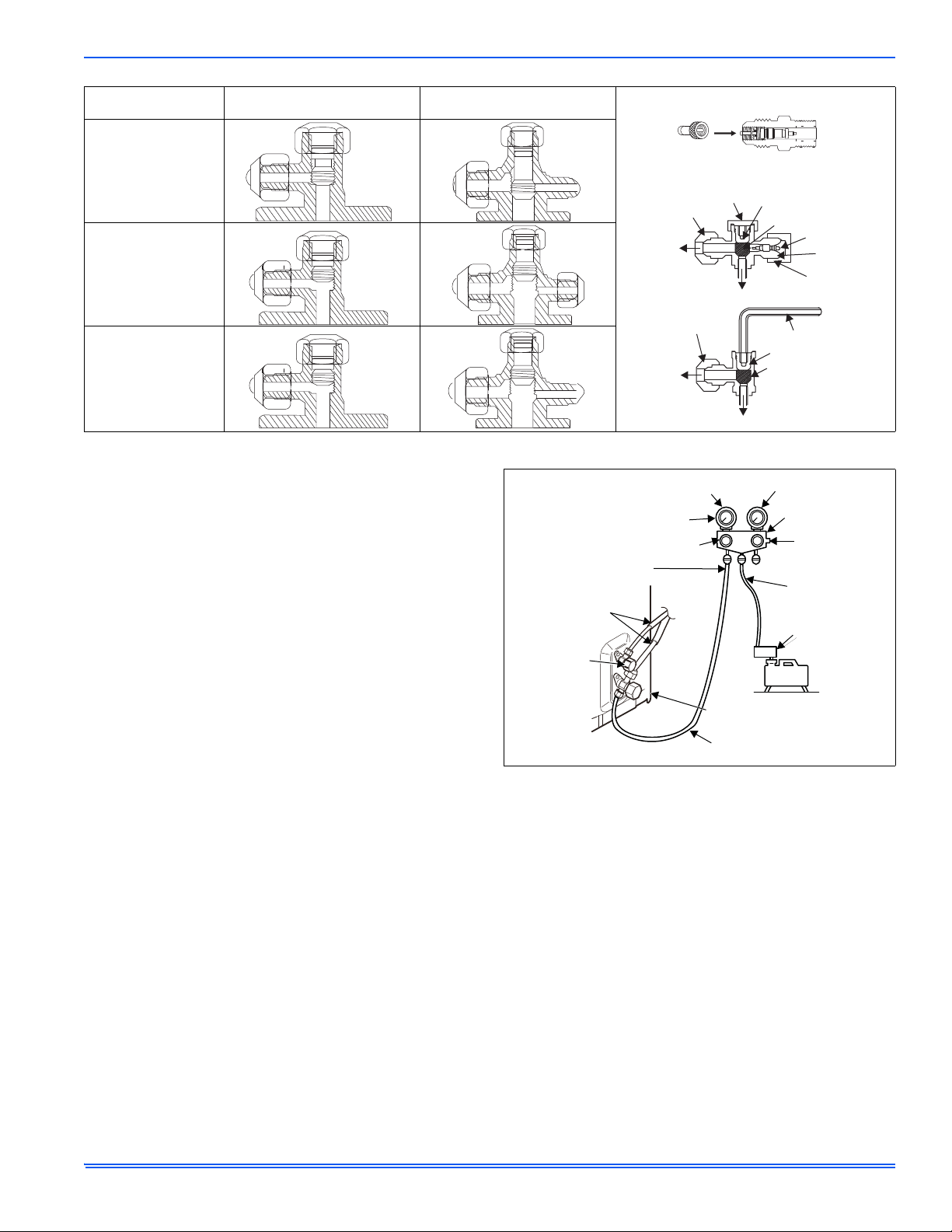

Service Valve Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Gauge Set Connections for Test Leaks, Evacuation Charging . . . . . . . . . . . . . 17
Leak Test Line Set Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Filter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
09K & 12K 115V Outdoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
09K & 12K Outdoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
18K & 24K 115V Indoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
18K & 24K Indoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
18K Outdoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
18K Indoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
24K Outdoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
24K Indoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
36K Outdoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
36K Indoor Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
09K & 12K 115V Outdoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
09K & 12K Outdoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18K & 24K 115V Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18K & 24K Indoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18K Outdoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18K Indoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
24K Outdoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
24K Indoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
30K Outdoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
30K Indoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
36K Outdoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
36K Indoor Heat Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Indoor Unit Front Panel Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
LIST OF TABLES
Indoor Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Outdoor Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Air Conditioner Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Heat Pump Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Insulation Thickness & Material Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Refrigerant Line Set Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Indoor Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Outdoor Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caps and Fasteners Torque Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wire Color Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Flare Nut Torque Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Error Codes - 09K 12K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Error Codes - 18K 24K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Error Codes - 30K 36K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Johnson Controls Unitary Products 898841-UIM-B-0113
898841-UIM-B-0113
SECTION I: GENERAL
These instructions are intended as a general guide and do not supersede local codes in any way. Consult authorities having jurisdiction
before installation.
These units must be installed as a matched system as specified in
the UPG Ductless Technical Guide.
SECTION II: SAFETY
This is a safety alert symbol. When you see this symbol on
labels or in manuals, be alert to the potential for personal
injury.
Understand and pay particular attention to the signal words DANGER,
WARNING, or CAUTION.
DANGER indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury
• The unit should be installed by an authorized dealer or contractor according to local codes and in compliance with this manual.
• Follow the instructions detailed in the installation manual.
• Confirm proper insulating, taping and bundling of refrigeration lines, main power lines and drain line (see procedure starting on Page 14).
• Perform electrical work according to the installation manual and local codes. Be sure to use a dedicated circuit (do not connect other electr ical
appliances to the same circuit).
• Ground the unit correctly - do not connect the ground wire to a gas pipe, lightning rod, telephone ground or water pipe. Defective grounding
could cause equipment malfunction and/or electric shock.
• Do not damage the wires.
• Shut off the main power when setting up the indoor P.C. board or wiring.
• Use the specified wires to securely connect the indoor and outdoor units. Attach the wires firmly and avoid applying to much pressure to the terminal block - Stranded wire is highly recommended to connect the outdoor unit to the indoor unit. The stranded wire ensures proper system
communication and operation.
• Do not install the unit in a place where flammable gas may leak.
• Do not use intermediate connection of the power cord or a power extension cord.
• The refrigerant temperature tends to get very high. Make sure you keep the electrical wires away from the copper tube.
• Use the parts provided or specified parts for the installation work.
• Securely attach the electrical cover to the indoor unit and the service panel to the outdoor unit.
• When installing or relocating the unit, make sure that no substance other than the specified refrigerant (R410A) enters the refrigerant circuit.
• Do not discharge the refrigerant into the atmosphere. Check that the refrigerant gas does not leak after installation has been completed. If refrigerant leaks during installation, ventilate the room.
• Use appropriate tools and piping materials for installation - the pressure of R410A is 1.6 times higher than R22. Not using the appropriate tools
and materials, or improper installation could cause the pipes to burst causing an injury.
• When pumping down the refrigerant, stop the compressor before disconnecting the refrigerant pipes.
• When installing the unit, securely connect the refrigerant pipes before starting the compressor.
• Fasten a flare nut with a torque wrench as specified in this manual.
• Perform the drainage/piping work securely according to the installation manual - If there is defect in the drainage/piping work, water could drip
from the unit, and damage household items.
• Do not install the outdoor unit where small animals may live. Keep the area around the unit clean
• The included remote control could be shipped in various locations in the unit packaging. Locate remote control before discarding packaging (i.e.
bag assembly, styrofoam, etc.). Unit cannot be properly operated without the included remote control.
.
WARNING indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury
CAUTION indicates a potentially hazardous situation, which, if not
avoided may result in minor or moderate injury
alert against unsafe practices and hazards involving only property damage.
Improper or incomplete installation, adjustment, alteration, service or
maintenance could cause personal injury, loss of life, or damage to
property. Installation and service must be performed by a licensed
professional dealer or contractor.
The Clean Air Act of 1990 bans the intentional venting of refrigerant
(CFCs, HCFCs and HFCs) as of July 1, 1992. Approved methods of
recovery, recycling or reclaiming must be followed. Fines and/or
incarceration may be levied for noncompliance.
.
. It is also used to
SECTION III: SHIPPING AND PACKAGING
LIST
Check the unit components for shipping damage. If you see any damage, contact the carrier immediately.
ASSEMBLED INDOOR UNIT
The assembled indoor unit will include the following items:
2 Johnson Controls Unitary Products
898841-UIM-B-0113
A
D
C
B
TABLE 1:
Wall mounting bracket
attached to indoor unit)
Indoor Parts
Remote Control 1
Batteries (AAA) 2
screws
Foam tube insulation
(for condensate line
09, 12 & 18 kBtu (5)
24K kBtu (10)
1
ASSEMBLED OUTDOOR UNIT
The assembled outdoor unit will include the following items which are
located with the unit:
TABLE 2:
Auxiliary drain hole plugs
Outdoor Parts
(heat pump only)
Drain plug
(heat pump only)
1 - 3
1
Flare nut 1/4" for small
line on all size units
except 30K which
uses 5/8".
Cable routing guide
with mounting
hardware (18 - 24 kBtu
systems only)
Installation Manual 1
User’s Information
Manual
2. Select a location where the condensate can be easily drained out.
3. Install in a location where there is enough space to access the unit
for routine maintenance (air filter can be removed for cleaning or
replacement).
4. Install where airflow is not blocked.
5. Install in a location for optimized cold or warm air distribution.
6. Install in a location that's not exposed to direct sunlight.
7. Install in a location that's at least 3 ft away from a TV and radio to
avoid possible interferences with the operation of the air conditioner/heat pump.
8. Install in a location that's at least 3 feet away from fluorescent and
incandescent lights to avoid interference with the remote control.
1
1
1
SECTION IV: REQUIRED INSTALLATION
TOOLS (NOT SUPPLIED)
1. Gauge manifold
2. Electronic balance for refrigerant charging
3. Phillips head screwdriver
4. Knife or wire stripper
5. Carpenters level
6. Hammer
7. Drill
8. Tube cutter
9. Tube flaring tool
10. Torque wrench
11. Adjustable wrench
12. Reamer (for de-burring)
13. Vacuum pump (For R410A)
14. Gas leakage detector
SECTION V: SELECTING THE
INSTALLATION LOCATION
INDOOR UNIT (SEE FIGURE 2 FOR INSTALLATION
DIMENSIONS)
1. Install the unit securely in a place that can bear the weight and
vibration of the unit.
Reference Location
A Clearance between unit and ceiling 6 inches
B Clearance between unit and floor 6 feet
C / D Clearance to the right and left of the unit 6 inches
FIGURE 1: Indoor Clearances
Required
Clearance
REMOTE CONTROL
1. Keep the remote control where it is convenient to operate and easily visible.
2. Keep the remote control away from children.
3. When using the I FEEL feature, select a location for the remote
control that's about 4 ft. above the floor.
Johnson Controls Unitary Products 3
898841-UIM-B-0113
NOTICE
PREVAILING WINTER WINDS
WIND BARRIER
INLET AIR
12” (305MM) MINIMUM DISTANCE
DISCHARGE AIR
INSTALL UNIT AWAY
FROM WINDOW
E
F
G
H
I
NOTICE
NOTICE
In rooms where inverter type fluorescent lamps are used, the signal
from the wireless remote controller may not be received.
OUTDOOR UNIT (SEE FIGURE 3 FOR
INSTALLATION DIMENSIONS)
1. Some localities are adopting sound ordinances based on the unit's
sound level registered from the adjacent property, not from the
property where the unit is installed. Install the unit as far as possible
from the property line.
2. When possible, do not install the unit directly outside a window.
Glass has a very high level of sound transmission. For proper
placement of unit in relation to a window see Figure 3.
3. Install unit level or, if on a slope, maintain slope tolerance of 2
degrees (or 2 inches per 5 feet) away from building structure.
4. Install the unit high enough above the ground or roof to allow adequate drainage of defrost water and prevent ice or snow build-up
(required for heat pumps).
5. In heavy snow areas, do not locate the unit where drifting will occur.
The unit base should be elevated above the depth of average
snows.
6. When installed in areas where low ambient temperatures exist,
locate unit so winter prevailing winds do not blow directly onto outdoor unit.
7. If unit coil cannot be installed away from prevailing winter winds, a
wind barrier should be constructed. Size barrier at least the same
height and width as outdoor unit. Install barrier 12 inches minimum
from the sides of the unit in the direction of prevailing winds as illustrated in Figure 2.
Reference Location
E Clearance above unit 2 feet
F Clearance between air inlet and structure 12 inches
G
H 7 feet
I 12 inches
FIGURE 3: Clearances for Outdoor Unit
Clearance between unit and structure
Required
Clearance
12 inches
FIGURE 2: Prevailing Wind Barrier
8. Locate unit away from overhanging roof lines which would allow
water or ice to drop on, or in front of, coil or into unit.
9. Install in a location that has good airflow.
10. Install in a location that has a rigid wall or support to minimize the
sound operation and/or vibration.
11. Slab or roof mounting - install the unit a minimum of 4 inches above
the roof or ground surface to avoid ice build-up around the unit.
Locate the unit above a load bearing wall or area of the roof that
can adequately support the unit. Consult local codes for rooftop
applications.
12. Install in a location that's far away from combustible materials and
vapors.
13. Install in a location that's at least 10 ft away from a TV and radio
antennas to avoid possible interferences with the operation of the
air conditioner/heat pump.
14. Install the unit horizontally.
It is advisable to make a piping loop near outdoor unit so as to
reduce vibration.
For increased efficiency, install the outdoor unit in a location where
continuous direct sunlight or excessive water can be avoided as
much as possible.
When operating the air conditioner in low outside temperature, be
sure to follow the instructions described below.
• Never install the outdoor unit in a place where its air inlet/outlet
side may be exposed directly to wind.
• T o prevent exposure to wind, inst all the out door unit with it s air inlet
side facing the wall and a baffle board on the air outlet side.
Avoid the following places for installation where air conditioner trouble
is liable to occur.
• Where flammable gas could leak.
• Where there is an excessive amount of machine oil in the air.
• Where sulfide gas is generated such as a hot spring.
• Where there is high-frequency equipment.
CONDENSATE DRAINAGE REQUIREMENT (HEAT
PUMP ONLY)
Condensate formed during the heating and defrost processes must be
drained from heat pump units. Drain holes are provided in the base of
the units to ensure proper drainage. Heat pumps must be raised when
installed on a concrete pad or the ground to allow drainage to occur. If
the heat pump unit is installed on a wall mounting bracket, insert the
provided drain connector into one of the 1 inch drain holes and attached
a field-provided insulated drain hose to the connector. Use the provided
rubber plugs to cover any unused drain holes. See Figure 4.
4 Johnson Controls Unitary Products
FIGURE 4: Condensate Drainage
DRAIN-WATER HOLE
BOTTOM FRAME
DRAIN PLUG
DRAIN CONNECTOR
HOSE (available commerially, inner dia. 0.63”)
NOTICE
SECTION VI: SPECIFICATIONS
POWER SUPPLY AND INDOOR/OUTDOOR WIRE
CONNECTION
• The system should be powered from a dedicated circuit.
• Wiring work should be based on applicable technical standards.
• Wiring connections should be made following the provided
diagrams.
• Make sure all electrical connections are securely tightened.
898841-UIM-B-0113
Solid conductor AWG14 or stranded conductor AWG14 are the MINIMUM allowable wire sizes. There are some applications that will require
larger gauge conductors depending on the voltage and amperage ratings on the data plate and the distance that the conductors will be
routed. It is the installing contractor's responsibility to properly size the
electrical conductors for the equipment and for the application.
All of the indoor units and outdoor units should have the electrical conductors sized using the National Electrical Code (NEC) and the local
authority having jurisdiction whichever is more stringent. If the equipment is installed outside of the United States, all local codes within the
country of origin must be followed.
The Ductless indoor units
volt double insulated copper conductors. The conductors for the indoor
unit can be either solid or stranded copper. When possible the indoor
unit should have stranded wire for the communication to ensure proper
communication between the indoor and outdoor unit(s).
The Ductless outdoor units
volt double insulated copper conductors with the exception of the following models: DHPM30CSM42Q1, DHPM36CSM42Q1, and
DCPM36CSM42Q1, which require 10 gauge wire. The conductors for
the outdoor unit should be solid or stranded copper conductors.
The listed wire sizes are only minimum requirements, as previously
stated, the conductors for both indoor and outdoor units must be
sized using the NEC and local authority having jurisdiction.
must have a minimum of 14 gauge, 600
must have a minimum of 12 gauge, 600
TABLE 3:
Air Conditioners DCPM09NWM42Q1 DCPM09NWM41Q1 DCPM12NWM42Q1 DCPM12NWM41Q1
Power Supply (V, Phase, Hz) 208/230V/1 115V/1 208/230V/1 115V/1
Min. Circuit Ampacity 10 16 10 16
Fan Motor (F.L.A) 0.2 0.38 0.2 0.38
Air Conditioners DCPM18NWM42Q1 DCPM24NWM42Q1 DCPM36NWM42Q1
Power Supply (V, Phase, Hz) 208/230V/1/60HZ 208/230V/1/60HZ 208/230V/1/60HZ
Min. Circuit Ampacity 16 16 17
Fan Motor (F.L.A) 0.28 0.24 0.4
Air Conditioners DCPM09CSM42Q1 DCPM09CSM41Q1 DCPM12CSM42Q1 DCPM12CSM41Q1
Power Supply (V, Phase, Hz) 208/230V/1 115V/1 208/230V/1 115V/1
Max. Fuse Size (time delay) (A) 15 25 15 25
Min. Circuit Ampacity 10 16 10 16
Fan Motor (F.L.A) 0.14 0.17 0.14 0.17
Compressor
Air Conditioners DCPM18CSM42Q1 DCPM24CSM42Q1 DCPM36CSM42Q1
Power Supply (V, Phase, Hz) 208/230V/1/60HZ 208/230V/1/60HZ 208/230V/1/60HZ
Max. Fuse Size (time delay) (A) 20 20 25
Min. Circuit Ampacity 16 16 17
Fan Motor (F.L.A) 0.32 1.1 0.45
Compressor
Air Conditioner Electrical Specifications
INDOOR UNIT
INDOOR UNIT
OUTDOOR UNIT
R.L.A 6.21 12.23 5.34 12.43
L.R.A 13.8 33 13.8 33
OUTDOOR UNIT
R.L.A 9.35 10.45 12.66
L.R.A///
Johnson Controls Unitary Products 5
898841-UIM-B-0113
NOTICE
TABLE 4:
Heat Pumps DHPM09NWM42Q1 DHPM09NWM41Q1 DHPM12NWM42Q1 DHPM12NWM41Q1
Power Supply (V, Phase, Hz) 208/230V/1 115V/1 208/230V/1 115V/1
Min. Circuit Ampacity 10 16 10 16
Fan Motor (F.L.A) 0.2 0.38 0.2 0.38
Heat Pumps DHPM18NWM42Q1 DHPM24NWM42Q1 DHPM30NWM42Q1 DHPM36NWM42Q1
Power Supply (V, Phase, Hz) 208/230V/1/60HZ 208/230V/1/60HZ 208/230V/1/60HZ 208/230V/1/60HZ
Min. Circuit Ampacity 16A 16A 15 23
Fan Motor (F.L.A) 0.28A 0.24A 0.4 0.47
Heat Pumps DHPM09CSM42Q1 DHPM09CSM41Q1 DHPM12CSM42Q1 DHPM12CSM41Q1
Power Supply (V, Phase, Hz) 208/230V/1 115V/1 208/230V/1 115V/1
Max. Fuse Size (time delay) (A)15251525
Min. Circuit Ampacity 10 16 10 16
Fan Motor (F.L.A) 0.14 0.17 0.14 0.17
Compressor
Heat Pumps DHPM18CSM42Q1 DHPM24CSM42Q1 DHPM30CSM42Q1 DHPM36CSM42Q1
Power Supply (V, Phase, Hz) 208/230V/1/60HZ 208/230V/1/60HZ 208/230V/1/60HZ 208/230V/1/60HZ
Max. Fuse Size (time delay) (A) 20A 20A 25 35
Min. Circuit Ampacity 16A 16A 15 23
Fan Motor (F.L.A) 0.32A 1.1A 0.45 0.73
Compressor
Heat Pump Electrical Specifications
INDOOR UNIT
INDOOR UNIT
OUTDOOR UNIT
R.L.A 6.21 12.23 5.34 12.43
L.R.A 13.8 33 13.8 33
OUTDOOR UNIT
R.L.A 9.35A 10.45A 11.42 16.95
L.R.A / / / /
Connecting Wires and the Ground Wire
• Use double insulated copper wire with 600V insulation.
• Use copper conductors only.
• Follow all local electrical codes.
Power Supply Cable and Ground Wire
• Use copper conductors only.
• Follow all local electrical codes.
The the indoor unit is powered from the outdoor unit, depending on
local code, a disconnect switch needs to be installed to a power supply circuit.
SECTION VII: REFRIGERANT LINE SET
• To prevent condensation, insulate the two refrigerant pipes.
• Refrigerant pipe bending radius must be 4 in. (100 mm) or more.
Be sure to use the insulation of specified thickness (refer to Table 5).
Excessive insulation may cause incorrect installation of the indoor
unit, and too little insulation may cause condensate to form.
• The unit has flared connections on both indoor and outdoor sides
• Remove the valve cover from the outdoor unit then connect the
pipe
• Refrigerant pipes are used to connect the indoor and outdoor units
• Be careful not to crush or over bend the pipe in pipe bending
• Refrigerant adjustment
• If pipe length exceeds 25 ft. (7.5 m), additional refrigerant (R410A)
charge is required (The outdoor unit is charged with refrigerant for
pipe length up to 25 ft. [7.5 m]).
REQUIREMENTS
TABLE 5:
Insulation Thickness & Material Information
Pipe
Liquid Line .375 (9.52) 0.0315 (0.8) 0.315 (8)
Gas Line .625 (15.9) 0.0394 (1.0) 0.315 (8)
Outside Diameter
Inch (mm)
Minimum Wall
Thickness
Insulation
Thickness
Insulation
Material
Heat Resistant Foam Plastic
0.045 Specific Gravity
6 Johnson Controls Unitary Products
898841-UIM-B-0113
E
G
H
TAPE
L
REFRIGERANT LINE SET, CONDENSATE LINE
AND INDOOR / OUTDOOR CABLE
RETURN AIR
B
C
D
K
SUPPLY AIR
A
D
DISPLAY
INDICATORS
COOL
DRY
FAN
HEAT
RUN
TEMPERATURE SETTING
INDOOR AMBIENT TEMPERATURE
OR ERROR CODE
NOTE:
Temperature can be
displayed in either fahrenheit or celsius.
F
IMPORTANT:
The refrigerant metering device for this
system is located in the outdoor unit.
This makes it necessary to insulate the
refrigerant lines individually to prevent
sweating.
UTILITY
BUNDLE
WIRELESS REMOTE
CONTROL
OUTDOOR UNIT
(AIR CONDITIONER
OR HEAT PUMP)
AIR IN
AIR OUT
OUTDOOR UNIT
TERMINAL BLOCK
TO INDOOR
UNIT
TO POWER
SUPPLY
ACCESS COVER FOR
SERVICE VALVES
(-18, -24 AND -30 ONLY)
2-WAY SHUT-OFF VAVLE
2-WAY SUCTION / VAPOR LINE SERVICE
VALVE (FLARE CONNECTION)
H
J
A. Remote control
B. Front Panel
C. Filters
D. Guide louver with display
E. Line set (wrapped in foam insulation)
F. UV-rated tape (field-provided)
G. Wiring (field-provided)
H. Condensate drain line (field-provided)
(wrapped in foam insulation). Recommend
installation of a vent when making long
horizontal runs on condensate line.
I. 2-way suction / vapor line service valve
and 2-way shut-off valve.
J. Access cover for power and control wiring
connections.
K. Indoor unit wiring connections (under access plate).
L. Communication cable (30 kBtu system only)
INDOOR UNIT
I
TABLE 6:
Refrigerant Line Set Requirements
AC & HP Indoor Units D(C,H)PM09NWM D(C,H)PM12NWM D(C,H)PM18NWM D(C,H)PM24NWM DHPM30NWM D(C,H)PM36NWM
AC & HP Outdoor Units D(C,H)PM09CSM D(C,H)PM12CSM D(C,H)PM18CSM D(C,H)PM24CSM DHPM30CSM D(C,H)PM36CSM
Connection Pipe length ft. 24.6 24.6 24.6 24.6 24.6 24.6
Connection Pipe Gas
Additional Charge
oz/ft. 0.2 0.2 0.2 0.2 0.5 0.5
Outer Diameter Liquid Pipe Inch 1/4 1/4 1/4 1/4 1/4 1/4
Outer Diameter Gas Pipe Inch 3/8 3/8 1/2 1/2 5/8 5/8
Max Distance Height ft. 32.8 32.8 32.8 32.8 32.8 32.8
Max Distance Length ft. 49.2 49.2 82 82 98.4 98.4
Refrigerant Metering Device Type Electronic Expansion Valve
FIGURE 5: Typical System Components
Johnson Controls Unitary Products 7
898841-UIM-B-0113
09K 12K
18K
24K
A
C
B
256
27.3 (693)
5.3
(135)
2.1 (53)
7.8 (198)
11.8 (300)
2.2 (56)
2.2 (56)
1.8 (46)
.6 (15)
.6 (15)
3.3 (84)
22.2 (564)
33.3 (846)
6.3
(160)
4.9
(124)
40.1 (1018)
7.4
(188)
2.6 (66)
3.5 (89)
1.4 (36)
22.6 (574)
2.5 (64)
1.8 (46)
2.6 (66)
27 (686)
2.6 (66)
1 (25)
4
(102)
4
(102)
1 (25)
2.6 (66)
21.3 (541)
2.2 (56)
2.2 (56)
2 (51)
4 (101)
5 (127)
2 (51)
30K & 36K
10.9 (277)
B
A
C
SECTION VIII: UNIT DIMENSIONS
FIGURE 6: Indoor Unit Mounting Brackets with Weights & Dimensions
TABLE 7:
Indoor Unit Dimensions
Model Size A B C
Unit Gross Weight
Air Conditioner Heat Pump
09K & 12K 33 (838) 7 (178) 10.9 (277) 31 lbs (14 kg) 37 lbs (17 kg)
18K 37 (940) 8 (203) 12 (305) 31 lbs (14 kg) 46 lbs (21 kg)
24K 39.8 (1011) 8.5 (216) 12.4 (315) 46 lbs (21 kg) 56 lbs (25 kg)
30K & 36KK 53 (1346) 10 (254) 12.9 (328) NA 60 lbs (27 kg)
FIGURE 7: Outdoor Unit Weights & Dimensions
TABLE 8:
Outdoor Unit Dimensions
Model SizeABC
09K 33 (838) 12.6 (320) 21 (533) 91 lbs (41 kg) 110 lbs (50 kg)
12K 33 (838) 12.6 (320) 21 (533) 97 lbs (44 kg) 119 lbs (54 kg)
18K 35 (889) 13.4 (340) 27.5 (699) 121 lbs (55 kg) 148 lbs (67 kg)
24K 38 (965) 16.9 (429) 31.1 (790) 132 lbs (60 kg) 161 lbs (73 kg)
30K & 36K 38 (965) 16.9 (429) 31.1 (790) NA 163 lbs (74 kg)
Air Conditioner Heat Pump
Unit Gross Weight
8 Johnson Controls Unitary Products
SECTION IX: TORQUE REQUIREMENTS
NOTICE
Mark on the middle of it
5.9inch
Left
Space
to the
wall
above
Right
Space
to the
wall
above
5.9inch
WALL
WALL
LEVELING DEVICE
(REAR PIPING HOLE)
(REAR PIPING HOLE)
DRILL PILOT HOLES
USE ANCHORS
INSTALLANCHORS
INSIDE
OUTSIDE
CAULKING
2.2”
WALL PIPE
NOTICE
FOR CAPS AND FASTNERS
When servicing or repairing HVAC components, ensure the fasteners
are appropriately tightened. The table below provides torque values for
fasteners.
TABLE 9:
Parts
Service valve cap 8 ft. - lb. 11
Sheet metal screws 16 ft. - lb. 2
Machine screws #10 27 ft. - lb. 3
Compressor bolts 7 ft. - lb. 10
Gauge port seal cap 8 ft. - lb. 11
Only use Allen wrenches of sufficient hardness (50Rc - Rockwell
Harness Scale minimum). Fully insert the wrench into the valve stem
recess.
Service valve stems are factory-torqued (from 9 ft-lbs for small
valves, to 25 ft-lbs for large valves) to prevent refrigerant loss during
shipping and handling. Using an Allen wrench rated at less than
50Rc risks rounding or breaking off the wrench, or stripping the valve
stem recess.
SECTION X: INDOOR UNIT INSTALLATION
INSTALLING THE WALL MOUNTING BRACKET
Determine that the wall will support the weight of the indoor unit. Refer
to system specifications for indoor unit weight. Install the wall mounting
bracket and make sure it's positioned horizontally and vertically. The
indoor unit must be installed level on the wall to allow proper condensate drainage.
1. Determine the best exit location for utility bundle (line set, conden-
2. Use the wall mounting bracket as a template to determine the exit
3. Prior to making the hole and installing wall sleeve for the utility bun-
4. Secure the wall mounting bracket to the wall using the provided
5. If the wall is made of brick, concrete or other similar material, then
It is important to use all screws provided to secure the wall mounting
bracket to the wall. Additional holes may be drilled through the metal
wall mounting bracket to better secure wall bracket to wall studs.
Johnson Controls Unitary Products 9
Caps and Fasteners Torque Requirements
Recommended Torque
English
(ft. - lb.)
Metric
(Newton Meter)
sate line and wiring).
point for utility bundle. Use a carpenter's level or tape measure to
verify the wall mounting bracket is horizontally level and mark the
boring points on the wall. See Figure 11.
dle, check to ensure that neither studs nor plumbing are directly
located behind the hole location.
screws. If possible, align the rear panel screw holes with wall stud
locations marked on the wall. Make sure you use as many screws
into studs as possible. All other screws must be secured using plastic wall anchors. See Figure 13.
drill pilot holes in the wall. Insert field-provided anchors for mounting screws. See Figure 13.
898841-UIM-B-0113
FIGURE 8: Mounting Bracket Spots
FIGURE 9: Masonry Applications
WALL HOLE DRILLING
Be sure to caulk the gaps around the pipes with caulking material to
prevent water leakage.
1. Determine the wall hole position.
2. Drill a 2-1/2 inch diameter hole in the wall. The hole should be
slightly downward slant 3/16" to 3/8" (5 to 10 mm) lower than the
indoor side.
3. Measure the thickness of the wall from inside to outside edges and
cut field-provided PVC pipe at a slight angle 1/4" (6mm) shorter
than the thickness of the wall.
4. Place a field-provided plastic cover on the outside end of the PVC
pipe and insert the pipe in the wall hole.
5. After completing refrigerant piping, wiring, and drain piping, caulk
pipe hole gap with putty.
FIGURE 10: PVC Wall Sleeve Installation
SECTION XI: INDOOR UNIT WIRING
CONNECTIONS
When the indoor unit is powered from the o utdoor unit, a disconnect switch needs to be installed to power supply circuit
between indoor and outdoor units depending on local codes.
898841-UIM-B-0113
WALL
WIRING
FIELD PROVIDED
PVC WALL SLEEVE
GROUND
WIRE
TERMINAL BLOCK
TERMINAL COVER
SCREW
SCREW
CORD CLAMP
CONNECTING CABLE
TERMINAL BLOCK
YELLOW-GREEN
BLUE
BROWN
BLACK
CONNECTING
CABLE
ABOUT 5.9”
2.8”
0.39”
GROUND
LINE
0.39”
1.97”
RIGHT
REAR RIGHT
RIGHT DOWNWARD REAR LEFT
LEFT DOWWARD
LEFT
Mis-wiring could damage unit or cause communication errors
between indoor and outdoor unit.
1. Remove the front panel.
2. Open the front panel upward and pull it toward you.
3. Remove the terminal cover and cord clamp.
4. Insert the connecting cable (according to local codes) into the pipe
hole on the wall.See Figure 11.
5. Pull the connecting cable through the cable slot on the rear case so
that it protrudes about 6 inches (~15 cm) out of the front.
6. Connect the ground wire to the ground terminal of electrical box.
7. Insert the connecting cable fully into the terminal block and secure it
with screws while making sure no part of its core is visible. Make
sure you don't mis-wire the unit. See Figure 12.
8. Firmly tighten the terminal screws to prevent them from getting
loose.
9. Secure the connecting cable with the cord clamp.
10. Attach the terminal cover and front panel on the indoor unit.
TABLE 10:
Color Code Color
Wire Color Reference
Color Code or
Symbol
Color
WH White BN Brown
YE Yellow BU Blue
RD Red BK Black
YEGN Yellow Green
SECTION XII: PIPE FORMING AND DRAIN
PIPING
FIGURE 12: Indoor Electrical Wiring Connections
FIGURE 11: Indoor Unit Wall Mounting Bracket
Be sure to refer to the wiring system diagram labeled inside the front
panel.
Check local electrical regulations for any specific wiring instructions
or limitations.
10 Johnson Controls Unitary Products
FIGURE 13: Drain Piping Outlets Option
PIPE FORMING
Interchange the drain cap and the drain hose.
1. Place the drain hose below the refrigerant piping.
2. Make sure the drain hose is not bent or kinked.
3. Do not pull the hose when applying the tape.
4. When the drain hose passes the room, be sure to wrap field-provided insulation material around it.
5. In the case of bending refrigerant piping, keep the following precautions in mind to avoid abnormal sounds that may be generated if
improper work is conducted.
a. Do not press the refrigerant pipes onto the bottom frame.
b. Do not press the refrigerant pipes on the front grille.
FIGURE 14: Proper and Improper Drain Piping
SLIT
RIGHT
PIPING
BOTTOM
PIPING
BIND WITH VINYL TAPE
PIPE (TOP) REAR PIPING
INDOOR UNIT
DRAIN HOSE (BOTTOM)
INDOOR UNIT
DRAIN HOSE
DRAIN CAP
FOR LEFT OUTLET
PIPING, CUT OFF
THE PIPING OUTLET
CUTTING GROOVE
WITH A HACKSAW
REMOVE DRAIN
CAP BY PULLING
AT THE PROJECTION
AT THE END OF THE
CAP WITH PLIERS, ETC.
How to replace the drain plug and drain hose
• How to remove the drain cap
Clamp drain cap with needle-nose pliers, and pull out.
• How to remove the drain hose
The drain hose is secured in place by a screw.
Remove the screw securing the drain hose, then
pull out the drain hose.
• How to attach the drain cap
1. Insert hexagonal wrench (0.16inch).
2. Firmly insert drain cap.
• How to attach the drain hose
secure it in place using the original screw.
Do not apply lubricating oil
(refrigerant machine oil) when
inserting the drain cap. If applied
deterioration and leakage of the
drain plug may occur.
Insert a hexagon wrench
(4 mm)
No gap
Drain Hose
0.16”
Insulation
fixing screw
RIGHT OR RIGHT REAR PIPING
For Right Side Utility Bundle Exit - Cut out the corner of the right/left
plastic cabinet with a hacksaw or similar tool. See Figure 15.
1. Put the refrigerant piping and the drain hose together. Position
them to the left side and then firmly apply piping tape from the end.
2. Insert the drain hose into field-provided PVC sleeve and hook the
upper part of the indoor unit on the wall mounting bracket.
3. Check if the indoor unit is hooked securely on the wall mounting
bracket by trying to move the unit left and right.
4. Thrust the lower part of the indoor unit into the wall mounting
bracket.
898841-UIM-B-0113
LEFT OR LEFT REAR PIPING
For Left Side Utility Bundle Exit - Cut out the corner of the right/left
plastic cabinet with a hacksaw or similar tool.
Make sure you reattach the drain hose and the drain cap in case of left
or left rear piping. Otherwise, it could cause drops of water to drip from
the drain hose.
1. Put the refrigerant piping and the drain hose together then firmly
apply felt tape from the end.
2. Pull out the drain cap at the rear right of the indoor unit.
3. Pull out the drain hose at the rear left of the indoor unit.
4. Put the drain cap into the section to which the drain hose is to be
attached at the rear of the indoor unit.
5. Insert the drain hose fully into the drain pan at the rear right of the
indoor unit.
6. Insert the drain hose into field-provided PVC sleeve and hook the
upper part of the indoor unit on the wall mounting bracket.
FIGURE 15: Left or Right Side Exits
FIGURE 16: Right or Right Rear Piping
Johnson Controls Unitary Products 11
FIGURE 17: Left or Left Rear Piping
REAR OR DOWNWARD PIPING
1. Put the refrigerant piping and the drain hose together then firmly
apply felt tape from the end. Use bandage stopper at the end of felt
tape.
2. Insert the drain hose into field-provided PVC sleeve and hook the
upper part of the indoor unit on the wall mounting bracket.
898841-UIM-B-0113
SHIELD PIPE
DRAIN HOSE
INSIDE THE ROOM
EXTENSION
DRAIN HOSE
DRAIN HOSE
INSULATION (DRAIN HOSE)
COPPER
PIPE
SLANTED
UNEVEN ROUGH
90°
PIPE
REAMER
POINT DOWN
"A"
BAR
HANDLE
YOKE
CONE
RED ARROW MARK
CLAMP HANDLE
COPPER PIPE
BAR
Outside Dia.
Inch
0.24
0.37
0.47
0.63
0.75
A
Inch
0~0.02
~0.02
~0.02
~0.04
~0.05
0
0
0
0.04
SMOOTH ALL ROUND
INSIDE IS SHINY WITHOUT SCRATCHES
= IMPROPER FLARING =
EVEN LENGTH
ALL ROUND
INCLINED
SURFACE
DAMAGED
CRACKED
UNEVEN
THICKNESS
1. In order to align the drain hose and drain cap, be sure to insert
securely and vertically. Incline insertion will cause water leakage.
2. After removing drain hose, be sure not to forget mounting drain
cap.
3. Be sure to fix the drain hose with tape to the bottom of piping.
4. Prevent drain water from freezing in low temperature environment.
When installing indoor unit’s drain hose outdoors, necessary measure for frost protection should be taken to prevent drain water
freezing.
• Under low temperature environment (when outdoor temperature under 32 °F), after cooling operation is executed, water in
the drain hose could be frozen.
• Once drain water is frozen, the drain hose will be blocked and
water leakage may result from indoor unit.
DRAIN PIPING
• If the extension drain hose has to pass through a room, make
sure it's wrapped with commercially sold insulation.
• The drain hose should point downward for easy drain flow.
• If the drain hose provided with the indoor unit is too short, make
sure you connect it with a field-provided drain hose.
• When connecting the drain hose to the hard vinyl chloride pipe,
make sure it's inserted securely into the pipe.
DRAIN HOSE JUNCTION
• If drain hose extension or embedded drain piping is required, use
appropriate parts that match the hose front end. See Figure 18.
• Insert drain hose into the handle of drain pan, and join drain hose
and connecting hose according to Figure 18.
• Attach the Insulation (Drain hose) to the drain hose. See Figure
19.
SECTION XIII: FLARING WORK AND
PIPING CONNECTIONS
FLARING WORK
Main cause for refrigerant leakage is due to defect in the flaring work.
Carry out correct flaring work using the following procedure.
1. Measure the distance between the indoor and outdoor units.
2. Cut the copper pipe about 6 to 8 inches (15 to 20 cm) longer than
the measured distance with a pipe cutter.
FIGURE 20: Pipe Cutting Approved Method
3. Use a pipe reamer or file to completely remove all burrs from the
cut cross section of the pipe.
a. Put the end of the copper pipe in a downward direction to avoid
having burrs drop in the piping.
FIGURE 21: Deburring Line Set
4. Remove flare nuts attached to indoor and outdoor units then put
them on pipes that have completed burrs removal (not possible to
put them on after flaring work).
5. Use a flaring tool to perform flaring work at the end of the copper
pipe. Use the table below as a guideline when performing flaring
work.
FIGURE 18: Drain Hose Extension
FIGURE 19: Drain Hose Insulation
Insert the drain hose and drain cap into the drain port, making sure
that it comes in contact with the back of the drain port, and then
mount it. If the drain hose is not connected properly, leaking will
occur.
12 Johnson Controls Unitary Products
FIGURE 22: Flaring Tools
6. Check your flaring work and if it's found to be defective, cut off the
defective flare section and redo number 5.
FIGURE 23: Proper and Improper Flaring
7. When flaring is complete, align the center of the pipes and sufficiently tighten the flare nut by hand.
FIGURE 24: Connections at Indoor Unit
INDOOR UNIT TUBING
FLARE NUT PIPES
WRENCH
INDOOR UNIT TUBING
OPEN-END WRENCH (FIXED)
FLARE NUT
CONNECTION PIPE
A
MOUNTING PLATE
MARKING
DO NOT RISE THE DRAIN HOSE
DO NOT FORM THE DRAIN HOSE
INTO THE WAVED SHAPE
50 mm
OR MORE
DO NOT PUT THE
DRAIN HOSE END
INTO WATER
DO NOT PUT THE DRAIN
HOSE END IN THE
DRAINAGE CONTAINER
PUSH
PUSH
8. Tighten the flare nut using a wrench.
FIGURE 25: Flare Nuts Tighting
898841-UIM-B-0113
5. Carefully bend the bundle (line set, condensate line and cable) to
run along the outside wall toward the outdoor unit. Downward slope
of wall sleeve will ensure proper condensate drainage.
FIGURE 27: Proper and Improper Drain Hose Installation Application
Pull the indoor unit toward you to confirm that it is firmly hooked
on the mounting bracket.
For detaching the indoor unit from the installation plate, pull the indoor
unit toward you while pushing the bottom up at the specified places.
TABLE 11:
Flare Nut Torque Recommendations
Outside
Diameter
Inches mm
Recommended
English
(ft. - lb.)
Torque
Metric
(Newton Meter)
1/4” 6.35 15 ft - lb. 20
3/8” 9.52 26 ft - lb. 35
1/2” 12.70 41 ft - lb. 55
5/8” 15.88 48 ft - lb. 65
SECTION XIV: INDOOR UNIT
INSTALLATION
1. Shape the refrigerant line set so that it can be guided either out the
back of the indoor unit or through either side of the indoor unit
frame, then through the wall sleeve to the outside unit.
2. Pass the drain hose and refrigerant pipes through the wall hole then
set the indoor unit on the mounting bracket hooks by using the
markings at the top of the indoor unit as a guide.
FIGURE 26: Indoor Unit Attachment to Mounting Bracket
3. Try moving the indoor unit to right and left to confirm that it is firmly
hooked on the installation plate.
4. While pressing the indoor unit onto the wall, hook it at the lower part
on the installation plate.
FIGURE 28: Indoor Unit Removal
6. Use the provided foam insulation to wrap the factory installed condensate line.
7. Connect indoor unit factory installed condensate line to field-provided condensate drain pipe.
8. Use tape approved for waterproofing line connections to secure the
field-provided pipe to the factory-installed condensate line.
9. Put water in the drain pan and make sure that the water is being
drained outside.
Install the drain pipe for proper drainage. Improper drainage can
result in water dripping inside the room.
SECTION XV: OUTDOOR UNIT
INSTALLATION
Refer to page 4 instructions when considering unit positioning and page
4 for condensate drainage requirements (heat pump).
SLAB OR ROOF MOUNTING
• Install the unit a minimum of 4 inches (102 mm) above the roof or
ground surface to avoid ice build-up around the unit.
• Locate the unit above a load bearing wall or area of the roof that
can adequately support the unit.
• Consult local codes for rooftop applications.
Johnson Controls Unitary Products 13
898841-UIM-B-0113
BUILDING STRUCTURE
GROUND
LEVEL
Install unit level or maintain slope tolerance of 2 degrees
( or 2 inches per 5 feet [50 mm per 1.5 m] away from building structure.
NOTICE
FOUR FIELD PROVIDED ANCHOR BOLTS
NOTICE
ROUTE WIRES
THROUGH
ROUTING
PLATE
ACCESS PLATE
FIGURE 29: Outdoor Unit Installation
This system contains both refrigerant and oil. Some rubber roofing
material may absorb oil. This will cause the rubber to swell when it
comes into contact with oil. The rubber will then bubble and could
cause leaks. Protect the roof surface to avoid exposure to refrigerant
and oil during service and installation. Failure to follow this notice
could result in damage to roof surface.
SECURING OUTDOOR UNIT TO SLAB OR FRAME
If the outdoor unit is installed on a field-provided slab or frame, use lag
bolts or equivalent to secure the outdoor unit to the slab or frame.
Mis-wiring could damage unit or cause communication errors
between indoor and outdoor unit.
• Refer to unit nameplate for minimum circuit ampacity and maximum overcurrent protection size
• Local codes may require a disconnect between the indoor and outdoor units
• The main system circuit breaker and outdoor unit disconnect
switch should be sized per local codes and unit requirements
• Stranded wire must be used to connect the outdoor unit to the
indoor unit. The stranded wire is necessary to ensure proper system communication and operation.
• Make sure you use an approved circuit breaker or switch
Model Fuse or Circuit Breaker Capacity
9K & 12K 20A
18K & 24k 25A
30K & 36k 30A
1. Remove outdoor unit access panel.
2. Route all wiring to outdoor unit through the wire routing plate.
FIGURE 30: Outdoor Unit Slab or Frame Installation
SECTION XVI: OUTDOOR UNIT WIRING
CONNECTIONS
In the United States, wiring must conform with current local codes
and the current National Electric Code (NEC). In Canada, wiring
must conform with current local codes and the current Canadian
Electrical Code (CEC).
The main system circuit breaker or disconnect should be sized per
unit requirements and should be installed adjacent to outdoor unit.
14 Johnson Controls Unitary Products
FIGURE 31: Outdoor Unit Electrical Connections
3. Connect the control wiring and power supply wiring to the outdoor
unit wiring terminals according to the figures shown in this section.
4. The unit must be grounded according to local codes.
5. Fasten the power supply cord and control wiring with cord clamp.
6. Secure wiring using built-in wire strain relief.
7. Install the outdoor unit access panel back.
