JLFSEC612
User Manual
Cooker
Contents
Safety information 4
Children and vulnerable people safety 4
General Safety 4
Safety instructions 7
Installation 7
Electrical Connection 7
Use 7
Care and Cleaning 8
Internal light 9
Disposal 9
Service 9
Product description 10
General overview 10
Cooking surface layout 10
Accessories 11
Before first use 12
Initial Cleaning 12
Using the sensor fields 12
Setting the time 12
Preheating 12
Hob - Daily use 13
Hob control panel 13
Heat setting displays 14
Residual heat indicator 14
Activating and deactivating 14
Automatic Switch Off 14
The heat setting 15
Automatic Heat Up 15
Power function 15
Timer 15
STOP+GO 16
Lock 16
The Child Safety Device 16
Power management function 16
Hob - Hints and tips 18
Cookware 18
Minimum cookware diameter 18
The noises during operation 18
Examples of cooking applications 18
Hob - Care and cleaning 20
General information 20
Cleaning the hob 20
Oven - Daily use 21

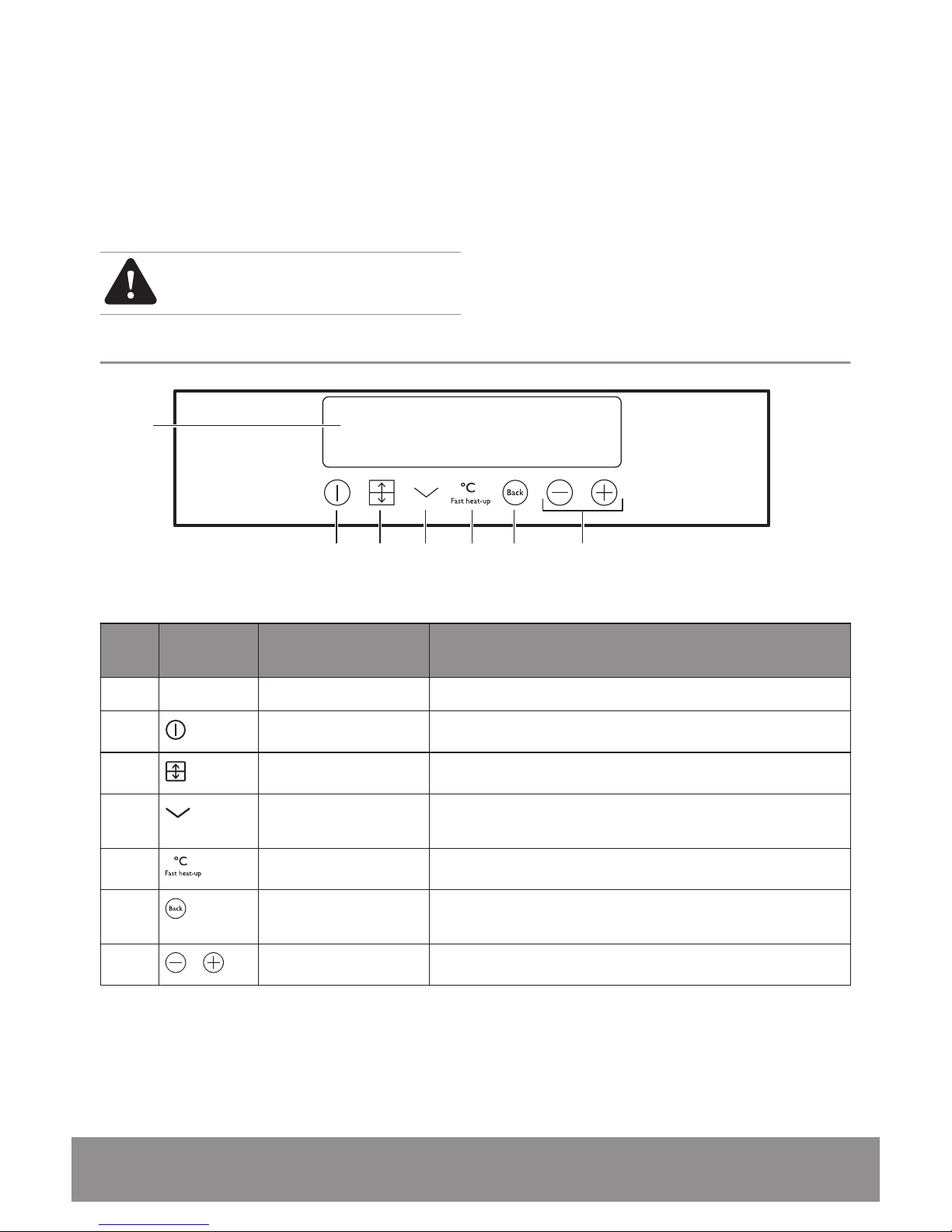

Oven Control Panel 21
Indicators on the display 22
Top oven functions 22
Main oven functions 23
Activating and deactivating 23
Setting the oven function 23
Changing the oven temperature 24
Deactivating an oven function 24
Heat-up indicator 24
Residual heat indicator 24
Fast heat up function 24
Lock and Child Safety Device 24
Cooling fan 24
Oven automatic switch-off 24
Inserting the oven accessories 24
Trivet and Grill- / Roasting pan 25
Telescopic runners - inserting the oven
accessories 25
Oven - Clock functions 27
Clock functions table 27
Setting the clock functions 27
Activating Heat + Hold (if applicable) 27
Oven - Hints and tips 28
Top oven 28
Main oven 28
Baking 28
Tips on baking 28
Conventional Baking
- Top Oven 29
Conventional Baking - Main oven 30
Thermaflow® Baking - Main Oven 31
Pizza Setting 32
Roasting 33
Cooker User Manual
2
Thermaflow® or Conventional Cooking Main Oven 33
Grilling in general 33
Dual Grill - Top Oven 34
Thermal Grilling - Main Oven 34
Low temperature cooking 35
Defrost 36
Oven - Care and cleaning 37
Notes on cleaning 37
Stainless steel or aluminium appliances 37
Catalytic cleaning 37
Removing the shelf supports 38
Removing and cleaning the door glasses - top
oven 38
Removing and cleaning the door glasses - main
oven 38
Replacing the lamp 39
Troubleshooting 40
What to do if... 40
Service data 42
Installation 43
Technical data 43
Location of the appliance 43
Levelling of the appliance 43
Electrical installation 43
Covering terminal board 44
Terminal board 44
Energy efficiency 45
Product information for hob according to EU
66/2014 45
Hob - Energy saving 45
Product Fiche and information for ovens
according to EU 65-66/2014 45
Oven - Energy saving 46
Repairs - after sales service 47
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible location
for future reference.
Children and vulnerable people safety
Warning!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep children and pets away from the appliance when it operates
or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, this should be activated.
• Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
General Safety
• Only a qualified person must install this appliance and replace the
cable.
• This appliance must be connected to the mains with a H05VV-F
type cable to withstand the temperature of the rear panel.
Cooker User Manual
4
• This appliance is intended for use up to an altitude of 2000 m above
sea level.
• This appliance is not intended to be used on a ships, boats or
vessels.
• Do not install the appliance behind a decorative door in order to
avoid overheating.
• Do not install the appliance on a platform.
• Do not operate the appliance by means of an external timer or
separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking
surfaces.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the glass door or the glass of hinged lids of the hob since they can
scratch the surface, which may result in shattering of the glass.
• Metallic objects such as knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot.
• If the glass ceramic surface / glass surface is cracked, switch off the
appliance to avoid the possibility of electric shock.
• After use, switch off the hob element by its control and do not rely
on the pan detector.
• WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
• Always use oven gloves to remove or put in accessories or
ovenware.
• Before maintenance cut the power supply.
Cooker User Manual
5
• Ensure that the appliance is switched off before replacing the lamp
to avoid the possibility of electric shock.
• If the mains power supply cable is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or similarly
qualified persons to avoid an electrical hazard.
• To remove the shelf supports first pull the front of the shelf support
and then the rear end away from the side walls. Install the shelf
supports in the opposite sequence.
• The means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• WARNING: Use only hob guards designed by the manufacturer of
the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards can
cause accidents.
Cooker User Manual
6
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with
the appliance.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must have
suitable dimensions.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed below
and adjacent safe structures.
• Parts of the appliance carry current. Close the
appliance with furniture to prevent touching the
dangerous parts.
• The sides of the appliance must stay adjacent to
appliances or to units with the same height.
• Do not install the appliance adjacent to a door
or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
• Make sure to install a stabilizing means in order
to prevent tipping of the appliance. Refer to
Installation chapter.
Electrical Connection
Warning! Risk of fire and
electrical shock.
• All electrical connections should be made by a
qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and extension
cables.
• Do not let mains cables touch or come near the
appliance door, especially when the door is hot.
• The shock protection of live and insulated parts
must be fastened in such a way that it cannot be
removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after the
installation.
• If the mains socket is loose, do not connect the
mains plug.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
• The electrical installation must have an isolation
device which lets you disconnect the appliance
from the mains at all poles. The isolation device
must have a contact opening width of minimum
3 mm.
• Fully close the appliance door, before you
connect the mains plug to the mains socket.
Use
Warning! Risk of injury and
burns.
Risk of electrical shock.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
Cooker User Manual
7
• Make sure that the ventilation openings are not
blocked.
• Do not let the appliance stay unattended during
operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door
while the appliance is in operation. Hot air can
release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not use the appliance as a work surface or
as a storage surface.
• Users with a pacemaker must keep a distance
of minimum 30 cm from the induction cooking
zones when the appliance is in operation.
Warning! Risk of fire and
explosion
• Fats and oil when heated can release flammable
vapours. Keep flames or heated objects away
from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause
spontaneous combustion.
• Used oil, that can contain food remnants, can
cause fire at a lower temperature than oil used
for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or on
the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open the
door.
• Open the appliance door carefully. The use of
ingredients with alcohol can cause a mixture of
alcohol and air.
Warning! Risk of damage to
the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel or stainless steel
has no effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on
the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty
cookware or without cookware.
• Do not put aluminium foil on the appliance or
directly on the bottom of the appliance.
• Cookware made of cast iron, aluminium or with
a damaged bottom can cause scratches. Always
lift these objects up when you have to move
them on the cooking surface.
• This appliance is for cooking purposes only. It
must not be used for other purposes, for
example room heating.
Care and Cleaning
Warning! Risk of injury, fire,
or damage to the appliance.
• Before maintenance, deactivate the appliance.
Disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the
Authorised Service Centre.
• Be careful when you remove the door from the
appliance. The door is heavy!
• Fat and food remaining in the appliance can
cause fire.
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Make sure the cavity and the door are wiped
dry after each use. Steam produced during the
operation of the appliance condensates on
cavity walls and can cause corrosion. To
decrease the condensation operate the
appliance for 10 minutes before cooking.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use any
Cooker User Manual
8
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if applicable)
with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used for
this appliance is only for household appliances.
Do not use it for house lighting.
Warning! Risk of electrical
shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to the
appliance and dispose of it.
• Remove the door catch to prevent children or
pets from becoming trapped in the appliance.
Service
• To repair the appliance contact an Authorised
Service Centre.
• Use original spare parts only.
Cooker User Manual
9
Product description
General overview
1
2
3
3
4
5
5
6
5
4
3
2
1
7
2
3
1
4
1. Control panel and hob
2. Air vents for the cooling fan
3. Heating element
4. Lamp
5. Shelf support, removable
6. Fan
7. Shelf positions
Cooking surface layout
210 mm
180 mm
140 mm
180 mm
2
1 3
6 4
5
1. Induction cooking zone 1400 W with the
Power function 2500 W
2. Steam outlet - number and position depend on
the model
3. Induction cooking zone 1800 W with the
Power function 2800 W
4. Induction cooking zone 1800 W with the
Power function 2800 W
5. Control panel
6. Induction cooking zone 2300 W with the
Power function 3600 W
Cooker User Manual10
Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Grill- / Roasting pan
To bake and roast or as pan to collect fat.
• Trivet
For roasting and grilling.
Use the trivet only with the
Grill- / roasting pan.
• Telescopic runners
For shelves and trays.
Cooker User Manual 11
Before first use
Warning! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories and removable shelf
supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories before first
use.
Put the accessories and the removable shelf
supports back to their initial position.
Using the sensor fields
To activate a function touch and hold the selected
symbol on the display for minimum 1 second.
Setting the time
You must set the time before you operate the
oven.
When you connect the appliance to the
electrical supply or after a power cut, the
indicator for the Time function flashes.
Press the or to set the correct time.
After approximately five seconds, the flashing
stops and the display shows the time of day you
set.
You can only change the time if:
• The child safety device is not on.
• None of the clock functions Duration
or
End is set.
• No oven function is set.
Preheating
Preheat the empty appliance to burn off the
remaining grease.
Preheat the two ovens. Heat up
one oven at a time.
Set the functions listed below, if
applicable.
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function
and set the maximum
temperature.
4. Let the appliance operate for 15 minutes.
5. Set the function and set the maximum
temperature.
6. Let the appliance operate for 15 minutes.
Accessories can become hotter than usual. The
appliance can emit an odour and smoke. This is
normal. Make sure that the airflow in the room
is sufficient.
Cooker User Manual
12
Hob - Daily use
Warning! Refer to Safety
chapters.
Hob control panel
2 31 4 5 6
8
9 710
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sensor
field
Function Comment
1
ON / OFF To activate and deactivate the hob.
2
Lock / The Child Safety Device To lock / unlock the control panel.
3
STOP+GO To activate and deactivate the function.
4
- Heat setting display To show the heat setting.
5
- Timer indicators of cooking zones To show for which zone you set the time.
6
- Timer display To show the time in minutes.
7
- To select the cooking zone.
8
/
- To increase or decrease the time.
Cooker User Manual 13
Sensor
field
Function Comment
9
/
- To set a heat setting.
10
Power function To activate and deactivate the function.
Heat setting displays
Display Description
The cooking zone is deactivated.
-
The cooking zone operates.
STOP+GO function operates.
Automatic Heat Up function operates.
Power function operates.
+ digit
There is a malfunction.
A cooking zone is still hot (residual heat).
Lock / The Child Safety Device function operates.
Incorrect or too small cookware or no cookware on the cooking zone.
Automatic Switch Off function operates.
Residual heat indicator
Warning! There is a risk of
burns from residual heat.
The induction cooking zones make the heat
necessary for cooking process directly in the
bottom of the cookware. The glass ceramic is
heated by the heat of the cookware.
Activating and deactivating
Touch for 1 second to activate or deactivate
the hob.
Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after you
activate the hob,
• you spill something or put something on the
control panel for more than 10 seconds (a pan,
a cloth, etc.). An acoustic signal sounds and the
hob deactivates. Remove the object or clean
the control panel.
• the hob gets too hot (e.g. when a saucepan
boils dry). Let the cooking zone cool down
before you use the hob again.
Cooker User Manual
14
• you use incorrect cookware. The symbol
comes on and the cooking zone deactivates
automatically after 2 minutes.
• you do not deactivate a cooking zone or change
the heat setting. After some time comes on
and the hob deactivates.
The relation between the heat setting
and the time after which the hob
deactivates:
Heat setting The hob deactivates
after
, 1 - 2
6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hour
The heat setting
Touch to increase the heat setting. Touch
to decrease the heat setting. Touch and
at the same time to deactivate the cooking zone.
Automatic Heat Up
If you activate this function you can get a
necessary heat setting in a shorter time. The
function sets the highest heat setting for some
time and then decreases to the correct heat
setting.
To activate the function the
cooking zone must be cold.
To activate the function for a cooking
zone: touch ( comes on). Immediately
touch ( comes on). Immediately touch
until the correct heat setting comes on. After 3
seconds
comes on.
To deactivate the function: touch .
Power function
This function makes more power available to
the induction cooking zones. The function can
be activated for the induction cooking zone only
for a limited period of time. After this time the
induction cooking zone automatically sets back
to the highest heat setting.
To activate the function for a cooking
zone: touch . comes on.
To deactivate the function: touch or .
Timer
Count Down Timer
You can use this function to set how long the
cooking zone should operate for a single
cooking session.
First set the heat setting for the cooking zone
then set the function.
To set the cooking zone: touch again and
again until the indicator of a necessary cooking
zone comes on.
To activate the function or change the
time: touch or of the timer to set the
time (00 - 99 minutes). When the indicator of
the cooking zone starts to flash slowly the time
counts down.
To see the remaining time: set the cooking
zone with . The indicator of the cooking zone
starts to flash quickly. The display shows the
remaining time.
To deactivate the function: set the cooking
zone with
and touch . The remaining time
counts back to 00. The indicator of the cooking
zone goes out.
When the time comes to an end,
the sound operates and 00 flashes.
The cooking zone deactivates.
To stop the sound: touch .
Cooker User Manual
15
Minute Minder
You can use this function as a Minute Minder
when the hob is activated and the cooking zones
do not operate. The heat setting display shows
.
To activate the function: touch . Touch
or of the timer to set the time. When the
time comes to an end, the sound operates and
00 flashes.
To stop the sound: touch .
To deactivate the function: touch and
then touch
. The remaining time counts back
to 00
The function has no effect on the
operation of the cooking zones.
STOP+GO
This function sets all cooking zones that operate
to the lowest heat setting.
When the function operates, you cannot change
the heat setting.
The function does not stop the timer functions.
To activate the function: touch
.
comes on.
To deactivate the function: touch
. The
previous heat setting comes on.
Lock
You can lock the control panel while cooking
zones operate. It prevents an accidental change
of the heat setting.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays on.
To deactivate the function: touch
. The
previous heat setting comes on.
When you deactivate the hob, you
also deactivate this function.
The Child Safety Device
This function prevents an accidental operation
of the hob.
To activate the function: activate the hob
with
. Do not set the heat setting. Touch
for 4 seconds. comes on. Deactivate the hob
with
.
To deactivate the function: activate the hob
with . Do not set the heat setting. Touch
for 4 seconds. comes on. Deactivate the hob
with
.
To override the function for only one
cooking time: activate the hob with .
comes on. Touch for 4 seconds. Set the
heat setting in 10 seconds. You can operate
the hob. When you deactivate the hob with
the function operates again.
Power management function
• All cooking zones are connected as on the
illustration.
• The hob and both ovens are connected to one
phase.
• The phase has a maximum electricity load.
• The function divides the power within the
appliance. The oven is more important than the
hob.
• The function activates when the total electricity
load in the appliance is exceeded.
• The function decreases the power on the
cooking zones to prevent a circuit overload.
• The heat setting display of the reduced zones
changes between two levels.
Cooker User Manual
16
Loading...
