frost free fridge freezer
Instruction manual
JLFFW2005
2
Important safety information
Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
It is not intended for commercial or industrial use.
Containers with flammable gases or liquids can leak at
low temperatures. Do not store any containers with
flammable materials, such as spray cans, fire
extinguisher refill cartridges etc. in the refrigerator or
the vicinity of the refrigerator or any other appliance.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the freezer
compartment.
Ice lollies can cause frost/freezer burns if consumed
straight from the freezer compartment.
Do not remove items from the freezer compartment
if your hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
Bottles and cans must not be placed in the freezer
compartment as they can burst as the contents
freeze.
Manufacturers recommended food storage times
should be adhered to.
Refer to the relevant instructions.
Do not use electrical appliances inside the
Refrigerator.
Store pre-packed frozen foods in accordance with the
frozen foods instructions and use by date.
When cleaning or taking out frozen foods or the ice
tray do not use sharp, pointed or hard devices, as they
can cause damage to the appliance.
Do not damage the refrigerant circuit.
Child safety
This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
Keep all packaging well away from children.
When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with the
remaining cable. Disable the door catch in order to
prevent children from becoming trapped inside while
playing.
Installation
This appliance is heavy. Care should be taken when
moving it.
Check your Fridge Freezer for any transport damage. Do
not connect the appliance if there is damage. If the Fridge
Freezer is damaged, you should contact the John Lewis
branch from which you purchased it.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Care must be taken to ensure that the appliance does
not stand on the electrical supply cable. If the supply
cable is damaged it must be replaced; contact our
extended warranty administrators on 08700 107 887
who will give you details for your local Service Force
centre.
Parts, which heat up, should not be exposed. Whereever
possible, the back of the appliance should be close to a
wall, but leaving the required distance for ventilation, as
stated in the installation instructions.
This appliance should be left for 2 hours after installation
before it is turned on,in order to allow the refrigerant to
settle. Before switching on the Fridge Freezer ensure that
the interior light bulb and cover are in position. Do not
connect the appliance if they are not.
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can get
to know the functioning of the appliance andthe relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
If you are unsure of the meaning of the these warnings contact the John Lewis branch from which you
purchased the appliance.
Safety precautions for
isobutane
Warning
The refrigerant of the appliance is isobutane (R600a)
that is inflammable and explosive to a greater extent.
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
3
For the safety of life and property keep the
precautions of these user's instructions as the
manufacturer is not responsible for damages caused
by omission.
Environmental information
After unpacking please dispose of the packaging with due
regard to safety and the environment.
Materials marked with the symbol are recyclable.
Avoid damaging the cooling unit, especially at the rear near
the heat exchanger. Check with your local Council or
Environmental Health Office to see if there are facilities in
your area for recycling this appliance.
When the appliance is to be scrapped, cut off the power
supply cable and remove the door,to prevent young children
from being trapped inside.
This appliance does not contain gases, which could damage
the ozone layer, in either, its refrigerant circuit or insulation
materials.
Maintenance and Cleaning
Before cleaning, always switch off the appliance and
disconnect from the electrical supply.
Check and clean the drain in the refrigerator
compartment for defrosted water regularly;if the drain is
blocked, water will gather in the bottom of the
refrigerator.
When unplugging always pull the plug from the mains
socket, do not pull on the cable.
Further information on cleaning is on page 18 of this
manual.
Service
This product should only be serviced by an authorised
engineer and only genuine spare parts should be used.
Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunction.
Service Force are the authorised repair agents for John
Lewis branded domestic appliances.
Ecological hints
To save energy and help protect the environment, we
recommend that you follow these hints.
Do not install the appliance close to sources of heat such as
a boiler or radiator.
Locate the appliance in a well-ventilated room and make
sure that any air openings of the appliance are not
obstructed.
Pack all foods into airtight packages before placing them into
the freezer compartment.
Food, which is to be frozen (when cool), should be placed in
the fridge compartment before being transferred to the
freezer.
Try to avoid keeping the door open for long periods or
opening the door too frequently as warm air will enter the
cabinet and cause the compressor to switch on
unnecessarily often.
Ensure there are no obstructions preventing the door from
closing properly.
WARNING
A cut off plug inserted into a 13-amp socket is a serious
safety (shock) hazard. Please ensure the cut off plug is
disposed of safely.
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste.
Instead it should be taken to the appropriate
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local council, your household
waste disposal service or the shop where you
purchased the product.
4
Contents
For the User
Important safety information 2
Installation 2
Description of the appliance 5
The Control Panel 12
Display 12
Switching the appliance on 12
Switching the appliance off 12
Functions Menu 12
Select /Switch off /Switch on each
compartment 13
Switch off of one compartment 13
Ambient Temperature Function 13
Child lock Function 13
Using the refrigerator 14
Drawer 14
Use of the fridge compartment 14
Shopping Function 14
Eco mode Function 14
Drinks Chill Function 15
Air Filter 15
Storing in foods the refrigerator 15
Storage time and temperature of foods 15
Using the freezer 16
Use of the freezer compartment 16
Storage of frozen food 16
Temperature regulation 16
Excessive temperature alarm 16
Door open audible alarm 16
Freezing fresh food 16
Storing in the freezer 17
How to make ice cubes 17
Storage time chart (refrigerator) 18
Storage time chart (freezer) 19
Maintenance and Cleaning 19
Defrosting 19
Regular cleaning 19
Internal cleaning 19
External cleaning 19
Changing the Carbon Filter 19
Trouble shooting 20
How to change the bulb 20
Something Not Working 21
Repairs - After Sales Service 22
Guide to the Instruction Manual
The following symbols will be found in the text to guide
you throughout the instructions:
Safety precautions
Warnings and information at this symbol serve
safety for you and your appliance.
Hints and tips
Environmental information
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive) and
subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
For the Installer
Installation 6
Technical Specifications 6
Unpacking 7
Cleaning 7
Positioning 7
Climate Classification 7
Installation of the Carbon Filter 8
Change of door opening direction 9
Electrical connection 11
5
Description of the appliance
14. Dairy compartment
15. Egg tray
16. Door shelf
17. Door seal
18. Bottle shelf
19. Handles
20. Ice tray
21. Condenser
22. Defrost water outlet tube
23. Spacer
24. Evaporator tray
25. Compressor
26. Rollers
A - Refrigerator
B - Freezer
1. Control panel
2. Air distribution and light box
3. Glass shelves
4. Bottle rack
5. Glass shelf
6. Fresh Box
7. Salad/vegetable drawer
8. Rating Plate
9. Air grid
10. Storing compartment(s)
11. Quick freeze dawer
12. Bottom plinth
13. Adjustable feet
6
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Installation
Technical Specifications
Dimensions Width 595 mm
Height 2010 mm
Depth 632 mm
Power suply voltage 230V/50Hz
Rated current 0,6 A
Gross capacity Refrigerator 293 l
Freezer 122 l
Net capacity Refrigerator 240 l
Freezer 78 l
Freezing capacity 10 kg/24 h
Energy consumption 1,12 kWh/24h
409 kWh/year
Energy class, according to EU standards A
Rising time 16 h
Noise Lc 42 dB
Weight 77 kg
Number of compressors 1
7
Unpacking
The appliance must always be transported in the
upright position as indicated on the outside of the
packaging.
After each transportation the appliance must not be
switched on for approx. 2 hours. to ensure the coolant gases
settle.
Unpack the Fridge Freezer and check for any possible
damage. If the appliance is damaged please report this to the
John Lewis branch from which you purchased; in this case
please retain the packaging.
Cleaning
Remove all adhesive tape and ties,which ensure the internal
fittings do not move during transportation.
Wash the inside of the appliance using lukewarm water and
mild detergent; using a soft cloth.
Further cleaning advice is given on page 19.
Positioning
The appliance should be located in a well ventilated, dry
room.To ensure correct operation the appliance should:
Not be exposed to direct sunlight.
Not be installed next to radiators, cookers or other
sources of heat.
Only be installed in a location where the ambient
temperature corresponds to the climate classification for
which the appliance is designed.
Climate Classification
The climate classification can be found on the rating plate;
which is located on the bottom left hand side of the fridge
compartment, see page 5 .
The table shows the correct operating ambient temperature
for each climate class.
Class of climate Ambient temperature
SN +10…+32°C
N +16…+32°C
ST +18…+38°C
If the temperature rises above or falls below the stated
ambient temperature for the climate class, the operation of
the appliance may be affected.
Ventilation
You should ensure that air can circulate freely around the
back and top of the cabinet. In the Instruction manual bag
there are two spacers which must be fitted to the top rear
corners. This will ensure a gap is maintained between the
Fridge Freezer and the wall.
Loosen the screws and insert the spacer under the screw
head, then re-tighten the screws.
Levelling
When placing the appliance ensure that it stands level,to
prevent vibration, excessive noise and to ensure the
doors shut correctly.
Level the appliance by turning the 2 adjustable feet at the
front of the Fridge Freezer.
When placing the refrigerator keep minimal
distances recommended in figure.
A: placing it under a wall-cupboard
B: placing it freely
8
Installation of the Carbon
Filter
On delivery the carbon filter is in a plastic bag to
maintain it's duration and characteristics. The filter
should be placed behind the flap before the appliance is
turned on.
1.Pull the flap outwards. (1)
2.Remove the filter from the plastic bag.
3. Insert the filter in the slot found in the back of the flap
cover (2).
4.Close the flap cover.
During operation, always keep the air
ventilation flap closed.
The filter should be handled carefully so
fragments do not loosen from the surface.
9
Should it be necessary, to suit the placement of the
appliance in your kitchen, you can reverse the doors.
The appliances is delivered with the door opening to the
right.
Carry out the steps as per the pictures and the instructions.
1. We recommend that you have another person to help
you who can safely hold the doors of the appliance
secure.
2. Disconnect the appliance from the electrical supply.
3. Open the door of the fridge, dismantle the top cover
(j) by removing the 2 screws (a), then close the door
(Fig. 2).
4. Move the panel (g) from one side of the top cover (2)
to the other (Fig. 2).
5. Unscrew the 2 screws (c), remove the door mount
at the top right-hand side (d), and unscrew the screw
on the other side (c), remove the panel (b) and place
in an empty plastic bag (Fig. 1).
6. Lift the fridge door up slightly and remove.
7. Unscrew the screw (m), remove the door stopper
(h) and attach reversed on the other side (Fig. 2).
8. Remove double door mount (a, b, c) from the body
of the appliance in steps. Please make sure the plastic
spacer (b) under the door mount is also removed
(Fig. 3).
9. Lift the freezer door up slightly and remove.
10. Remove stops in both doors (t, z) (Fig. 5).
11. Lift out the insert for the lower covering grid (e)
using a screw driver (Fig. 4).
12. Unscrew the bottom door retaining pin for the
freezer door (h, f) and then screw in on the other
side. Don't forget the spacer (h) (Fig. 4).
13. Insert the insert for the lower covering grid (e) on
the other side.
14. Remove the left-hand cover pin of the double door
mount (3 pieces, n, k) and move to the other side
(Fig. 3).
15. Disassemble the door locking elements (u, v) by
unscrewing the screw (s) (Fig. 5).
16. Reverse the door locking elements (u, v), move to
the other side of the other door and fix by screwing
in the screw (s).
17. Re-insert the stoppers (t, z) on the other side of the
doors.
18. Fit the pin of the double door mount (m) into the
left-hand hole of the freezer door (Fig. 3).
fig. 3.
Reversing the fridge freezer doors
fig . 2.
fig. 1.
10
19. Place the freezer door on the lower door retaining
pin (f) (Fig. 4).
20. Fix the double door mount with 2 screws (c) on the
left-hand side. Don't forget the plastic spacer under
the door (b) as well.The edges of the doors must run
parallel to the side edge of the appliance.
21. Place the fridge door on the double door retaining
pin.
22. Remove the top left-hand side door mount (f) and
the panel (c) from the plastic bag and attach using the
screws (c) (Fig. 1).
23. Open the fridge door, attach the top cover (j) using
2 screws (a); at the same time pay attention to the
repositioning of the magnet (k), then close the door
(Fig. 2).
24. Put over the handles (r) on the other side and put the
plastic blanking pins (p) supplied in the plastic bag of
this instruction book into the holes set free. (fig. 6)
25. Put the appliance into position, make adjustments if
not horizontal and connect to the electrical supply.
If you do not want to carry out these steps yourself, please
contact the nearest branded service point. Technicians will
make a charge for door reversal.
fig. 5.
fig. 6.
fig. 4.
11
Any electrical work required to install this appliance should
be carried out by a qualified electrician or competent
person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
Should the appliance power supply cable need
to be replaced, this must be carried out by a
Service Force agent (see page 22)
The manufacturer declines any liability should
this safety measure not be observed.
Before switching on,make sure the electricity supply voltage
is the same as that indicated on the appliance’s rating plate.
(See picture on page 5).
The appliance is supplied with a 13amp plug supplied. In the
event of having to change the fuse in the plug supplied, a
13amp ASTA approved BS 1363/A fuse must be used.
Should the plug need to be replaced for any reason, proceed
as described below.The wires in the mains lead are coloured
in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with the
markings identifying the terminals in your plug.
Proceed as follows:
1. Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter "E"
orthe earth symbol or coloured green and yellow.
2. Connect the Blue (neutral) wire to the terminal in the
plug which is marked with the letter "N" or coloured black.
3. Connect the Brown (live) wire to the terminal in the
plug which is marked with the letter "L" or coloured red.
4. Upon completion there must be no cut, or stray strands
of wire present and the cord clamp must be secure over the
outer sheath.
WARNING:
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
The plug must still be accessible after the
appliance has been installed.
The appliance should not be connected to
the electrical supply by means of an
extension cable
Permanent connection
In the case of permanent connection it is necessary that
you install a double pole switch between the appliance
and the electricity supply (mains), with a minimum gap of
3mm between the switch contacts and of a type suitable
for the required load in compliance with the current
electrical regulations.
The switch must not break the green and yellow earth
cable at any point.
Electrical connection
12

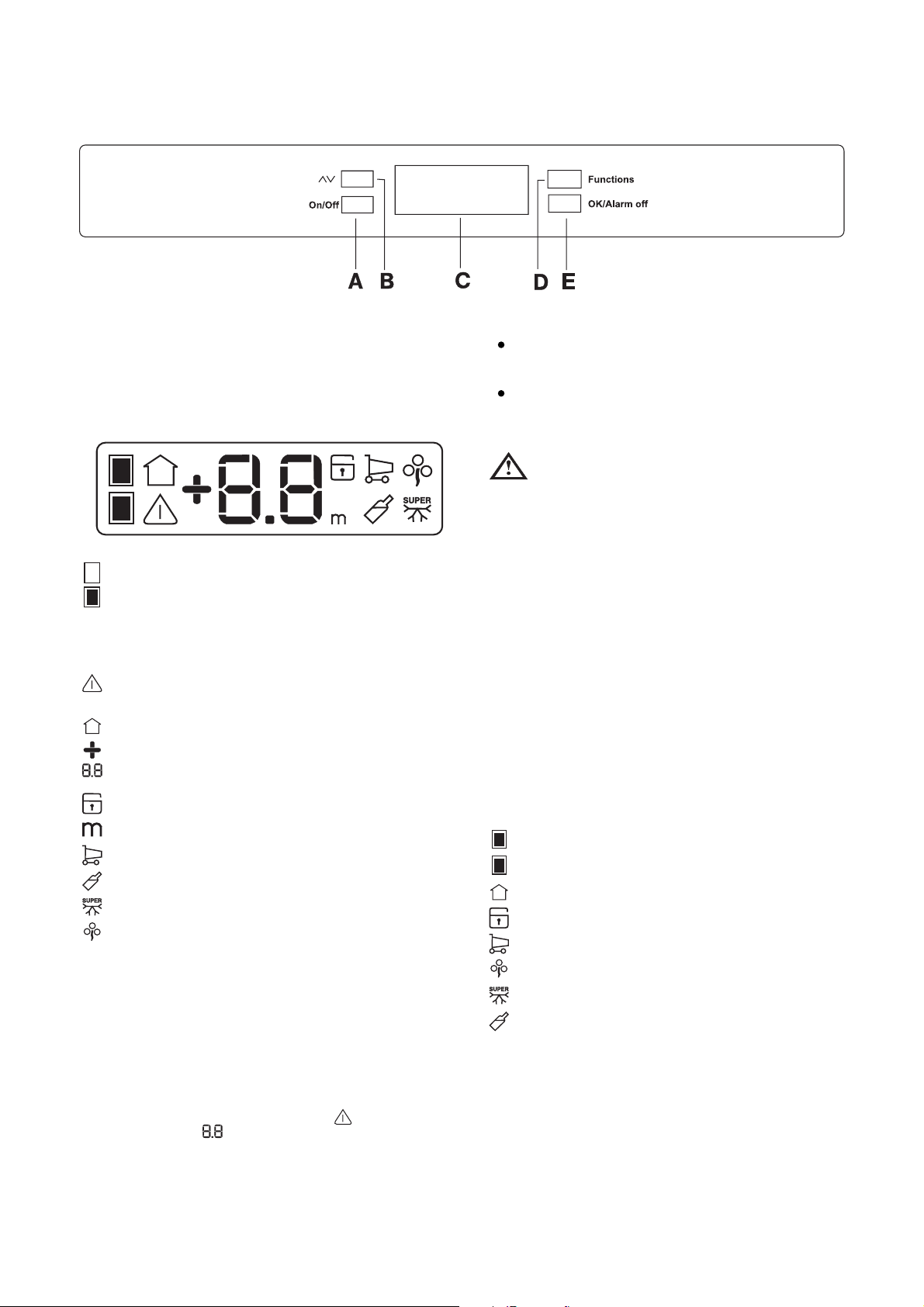

The Control Panel
A - Appliance button ON/OFF
B - Temperature regulation button
C - Temperature and function display
D - Function button
E - Confirmation button
Display
if indicates the compartment is on;
if indicates the temperature of the relevant
compartments
if it flashes the operations corresponds to the relative
compartment
High temperature alarm and Door open audible alarm
Indicator
indicates the ambient room temperature
Positive or negative Temperature indicator
Temperature indicator
If on, the function child lock is on
If on, the function timer is on
If on, the shopping function is on
If on, the Chill mode function is on
If on, the quick freeze function is on
If on, the Eco mode function is on
Switching the appliance on
Once connected to the mains supply, if the display is not
illuminated, press key (A), to switch the appliance on.
As soon as the appliance is turned on, it is in alarm mode,
the temperature flashes and you will hear a buzzer.
Press key (E) and the buzzer will go off (also see the section
on "high temperature alarm") the icon still flashes and
on the indicator will slow the
warmest temperature reached.
For correct storage of the food select the Eco mode
function that guarantee the following temperatures are
set:
+5°C in the fridge
-18°C in the freezer
Wait until the inside compartment temperature reach
-18°C, before placing food in the freezer
compartment.
To select a different temperature see "Temperature
regulation".
Important
If the door remains ajar for some minutes, the
internal lighting will turn off electronically; after this, the
lighting function will be reset by closing and opening the
door itself.
Switching the appliance off
The appliance is switched off by pressing key (A) for
more than 1 second. After this, a countdown of the
temperature from -3 -2 -1 will be shown.
Functions Menu
By pressing the key D the functions menu is open. Each
function can be selected by pressing button E. If there is
no confirmation after some seconds the display will exit
from the menu and return to normal mode.
The following functions are available:
Select/Switch off/Switch on fridge compartment
Select/Switch off/Switch on freezer compartment
Ambient Temperature
Child lock function
Shopping function
Eco mode function
Quick freeze function
Chill mode function (or timer function)
13
Select /Switch off /Switch on
each compartment
Temperature selection
The temperature may be regulated by pressing the key (D)
to select the compartment and then the key (B) to set the
desired temperature.
By pressing the key (B) the current temperature setting
flashes on the indicator. To confirm the choice of
temperature press the key (E).You will hear the buzzer for
few seconds and the indicator displays the newly selected
temperature for a few seconds, then shows again the inside
compartment temperature.
The newly selected-temperature will be reached after 24
hours.
The temperature will remain stored even if the product is
not in use.
Attention!
During the stability period by the first starting the
temperature displayed can not correspond to the setting
temperature. During this time it is possible that the
temperature displayed is different than the setting
temperature.
Switching off one compartment
To switch off one compartment press the key (D) until the
compartment is selected and then press hold of key (A), the
count down will begin.
Ambient Temperature Function
The ambient temperature function is activated by pressing
key D (several times if necessary) until the corresponding
icon appears .
In this condition the selected temperature is the ambient
temperature.
You must confirm the choice by pressing key E within a few
seconds.You will hear the buzzer and the icon will remain
lit. It is possible to de-activate the function at any time by
pressing key D until the corresponding icon will flash and
then press key E.
Child lock Function
The child lock function is activated by pressing key D
(several times if necessary) until the corresponding icon
appears .
You must confirm the choice by pressing key E within a few
seconds.You will hear the buzzer and the icon remains lit.
With this function activated, the programmed temperatures
and settings remain, even if any of the keys are pressed.
It is possible to de-activate the function at any time by
pressing key D until the corresponding icon flashes and then
pressing key E.
14
Salad/Vegetable drawer
The drawer is suitable for storing fruit,vegetables and salad.
There is a separator inside the drawer that can be placed in
different position to accommodate your personal food
requirements.
Use of the fridge compartment
Temperature regulation
The temperature of this compartment can set between
+2°C and +8°C.
During normal operation the indicator shows the
temperature inside the fridge.
Attention!
Difference between the temperature displayed and
temperature setting is normal. Especially when:
- a new setting has recently been selected
- the door has been left open for a long time
- warm food has been placed in the compartment.
Holiday Function "H"
The holiday function sets the temperature at + 15°C.
This function allows you to keep the refrigerator
shut and empty during a long holiday period ( e. g.
To maintain the selected cooling temperature within
the refrigerator air must be allowed to circulate.
Ensure the air circulation gaps behind the shelves are not
covered.
Always allow hot foods to cool to room
temperature before placing into the
refrigerator. This will avoid a build up of frost.
Foods can transfer or take in odours from
other foods. So it is essential to put foods in
closed dishes or wrap them in cellophane,
aluminium foil, grease-proof paper or cling film
before placing them into the refrigerator. This way
foods will keep their moisture e.g. vegetables will
not dry out after some days.
Using the refrigerator
the summer holidays) preventing bad smells forming.
1.To turn on the holiday function operate as per changing
the selected temperature.The temperature indicator can
change the displayed temperature up to + 8 °C, 1 °C at
a time. + 2 °C will be followed by the letter "H". Press
key E to confirm.
Now the refrigerator is in the "holiday function" in the
energy saving mode.
Attention!
The fridge compartment must be empty with
holiday function on.
Shopping Function
If you need to place a large amount of warm food in the
fridge, e.g. after doing the grocery shopping, we suggest
activating the Shopping function to chill the products
more rapidly and to avoid warming the other food which
is already in the refrigerator.
The shopping function is activated by pressing key D
(several times if necessary) until the corresponding icon
appears
You must confirm the choice by pressing key E within a
few seconds.You will hear the buzzer and the icon will
remain lit.
The shopping function shuts off automatically after
approximately 6 hours.
It is possible to de-activate the function at any time by
pressing key D until the corresponding icon flashes and
then pressing key E.
Eco mode Function
The Eco mode function is activated by pressing key D
(several times if necessary) until the corresponding icon
appears .
You must confirm the choice by pressing key E within a
few seconds.You will hear the buzzer and the icon will
remain lit.
In this mode the chosen temperatures are automatically
set (+ 5°C e - 18°C), in the best conditions for storing
food.
It is possible to de-activate the function at any time by
changing the selected temperature in one of the
compartments.
15
Storing foods the refrigerator
When placing different kinds of foods into the
refrigerator; take note of the correct storage positions
for these foods.
1. Confectionery, ready-cooked foods, foods in
dishes, fresh meat, cold cuts, drinks
2. Milk, dairy products, foods in dishes
3. Fruits, vegetables, salads
4. Cheese, butter
5. Eggs
6. Yoghurt, sour cream
7. Small bottles, soft drinks
8. Big bottles, drinks
9. Fresh box
Storage time and
temperature of foods
The food storage time chart in this manual gives
guidelines about food storage times.
It is not possible to be precise, as the food storage time
will depend on the foods freshness and how the food has
been handled through the food chain.
If you do not want to place pre-frozen foods purchased
from the supermarket into the freezer, they can be
stored for about 1 day (until defrosted) in the
refrigerator.
Drinks Chill Function
The Drinks Chill function is used for the rapid cooling of the
drinks in the freezer compartment. It is activated by pressing
key D (several times if necessary) until the corresponding
icon appears .
You must confirm the choice by pressing key E within a few
seconds.You will hear the buzzer and the icon remains lit.
In this mode it sets a timer with a default value of 30 min
which can be changed from 1 to 90 min, by pressing key B.
At the end of the selected time there are the following
indications:
- on the display the symbol flashes ;
- the icon flashing ;
- the icon flashing ;
- sounding of an acoustic alarm until key E is pressed.
At this point remove the drinks contained in the freezer
compartment.
It is possible to de-activate the function at any time by
pressing key D until the corresponding icon flashes and then
pressing key E
Air Filter
Your appliance is equipped with a carbon filter behind a flap
in the rear wall of the air distribution box.
The filter purifies the air from unwanted odours in the
fridge compartment enhancing the fridge storage quality.
16
Using the freezer
Use of the freezer compartment
The freezer has the symbol which means that it is
suitable for freezing fresh food and for long term storage of
frozen and deep-frozen food.
Storage of frozen food
When first starting-up or after a period out of use, before
putting the food in the compartment let the appliance run
at least 12 hours.To obtain the best performance from this
appliance, you should: if large quantities of food are to be
stored, remove all drawers and baskets from appliance and
place food on cooling shelves.
Pay careful attention not to exceed load limit stated on the
side of the upper section (where applicable).
Temperature regulation
The temperature may be set between -15°C and -24°C.
We suggest setting the internal temperature of
approximately -18°C, which guarantees proper freezing and
preservation of frozen foods.
Attention!
Following first start up, the temperature displayed
can not correspond to the set temperature. During this
time it is possible that the temperature displayed is different
than the set temperature.
Attention!
Difference between the temperature displayed and
temperature set is normal. Especially when:
- a new setting has recently been selected
- the door has been left open for a long time
- warm food has been placed in the compartment
Difference of up to 5°C inside the compartment are quite
normal.
During normal functioning the indicator shows the warmest
temperature inside the compartment.
Important
In the event of accidental defrosting, for
example due to a power failure, if the power has
been off for longer than the value shown in the
technical characteristics chart under "rising time",
the defrosted food must be consumed quickly or
cooked immediately and then refrozen (after
cooling).
High temperature alarm
An increase in the temperature in the freezer
compartment (for example due to a power failure) is
indicated by:
- flashing temperature;
- freezer compartment flashing ;
- flashing of the icon ;
- sounding of buzzer.
When normal conditions are restored:
- the acoustic signal shuts off;
- the temperature value continues to flash;
When you press key "E" to de-activate the alarm, the
highest temperature reached in the compartment
appears on indicator for some seconds. Then it
returns on the normal operation showing the
temperature of the selected compartment.
During the alarm phase, the buzzer can be switched off
by pressing key E.
Door open audible alarm
An audible alarm will sound when the door is left open
for around 5 minutes.
The door open alarm conditions are indicated by:
- flashing symbol of the relative compartment
- sounding of buzzer.
Press the key (E) to stop the acoustic alarm.
When the door is closed:
- the acoustic alarm will stop.
Freezing fresh food
The freezer compartment is suitable for long term
storage of commercially frozen and deep-frozen food,
and for freezing fresh food.
The maximum quantity of foods to freeze in 24 hours is
shown on the rating plate
To freeze the amount of food indicated on the rating
plate, place the food directly in touch with the cooling
surface (remove the drawer or basket). In case the food
is frozen inside the drawers or baskets, the maximum
quantity is slightly reduced.
Place the food to be frozen in the compartment, as
this is the coldest part.
To freeze fresh foods, you will need to activate the quick
freeze function. Press key D (several times if necessary)
until the corresponding icon appears You must
confirm the choice by pressing key E within few seconds.
You will hear the buzzer and the display will show the
relevant icon.
After a pre-cooling period of 24 hours, place the foods
in the freezer.
17
Storing in the freezer
Once the freezing process has been completed all
compartments can be used for storage but if you require to
freeze further quantities of food move the recently frozen
foods to the upper compartments.
If you are storing large quantities of food you can remove
the top baskets from the freezer and store foods directly on
the shelves. Do not remove the bottom freezing
compartment.
For supermarket pre-frozen foods be aware of the
use by date on the packaging at all times and use the
foods prior to that date.
It is not safe to re-freeze foods that were previously
frozen and have defrosted; you are advised to use the
foods as soon as possible or to cook the foods and then refreeze.
How to make ice cubes
To make ice cubes fill the ice cube tray with fresh or filtered
water and place the tray into the frozen food compartment.
Set the thermostat control to maximum to reduce the
freezing time. Re-set the thermostat control to normal
running. To release the ice cubes hold the tray under
running water then twist the tray.
The freezing process takes 24 hours. During this period do
not put other foods in the freezer.
This function stops automatically after 52 hours.
It is possible to de-activate the function at any time by
pressing key D until the corresponding icon flashes and then
pressing key E.
18
Foods Storage time in days Method of packaging
1 23 4 567
Raw meat XXx x x cling film, airtight
Cooked meat XXXx x x dish covered
Roasted meat XXXx x dish covered
Raw minced meat X dish covered
Cold cuts,Vienna sausage XXx x cling film, cellophane, grease-proof paper
Fresh fish X x x cling film, airtight
Cooked fish XXx x dish covered
Fried fish XXx x x dish covered
Tinned fish, open X x x dish covered
Fresh chicken XXXx x x cling film, airtight
Fried chicken XXX x x x dish covered
Fresh duck, goose XXXx x x cling film, airtight
Roasted duck, goose XXXX x x x dish covered
Butter unopened XXXX XXXoriginal packaging
Butter opened X XX X XXXoriginal packaging
Milk XXXx x original packaging
Cream XXx x plastic box
Sour cream XXXX x x x plastic box
Cheese (hard) XXXX XXXaluminium foil
Cheese (soft) XXXX x x x cling film
Curds XXXX x x x cling film
Egg XXXX XXX
Spinach, sorrel XXx x cling film
Green peas, green beans XXXX x x x cling film
Mushroom XXx x x cling film
Carrot, roots XXXX XXXcling film
Bell-pepper XXx x x cling film
Tomato X XX X XXXcling film
Cabbage XXXX Xx x cling film
Soft fruits (strawberries,
raspberries, etc.) XXXx x cling film
Other fruits XXXX x x x cling film
Tinned fruits opened XXXx x dish covered
Cakes filled with cream XXx x dish covered
Storage time chart (refrigerator)
Time and method of storage of fresh foods in the refrigerator
Notation:
X usual storage time
x possible storage time (concerns to really fresh product only)
19
Storage time chart (freezer)
Storage time of deep-frozen and frozen products
Maintenance and Cleaning
Defrosting
Defrosting is automatic in this appliance.
Regular cleaning
Disconnect the appliance from the electricity supply, before
you carry out any cleaning or maintenance work.
Clean the equipment regularly.
Do not use detergents, abrasive or strongly
odorous cleaners, waxy polishing agents,
disinfectants or alcoholic products for cleaning the
equipment.
Pull out the wall plug of the equipment from the outlet.
Internal cleaning
Clean the internal parts of the equipment and the
accessories with warm water and Bicarbonate of Soda (5 ml
to 0.5 litre of water).
Rinse and dry everything thoroughly.
Clean the door seal with clean water.
External cleaning
Clean the external parts of the equipment with warm water
and Bicarbonate of Soda (5 ml to 0.5 litre of water).
Dust will build up on the condenser (the black grill at the
back of the appliance) and the reservoir; this can inhibit the
efficiency of the fridge freezer. It is recommended to clean
both on a six monthly basis.
After cleaning, reconnect the equipment to the mains
supply.
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
Foods In the fresh food In the **** frozen food
compartment +2 - +7°C compartment -18°C
Vegetables:
green beans, green peas, mixed vegetables, marrow, corn, etc. 1 day 12 months
Ready-cooked foods:
vegetable dish, trimmings, with meat, etc. 1 day 12 months
Ready-cooked foods:
sirloin steaks, 1 day 6 months
Foods from potatoes, pasta:
mashed potato, gnocchi, dumplings, filled pasta 1 day 12 months
Soups:
vegetable soup 1 day 6 months
Fruits:
cherries 1 day 12 months
Meat:
chicken, duck, goose 1 day 5 months
fillets, tuna fish 1 day 6 months
Ice-cream 1 day 3 weeks
Changing the Carbon Filter
To maintain the best performance the carbon filter
should be changed every year.
New carbon filters can be purchased from your local
dealer.
1. Pull the flap outwards. (1)
2. Remove the filter from the plastic bag.
3. Insert the filter in the slot found in the back of the flap
cover (2).
4. Close the flap cover.
Note: the carbon filter is a consumable accessory and as
such is not covered by the guarantee.
During operation, always keep the air
ventilation flap closed.
The filter should be handled carefully so
fragments do not loosen from the surface.
20
When the refrigerator is not
in use
If the refrigerator is to be turned off for some time,
follow these steps.
Unplug the appliance.
Remove foods from the refrigerator.
Defrost and clean it as written before.
Defrost and clean as detailed above.
Trouble shooting
How to change the bulb
Should the light fail to work you can change it as below:
Break the circuit of the appliance.
Press the rear hook (1) of the lampcover by a
screwdriver and at the same time pull and rotate the
cover in the direction indicated by the arrow (2). So the
bulb can be replaced. (Bulb type: T25 Daylight Halolux
230-240 V, 25 W, E 14 thread)
After changing the bulb replace the cover, snap it in place
and apply voltage to the appliance.
21
Something Not Working
Certain problems are due to a lack of simple maintenance or oversights, which can be solved easily without calling out an
engineer. Please carry out the following checks before contacting the extended warranty administrators see Repairs - After
Sales Service.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
Cause
If products are not cold enough or placed
incorrectly.
The door does not close tightly or it is not
shut properly.
The door does not close tightly or it is not
shut properly.
Products in big quantity to be frozen were put
in.
Products to be frozen are placed too closely to
each other.
The melting water outlet flows not into the
evaporative tray above the compressor.
Products are not wrapped properly.
Doors are not shut properly or do not close
tightly.
The thermostatic control can be set
incorrectly.
Doors are not shut properly or do not close
tightly.
Products in big quantity to be frozen were put
in.
Too warm food was put in.
The appliance is in too warm place.
Plug is not connected to the mains socket
properly.
The fuse burnt out.
The thermostatic control is not on.
There is no voltage in the mains socket.(Try to
connect another appliance into it.)
The appliance is not supported properly.
Solution
Place the products to the appropriate place.
Check if the door closes well and the
gasket is undamaged and clean.
Check if the door closes well and the
gasket is undamaged and clean.
Wait some hours and then check the
temperature again.
Place the products in a way so that cold air
could circulate among them.
Put the melting water outlet to the
evaporative tray.
Wrap the products better.
Check if the doors close well and the
gaskets are undamaged and clean.
Set the thermostat a position that gives
higher temperature.
Check if the doors close well and the
gaskets are undamaged and clean.
Wait some hours and then check the
temperature again.
Put food at max. room temperature.
Try to reduce the temperature in the room
where the appliance stands.
Connect the mains plug properly.
Change the fuse.
Start the appliance according to
instructions in chapter 'Installation'.
Call an electrician.
Check if the appliance stands stable (all the
four feet should be on the floor).
Symptom
It is too warm in the
refrigerator.
It is too warm in the
freezer.
Water flows onto the
floor.
There are too much frost
and ice.
The compressor operates
continually.
The appliance does not
work at all. Neither
cooling, nor lighting works.
The appliance is noisy.
In as much as the advice does not lead to result, call the nearest brand-mark service.
22
In the unlikely event of your appliance requiring service, or
if you wish to purchase spare parts, please contact our
extended warranty administrators by telephoning:
0870 010 7887
They will give you details for your local Service Force
Centre.
Before calling out an engineer, please ensure you have read
the details under the heading “Something Not Working”.
When you contact your local Service Force Centre you will
need to give the following details:
1.Your name, address and post code
2.Your telephone number
3. Clear and concise details of fault
4.The purchase date found on your receipt
5.The model and serial number of the appliance (found on
the rating plate - see picture on page 5)
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Mod. :...................................................
PNC :..................................................
S.N. :...................................................
Your Fridge - Freezer is covered by a 3 year parts
and labour guarantee (see separate details given at
point ofsale). Please retain your purchase receipt
safely for the service engineer to verify the purchase
details.
Repairs - After Sales Service
Spare parts
Always insist on genuine spare parts.
An authorised service engineer should service this
product, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force Centre.
23
01/07
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www.johnlewis.com
200371316
Loading...
