Operation Manual
Important: Do not operate the John Bunn DigiO
2
Finger
Pulse Oximeter without rst reading and understanding
this manual! Save this manual for future use.
JB02007-INS-LAB-RevC16
JB02007-INS-LAB-RevC16 2
CONTENTS
INTRODUCTION ............................................................................................................................................3
IMPORTANT SAFETY GUIDELINES - PLEASE READ BEFORE USE ...............................................3
INTENDED USE .....................................................................................................................................6
CONTRAINDICATIONS .........................................................................................................................6
DECLARATION OF CONFORMITY: .....................................................................................................6
OVERVIEW ....................................................................................................................................................7
APPEARANCE ......................................................................................................................................7
FEATURES ............................................................................................................................................8
NAME AND MODEL ..............................................................................................................................8
BATTERY INSTALLATION ............................................................................................................................8
OPERATION INSTRUCTIONS ......................................................................................................................9
ACCESSORIES (INCLUDED) .....................................................................................................................12
REPAIR AND MAINTENANCE ....................................................................................................................12
MAINTENANCE ...................................................................................................................................12
CLEANING AND DISINFECTION ........................................................................................................13
TROUBLESHOOTING .................................................................................................................................14
SYMBOL KEY ..............................................................................................................................................15
TECHNICAL SPECIFICATIONS ..................................................................................................................15
LIMITED WARRANTY .................................................................................................................................17
JB02007-INS-LAB-RevC16 3
INTRODUCTION
Dear User: Please read and understand all instructions before using the John Bunn
DigiO2 Finger Pulse Oximeter, JB02007.
Important Safety Guidelines - Please Read Before Use
The safety statements presented in this chapter refer to the basic safety information
that the operator of the John Bunn DigiO2 Finger Pulse Oximeter shall pay attention
to and abide by. There are additional safety statements in other chapters or sections,
which may be the same as or similar to the following, or specic to the operations.
WARNING: Indicates a potential hazard situation or unsafe practice that, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in minor or moderate personal injury.
s NOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in minor personal injury or product/property damage.
Info: Provides application recommendations or other useful information to ensure that you
get the most from your product.
WARNING: Important! Read and understand this manual before using the oximeter.
Do not use this device without proper instruction from a Healthcare Professional. If
the oximeter is not properly operated, personal injury and/or damage to the oximeter
could result.
JB02007-INS-LAB-RevC16 4
WARNING: If components are damaged or missing, contact your dealer immediately.
DO NOT use substitute parts.
WARNING: Inspect the device before use to ensure that there is no visible damage
that may affect patient or user’s safety or measurement performance. Thereafter,
inspect the device at least once a week.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or
injury caused by improper installation or use of this product.
WARNING: DO NOT open the oximeter housing. It contains no serviceable parts.
Service must be performed by trained, authorized personnel only. Otherwise, device
failure and health hazard may occur.
WARNING: EXPLOSION HAZARD: Do not use the oximeter in the presence of
ammable anesthetics, explosive substances, vapors or liquids.
WARNING: The oximeter is designed for real-time and rapid measurement. It is not
suitable for long-time continuous patient monitoring. DO NOT apply the sensor to
the same nger for more than two hours. If any readings are found to be abnormal,
please change the position of the sensor.
WARNING: The oximeter is intended only as an adjunct in patient assessment. It
must be used in conjunction with clinical signs and symptoms. It is intended as a
measuring, not a treatment, device.
JB02007-INS-LAB-RevC16 5
WARNING: Magnetic and electrical elds are capable of interfering with the proper
performance of the oximeter. For this reason, ensure that all external devices
operated in the vicinity of the oximeter comply with the relevant EMC requirements.
Mobile phones, X-ray equipment, and/or MRI devices are a possible source of
interference, as they may emit high levels of electromagnetic radiation.
WARNING: DO NOT clip this device on edema or tender tissue.
WARNING: The infrared light emitted from the device (it is invisible) is harmful to the
eyes. DO NOT stare into the light.
WARNING: Keep this device out of the reach of children.
WARNING: Notice for California Customers- California Proposition 65 WARNING:
This product contains a chemical known to the State of California to cause cancer
and reproductive or developmental harm.
WARNING: To ensure patient safety, use only parts and accessories specied in this
manual.
WARNING: Keep the oximeter away from dust, vibration, corrosive substances,
explosive materials, high temperature and moisture.
WARNING: If the oximeter gets wet, stop operation immediately and do not resume
operation until it is dry. When it is carried from a cold environment to a warm and/or
humid environment, allow it to warm to room temperature before using it.
s NOTICE: DO NOT use sharp objects to press the front panel button.
s NOTICE: DO NOT immerse the oximeter in liquid.
JB02007-INS-LAB-RevC16 6
s NOTICE: DO NOT subject the oximeter to high temperature or high pressure steam
disinfection. Refer to the REPAIR AND MAINTENANCE/Cleaning and Disinfection
section of this manual for instructions for cleaning and disinfection.
Intended use
The John Bunn DigiO2 Finger Pulse Oximeter, which combines a sensor and monitor
into one device, is used to measure pulse oxygen saturation (SpO2 ) value, pulse rate
value, and blood perfusion index (PI) or pulse strength in home or clinical settings.
It is designed for adult and pediatric patients, and ts ngers of thickness .39" - .87"
(10mm - 22mm).
Contraindications
WARNING: DO NOT use the oximeter while the patient is undergoing MRI or CT
scanning.
Declaration of Conformity:
This device complies with the
following standards:
IEC 60601-1
ISO 9919
ISO 21647
and follows the provisions of the council directive MDD93/42/EEC
JB02007-INS-LAB-RevC16 7
OVERVIEW

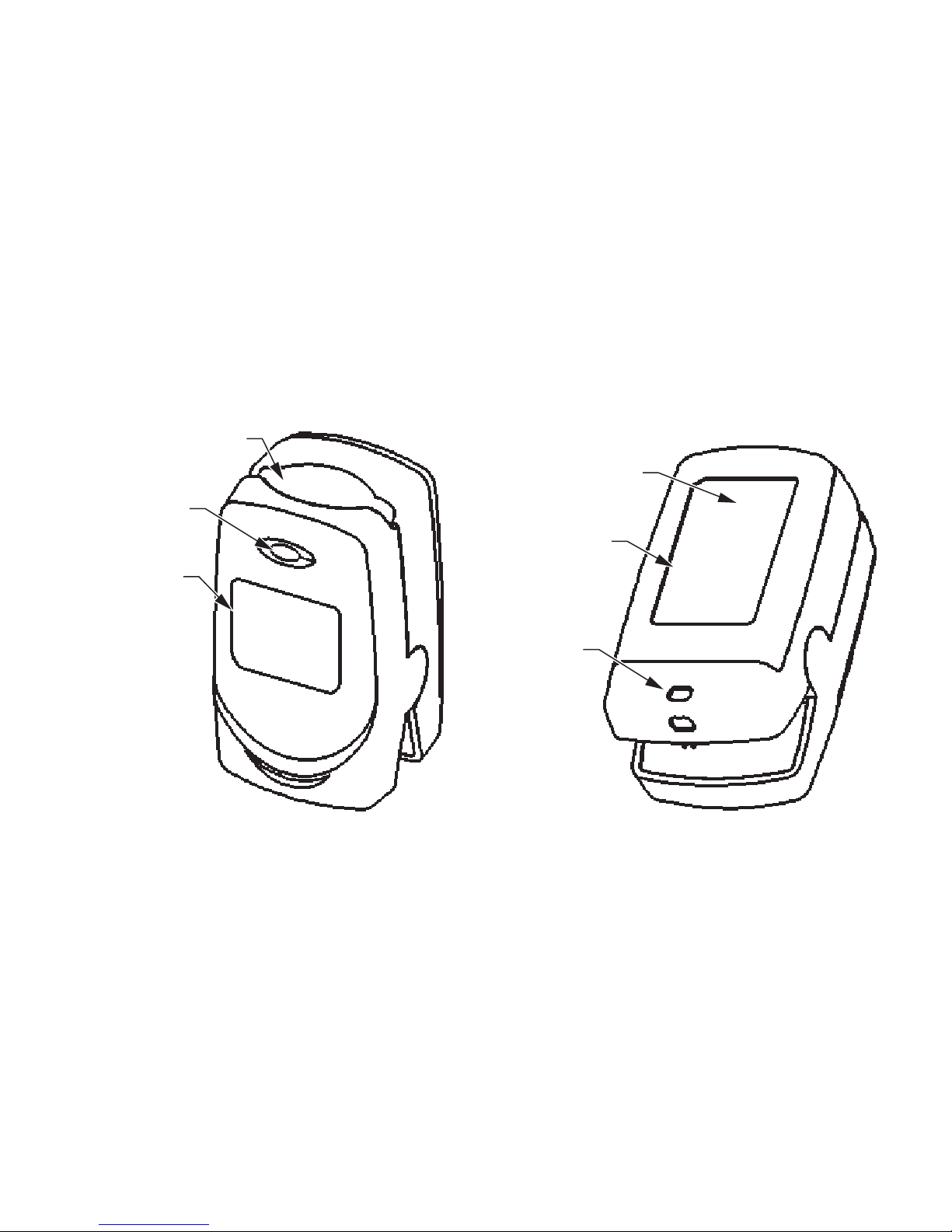

Appearance
display
key
nameplate
battery
cover
lanyard
hole
display
screen
rubber
cushion
Figure 1
front view
Figure 2
rear view
JB02007-INS-LAB-RevC16 8
Features
The John Bunn DigiO2 Finger Pulse Oximeter provides a simple way to spot-check
patients by combining the sensor and monitor into one integrated, compact, easy to
use device with single-button operation. The oximeter can accurately measure pulse
oxygen saturation (SpO2 ) value, pulse rate value, and blood perfusion index (PI) or
pulse strength. When a nger is inserted into the sensor's rubber cushion, the SpO2
value and pulse rate value automatically display on the screen. The oximeter features
a bright-color LED screen with multi-directional displays that enable the user to read
results from any angle. The oximeter features both audible and visible alarms and a low
voltage indicator. The oximeter powers off automatically in eight seconds when not in
use. The oximeter provides approximately 2,000 spot checks with the use of alkaline
batteries.
Name and Model
Name: John Bunn DigiO2 Finger Pulse Oximeter
Model: JB02007
BATTERY INSTALLATION

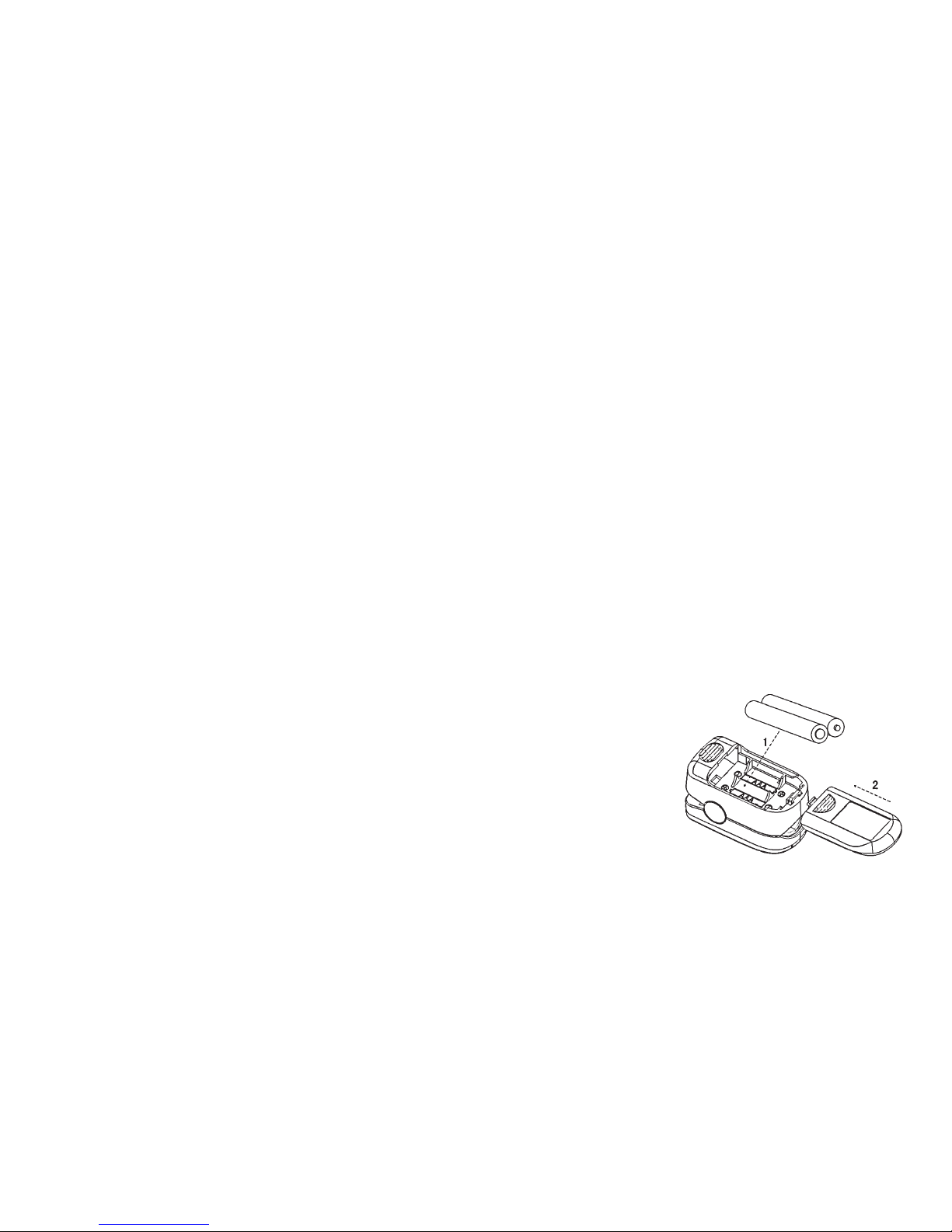

1. Refer to Figure 3; insert two AAA batteries, oriented
as shown, into the battery compartment.
2. Replace the cover.
Info: Ensure the batteries are correctly installed. Incorrect
installation will prevent the device from operating.
Figure 3
battery installation
JB02007-INS-LAB-RevC16 9
OPERATION INSTRUCTIONS
CAUTION: Do not use the sensor if it is damaged.
Info: Ensure the finger is dry before being inserted into the oximeter.
Info: Do not shake the finger; keep finger motionless during oximeter use.
Info: Avoid placing the device on a limb which is wrapped with a cuff for blood pressure
measurement or undergoing venous infusion.
Info: Ensure that no obstruction (contamination, scar tissue, fingernail polish, acrylic
fingernail, etc.) exists at the site where the sensor is placed; such obstruction could affect
the signal received by the sensor and result in an incorrect measurement.
Info: Vigorous exercise and electrosurgical device interference may affect the measuring
accuracy.

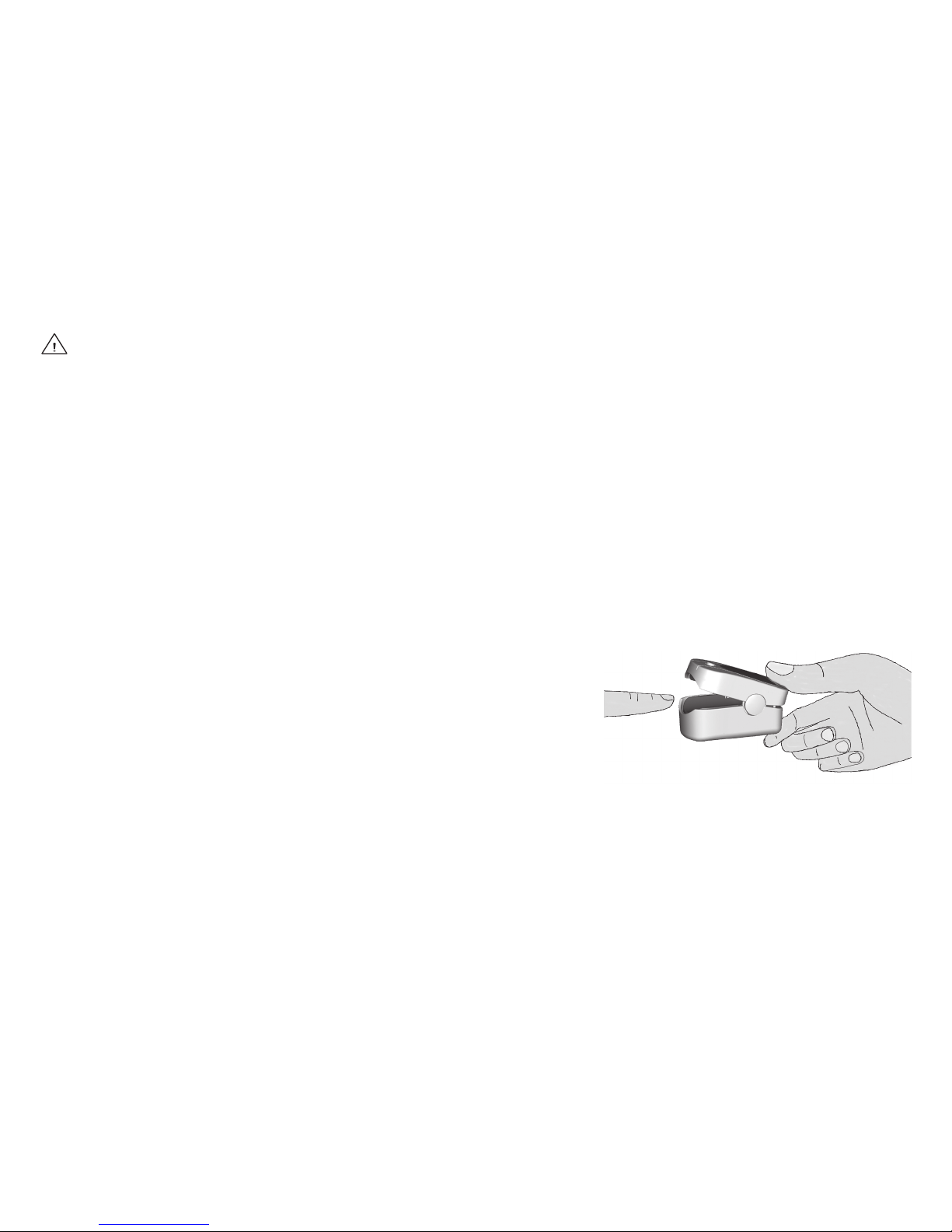

1. Open the clip as shown in Figure 4.
2. Insert nger into the clip's rubber cushion
(ensure that the nger is correctly positioned),
and then gently clip the nger.
3. The device will power on automatically in two
seconds, and start to display the software
version number.
Figure 4
operation
JB02007-INS-LAB-RevC16 10

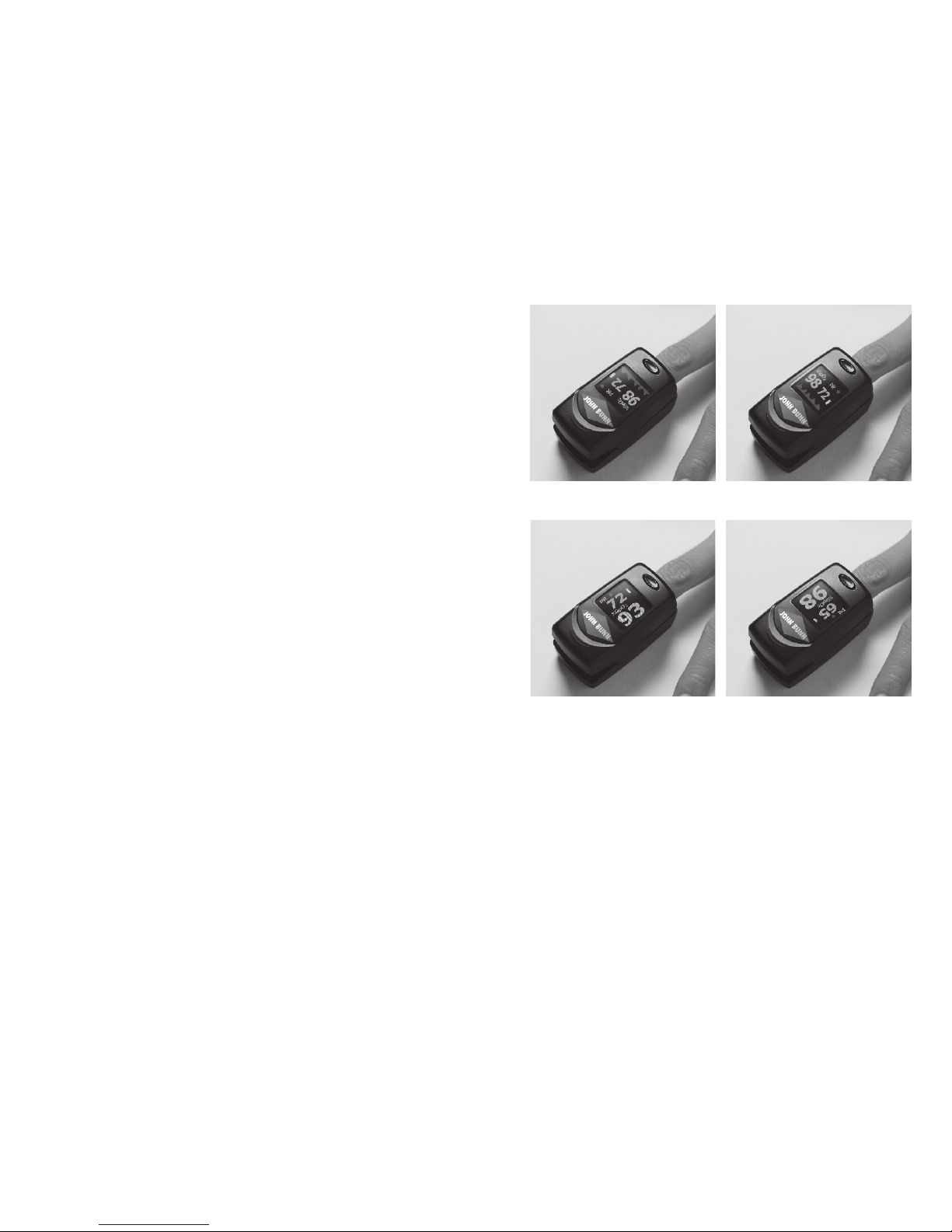

4. The screen will then display the data as
shown in Figure 5. After the waveform
and value become stable, the user can
read the information on the display
screen.
5. When the screen displays as shown
in Figure 5, press the Display Key to
change the display screen's orientation:
a. Press the Display Key once; the
display screen will rotate 180° and
display as shown in Figure 6.
b. Press the Display Key twice; the
screen will now display as shown in
Figure 7.
c. Press the Display Key three times;
the display screen will rotate 180°
and display as shown in Figure 8.
d. Press the Display Key four times;
the display screen will return to the
original screen as shown in Figure 5.
Figure 5
Figure 6
Figure 7
Figure 8
JB02007-INS-LAB-RevC16 11
6. Press the Display Key for approximately
two seconds; the screen will display as
shown in Figure 9. Differences between
Figure 9 and Figure 5 are as follows:
a. In Figure 5, SpO2 and PR (pulse rate)
are being monitored and displayed
on the screen.
b. In Figure 9, SpO2 and PI (blood
perfusion index) are being
monitored and displayed on the
screen.
7. Press the Display Key twice; the screen will now display as shown in Figure 10.
8. The Display screen as shown in Figure 9 or Figure 10 will return to the original
screen as shown in Figure 5 or Figure 6 if without operation in ten seconds.
9. Alarm Indicator: When measuring, if SpO2 value and pulse rate value are outside
the preset alarm limits, the device will alarm automatically and the value which
is outside the limit will ash on the screen; press the Display Key to suspend the
alarm beep (see alarm table below).
Alarm SpO
2
Outside limit alarm: three beeps Preset limit: ≤90%
Pulse Rate Outside limit alarm: two beeps Preset limits: Low ≤50bpm, High ≥120bpm

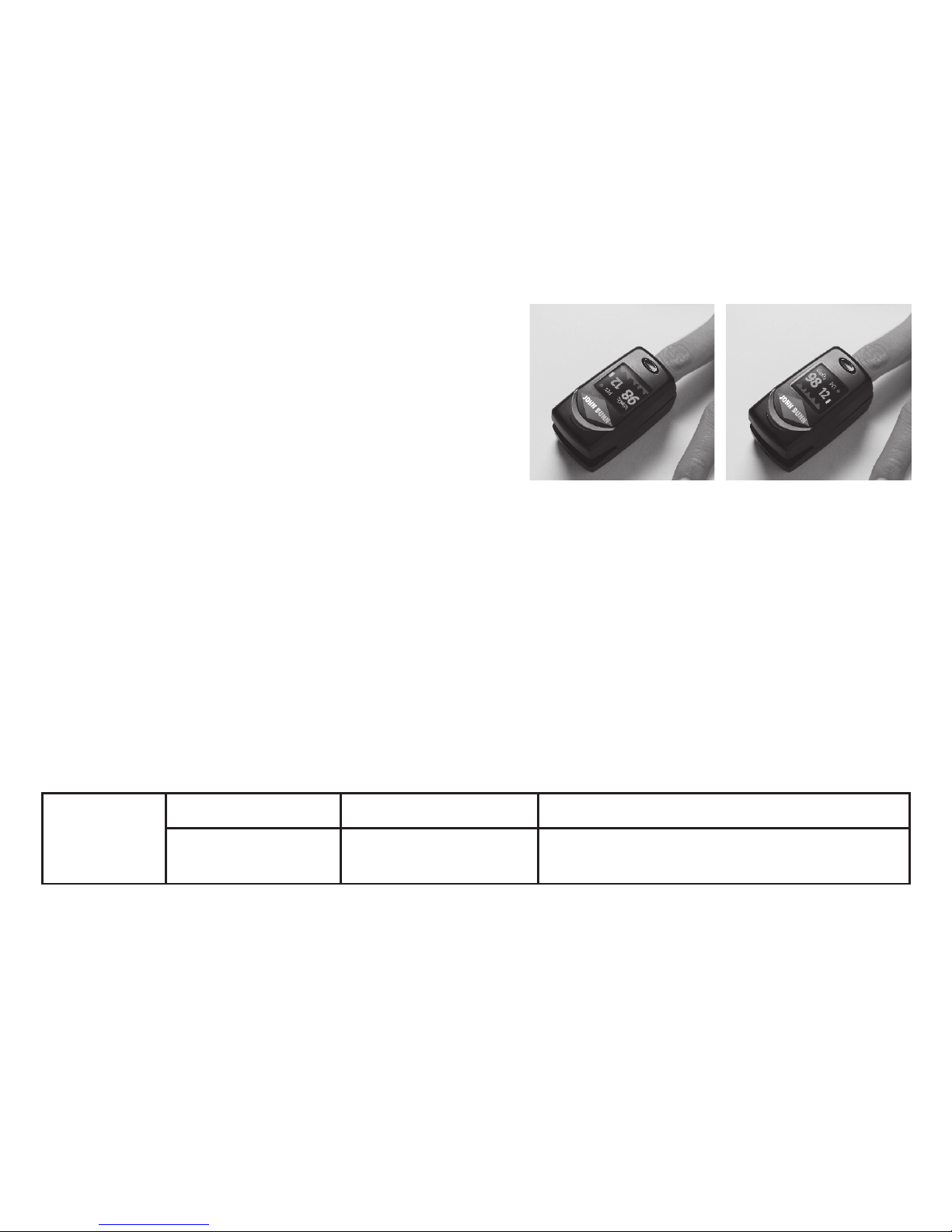

Figure 9
Figure 10
