ITEM #: QTY:
MODEL #:
PROJECT NAME:
071917
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

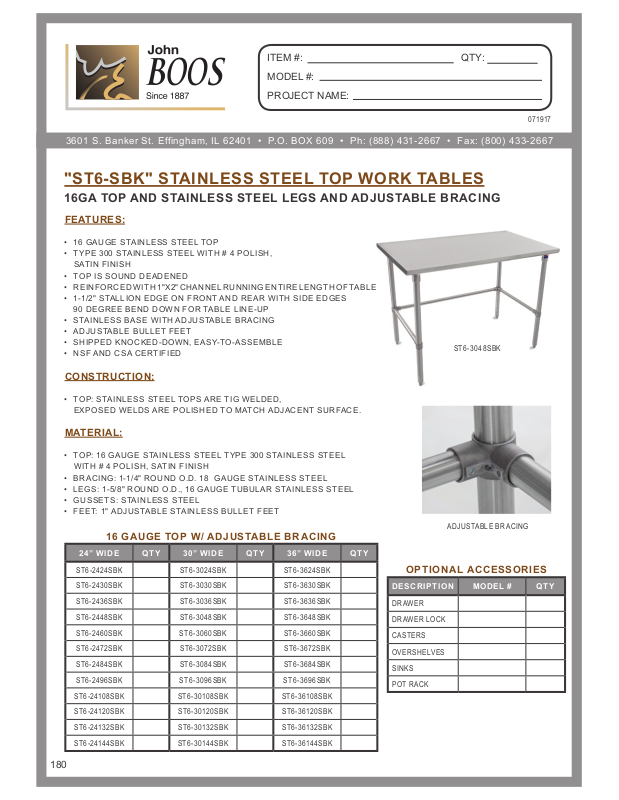

"ST6-SBK" STAINLESS STEEL TOP WORK TABLES
16GA TOP AND STAINLESS STEEL LEGS AND ADJUSTABLE BRACING
FEATURES:
• 16 GAUGE STAINLESS STEEL TOP
• TYPE 300 STAINLESS STEEL WITH # 4 POLISH,
SATIN FINISH
• TOP IS SOUND DEADENED
• REINFORCED WITH 1"X2" CHANNEL RUNNING ENTIRE LENGTH OF TABLE
• 1-1/2" STALLION EDGE ON FRONT AND REAR WITH SIDE EDGES
90 DEGREE BEND DOWN FOR TABLE LINE-UP
• STAINLESS BASE WITH ADJUSTABLE BRACING
• ADJUSTABLE BULLET FEET
• SHIPPED KNOCKED-DOWN, EASY-TO-ASSEMBLE
• NSF AND CSA CERTIFIED
ST6-3048SBK
CONSTRUCTION:
• TOP: STAINLESS STEEL TOPS ARE TIG WELDED,
EXPOSED WELDS ARE POLISHED TO MATCH ADJACENT SURFACE.
MATERIAL:
• TOP: 16 GAUGE STAINLESS STEEL TYPE 300 STAINLESS STEEL
WITH # 4 POLISH, SATIN FINISH
• BRACING: 1-1/4" ROUND O.D. 18 GAUGE STAINLESS STEEL
• LEGS: 1-5/8" ROUND O.D., 16 GAUGE TUBULAR STAINLESS STEEL
• GUSSETS: STAINLESS STEEL
• FEET: 1" ADJUSTABLE STAINLESS BULLET FEET
16 GAUGE TOP W/ ADJUSTABLE BRACING
24” WIDE QTY 30” WIDE QTY 36” WIDE QTY
ST6-2424 SBK ST6-3024SBK ST6- 3624SBK
ST6-2430SBK ST6-3030SBK ST6-3630SBK
ST6-2436SBK ST6-3036SBK ST6-3636SBK
ST6-2448SBK ST6-3048SBK ST6-3648SBK
ST6-2460SBK ST6-3060SBK ST6-3 660SB K
ST6-2472SBK ST6-3072SBK ST6-3672SBK
ST6-2484SBK ST6-3084SBK ST6-3684SBK
ST6-24 96S BK ST6-3096SBK ST6-3696SBK
ST 6 -2410 8S B K ST6-30108SBK ST6-36108SBK
ST 6 -24120 S BK ST6-30120SBK ST6 - 3612 0S BK
ST6-24132SBK ST6-30132SBK ST6-36132SBK
ST 6 -2414 4S B K ST6-30144SBK ST6 -3 614 4S BK
ADJUSTABLE BRACING
OPTIONAL ACCESSORIES
DESCRIPTION MODEL # QTY
DRAWER
DRAWER LOCK
CASTERS
OVERSHELVES
SINKS
POT RACK
180
Page 2
DETAILED SPECIFICATIONS
L
W
L L
CLEA RA NCE=
L- 8 "
35- 3/4"
ADJ
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
W
CLEA RA NCE=
1-1/ 2"
L-9.625" ÷ 2
16 GAUGE TOP W/ ADJUSTABLE BRACING
LENGTH 24" WIDE W T. ( L B S) 30” WIDE W T. ( L B S) 36” WIDE W T. ( L B S)
24" ST6-2424 SBK 28 ST6-3024SBK 35 ST 6-3624SBK 41
30" ST6-2430SBK 41 ST6-3030SBK 46 ST6-3630SBK 51
36" ST6-2436SBK 46 ST6-3036SBK 50 ST6-3636SBK 60
48" ST6-2448SBK 54 ST6-3048SBK 60 ST6-3648SBK 66
60" ST6-2460SBK 63 ST6-3060SBK 70 ST6 -366 0SBK 77
72" ST6-2472SBK 72 ST6-3072SB K 80 ST6-3672SBK 89
84" ST6-2484SBK 85 ST6-3084SBK 94 ST6-3684SBK 104
96" ST6-2496 SBK 97 ST6-3096SBK 108 ST6-3696SBK 119
108" ST 6 -2410 8S B K 106 ST6-30108SBK 118 ST6-36108SBK 130
120" ST 6 -24120 S BK 114 ST6-30120SBK 128 ST6 - 3612 0S BK 141
132" ST6-24132SBK 129 ST6-30132SBK 141 ST6-36132SBK 210
144" ST 6 -2414 4S B K 144 ST6-30144SBK 155 ST6- 36 144 SBK 14 9
MODEL # STRUCTURE
24 = WIDTH OF WOR K SURFACE
6 = 16GA WORK SU RFACE
ST = STAINLESS STEEL TOP
30 = LENGTH OF WORK SURFACE
SB = STAINLESS LEGS & B RACING
K = K.D. W/ ADJ USTABLE BR ACING
ST6 -2430SBK
SOME UNITS SHIP UNASSEMBLED FOR REDUCED SHIPPING COST. ALL DIM ENSION S ARE T YPICAL. TOLERA NCE +/- .500"
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
08 1417
