John Boos SNB02 User Manual

A

S

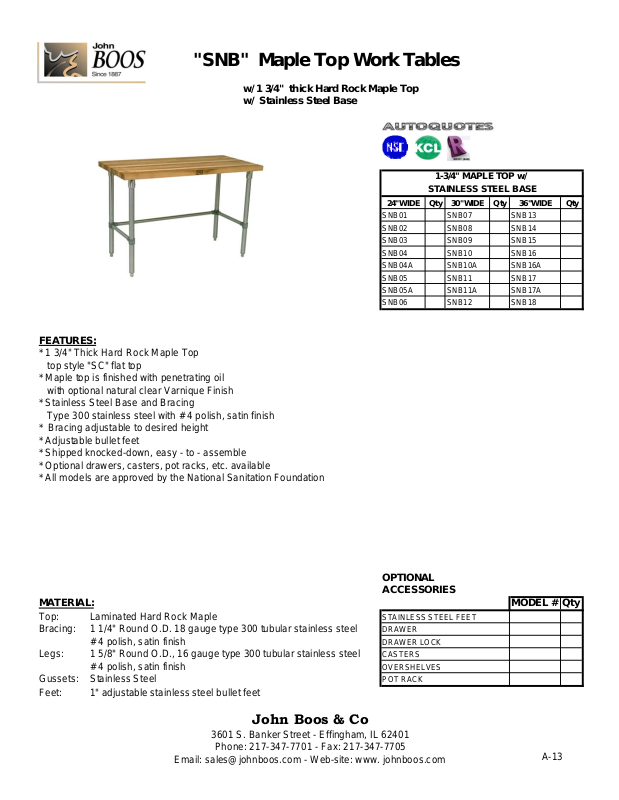

"SNB" Maple Top Work Tables

w/ 1 3/4" thick Hard Rock Maple Top
w/ Stainless Steel Base

FEATURES:

* 1 3/4" Thick Hard Rock Maple Top
top style "SC" flat top
* Maple top is finished with penetrating oil
with optional natural clear Varnique Finish
* Stainless Steel Base and Bracing
Type 300 stainless steel with # 4 polish, satin finish
* Bracing adjustable to desired height
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation

1-3/4" MAPLE TOP w/

STAINLESS STEEL BASE

24"WIDE Qty 30"WIDE Qty 36"WIDE Qty

SNB01 SNB07 SNB13
SNB02 SNB08 SNB14
SNB03 SNB09 SNB15
SNB04 SNB10 SNB16
SNB04A SNB10A SNB16A
SNB05 SNB11 SNB17
SNB05A SNB11A SNB17A
SNB06 SNB12 SNB18

OPTIONAL

CCESSORIE

MATERIAL: MODEL # Qty

Top: Laminated Hard Rock Maple

STAINLESS STEEL FEET

Bracing: 1 1/4" Round O.D. 18 gauge type 300 tubular stainless steel DRAWER

# 4 polish, satin finish DRAWER LOCK

Legs: 1 5/8" Round O.D., 16 gauge type 300 tubular stainless steel CASTERS

# 4 polish, satin finish OVERSHELVES

Gussets: Stainless Steel POT RACK
Feet: 1" adjustable stainless steel bullet feet

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

A-13

DETAILED SPECIFICATIONS

L

W

L W

CLEARANCE =

L-8"

ADJUSTABLE

HEIGHT

1 3/ 4"

All units ship unassembled for reduced shipping cost.
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".

1-3/4" MAPLE TOP & STAINLESS STEEL BASE

L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.

36 SNB01 65 SNB07 77 SNB13 88
48 SNB02 80 SNB08 95 SNB14 110
60 SNB03 95 SNB09 114 SNB15 133
72 SNB04 110 SNB10 133 SNB16 155
84 SNB04A 130 SNB10A 156 SNB16A 182

96 SNB05 150 SNB11 179 SNB17 209
108 SNB05A 165 SNB11A 198 SNB17A 231
120 SNB06 180 SNB12 217 SNB18 253

35 1/ 4"

CLEARANCE =

L - 9.625"

÷

L

2

John Boos & Co

3601 S. Banker Str - Effingham, IL 62401 Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www.johnboos.com

July 2013

John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice

A-14
