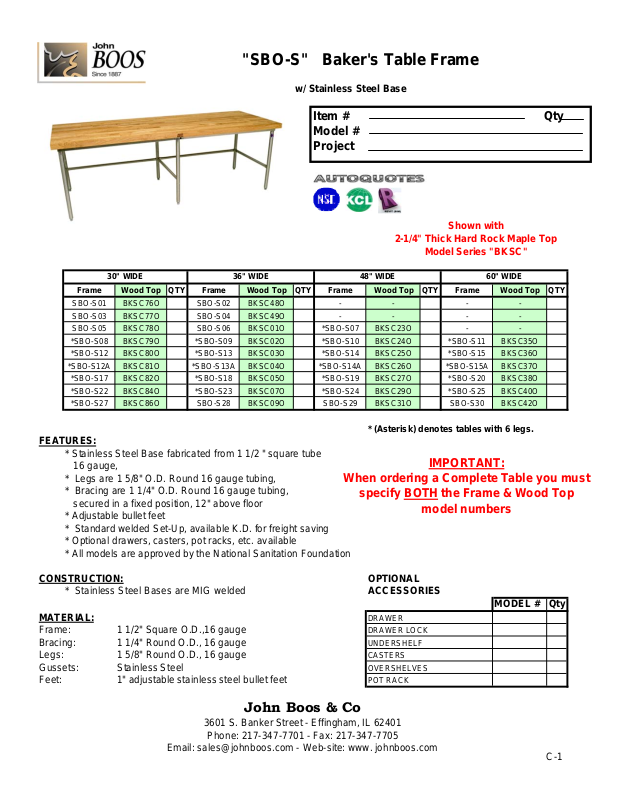

"SBO-S" Baker's Table Frame

w/ Stainless Steel Base

Item # Qty
Model #
Project

Shown with

2-1/4" Thick Hard Rock Maple Top

Model Series "BKSC"

30" WIDE 36" WIDE 48" WIDE

Frame Wood Top

SBO-S01 BKSC76O SBO-S02 BKSC48O - - - ­SBO-S03 BKSC77O SBO-S04 BKSC49O - - - -

SBO-S05 BKSC78O SBO-S06 BKSC01O *SBO-S07 BKSC23O - ­*SBO-S08 BKSC79O *SBO-S09 BKSC02O *SBO-S10 BKSC24O *SBO-S11 BKSC35O
*SBO-S12 BKSC80O *SBO-S13 BKSC03O *SBO-S14 BKSC25O *SBO-S15 BKSC36O

*SBO-S12A BKSC81O *SBO-S13A BKSC04O *SBO-S14A BKSC26O *SBO-S15A BKSC37O

*SBO-S17 BKSC82O *SBO-S18 BKSC05O *SBO-S19 BKSC27O *SBO-S20 BKSC38O
*SBO-S22 BKSC84O *SBO-S23 BKSC07O *SBO-S24 BKSC29O *SBO-S25 BKSC40O
*SBO-S27 BKSC86O SBO-S28 BKSC09O SBO-S29 BKSC31O SBO-S30 BKSC42O

QTY

Frame Wood Top

QTY

Frame Wood Top

* (Asterisk) denotes tables with 6 legs.

QTY

Frame Wood Top

FEATURES:

* Stainless Steel Base fabricated from 1 1/2 " square tube
16 gauge,
* Legs are 1 5/8" O.D. Round 16 gauge tubing,
* Bracing are 1 1/4" O.D. Round 16 gauge tubing,
secured in a fixed position, 12" above floor
* Adjustable bullet feet

When ordering a Complete Table you must

specify BOTH the Frame & Wood Top

IMPORTANT:

model numbers

* Standard welded Set-Up, available K.D. for freight saving
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation

60" WIDE

QTY

CONSTRUCTION:

* Stainless Steel Bases are MIG welded

OPTIONAL

CCESSORIE

MODEL # Qty

MATERIAL:

DRAWER

Frame: 1 1/2" Square O.D.,16 gauge DRAWER LOCK
Bracing: 1 1/4" Round O.D., 16 gauge UNDERSHELF
Legs: 1 5/8" Round O.D., 16 gauge CASTERS
Gussets: Stainless Steel OVERSHELVES
Feet: 1" adjustable stainless steel bullet fee

POT RACK

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

C-1

A

r

DETAILED SPECIFICATIONS

L

W

L

35 3/4"

12"

ll units ship unassembled for
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".

L 30" WIDE WT. 36" WIDE WT. 48" WIDE WT. 60" WIDE WT.

48 SBO-S01 129 SBO-S02 150 - - ­60 SBO-S03 155 SBO-S04 180 ---­72 SBO-S05 231 SBO-S06 270 *SBO-S07 347 - ­84 *SBO-S08 213 *SBO-S09 248 *SBO-S10 319 *SBO-S11 390

96 *SBO-S12 239 *SBO-S13 279 *SBO-S14 359 *SBO-S15 440
108 *SBO-S12A 256 *SBO-S13A 281 *SBO-S14A 302 *SBO-S15A 322
120 *SBO-S17 297 *SB0-S18 344 *SBO-S19 442 *SBO-S20 544
144 *SBO-S22 354 *SBO-S23 413 *SBO-S24 531 *SBO-S25 650
168 *SBO-S27 300 *SBO-S28 475 *SBO-S29 612 *SBO-S30 749

2 1/4"

W

35 3/4"

1 1/4"

STAINLESS STEEL BASE

L

Bottom Brace Location

L 30" WIDE BRACE 36" WIDE BRACE 48" WIDE BRACE 60" WIDE BRACE

48 SBO-S01 Rear SBO-S02 Rear - - -

60 SBO-S03 Rear SBO-S04 Rear ----

72 SBO-S05 Rear SBO-S06 Rear *SBO-S07 Centered - -

84 *SBO-S08 Rear *SBO-S09 Rear *SBO-S10 Centered *SBO-S11 Centered

96 *SBO-S12 Rear *SBO-S13 Rear *SBO-S14 Centered *SBO-S15 Centered
108 *SBO-S12A Rear *SBO-S13A Rear *SBO-S14A Centered *SBO-S15A Centered
120 *SBO-S17 Rear *SB0-S18 Rear *SBO-S19 Centered *SBO-S20 Centered
144 *SBO-S22 Rear *SBO-S23 Rear *SBO-S24 Centered *SBO-S25 Centered
168 SBO-S27 Reat *SBO-S28 Rear *SBO-S29 Centered *SBO-S30 Centered
