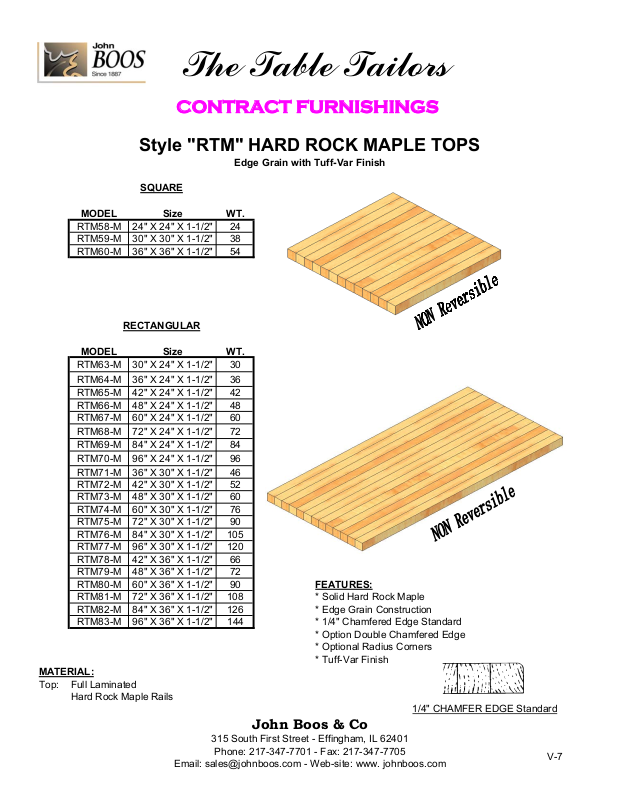

John Boos RTM58-M User Manual

MODEL Size WT.

RTM58-M 24" X 24" X 1-1/2" 24
RTM59-M 30" X 30" X 1-1/2" 38
RTM60-M 36" X 36" X 1-1/2" 54

RECTANGULAR

MODEL Size WT.

RTM63-M 30" X 24" X 1-1/2" 30
RTM64-M 36" X 24" X 1-1/2" 36

RTM65-M 42" X 24" X 1-1/2" 42
RTM66-M 48" X 24" X 1-1/2" 48
RTM67-M 60" X 24" X 1-1/2" 60

RTM68-M 72" X 24" X 1-1/2" 72
RTM69-M 84" X 24" X 1-1/2" 84
RTM70-M 96" X 24" X 1-1/2" 96
RTM71-M 36" X 30" X 1-1/2" 46

RTM72-M 42" X 30" X 1-1/2" 52
RTM73-M 48" X 30" X 1-1/2" 60
RTM74-M 60" X 30" X 1-1/2" 76
RTM75-M 72" X 30" X 1-1/2" 90
RTM76-M 84" X 30" X 1-1/2" 105
RTM77-M 96" X 30" X 1-1/2" 120
RTM78-M 42" X 36" X 1-1/2" 66
RTM79-M 48" X 36" X 1-1/2" 72
RTM80-M 60" X 36" X 1-1/2" 90
RTM81-M 72" X 36" X 1-1/2" 108
RTM82-M 84" X 36" X 1-1/2" 126
RTM83-M 96" X 36" X 1-1/2" 144 * 1/4" Chamfered Edge Standard

MATERIAL:

Top: Full Laminated

Hard Rock Maple Rails

The Table Tailors

CONTRACT FURNISHINGS

Style "RTM" HARD ROCK MAPLE TOPS

Edge Grain with Tuff-Var Finish

SQUARE

FEATURES:

* Solid Hard Rock Maple
* Edge Grain Construction

* Option Double Chamfered Edge
* Optional Radius Corners
* Tuff-Var Finish

1/4" CHAMFER EDGE Standard

John Boos & Co

315 South First Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

V-7
