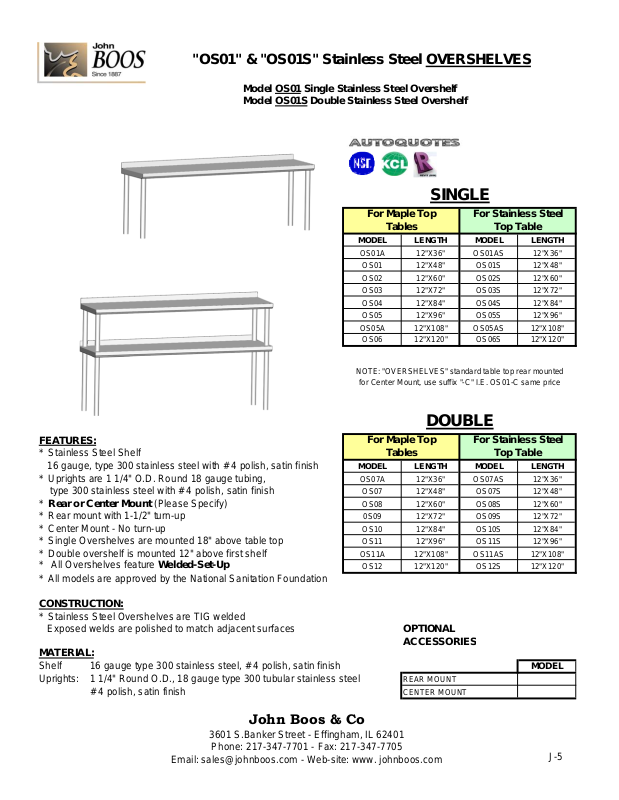

"OS01" & "OS01S" Stainless Steel OVERSHELVES

Model OS01
Model OS01S

Single Stainless Steel Overshelf

Double Stainless Steel Overshelf

SINGLE

For Maple Top

Tables

MODEL LENGTH MODEL LENGTH

OS01A 12"X36" OS01AS 12"X36"

OS01 12"X48" OS01S 12"X48"
OS02 12"X60" OS02S 12"X60"
OS03 12"X72" OS03S 12"X72"
OS04 12"X84" OS04S 12"X84"
OS05 12"X96" OS05S 12"X96"

OS05A 12"X108" OS05AS 12"X108"

OS06 12"X120" OS06S 12"X120"

NOTE: "OVERSHELVES" standard table top rear mounted

for Center Mount, use suffix "-C" I.E. OS01-C same price

For Stainless Steel

Top Table

DOUBLE

FEATURES:

* Stainless Steel Shel

For Maple Top

Tables

16 gauge, type 300 stainless steel with # 4 polish, satin finish MODEL LENGTH MODEL LENGTH
* Uprights are 1 1/4" O.D. Round 18 gauge tubing, OS07A 12"X36" OS07AS 12"X36"
type 300 stainless steel with # 4 polish, satin finish OS07 12"X48" OS07S 12"X48"
* Rear or Center Mount (Please Specify)

OS08 12"X60" OS08S 12"X60"

* Rear mount with 1-1/2" turn-up 0S09 12"X72" OS09S 12"X72"
* Center Mount - No turn-up OS10 12"X84" OS10S 12"X84"
* Single Overshelves are mounted 18" above table top OS11 12"X96" OS11S 12"X96"
* Double overshelf is mounted 12" above first shelf OS11A 12"X108" OS11AS 12"X108"

* All Overshelves feature Welded-Set-Up

OS12 12"X120" OS12S 12"X120"

* All models are approved by the National Sanitation Foundation

CONSTRUCTION:

* Stainless Steel Overshelves are TIG welded
Exposed welds are polished to match adjacent surfaces OPTIONAL

CCESSORIE

MATERIAL:

Shel

16 gauge type 300 stainless steel, # 4 polish, satin finis

Uprights: 1 1/4" Round O.D., 18 gauge type 300 tubular stainless steel REAR MOUNT

# 4 polish, satin finish CENTER MOUNT

For Stainless Steel

Top Table

MODEL

John Boos & Co

3601 S.Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

J-5

DETAILED SPECIFICATIONS

1 1/4"

RD S / S

TUBING

1 1/4 "

RD S/S

TUBING

L W

1 1/2"

18"

L W

1 1/2"

18"

1 1/2" Turned Up

Rear Edge

1 1/2" Turned Up

Rear Edge

Shipped Welded set-Up
Units 7 ft. and longer are furnished with extra support bracket
All dimensions are typical.
Tolerance +/- .500".

SINGLE DOUBLE

For Maple Top

Tables

MODEL LENGTH MODEL LENGTH WT. MODEL LENGTH MODEL LENGTH WT.

OS01A 12"X36" OS01AS 12"X36" 14 OS07A 12"X36" OS07AS 12"X36" 29

OS01 12"X48" OS01S 12"X48" 16 OS07 12"X48" OS07S 12"X48" 31
OS02 12"X60" OS02S 12"X60" 19 OS08 12"X60" OS08S 12"X60" 37
OS03 12"X72" OS03S 12"X72" 22 0S09 12"X72" OS09S 12"X72" 43
OS04 12"X84" OS04S 12"X84" 25 OS10 12"X84" OS10S 12"X84" 49
OS05 12"X96" OS05S 12"X96" 28 OS11 12"X96" OS11S 12"X96" 55

OS05A 12"X108" OS05AS 12"X108" 31 OS11A 12"X108" OS11AS 12"X108" 61

OS06 12"X120" OS06S 12"X120" 34 OS12 12"X120" OS12S 12"X120" 67
