A

S

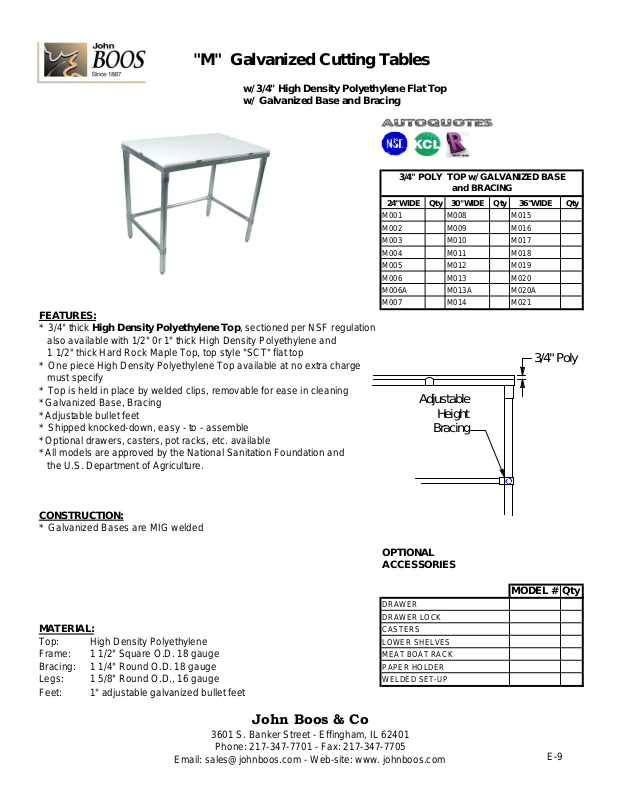

"M" Galvanized Cutting Tables

w/ 3/4" High Density Polyethylene Flat Top
w/ Galvanized Base and Bracing

FEATURES:

* 3/4" thick High Density Polyethylene Top, sectioned per NSF regulation
also available with 1/2" 0r 1" thick High Density Polyethylene and
1 1/2" thick Hard Rock Maple Top, top style "SCT" flat top
* One piece High Density Polyethylene Top available at no extra charge
must specify
* Top is held in place by welded clips, removable for ease in cleaning
* Galvanized Base, Bracing
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation and
the U.S. Department of Agriculture.

3/4" POLY TOP w/ GALVANIZED BASE

and BRACING

24"WIDE Qty 30"WIDE Qty 36"WIDE Qty

M001 M008 M015
M002 M009 M016
M003 M010 M017
M004 M011 M018
M005 M012 M019
M006 M013 M020
M006A M013A M020A
M007 M014 M021

3/4" Poly

Adjustable

Height

Bracing

CONSTRUCTION:

* Galvanized Bases are MIG welded

OPTIONAL

CCESSORIE

MODEL # Qty

DRAWER
DRAWER LOCK

MATERIAL: CASTERS

Top: High Density Polyethylene LOWER SHELVES
Frame: 1 1/2" Square O.D. 18 gauge MEAT BOAT RACK
Bracing: 1 1/4" Round O.D. 18 gauge PAPER HOLDER
Legs: 1 5/8" Round O.D., 16 gauge WELDED SET-UP
Feet: 1" adjustable galvanized bullet feet

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

E-9

DETAILED SPECIFICATIONS

L

W

L

CLEARANCE

L - 3.5"

35 3/4"

Shipped Standard Welded Set-Up
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".

3/4" HIGH DENSITY POLYETHYLENE TOP & BRACING

L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.

36 M001 55 M008 62 M015 69
48 M002 64 M009 73 M016 83
60 M003 78 M010 90 M017 102
72 M004 91 M011 102 M018 118
84 M005 111 M012 128 M019 145

96 M006 121 M013 134 M020 158
108 M006A 131 M013A 148 M020 171
120 M007 140 M014 162 M021 184

12"

W

L

CLEARANCE

L - 5.125"

÷

2

John Boos & Co

3601 S. Banker Str - Effingham, IL 62401 Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www.johnboos.com

July 2013

John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice
