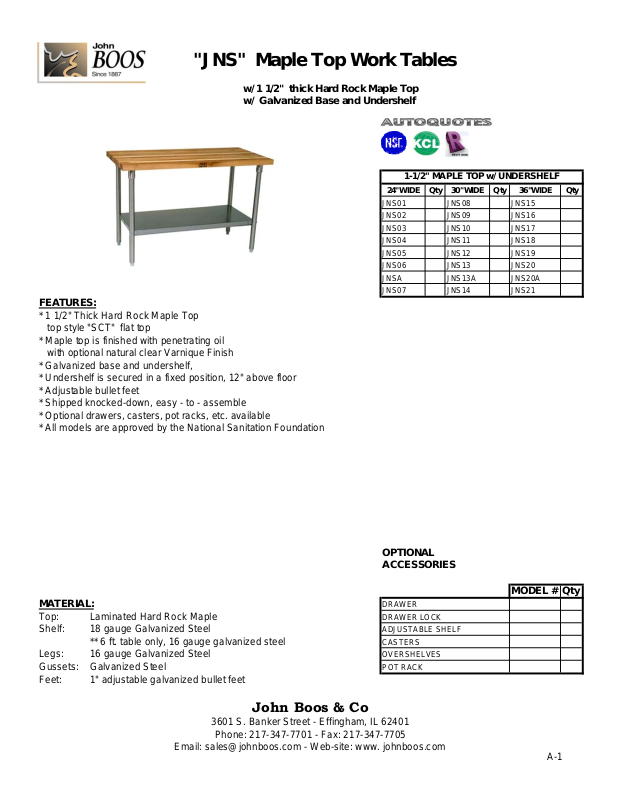

"JNS" Maple Top Work Tables

w/ 1 1/2" thick Hard Rock Maple Top
w/ Galvanized Base and Undershelf

FEATURES:

* 1 1/2" Thick Hard Rock Maple Top
top style "SCT" flat top
* Maple top is finished with penetrating oil
with optional natural clear Varnique Finish
* Galvanized base and undershelf,
* Undershelf is secured in a fixed position, 12" above floor
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation

1-1/2" MAPLE TOP w/ UNDERSHELF

24"WIDE Qty 30"WIDE Qty 36"WIDE Qty

JNS01 JNS08 JNS15
JNS02 JNS09 JNS16
JNS03 JNS10 JNS17
JNS04 JNS11 JNS18
JNS05 JNS12 JNS19
JNS06 JNS13 JNS20
JNSA JNS13A JNS20A
JNS07 JNS14 JNS21

OPTIONAL

CCESSORIE

MODEL # Qty

MATERIAL:

DRAWER

Top: Laminated Hard Rock Maple DRAWER LOCK
Shelf: 18 gauge Galvanized Steel ADJUSTABLE SHELF

** 6 ft. table only, 16 gauge galvanized steel CASTERS
Legs: 16 gauge Galvanized Steel OVERSHELVES
Gussets: Galvanized Steel POT RACK
Feet: 1" adjustable galvanized bullet feet

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

A-1

DETAILED SPECIFICATIONS

L

W

L W

1 1/2"

CLEARANCE =

L-8"

12"

35"

CLEARANCE =

L - 9.625"

÷

L

2"

All units ship unassembled for reduced shipping cost. Finished size of undershelf.
Units 7 ft. and larger are furnished with six legs. Shelf length = length minus 4.875"
All dimensions are typical. Shelf width = width minus 4.25"
Tolerance +/- .500".

1-1/2" MAPLE TOP & UNDERSHELF

L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.

36 JNS01 72 JNS08 86 JNS15 100
48 JNS02 90 JNS09 109 JNS16 127
60 JNS03 109 JNS10 132 JNS17 155
72 JNS04 133 JNS11 161 JNS18 190
84 JNS05 146 JNS12 178 JNS19 214

96 JNS06 164 JNS13 201 JNS20 239
108 JNS06A 187 JNS13A 229 JNS20A 271
120 JNS07 209 JNS14 256 JNS21 303

John Boos & Co

3601 S. Banker Str - Effingham, IL 62401 Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www.johnboos.com

July 2013

John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice
