ITEM #: QTY:
MODEL #:
PROJECT NAME:
051018
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

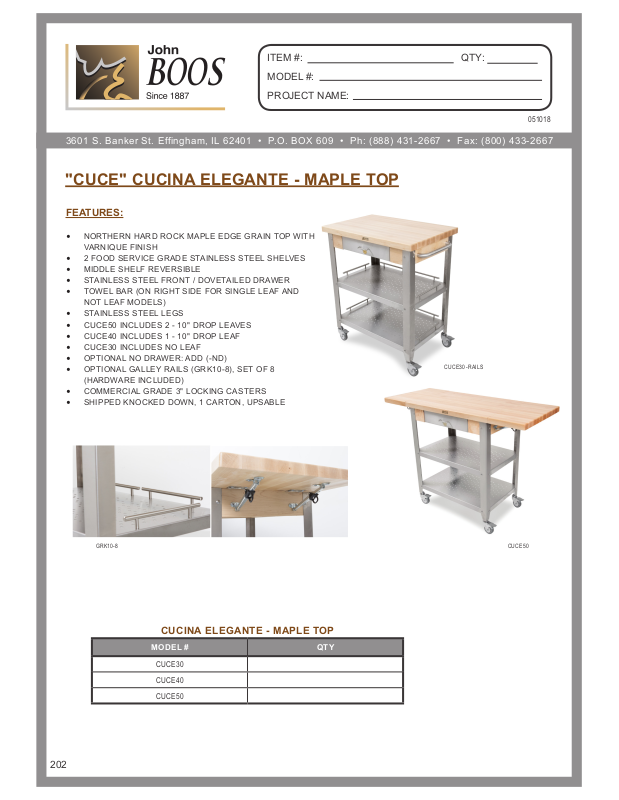

"CUCE" CUCINA ELEGANTE - MAPLE TOP
FEATURES:
• NORTHERN HARD ROCK MAPLE EDGE GRAIN TOP WITH
VARNIQUE FINISH
• 2 FOOD SERVICE GRADE STAINLESS STEEL SHELVES
• MIDDLE SHELF REVERSIBLE
• STAINLESS STEEL FRONT / DOVETAILED DRAWER
• TOWEL BAR (ON RIGHT SIDE FOR SINGLE LEAF AND
NOT LEAF MODELS)
• STAINLESS STEEL LEGS
• CUCE50 INCLUDES 2 - 10" DROP LEAVES
• CUCE40 INCLUDES 1 - 10" DROP LEAF
• CUCE30 INCLUDES NO LEAF
• OPTIONAL NO DRAWER: ADD (-ND)
• OPTIONAL GALLEY RAILS (GRK10-8), SET OF 8
(HARDWARE INCLUDED)
• COMMERCIAL GRADE 3" LOCKING CASTERS
• SHIPPED KNOCKED DOWN, 1 CARTON, UPSABLE
CUCE30-RAILS
202
GRK10-8
CUCE50
CUCINA ELEGANTE - MAPLE TOP
MODEL # QTY
CUCE30
CUCE40
CUCE50
Page 2
DETAILED SPECIFICATIONS
CUCE30
CUCE50
CUCINA ELEGANTE - MAPLE TOP
MODEL #
CUCE30 30" X 20" X 1-3/4" NO LEAVES 35" 83
CUCE40 40" X 20" X 1-3/4" W/ 1 - 10" DROP LE AF 35" 91
CUCE50 50" X 20" X 1- 3/4" W/ 2 - 10" DROPLE AVES 35" 100
(FULL EXTENSION)
SIZE
DESCRIPTION HEIGHT WEIGHT (LBS)
SOME UNITS SHIP UNASSEM BLED FOR REDUCED SHI PPING COST. ALL DIMENSIONS ARE T YPICA L. TOLER ANCE +/- .500 "
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
032018
