ITEM #: QTY:
MODEL #:
PROJECT NAME:
050218
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

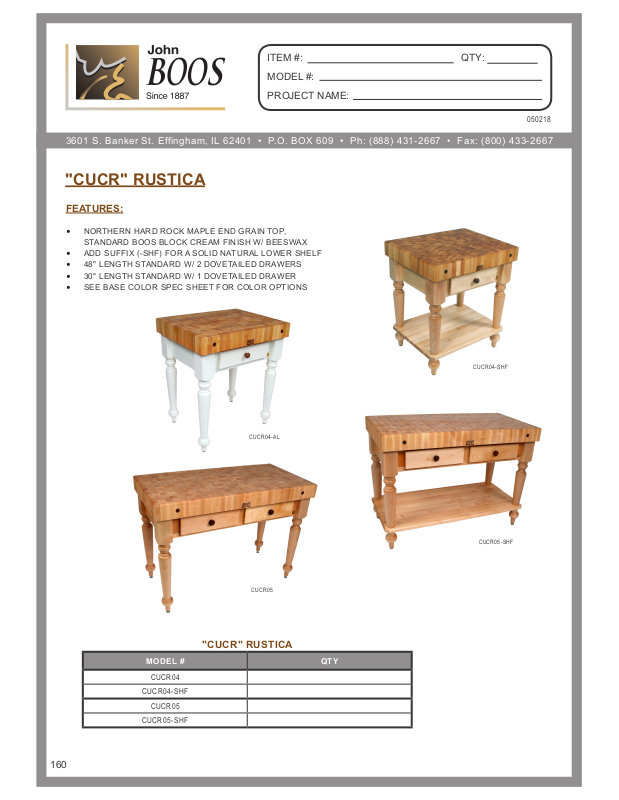

"CUCR" RUSTICA
FEATURES:
• NORTHERN HARD ROCK MAPLE END GRAIN TOP,
STANDARD BOOS BLOCK CREAM FINISH W/ BEESWAX
• ADD SUFFIX (-SHF) FOR A SOLID NATURAL LOWER SHELF
• 48" LENGTH STANDARD W/ 2 DOVETAILED DRAWERS
• 30" LENGTH STANDARD W/ 1 DOVETAILED DRAWER
• SEE BASE COLOR SPEC SHEET FOR COLOR OPTIONS
CUCR04-AL
CUCR05
"CUCR" RUSTICA
MODEL # QTY
CUCR04
CUCR04-SHF
CUCR05
CUCR05-SHF
CUCR04-SHF
CUCR05-SHF
160
Page 2
DETAILED SPECIFICATIONS
CUCR04
CUCR05
"CUCR" RUSTICA
MODEL #
CUCR04 30" X 24" X 4" 34 -1/ 2 " 132
CUCR04-SHF 30" X 24" X 4" 34 -1/ 2 " 155
CUCR05 48" X 24" X 4" 34 -1/ 2 " 171
CUCR05-SHF 48" X 24" X 4" 34 -1/ 2 " 201
SIZE HEIGHT
WEIGHT (LBS)
SOME UNITS SHIP UNASSEM BLED FOR RED UCED SHI PPING COST. ALL DIMENSIO NS ARE T YPICA L. TOLER ANCE +/- . 500"
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
022 318
161
