ITEM #: QTY:
MODEL #:
PROJECT NAME:
051018
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

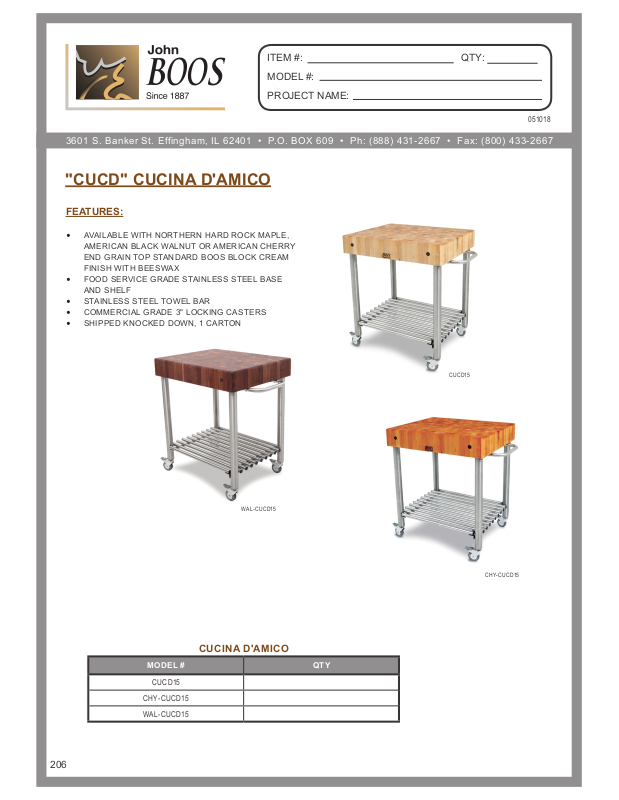

"CUCD" CUCINA D'AMICO
FEATURES:
• AVAILABLE WITH NORTHERN HARD ROCK MAPLE,
AMERICAN BLACK WALNUT OR AMERICAN CHERRY
END GRAIN TOP STANDARD BOOS BLOCK CREAM
FINISH WITH BEESWAX
• FOOD SERVICE GRADE STAINLESS STEEL BASE
AND SHELF
• STAINLESS STEEL TOWEL BAR
• COMMERCIAL GRADE 3" LOCKING CASTERS
• SHIPPED KNOCKED DOWN, 1 CARTON
WA L-CU CD1 5
CUCINA D'AMICO
MODEL # QTY
CUC D15
CHY-CUCD15
WA L-C UCD 15
CUCD15
CHY-CUCD15
206
Page 2
DETAILED SPECIFICATIONS
CUCINA D'AMICO
MODEL # SIZE TOP HEIGHT WEIGHT (LBS)
CUC D15 30" X 24" X 5" MAPLE 35 -1/ 2" 135
CHY-CUCD15 30" X 24" X 5" CHERRY 35 -1/ 2" 114
WA L-C UCD 15 30" X 24" X 5" WALNUT 35-1/2 " 129
SOME UNITS SHIP UN ASSEMBLED FOR REDUCED SHIPPING COST. ALL DIMENSIONS ARE T YPICA L. TOLER ANCE +/- .5 00"
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
03 0118
