John Boos JB1200 Specifications

ITEM #: QTY:

MODEL #:

PROJECT NAME:

050318

3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: [phone] • Fax: [phone]

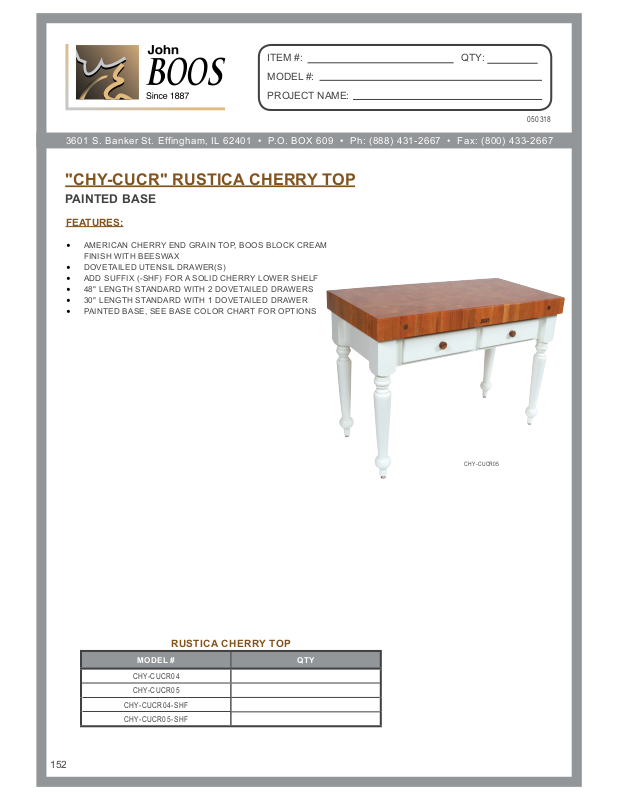

"CHY-CUCR" RUSTICA CHERRY TOP

PAINTED BASE

FEATURES:

• AMERICAN CHERRY END GRAIN TOP, BOOS BLOCK CREAM

FINISH WITH BEESWAX

• DOVETAILED UTENSIL DRAWER(S)

• ADD SUFFIX (-SHF) FOR A SOLID CHERRY LOWER SHELF

• 48" LENGTH STANDARD WITH 2 DOVETAILED DRAWERS

• 30" LENGTH STANDARD WITH 1 DOVETAILED DRAWER

• PAINTED BASE, SEE BASE COLOR CHART FOR OPTIONS

RUSTICA CHERRY TOP

MODEL # QTY

CHY-CUCR04

CHY-CUCR05

CHY-CUCR04-SHF

CHY-CUCR05-SHF

CHY-CUCR05

152

DETAILED SPECIFICATIONS

CUCR04-SHF

CUCR05-SHF

RUSTICA CHERRY TOP

MODEL # SIZE HEIGHT WEIGHT (LBS)

CHY-CUCR04 30" X 24" X 4" 34 -1/ 2 " 112

CHY-CUCR05 48" X 24" X 4" 34 -1/ 2 " 139

CHY-CUCR04-SHF 30" X 24" X 4" 3 4 -1/ 2" 131

CHY-CUCR05-SHF 48" X 24" X 4" 3 4 -1/ 2" 163

SOME UNITS SHIP UNASSEM BLED FOR RED UCED SHI PPING COST. ALL DIMENSIO NS ARE T YPICA L. TOLER ANCE +/- . 500"

John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.

3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]

www.johnboos.com

061318

153
