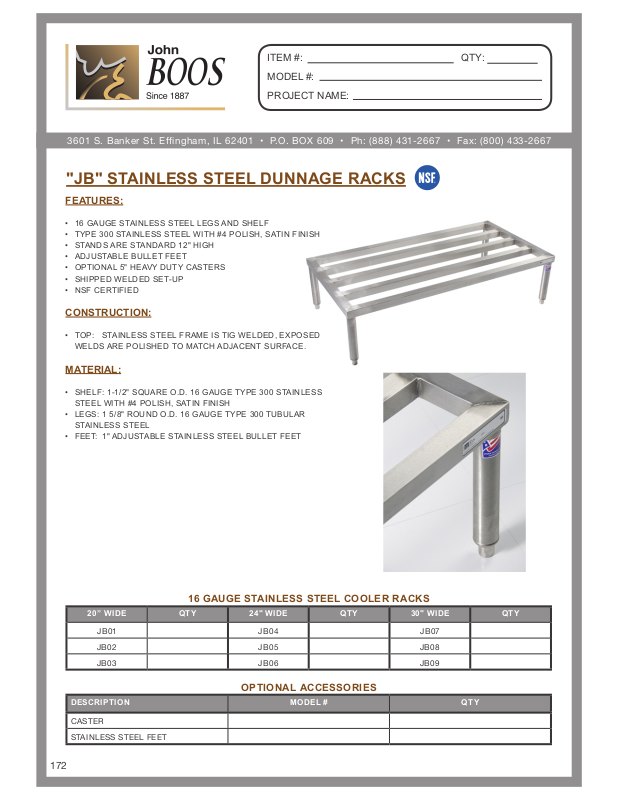

"JB" STAINLESS STEEL DUNNAGE RACKS

FEATURES:

• 16 GAUGE STAINLESS STEEL LEGS AND SHELF

• TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH

• STANDS ARE STANDARD 12" HIGH

• ADJUSTABLE BULLET FEET

• OPTIONAL 5" HEAVY DUTY CASTERS

• SHIPPED WELDED SET-UP

• NSF CERTIFIED

CONSTRUCTION:

• TOP: STAINLESS STEEL FRAME IS TIG WELDED, EXPOSED
WELDS ARE POLISHED TO MATCH ADJACENT SURFACE.

MATERIAL:

• SHELF: 1-1/2" SQUARE O.D. 16 GAUGE TYPE 300 STAINLESS

STEEL WITH #4 POLISH, SATIN FINISH

• LEGS: 1 5/8" ROUND O.D. 16 GAUGE TYPE 300 TUBULAR

STAINLESS STEEL

• FEET: 1" ADJUSTABLE STAINLESS STEEL BULLET FEET

16 GAUGE STAINLESS STEEL COOLER RACKS

20” WIDE QTY 24" WIDE QTY 30" WIDE QTY

JB01 JB04 JB07

JB02 JB05 JB08

JB03 JB06 JB09

OPTIONAL ACCESSORIES

DESCRIPTION MODEL # QTY

CASTER

STAINLESS STEEL FEET

172

DETAILED SPECIFICATIONS

DETAILED SPECIFICATIONS

DETAILED SPECIFICATIONS

• SHIPPED WELDED SET-UP

• ALL DIMENSIONS ARE TYPICAL.

• TOLERANCE +/- .500”.

16 GAUGE STAINLESS STEEL COOLER RACKS

LENGTH 20” WIDE WT. ( LBS ) 24" WIDE WT. ( LBS 30" WIDE WT. (LB S)

34"

47"

59"

JB01 19 JB04 20 JB07 23

JB02 23 JB05 24 JB08 29

JB03 30 JB06 31 JB09 36

SOME UNITS SHIP UNASSEMBLED FOR REDUCED SHIPPING COST. ALL DIMENSIONS ARE TYPICAL. TOLERANCE +/- .500"
