Page 1
ITEM #: QTY:
MODEL #:
PROJECT NAME:
121817
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

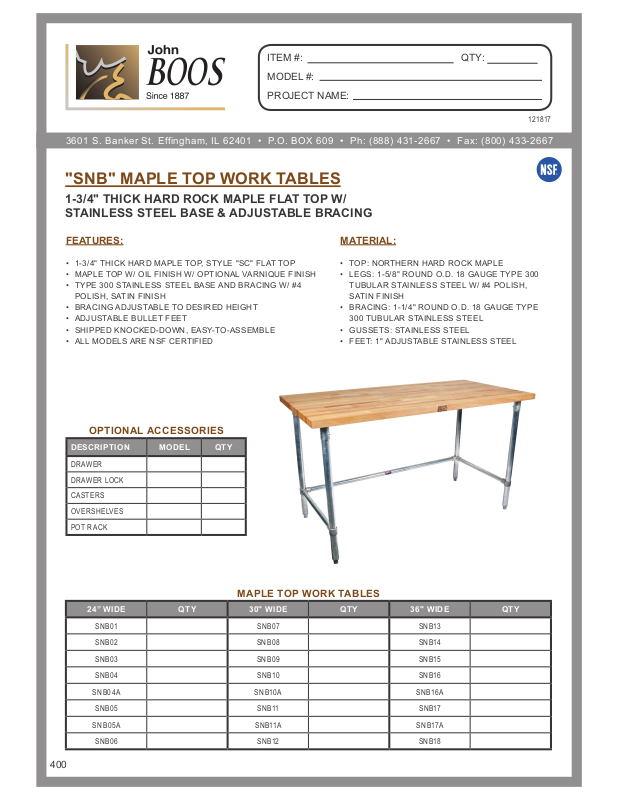

"SNB" MAPLE TOP WORK TABLES
1-3/4" THICK HARD ROCK MAPLE FLAT TOP W/
STAINLESS STEEL BASE & ADJUSTABLE BRACING
FEATURES:
• 1-3/4" THICK HARD MAPLE TOP, STYLE "SC" FLAT TOP
• MAPLE TOP W/ OIL FINISH W/ OPTIONAL VARNIQUE FINISH
• TYPE 300 STAINLESS STEEL BASE AND BRACING W/ #4
POLISH, SATIN FINISH
• BRACING ADJUSTABLE TO DESIRED HEIGHT
• ADJUSTABLE BULLET FEET
• SHIPPED KNOCKED-DOWN, EASY-TO-ASSEMBLE
• ALL MODELS ARE NSF CERTIFIED
OPTIONAL ACCESSORIES
DESCRIPTION MODEL QTY
DRAWER
DRAWER LOCK
CASTERS
OVERSHELVES
POT RACK
MATERIAL:
• TOP: NORTHERN HARD ROCK MAPLE
• LEGS: 1-5/8" ROUND O.D. 18 GAUGE TYPE 300
TUBULAR STAINLESS STEEL W/ #4 POLISH,
SATIN FINISH
• BRACING: 1-1/4" ROUND O.D. 18 GAUGE TYPE
300 TUBULAR STAINLESS STEEL
• GUSSETS: STAINLESS STEEL
• FEET: 1" ADJUSTABLE STAINLESS STEEL
400
MAPLE TOP WORK TABLES
24” WIDE QTY 30" WIDE QTY 36" WIDE QTY
SNB01 SNB07 SNB13
SNB02 SNB08 SN B14
SNB03 SNB09 SNB15
SNB04 SNB10 SNB16
SNB04A SNB10A SNB16A
SNB05 SN B11 SN B17
SNB05A S N B11 A SN B17A
SNB06 SNB12 S NB18
Page 2
DETAILED SPECIFICATIONS
DETAILED SPECIFICATIONS
L
W
DETAILED SPECIFICATIONS
35 1/4"
CLEARANCE =
L - 9.62 5"
÷
2
L
W
1 3/4"
DETAILED SPECIFICATIONS
35 1/4"
CLEARANCE =
L-8"
ADJUSTABLE
HEIGHT
L W
CLEARANCE =
L - 9.62 5"
÷
2
L
L
W
1 3/4"
CLEARANCE =
L - 9.62 5"
÷
2
L
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
MAPLE TOP WORK TABLES
LENGTH 24” WIDE WT. ( LBS) 30" WIDE W T. (L B S) 36" WIDE W T. (LB S)
36 SNB01 68 SNB07 80 SNB13 92
48 SNB02 84 SNB08 100 SN B14 116
60 SNB03 100 SNB09 120 SN B15 140
72 SNB04 11 6 SNB010 140 S NB16 164
84 SNB04A 142 SNB10A 171 S NB16A 198
96 SNB05 159 S N B11 191 SNB17 222
108 SNB05A 174 SN B11A 210 S N B17A 245
120 SNB06 192 SN B12 231 SN B18 270
SOME UNITS SHIP UNASSEM BLED FOR RED UCED SHI PPING COST. ALL DIMENSIO NS ARE T YPICA L. TOLER ANCE +/- . 500"
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
121817
