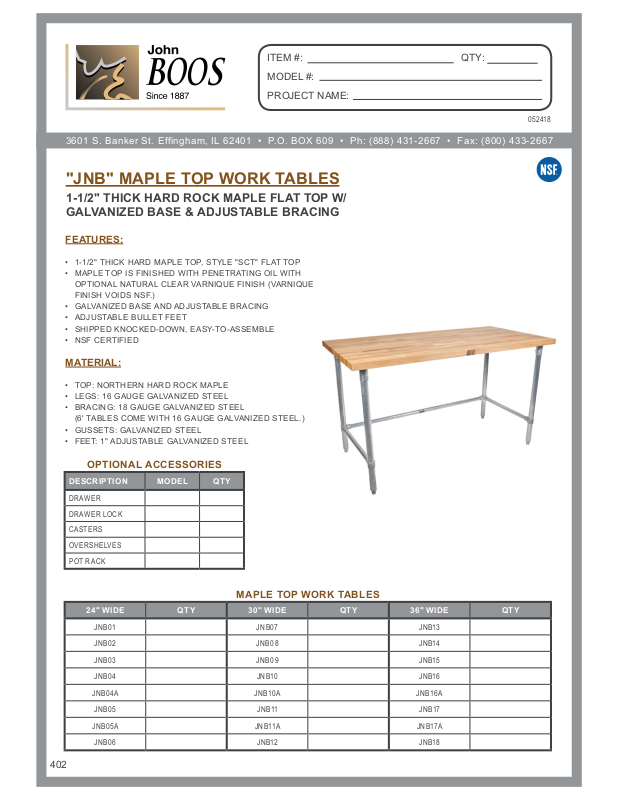

Page 1
ITEM #: QTY:
MODEL #:
PROJECT NAME:
05 2418
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667
"JNB" MAPLE TOP WORK TABLES
1-1/2" THICK HARD ROCK MAPLE FLAT TOP W/
GALVANIZED BASE & ADJUSTABLE BRACING
FEATURES:
• 1-1/2" THICK HARD MAPLE TOP, STYLE "SCT" FLAT TOP
• MAPLE TOP IS FINISHED WITH PENETRATING OIL WITH
OPTIONAL NATURAL CLEAR VARNIQUE FINISH (VARNIQUE
FINISH VOIDS NSF.)
• GALVANIZED BASE AND ADJUSTABLE BRACING
• ADJUSTABLE BULLET FEET
• SHIPPED KNOCKED-DOWN, EASY-TO-ASSEMBLE
• NSF CERTIFIED
MATERIAL:
• TOP: NORTHERN HARD ROCK MAPLE
• LEGS: 16 GAUGE GALVANIZED STEEL
• BRACING: 18 GAUGE GALVANIZED STEEL
(6' TABLES COME WITH 16 GAUGE GALVANIZED STEEL.)
• GUSSETS: GALVANIZED STEEL
• FEET: 1" ADJUSTABLE GALVANIZED STEEL
OPTIONAL ACCESSORIES
DESCRIPTION MODEL QTY
DRAWER
DRAWER LOCK
CASTERS
OVERSHELVES
POT RACK
MAPLE TOP WORK TABLES
24" WIDE QTY 30" WIDE QTY 36" WIDE QTY
JNB01 JNB07 JNB13
JNB02 JNB08 JNB14
JNB03 JNB09 JNB15
JNB04 JNB10 JNB16
JNB04A JNB10A JNB16A
JNB05 JNB11 JNB17
JNB05A JNB11A JNB17A
JNB06 JNB12 JNB18
402
Page 2
DETAILED SPECIFICATIONS
DETAILED SPECIFICATIONS
L
W
CLEARANCE =
L - 9.625"
÷
2
L
DETAILED SPECIFICATIONS
35"
CLEARANCE =
L-8"
ADJUSTABLE
HEIGHT
L W
CLEARANCE =
L - 9.625"
÷
2
L
L
W
1 1/2"
DETAILED SPECIFICATIONS
35"
CLEARANCE =
L - 9.625"
÷
2
L
W
1 1/2"
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25”
36" JNB01 56 JNB07 66 JNB13 76
48" JNB02 70 JNB08 83 JNB14 97
60" JNB03 83 JNB09 101 JNB15 117
72" JNB04 97 JNB010 118 JNB16 138
84" JNB04A 118 JNB10A 142 JNB16A 166
96" JNB05 132 JNB11 160 JNB17 186
SOME UNITS SHIP UN ASSEMB LED FOR REDU CED SHIPPI NG COST. ALL DIMENSIONS A RE TYPICAL. TOLERANCE +/- .500"
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
LENGTH 24" WIDE W T. ( LBS) 30" WIDE W T. (L BS) 36" WIDE W T. (L BS)
108" JNB05A 146 JNB11A 176 JNB17A 206
120 " JNB06 160 JNB12 194 JNB18 227
MAPLE TOP WORK TABLES
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
121817
403
