ITEM #: QTY:
MODEL #:
PROJECT NAME:
121917
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

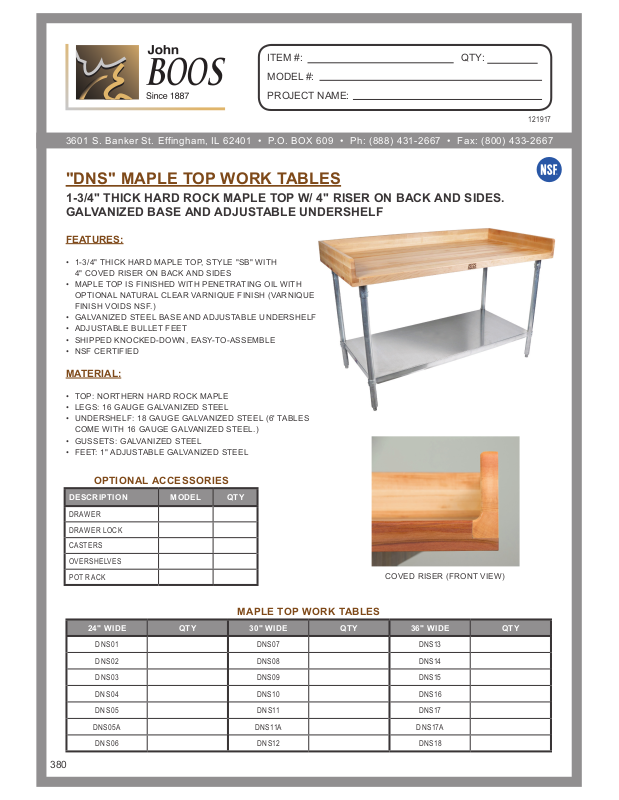

"DNS" MAPLE TOP WORK TABLES
1-3/4" THICK HARD ROCK MAPLE TOP W/ 4" RISER ON BACK AND SIDES.
GALVANIZED BASE AND ADJUSTABLE UNDERSHELF
FEATURES:
• 1-3/4" THICK HARD MAPLE TOP, STYLE "SB" WITH
4" COVED RISER ON BACK AND SIDES
• MAPLE TOP IS FINISHED WITH PENETRATING OIL WITH
OPTIONAL NATURAL CLEAR VARNIQUE FINISH (VARNIQUE
FINISH VOIDS NSF.)
• GALVANIZED STEEL BASE AND ADJUSTABLE UNDERSHELF
• ADJUSTABLE BULLET FEET
• SHIPPED KNOCKED-DOWN, EASY-TO-ASSEMBLE
• NSF CERTIFIED
MATERIAL:
• TOP: NORTHERN HARD ROCK MAPLE
• LEGS: 16 GAUGE GALVANIZED STEEL
• UNDERSHELF: 18 GAUGE GALVANIZED STEEL (6' TABLES
COME WITH 16 GAUGE GALVANIZED STEEL.)
• GUSSETS: GALVANIZED STEEL
• FEET: 1" ADJUSTABLE GALVANIZED STEEL
OPTIONAL ACCESSORIES
DESCRIPTION MODEL QTY
DRAWER
DRAWER LOCK
CASTERS
OVERSHELVES
POT RACK
COVED RISER (FRONT VIEW)
MAPLE TOP WORK TABLES
24" WIDE QTY 30" WIDE QTY 36" WIDE QTY
DNS01 DNS07 D NS13
DNS02 DNS08 D NS14
DNS03 DNS09 D NS15
DNS04 DNS10 DNS16
DNS05 D NS11 DN S17
DNS05A DN S11A DN S17A
DNS06 D NS12 D NS18
380
Page 2
DETAILED SPECIFICATIONS
DETAILED SPECIFICATIONS
W
L
DETAILED SPECIFICATIONS
35 1/4"
CLEARANCE =
L-8"
12"
W
L
4"
1 3/4"
L
CLEARANCE =
L-9.625"÷2
12"
L
W
DETAILED SPECIFICATIONS
35 1/4"
CLEARANCE =
L-9.625"÷2
12"
L
W
CLEARANCE =
L-9.625"÷2
12"
L
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25”
LENGTH 24" WIDE WT. ( LB S) 30" WIDE WT. ( LBS) 36" WIDE WT. ( LBS)
48" DNS01 120 DNS07 144 D NS13 163
60" DNS02 144 DNS08 17 2 D NS14 19 4
72" DNS03 174 DNS09 203 DNS15 229
84" DNS04 19 5 DNS10 239 DN S16 269
96" DNS05 218 D NS11 264 D NS17 298
108" DNS05A 237 DN S11A 285 DN S17A 322
120 " DNS06 260 D NS12 312 DNS18 354
SOME UNITS SHIP UNASSEMBLED FOR REDUCED S HIPPING CO ST. ALL DIMENSIO NS ARE T YPICAL. TO LERAN CE +/- .500 "
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
MAPLE TOP WORK TABLES
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
011218
