ITEM #: QTY:
MODEL #:
PROJECT NAME:
121917
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

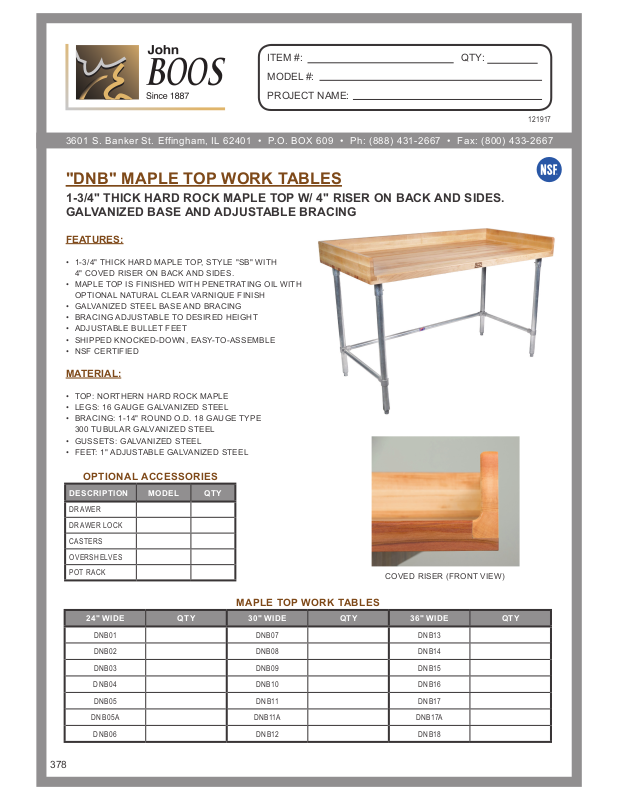

"DNB" MAPLE TOP WORK TABLES
1-3/4" THICK HARD ROCK MAPLE TOP W/ 4" RISER ON BACK AND SIDES.
GALVANIZED BASE AND ADJUSTABLE BRACING
FEATURES:
• 1-3/4" THICK HARD MAPLE TOP, STYLE "SB" WITH
4" COVED RISER ON BACK AND SIDES.
• MAPLE TOP IS FINISHED WITH PENETRATING OIL WITH
OPTIONAL NATURAL CLEAR VARNIQUE FINISH
• GALVANIZED STEEL BASE AND BRACING
• BRACING ADJUSTABLE TO DESIRED HEIGHT
• ADJUSTABLE BULLET FEET
• SHIPPED KNOCKED-DOWN, EASY-TO-ASSEMBLE
• NSF CERTIFIED
MATERIAL:
• TOP: NORTHERN HARD ROCK MAPLE
• LEGS: 16 GAUGE GALVANIZED STEEL
• BRACING: 1-14" ROUND O.D. 18 GAUGE TYPE
300 TUBULAR GALVANIZED STEEL
• GUSSETS: GALVANIZED STEEL
• FEET: 1" ADJUSTABLE GALVANIZED STEEL
OPTIONAL ACCESSORIES
DESCRIPTION MODEL QTY
DRAWER
DRAWER LOCK
CASTERS
OVERSHELVES
POT RACK
COVED RISER (FRONT VIEW)
MAPLE TOP WORK TABLES
24" WIDE QTY 30" WIDE QTY 36" WIDE QTY
DNB01 DNB07 DNB13
DNB02 DNB08 DN B14
DNB03 DNB09 DNB15
DNB04 DNB10 DN B16
DNB05 DN B11 DN B17
DNB05A DN B11A DN B17A
DNB06 DNB12 D NB18
378
Page 2
DETAILED SPECIFICATIONS
DETAILED SPECIFICATIONS
L
W
DETAILED SPECIFICATIONS
L
ADJUSTABLE
HEIGHT
L
35 1/4"
W
CLEARANCE =
L-8"
CLEARANCE =
L-9.625" ÷ 2
L
W
1 3/4"
4"
L
35 1/4"
W
CLEARANCE =
L-9.625" ÷ 2
L
CLEARANCE =
L-9.625" ÷ 2
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25”
MAPLE TOP WORK TABLES
LENGTH 24" WIDE WT. ( LBS) 30" WIDE WT. ( LBS) 36" WIDE WT. ( LBS)
48" DNB01 104 DNB07 123 DN B13 142
60" DNB02 123 DNB08 147 DNB14 169
72" DNB03 142 DNB09 170 DN B15 18 6
84" DNB04 169 DNB10 200 DN B16 230
96" DNB05 18 8 DN B11 223 D N B17 257
108" DNB05A 207 DN B11A 246 DN B17A 28 4
120 " DNB06 227 DN B12 270 D NB18 3 11
SOME UNITS SHIP UN ASSEMBLED FOR REDU CED SHIPPI NG COST. ALL DIMENSIONS ARE TY PICAL. TOLERAN CE +/- .50 0"
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
011218
