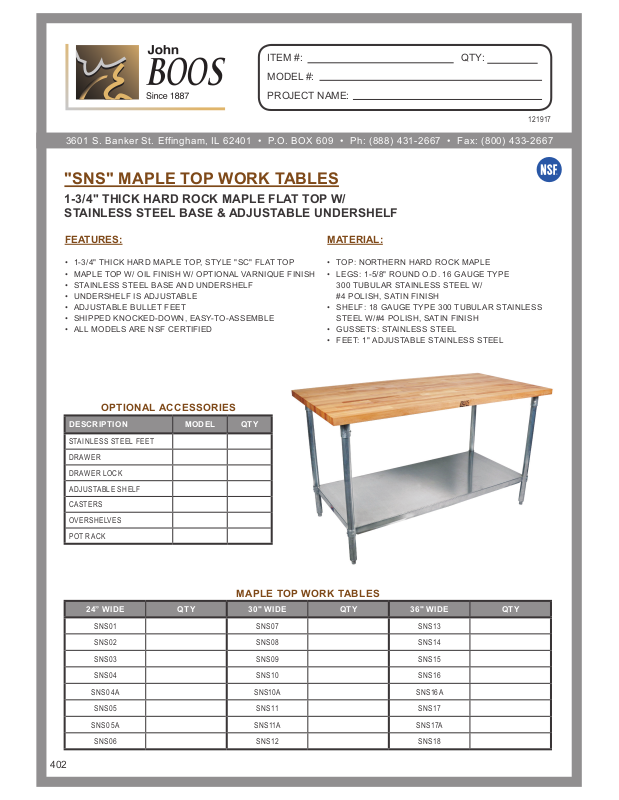

Page 1
ITEM #: QTY:
MODEL #:
PROJECT NAME:
121917
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667
"SNS" MAPLE TOP WORK TABLES
1-3/4" THICK HARD ROCK MAPLE FLAT TOP W/
STAINLESS STEEL BASE & ADJUSTABLE UNDERSHELF
FEATURES:
• 1-3/4" THICK HARD MAPLE TOP, STYLE "SC" FLAT TOP
• MAPLE TOP W/ OIL FINISH W/ OPTIONAL VARNIQUE FINISH
• STAINLESS STEEL BASE AND UNDERSHELF
• UNDERSHELF IS ADJUSTABLE
• ADJUSTABLE BULLET FEET
• SHIPPED KNOCKED-DOWN, EASY-TO-ASSEMBLE
• ALL MODELS ARE NSF CERTIFIED
OPTIONAL ACCESSORIES
DESCRIPTION MODEL QTY
STAINLESS STEEL FEET
DRAWER
DRAWER LOCK
ADJUSTABLE SHELF
CASTERS
OVERSHELVES
POT RACK
MATERIAL:
• TOP: NORTHERN HARD ROCK MAPLE
• LEGS: 1-5/8" ROUND O.D. 16 GAUGE TYPE
300 TUBULAR STAINLESS STEEL W/
#4 POLISH, SATIN FINISH
• SHELF: 18 GAUGE TYPE 300 TUBULAR STAINLESS
STEEL W/#4 POLISH, SATIN FINISH
• GUSSETS: STAINLESS STEEL
• FEET: 1" ADJUSTABLE STAINLESS STEEL
402
MAPLE TOP WORK TABLES
24” WIDE QTY 30" WIDE QTY 36" WIDE QTY
SNS01 SNS07 SNS13
SNS02 SNS08 SN S14
SNS03 SNS09 SNS15
SNS04 SNS10 SNS16
SNS04A SNS10A SNS16 A
SNS05 S NS 11 S NS17
SNS05A S NS 11A SN S17A
SNS06 SN S12 SNS18
Page 2
DETAILED SPECIFICATIONS
DETAILED SPECIFICATIONS
L
W
L
12"
CLEARANCE =
L - 9.625"
÷
2
DETAILED SPECIFICATIONS
L W
35 1/4"
12"
L
12"
CLEARANCE =
L-8"
CLEARANCE =
L - 9.625"
÷
2
L
W
1 3/4"
DETAILED SPECIFICATIONS
35 1/4"
L
12"
CLEARANCE =
L - 9.625"
÷
2
W
1 3/4"
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25”.
MAPLE TOP WORK TABLES
LENGTH 24” WIDE WT. (LB S) 30" WIDE W T. ( LBS) 36" WIDE W T. ( LBS)
36" SNS 01 77 SNS07 90 SN S13 102
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
48" SNS02 95 SNS08 116 SN S14 132
60" SNS03 114 SNS09 140 S NS15 15 9
72" SNS04 138 SNS10 164 SN S16 187
84" SNS04A 162 SNS10A 198 SNS16 A 225
96" SNS05 186 S N S11 223 SN S17 254
108" SNS05A 200 S N S11A 244 SNS17A 278
120 SNS06 220 SNS12 268 SNS18 306
SOME UNITS SHIP UNASSEMBLED FO R REDUCED SHIPPING COST. ALL DIM ENSIONS A RE TYPI CAL. TOLER ANCE +/- .5 00"
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
011218
