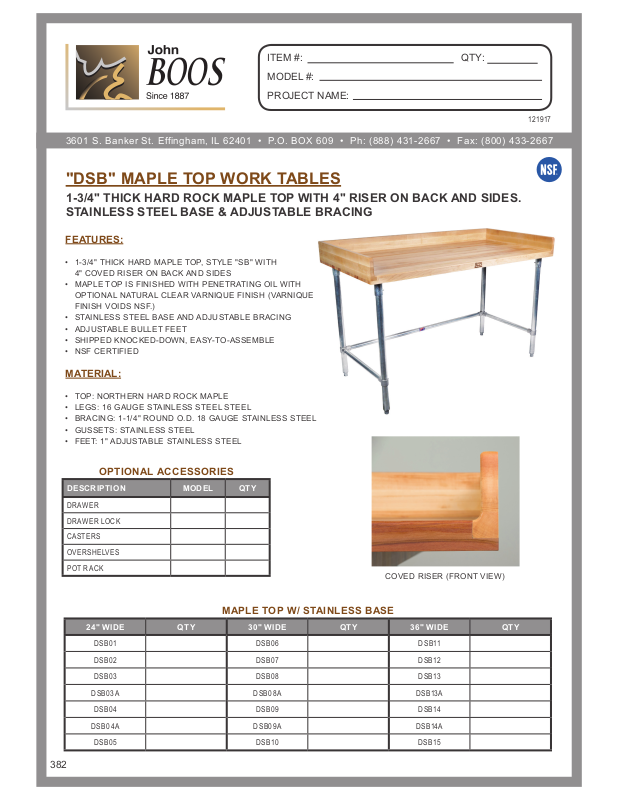

Page 1
ITEM #: QTY:
MODEL #:
PROJECT NAME:
121917
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667
"DSB" MAPLE TOP WORK TABLES
1-3/4" THICK HARD ROCK MAPLE TOP WITH 4" RISER ON BACK AND SIDES.
STAINLESS STEEL BASE & ADJUSTABLE BRACING
FEATURES:
• 1-3/4" THICK HARD MAPLE TOP, STYLE "SB" WITH
4" COVED RISER ON BACK AND SIDES
• MAPLE TOP IS FINISHED WITH PENETRATING OIL WITH
OPTIONAL NATURAL CLEAR VARNIQUE FINISH (VARNIQUE
FINISH VOIDS NSF.)
• STAINLESS STEEL BASE AND ADJUSTABLE BRACING
• ADJUSTABLE BULLET FEET
• SHIPPED KNOCKED-DOWN, EASY-TO-ASSEMBLE
• NSF CERTIFIED
MATERIAL:
• TOP: NORTHERN HARD ROCK MAPLE
• LEGS: 16 GAUGE STAINLESS STEEL STEEL
• BRACING: 1-1/4" ROUND O.D. 18 GAUGE STAINLESS STEEL
• GUSSETS: STAINLESS STEEL
• FEET: 1" ADJUSTABLE STAINLESS STEEL
OPTIONAL ACCESSORIES
DESCRIPTION MODEL QTY
DRAWER
DRAWER LOCK
CASTERS
OVERSHELVES
POT RACK
COVED RISER (FRONT VIEW)
MAPLE TOP W/ STAINLESS BASE
24" WIDE QTY 30" WIDE QTY 36" WIDE QTY
DSB01 DSB06 DS B11
DSB02 DSB07 DSB12
DSB03 DSB08 DSB13
DSB03A DSB08A DSB13A
DSB04 DSB09 DSB14
DSB04A DSB09A DSB14 A
DSB05 D SB10 DSB15
382
Page 2
DETAILED SPECIFICATIONS
DETAILED SPECIFICATIONS
L
W
DETAILED SPECIFICATIONS
L
ADJUSTABLE
HEIGHT
L
35 1/4"
W
CLEARANCE =
L-8"
CLEARANCE =
L-9.625" ÷ 2
L
W
1 3/4"
4"
L
35 1/4"
W
CLEARANCE =
L-9.625" ÷ 2
L
CLEARANCE =
L-9.625" ÷ 2
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25”
LENGTH 24" WIDE WT. (L BS) 30" WIDE WT. (LBS) 36" WIDE WT. (LBS)
48" DSB01 11 0 DSB06 129 DSB11 148
60" DSB02 129 DSB07 152 DSB12 175
72" DSB03 148 DSB08 176 DSB13 202
84" DSB03A 178 DSB08A 210 D SB13A 240
96" DSB04 198 DSB09 232 DSB14 266
108" DSB04A 216 DSB09A 255 D SB14A 293
120 " DSB05 236 D SB10 279 DS B15 321
MAPLE TOP W/ STAINLESS BASE
SOME UNITS SHIP UNASS EMBLED FOR REDU CED SHIPPING COST. ALL DIM ENSIONS ARE TYPICAL. TO LERANCE +/- . 500"
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
011218
383
