A
S

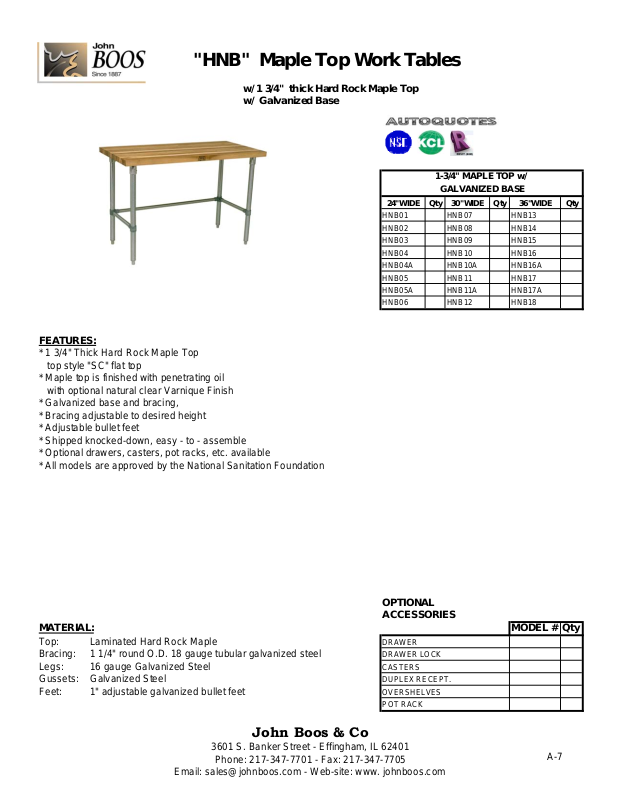

"HNB" Maple Top Work Tables
w/ 1 3/4" thick Hard Rock Maple Top
w/ Galvanized Base
FEATURES:
* 1 3/4" Thick Hard Rock Maple Top
top style "SC" flat top
* Maple top is finished with penetrating oil
with optional natural clear Varnique Finish
* Galvanized base and bracing,
* Bracing adjustable to desired height
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation
1-3/4" MAPLE TOP w/
GALVANIZED BASE
24"WIDE Qty 30"WIDE Qty 36"WIDE Qty
HNB01 HNB07 HNB13
HNB02 HNB08 HNB14
HNB03 HNB09 HNB15
HNB04 HNB10 HNB16
HNB04A HNB10A HNB16A
HNB05 HNB11 HNB17
HNB05A HNB11A HNB17A
HNB06 HNB12 HNB18
OPTIONAL
CCESSORIE
MATERIAL: MODEL # Qty
Top: Laminated Hard Rock Maple
DRAWER
Bracing: 1 1/4" round O.D. 18 gauge tubular galvanized steel DRAWER LOCK
Legs: 16 gauge Galvanized Steel CASTERS
Gussets: Galvanized Steel DUPLEX RECEPT.
Feet: 1" adjustable galvanized bullet feet OVERSHELVES
POT RACK
John Boos & Co
3601 S. Banker Street - Effingham, IL 62401
Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www. johnboos.com
A-7
DETAILED SPECIFICATIONS
L
W
L W
CLEARANCE =
L-8"
ADJUSTABLE
HEIGHT
1 1/2"
All units ship unassembled for reduced shipping cost.
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".
1-3/4" MAPLE TOP & GALVANIZED BASE
L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.
36 HNB01 64 HNB07 75 HNB13 100
48 HNB02 79 HNB08 94 HNB14 127
60 HNB03 94 HNB09 112 HNB15 155
72 HNB04 109 HNB10 131 HNB16 190
84 HNB04A 156 HNB10A 189 HNB16 257
96 HNB05 147 HNB11 177 HNB17 239
108 HNB05A 198 HNB11A 241 HNB17A 325
120 HNB06 117 HNB12 214 HNB18 283
35"
CLEARANCE =
L - 9.625"
รท
L
2
John Boos & Co
3601 S. Banker Str - Effingham, IL 62401 Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www.johnboos.com
July 2013
John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice
A-8
