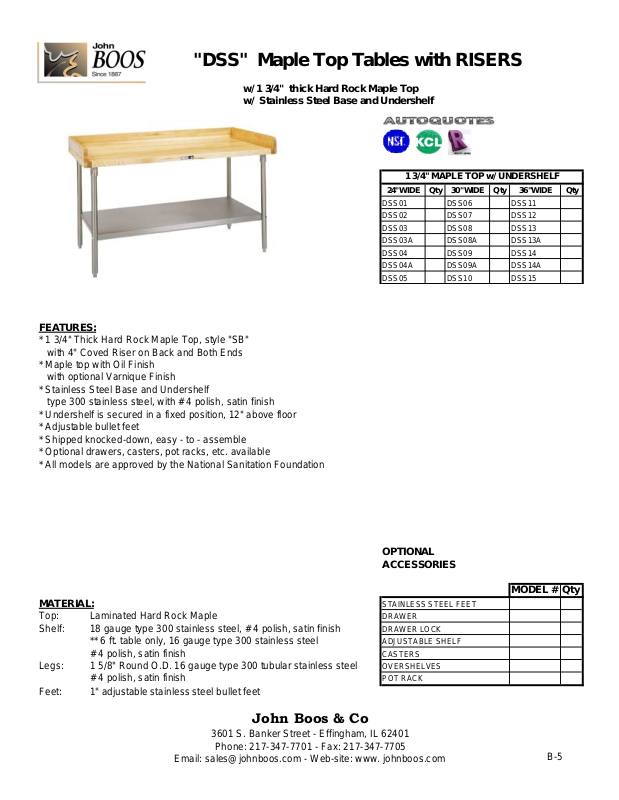

John Boos DSS04A User Manual

A

S

"DSS" Maple Top Tables with RISERS

w/ 1 3/4" thick Hard Rock Maple Top
w/ Stainless Steel Base and Undershelf

FEATURES:

* 1 3/4" Thick Hard Rock Maple Top, style "SB"
with 4" Coved Riser on Back and Both Ends
* Maple top with Oil Finish
with optional Varnique Finish
* Stainless Steel Base and Undershelf
type 300 stainless steel, with # 4 polish, satin finish
* Undershelf is secured in a fixed position, 12" above floor
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation

1 3/4" MAPLE TOP w/ UNDERSHELF

24"WIDE Qty 30"WIDE Qty 36"WIDE Qty

DSS01 DSS06 DSS11
DSS02 DSS07 DSS12
DSS03 DSS08 DSS13
DSS03A DSS08A DSS13A
DSS04 DSS09 DSS14
DSS04A DSS09A DSS14A
DSS05 DSS10 DSS15

OPTIONAL

CCESSORIE

MODEL # Qty

MATERIAL:

STAINLESS STEEL FEET

Top: Laminated Hard Rock Maple DRAWER
Shelf: 18 gauge type 300 stainless steel, # 4 polish, satin finish DRAWER LOCK

** 6 ft. table only, 16 gauge type 300 stainless steel ADJUSTABLE SHELF
# 4 polish, satin finish CASTERS

Legs: 1 5/8" Round O.D. 16 gauge type 300 tubular stainless steel OVERSHELVES

# 4 polish, satin finish POT RACK

Feet: 1" adjustable stainless steel bullet feet

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

B-5

DETAILED SPECIFICATIONS

L

W

L

1 3/4"

4"

CLEARANCE =

L-8"

12"

35 1/4"

W

CLE A RANCE =

L-9.625"÷2

L

12"

All units ship unassembled for reduced shipping cost. Finished size of undershelf.
Units 7 ft. and larger are furnished with six legs. Shelf length = length minus 4.875"
All dimensions are typical. Shelf width = width minus 4.25"
Tolerance +/- .500".

1-3/4" MAPLE TOP & UNDERSHELF

L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.

48 DSS01 124 DSS06 147 DSS11 169
60 DSS02 147 DSS07 174 DSS12 201
72 DSS03 174 DSS08 207 DSS13 241
84 DSS03A 194 DSS08A 231 DSS13A 269

96 DSS04 214 DSS09 255 DSS14 296
108 DSS04A 241 DSS09A 287 DSS14A 332
120 DSS05 268 DSS10 318 DSS15 368

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401 Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www.johnboos.com

July 2013

John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice

B-6
