John Boos DSB03 User Manual
A
S

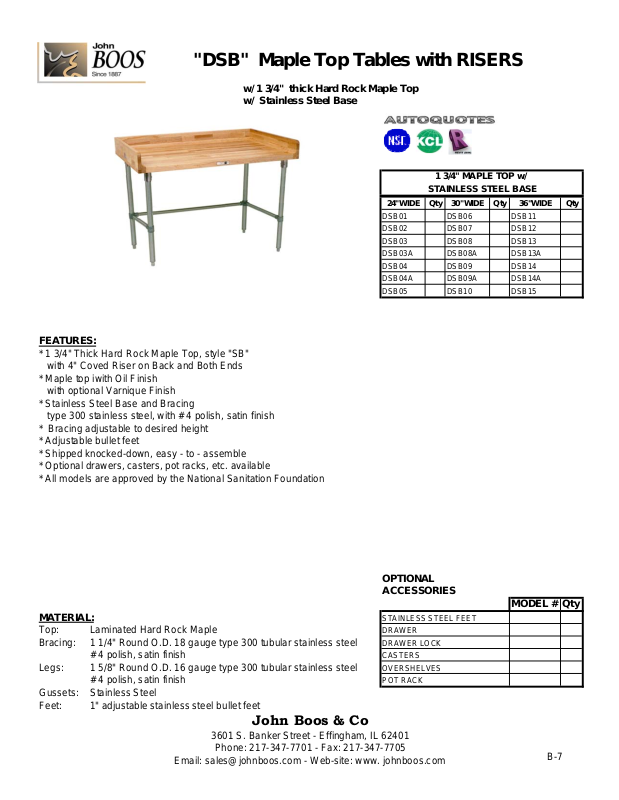

"DSB" Maple Top Tables with RISERS
w/ 1 3/4" thick Hard Rock Maple Top
w/ Stainless Steel Base
FEATURES:
* 1 3/4" Thick Hard Rock Maple Top, style "SB"
with 4" Coved Riser on Back and Both Ends
* Maple top iwith Oil Finish
with optional Varnique Finish
* Stainless Steel Base and Bracing
type 300 stainless steel, with # 4 polish, satin finish
* Bracing adjustable to desired height
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation
1 3/4" MAPLE TOP w/
STAINLESS STEEL BASE
24"WIDE Qty 30"WIDE Qty 36"WIDE Qty
DSB01 DSB06 DSB11
DSB02 DSB07 DSB12
DSB03 DSB08 DSB13
DSB03A DSB08A DSB13A
DSB04 DSB09 DSB14
DSB04A DSB09A DSB14A
DSB05 DSB10 DSB15
OPTIONAL
CCESSORIE
MODEL # Qty
MATERIAL:
STAINLESS STEEL FEET
Top: Laminated Hard Rock Maple DRAWER
Bracing: 1 1/4" Round O.D. 18 gauge type 300 tubular stainless steel DRAWER LOCK
# 4 polish, satin finish CASTERS
Legs: 1 5/8" Round O.D. 16 gauge type 300 tubular stainless steel OVERSHELVES
# 4 polish, satin finish POT RACK
Gussets: Stainless Steel
Feet: 1" adjustable stainless steel bullet feet
John Boos & Co
3601 S. Banker Street - Effingham, IL 62401
Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www. johnboos.com
B-7
DETAILED SPECIFICATIONS
L
W
L
4"
CLEARANCE =
L-8"
ADJUSTABLE
HEIGHT
All units ship unassembled for reduced shipping cost.
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".
1-3/4" MAPLE TOP & STAINLESS STEEL BASE
L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.
48 DSB01 114 DSB06 136 DSB11 153
60 DSB02 134 DSB07 157 DSB12 179
72 DSB03 153 DSB08 179 DSB13 206
84 DSB03A 172 DSB08A 203 DSB13A 233
96 DSB04 191 DSB09 226 DSB14 259
108 DSB04A 215 DSB09A 253 DSB14A 290
120 DSB05 239 DSB10 280 DSB15 321
1 3/4"
35 1/4"
W
CLEARANCE =
L-9.625" รท 2
L
John Boos & Co
3601 S. Banker Street - Effingham, IL 62401 Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www.johnboos.com
July 2013
John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice
B-8
