John Boos DNS01 User Manual

A

S

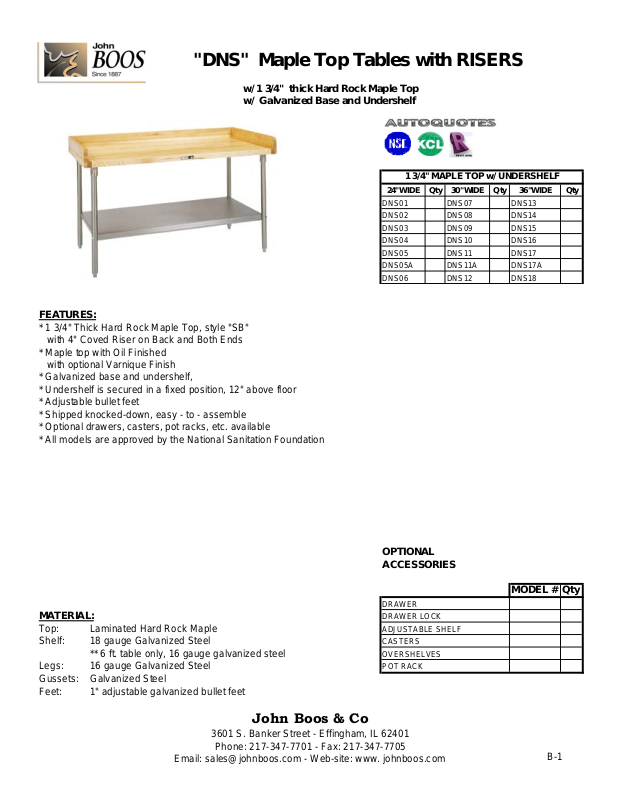

"DNS" Maple Top Tables with RISERS

w/ 1 3/4" thick Hard Rock Maple Top
w/ Galvanized Base and Undershelf

FEATURES:

* 1 3/4" Thick Hard Rock Maple Top, style "SB"
with 4" Coved Riser on Back and Both Ends
* Maple top with Oil Finished
with optional Varnique Finish
* Galvanized base and undershelf,
* Undershelf is secured in a fixed position, 12" above floor
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation

1 3/4" MAPLE TOP w/ UNDERSHELF

24"WIDE Qty 30"WIDE Qty 36"WIDE Qty

DNS01 DNS07 DNS13
DNS02 DNS08 DNS14
DNS03 DNS09 DNS15
DNS04 DNS10 DNS16
DNS05 DNS11 DNS17
DNS05A DNS11A DNS17A
DNS06 DNS12 DNS18

OPTIONAL

CCESSORIE

MODEL # Qty

DRAWER

MATERIAL: DRAWER LOCK

Top: Laminated Hard Rock Maple ADJUSTABLE SHELF
Shelf: 18 gauge Galvanized Steel CASTERS

** 6 ft. table only, 16 gauge galvanized steel OVERSHELVES

Legs: 16 gauge Galvanized Steel POT RACK
Gussets: Galvanized Steel
Feet: 1" adjustable galvanized bullet feet

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

B-1

DETAILED SPECIFICATIONS

L

W

L

1 3/4"

4"

CLEARANCE =

L-8"

12"

35 1/4"

W

CLEARANCE =

L-9.625"÷2

L

12"

All units ship unassembled for reduced shipping cost. Finished size of undershelf.
Units 7 ft. and larger are furnished with six legs. Shelf length = length minus 4.875"
All dimensions are typical. Shelf width = width minus 4.25"
Tolerance +/- .500".

1-3/4" MAPLE TOP & UNDERSHELF

L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.

48 DNS01 126 DNS07 149 DNS13 172
60 DNS02 149 DNS08 117 DNS14 205
72 DNS03 172 DNS09 205 DNS15 237
84 DNS04 194 DNS10 232 DNS16 269

96 DNS05 218 DNS11 260 DNS17 301
108 DNS05A 245 DNS11A 292 DNS17A 338
120 DNS06 272 DNS12 324 DNS18 375

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401 Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www.johnboos.com

July 2013

John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice
