John Boos DNB02 User Manual
A
S

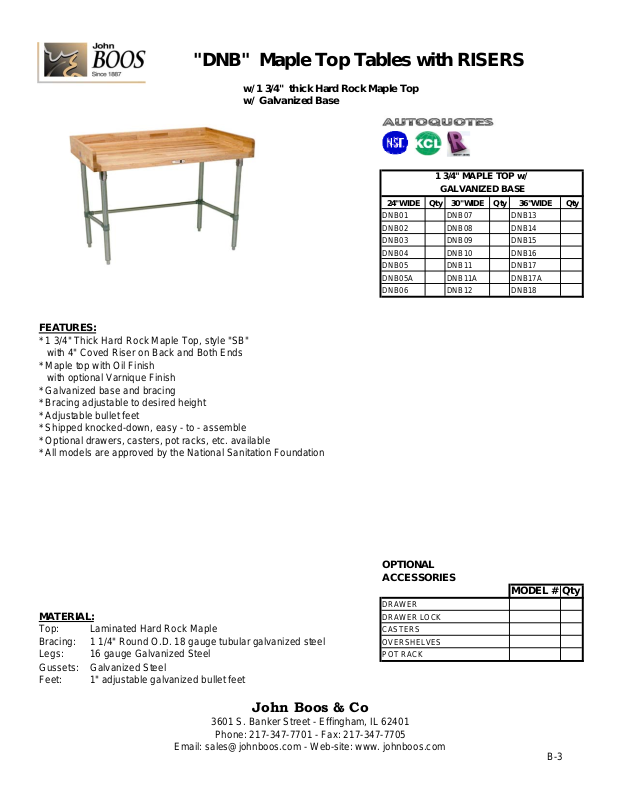

"DNB" Maple Top Tables with RISERS
w/ 1 3/4" thick Hard Rock Maple Top
w/ Galvanized Base
FEATURES:
* 1 3/4" Thick Hard Rock Maple Top, style "SB"
with 4" Coved Riser on Back and Both Ends
* Maple top with Oil Finish
with optional Varnique Finish
* Galvanized base and bracing
* Bracing adjustable to desired height
* Adjustable bullet feet
* Shipped knocked-down, easy - to - assemble
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation
1 3/4" MAPLE TOP w/
GALVANIZED BASE
24"WIDE Qty 30"WIDE Qty 36"WIDE Qty
DNB01 DNB07 DNB13
DNB02 DNB08 DNB14
DNB03 DNB09 DNB15
DNB04 DNB10 DNB16
DNB05 DNB11 DNB17
DNB05A DNB11A DNB17A
DNB06 DNB12 DNB18
OPTIONAL
CCESSORIE
MODEL # Qty
DRAWER
MATERIAL: DRAWER LOCK
Top: Laminated Hard Rock Maple CASTERS
Bracing: 1 1/4" Round O.D. 18 gauge tubular galvanized steel OVERSHELVES
Legs: 16 gauge Galvanized Steel POT RACK
Gussets: Galvanized Steel
Feet: 1" adjustable galvanized bullet feet
John Boos & Co
3601 S. Banker Street - Effingham, IL 62401
Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www. johnboos.com
B-3
DETAILED SPECIFICATIONS
L
W
L
4"
CLEARANCE =
L-8"
ADJUSTABLE
HEIGHT
All units ship unassembled for reduced shipping cost.
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".
1-3/4" MAPLE TOP & GALVANIZED BASE
L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.
48 DNB01 113 DNB07 132 DNB13 151
60 DNB02 132 DNB08 155 DNB14 179
72 DNB03 151 DNB09 178 DNB15 204
84 DNB04 169 DNB10 201 DNB16 231
96 DNB05 189 DNB11 224 DNB17 257
108 DNB05A 213 DNB11A 252 DNB17A 288
120 DNB06 237 DNB12 279 DNB18 319
1 3/4"
35 1/4"
W
CLEARANCE =
L-9.625" รท 2
L
John Boos & Co
3601 S. Banker Street - Effingham, IL 62401 Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www.johnboos.com
July 2013
John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice
B-4
