John Boos BTNS01 User Manual
A
S
h

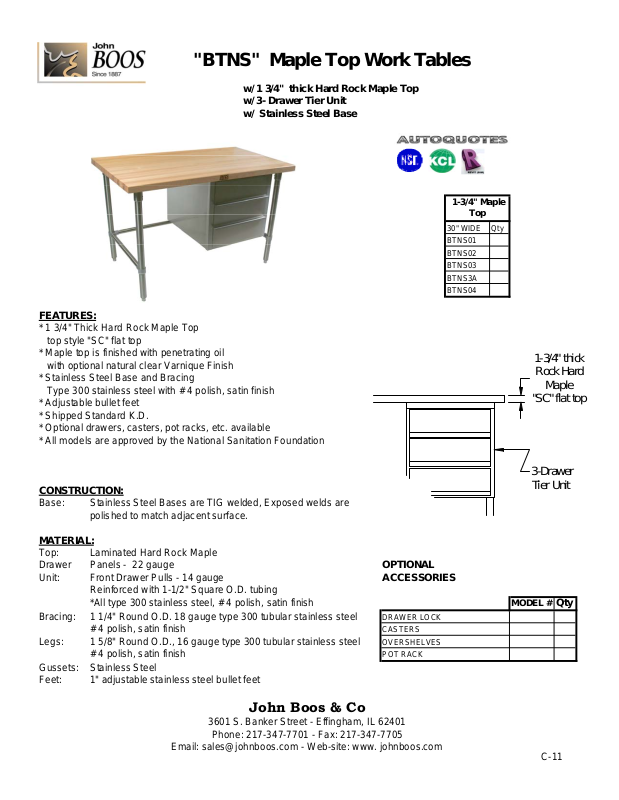

"BTNS" Maple Top Work Tables
w/ 1 3/4" thick Hard Rock Maple Top
w/ 3- Drawer Tier Unit
w/ Stainless Steel Base
FEATURES:
* 1 3/4" Thick Hard Rock Maple Top
top style "SC" flat top
* Maple top is finished with penetrating oil
with optional natural clear Varnique Finish
* Stainless Steel Base and Bracing
Type 300 stainless steel with # 4 polish, satin finish
* Adjustable bullet feet
* Shipped Standard K.D.
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation
1-3/4" Maple
Top
30" WIDE Qty
BTNS01
BTNS02
BTNS03
BTNS3A
BTNS04
1-3/4" thick
Rock Ha r d
Maple
"SC" flat to p
CONSTRUCTION:
Base: Stainless Steel Bases are TIG welded, Exposed welds are
polished to match adjacent surface.
MATERIAL:
Top: Laminated Hard Rock Maple
Drawer Panels - 22 gauge OPTIONAL
Unit: Front Drawer Pulls - 14 gauge
Reinforced with 1-1/2" Square O.D. tubing
*All type 300 stainless steel, # 4 polish, satin finis
Bracing: 1 1/4" Round O.D. 18 gauge type 300 tubular stainless steel
# 4 polish, satin finish CASTERS
Legs: 1 5/8" Round O.D., 16 gauge type 300 tubular stainless steel OVERSHELVES
# 4 polish, satin finish POT RACK
Gussets: Stainless Steel
Feet: 1" adjustable stainless steel bullet feet
CCESSORIE
DRAWER LOCK
John Boos & Co
3601 S. Banker Street - Effingham, IL 62401
Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www. johnboos.com
3-Drawer
Tier Un i t
MODEL # Qty
C-11
DETAILED SPECIFICATIONS
L
W
L
1 3/4 H.M.
12
10
Shipped Knocked down
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".
W
35 1/4
1-3/4" Maple Top
48 BTNS01 129
60 BTNS02 150
72 BTNS03 171
84 BTNS03A 193
96 BTNS04 215
L
12
John Boos & Co
3601 S. Banker Str - Effingham, IL 62401 Phone: 217-347-7701 - Fax: 217-347-7705
Email: sales@johnboos.com - Web-site: www.johnboos.com
July 2013
John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice
C-12
