FEATURES:

10" High Boxed Backsplash

Not Plated

OPTIONAL

CONSTRUCTION:

ACCESSORIES

Qty

MATERIAL:

Not Plated

Not Plated

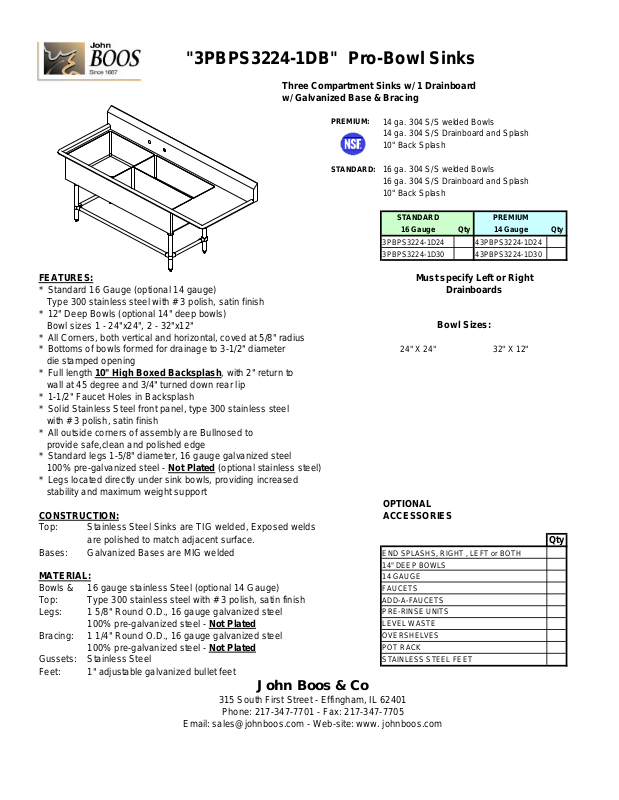

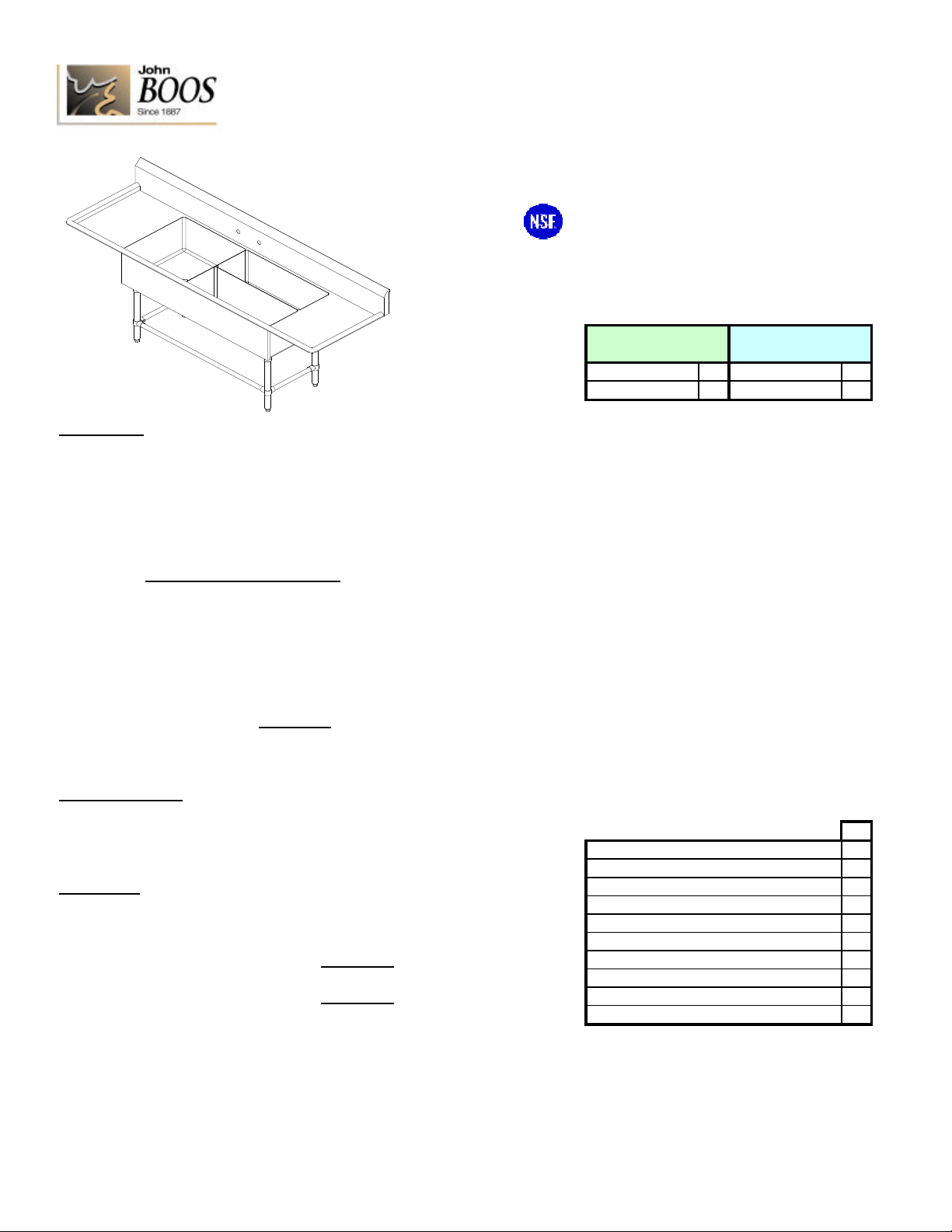

"3PBPS3224-1DB" Pro-Bowl Sinks

Three Compartment Sinks w/ 1 Drainboard

Must specify Left or Right

w/ Galvanized Base & Bracing

PREMIUM:

STANDARD:

* Standard 16 Gauge (optional 14 gauge)

14 ga. 304 S/S welded Bowls
14 ga. 304 S/S Drainboard and Splash
10" Back Splash

16 ga. 304 S/S welded Bowls
16 ga. 304 S/S Drainboard and Splash
10" Back Splash

STANDARD PREMIUM

16 Gauge

3PBPS3224-1D24 43PBPS3224-1D24
3PBPS3224-1D30 43PBPS3224-1D30

Qty

14 Gauge

Drainboards

Type 300 stainless steel with # 3 polish, satin finish
* 12" Deep Bowls (optional 14" deep bowls)
Bowl sizes 1 - 24"x24", 2 - 32"x12"

Bowl Sizes:

* All Corners, both vertical and horizontal, coved at 5/8" radius
* Bottoms of bowls formed for drainage to 3-1/2" diameter 24" X 24" 32" X 12"
die stamped opening
* Full length

, with 2" return to
wall at 45 degree and 3/4" turned down rear lip
* 1-1/2" Faucet Holes in Backsplash
* Solid Stainless Steel front panel, type 300 stainless steel
with # 3 polish, satin finish
* All outside corners of assembly are Bullnosed to
provide safe,clean and polished edge
* Standard legs 1-5/8" diameter, 16 gauge galvanized steel
100% pre-galvanized steel -

(optional stainless steel)
* Legs located directly under sink bowls, providing increased
stability and maximum weight support

Qty

Top: Stainless Steel Sinks are TIG welded, Exposed welds

are polished to match adjacent surface.

Bases: Galvanized Bases are MIG welded END SPLASHS, RIGHT , LEFT or BOTH

Bowls & 16 gauge stainless Steel (optional 14 Gauge)
Top: Type 300 stainless steel with # 3 polish, satin finish
Legs: 1 5/8" Round O.D., 16 gauge galvanized steel

100% pre-galvanized steel -

Bracing: 1 1/4" Round O.D., 16 gauge galvanized steel

100% pre-galvanized steel -

Gussets: Stainless Steel
Feet: 1" adjustable galvanized bullet feet

John Boos & Co

315 South First Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

14" DEEP BOWLS
14 GAUGE
FAUCETS
ADD-A-FAUCETS
PRE-RINSE UNITS
LEVEL WASTE
OVERSHELVES
POT RACK
STAINLESS STEEL FEET

A

B

C

D

MODEL

BOWL SIZE

DIMENSIONS

DB

WT.

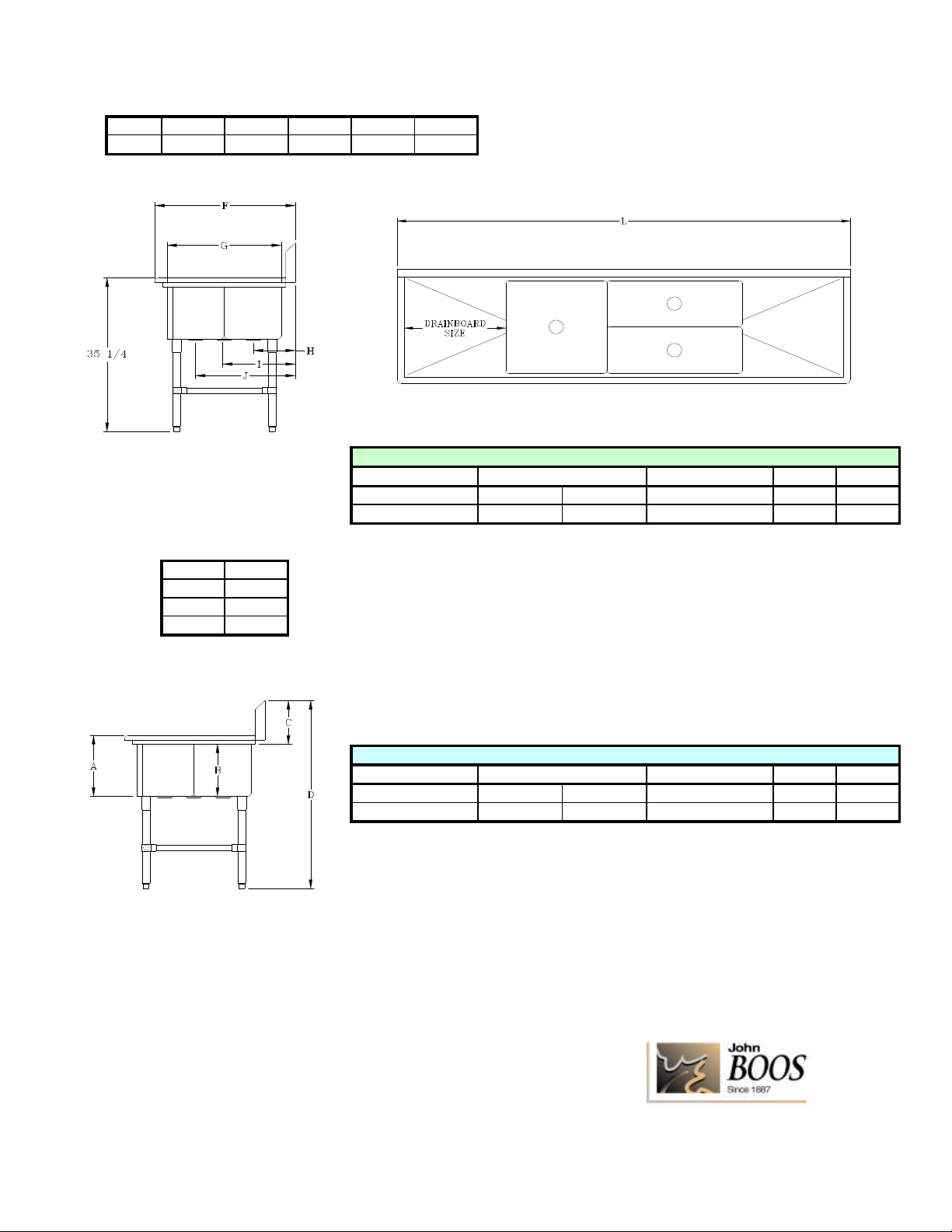

DETAILED SPECIFICATIONS

PREMIUM 14 GAUGE

STANDARD 16 GAUGE

BOWLS F G H I J

24 X 24 29-1/2" 24" - 14-15/16" ­32 X 12 29-1/2" 24" 8-15/16" - 20-15/16"

MODEL BOWL SIZE DIMENSIONS DB WT.

3PBPS3224-1D24

3PBPS3224-1D30

24 X 24 X 12 32 X 12 X 12 84-3/16" X 29-1/2" 24" 330
24 X 24 X 12 32 X 12 X 12 90-3/16" X 29-1/2" 30" 340

14"
12"
10"
43"

43PBPS3224-1D24
43PBPS3224-1D30

All dimensions are typical.
Tolerance +/- .500".
All units ship unassembled for reduced shipping cost.

24 X 24 X 12 32 X 12 X 12 84-3/16" X 29-1/2" 24" 363
24 X 24 X 12 32 X 12 X 12 90-3/16" X 29-1/2"

30" 374

315 South First - Effingham, IL 62401 Phone: [phone] - Fax: [phone]

John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice

John Boos & Co

Email: [e-mail] - Web-site: www.johnboos.com

May 2002
