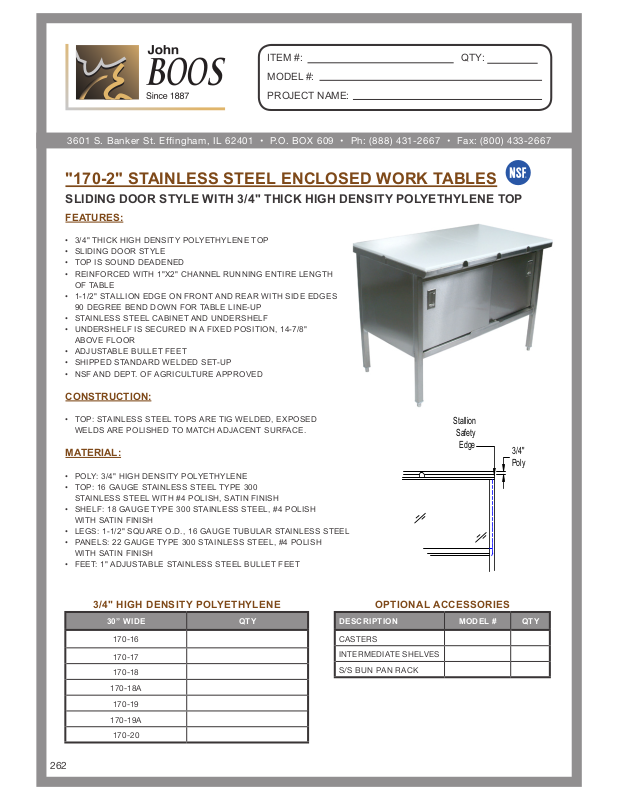

"170-2" STAINLESS STEEL ENCLOSED WORK TABLES

SLIDING DOOR STYLE WITH 3/4" THICK HIGH DENSITY POLYETHYLENE TOP

FEATURES:

• 3/4" THICK HIGH DENSITY POLYETHYLENE TOP

• SLIDING DOOR STYLE

• TOP IS SOUND DEADENED

• REINFORCED WITH 1"X2" CHANNEL RUNNING ENTIRE LENGTH
OF TABLE

• 1-1/2" STALLION EDGE ON FRONT AND REAR WITH SIDE EDGES
90 DEGREE BEND DOWN FOR TABLE LINE-UP

• STAINLESS STEEL CABINET AND UNDERSHELF

• UNDERSHELF IS SECURED IN A FIXED POSITION, 14-7/8"

ABOVE FLOOR

• ADJUSTABLE BULLET FEET

• SHIPPED STANDARD WELDED SET-UP

• NSF AND DEPT. OF AGRICULTURE APPROVED

CONSTRUCTION:

• TOP: STAINLESS STEEL TOPS ARE TIG WELDED, EXPOSED

MATERIAL:

• POLY: 3/4" HIGH DENSITY POLYETHYLENE

• TOP: 16 GAUGE STAINLESS STEEL TYPE 300

STAINLESS STEEL WITH #4 POLISH, SATIN FINISH

• SHELF: 18 GAUGE TYPE 300 STAINLESS STEEL, #4 POLISH

WITH SATIN FINISH

• LEGS: 1-1/2" SQUARE O.D., 16 GAUGE TUBULAR STAINLESS STEEL

• PANELS: 22 GAUGE TYPE 300 STAINLESS STEEL, #4 POLISH

WITH SATIN FINISH

• FEET: 1" ADJUSTABLE STAINLESS STEEL BULLET FEET

WELDS ARE POLISHED TO MATCH ADJACENT SURFACE.

3/4" HIGH DENSITY POLYETHYLENE

30” WIDE QTY

170 -1 6

170 -17

170 -18

170 -18A

170 -1 9

170 -1 9A

170-20

OPTIONAL ACCESSORIES

DESCRIPTION MODEL # QTY

CASTERS

INTERMEDIATE SHELVES

S/S BUN PAN RACK

262

DETAILED SPECIFICATIONS

DETAILED SPECIFICATIONS

L

DETAILED SPECIFICATIONS

L

14 7/8

1 1/2

W

36 1/2

19 3/8

L

CLEARANCE

L-3"

L

CLEARAN CE

L÷2-2.25 "

3/4 POLY

DETAILED SPECIFICATIONS

1 1/2

W

36 1/2

L

CLEARAN CE

L÷2-2.25 "

L

CLEARAN CE

L÷2-2.25 "

• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.

• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25”

3/4" HIGH DENSITY POLYETHYLENE

LENGTH 30" WIDE WT. ( LBS )

48"

60"

72"

84"

SOME UNITS SHIP UNASSEMBLED FOR REDUCED SHIPPING COST. ALL DIMENSIONS ARE TYPICAL. TOLERANCE +/- .500"

John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.

96"

108"

120 "

170 -1 6 224

170 -17 264

170 -18 301

170 -18A 347

170 -1 9 392

170 -1 9A 430

170-20 467

3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [e-mail]

www.johnboos.com
