John Boos 140-22 User Manual

ITEM #: QTY:

24"WIDE Qty 30"WIDE Qty

140-01 140-06

140-02 140-07

140-03 140-08

140-03A 140-08A

140-04 140-09

140-04A 140-09A

140-05 140-10

14 GAUGE TOP

MODEL #:

PROJECT NAME:

3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: [phone] • Fax: [phone]

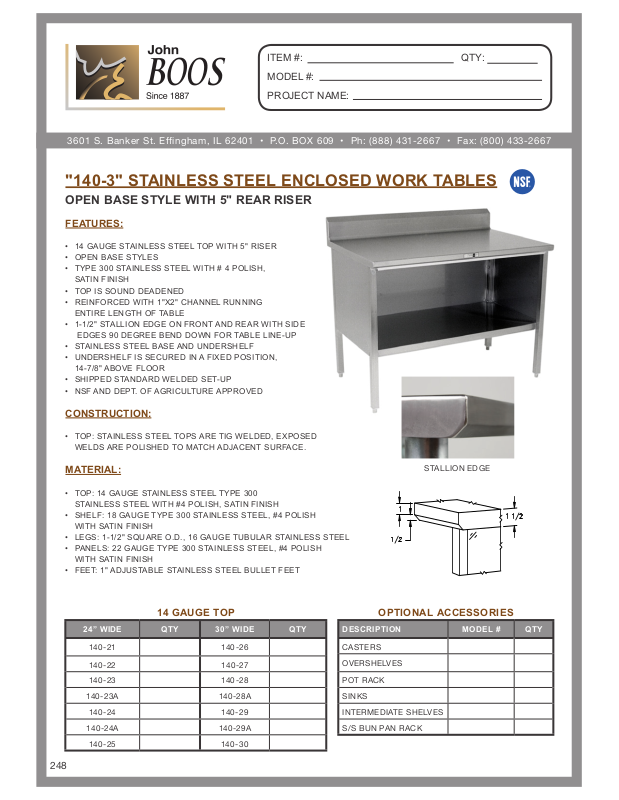

"140-3" STAINLESS STEEL ENCLOSED WORK TABLES

OPEN BASE STYLE WITH 5" REAR RISER

FEATURES:

• 14 GAUGE STAINLESS STEEL TOP WITH 5" RISER

• OPEN BASE STYLES

• TYPE 300 STAINLESS STEEL WITH # 4 POLISH,
SATIN FINISH

• TOP IS SOUND DEADENED

• REINFORCED WITH 1"X2" CHANNEL RUNNING
ENTIRE LENGTH OF TABLE

• 1-1/2" STALLION EDGE ON FRONT AND REAR WITH SIDE
EDGES 90 DEGREE BEND DOWN FOR TABLE LINE-UP

• STAINLESS STEEL BASE AND UNDERSHELF

• UNDERSHELF IS SECURED IN A FIXED POSITION,

14-7/8" ABOVE FLOOR

• SHIPPED STANDARD WELDED SET-UP

• NSF AND DEPT. OF AGRICULTURE APPROVED

CONSTRUCTION:

• TOP: STAINLESS STEEL TOPS ARE TIG WELDED, EXPOSED
WELDS ARE POLISHED TO MATCH ADJACENT SURFACE.

MATERIAL:

• TOP: 14 GAUGE STAINLESS STEEL TYPE 300

STAINLESS STEEL WITH #4 POLISH, SATIN FINISH

• SHELF: 18 GAUGE TYPE 300 STAINLESS STEEL, #4 POLISH

WITH SATIN FINISH

• LEGS: 1-1/2" SQUARE O.D., 16 GAUGE TUBULAR STAINLESS STEEL

• PANELS: 22 GAUGE TYPE 300 STAINLESS STEEL, #4 POLISH

WITH SATIN FINISH

• FEET: 1" ADJUSTABLE STAINLESS STEEL BULLET FEET

14 GAUGE TOP

24” WIDE QTY 30” WIDE QTY

140 - 21 140-26

140 - 22 140- 27

140 - 23 140 - 28

140 - 23 A 140 - 28 A

140 - 24 140 - 29

140 - 24A 140 -29A

140 - 25 140 - 30

STALLION EDGE

OPTIONAL ACCESSORIES

DESCRIPTION MODEL # QTY

CASTERS

OVERSHELVES

POT RAC K

SINKS

INTERMEDIATE SHELVES

S/S BUN PAN RACK

248

DETAILED SPECIFICATIONS

DETAILED SPECIFICATIONS

L

W

DETAILED SPECIFICATIONS

L

35 3/4"

W

14 7/8"

19 3/8"

CLEARANCE

L-3"

CLEARANCE

L÷2-2.25"

6"

W

DETAILED SPECIFICATIONS

35 3/4"

W

CLEARANCE

L÷2-2.25"

CLEARANCE

L÷2-2.25"

• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.

• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25”

LENGTH 24" WIDE WT. (LB S) 30” WIDE WT. (LBS )

48"

60"

72"

84"

96"

108"

120 "

140 - 21 173 140-26 190

140 - 22 200 140 -27 219

140 - 23 2 27 140 -2 8 250

140 - 23 A 259 140 -2 8A 28 4

140 - 24 291 140 -2 9 318

140 - 24A 320 140-2 9A 349

140 - 25 227 140 -3 0 379

14 GAUGE TOP

SOME UNITS SHIP UNASSEMBLED FOR REDUCED SHIPPING COST. ALL DIMENSIONS ARE TYPICAL. TOLERANCE +/- .500"

John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.

3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [e-mail]

www.johnboos.com

249
