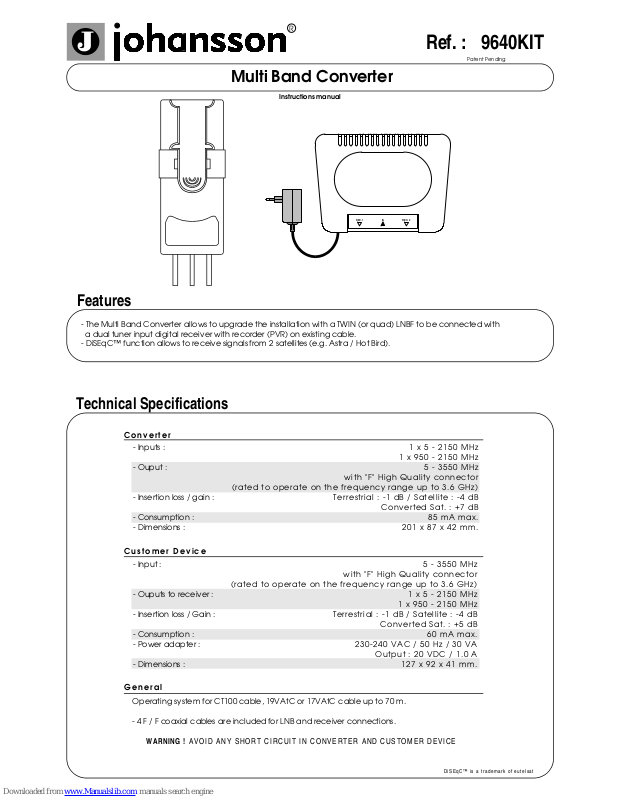

Multi Band Converter
R
Ref. : 9640KIT
Technical Specifications
Features
Patent Pending
Instructions manual
- The Multi Band Converter allows to upgrade the installation with a TWIN (or quad) LNBF to be connected with
a dual tuner input digital receiver with recorder (PVR) on existing cable.
- DiSEqC™ function allows to receive signals from 2 satellites (e.g. Astra / Hot Bird).
C o n v e r t e r
- Inputs :
- Ouput :
- Insertion loss / gain :
- Consumption :
- Dimensions :
1 x 5 - 2 150 MHz
1 x 950 - 21 50 MHz
5 - 355 0 MHz
with "F" High Quali ty c onne ct or
(r at ed t o operate on the frequency range up to 3.6 G Hz)
Terrestr ial : -1 dB / S at el lite : -4 dB
Co nv er ted Sat. : +7 dB
85 mA m ax .
201 x 8 7 x 4 2 mm.
C u s t o m e r D e v ic e
- Input :
- Ouputs to receiver :
- Insertion loss / Gain :
- Consumption :
- Power adapter :
- Dimensions :
5 - 355 0 M Hz
with "F" H ig h Quality c onnect or
(r at ed t o operate on the frequency range up to 3.6 G Hz )
1 x 5 - 2 150 MHz
1 x 950 - 21 50 MH z
Te rr estr ia l : -1 dB / S at el li te : - 4 dB
Conv er ted Sat. : + 5 dB
60 mA m ax .
230 -2 4 0 VAC / 5 0 Hz / 30 VA
Ou tput : 2 0 V DC / 1.0 A
127 x 9 2 x 4 1 mm.
Operating system for CT100 cable, 19VAtC or 17VAtC cable up to 70 m.
- 4 F / F coaxial cables are included for LNB and receiver connections.
WAR NIN G !
A VO I D A NY SHORT C I R C UI T I N C O NVERT ER A N D CUSTOMER D E V I C E
G e n e r a l
Di SE qC ™ is a tr ad em ar k of e ute ls at
REC. 2
REC. 1
IN
Page 2
Converter Mounting
Read carefully these instructions before connecting the unit.
The operating voltage is indicated on the nameplate of the power adapter.
To prevent fire, short circuit, shock hazard: Do not expose the unit to rain or moisture.
Install the unit in a dry location without infiltration or condensation of water.
Do not expose it to dripping or splashing.
Do not place objects filled with liquids, such as vases, on the apparatus.
If any liquid should accidentally fall into the cabinet, disconnect the power plug.
Refer to qualified technician before it's further operation.
To avoid any risk of overheating: Install the unit in a well aery location and keep a minimum distance of 10 cm around
the apparatus for sufficient ventilation.
Do not place any items such as newspapers, table-cloths, curtains ... on the unit that might cover the ventilation holes.
The unit must not be exposed to any source of heat (sun, heater,...).
Do not place any naked flame sources, such as lighted candles, on the apparatus.
Do not install the product in a dusty place.
Pull out power plug to make the different connections of cables.
To avoid electrical shock, do not open the housing.
Cleaning :
Only use a dry soft cloth to clean the cabinet.
Do not use solvent.
Servicing :
For repairing and servicing refer to qualified personnel.
Swinging arm
Swinging Arm Mount
... or Mast Mou nt
Strap
Strap
Strap
... or Wall Mount
Clamp
Strap
Clamp
Strap
Converter
Make connections between LNB and Converter with supplied 90 cm. F / F coaxial cables.
Make the necessary connections
with supplied 40 cm. F / F coaxial
cables.
Customer Device Mounting
REC. 2
REC. 1
IN
Safety Instructions
80 mm
40 mm
Page 3
message
online
remote command
interactive card
Customer Device
Exi s tin g cab l e
TWIN LNBF
or Quad LNBF
PVR receiver
D.T.H.
Direct To Home
Converter
ONE SATELLITE
Attention :
Connection between the Converter and
the Customer Device is a direct link
without any accessories such as splitters,
standard line amplifiers …
Applications
REC. 2
REC. 1
IN
Page 4
R
UNITRON nv
Frankrijklaan 27,
B-8970 Poperinge
Belgium
Products are subject to change without notice. 02/06
Tel. +32 5733 3363
Fax +32 5733 4524
www.johansson.be
e-mail : [email protected]
Receiver
The 5 - 2150 MHz output can be
connected to the SAT / TV diplexer
or direct to the receiver if no
TV signal is needed.
TWO SATELLITES
Receiver for Astra / Hot Bird
Ref. 9920
Twin DiSEqC™
multiswitch
Converter
TV
Dual Input Receiver
Two Receivers
OR
Astra Hot Bird
Receiver for Astra / Hot Bird
Hot BirdAstra
or
Exi s tin g ca bl e
FM/DAB/VHF/UHF
FM/DAB
VHF/UHF
Diplexer
(ref. 1269)
Applications
Attention :
Connection between the Converter and
the Customer Device is a direct link
without any accessories such as splitters,
standard line amplifiers …
Customer Device
REC. 2
REC. 1
IN
SAT / TV
Diplexer
(ref. 9501)
