Page 1
User Instruction Manual
Hoyer® HPL700
To avoid injury, read user manual prior to use.
Page 2
Hoyer
®
HPL700
2
English
Contents
1. Introduction ......................................................................................................................3
2. Safety Precautions ..........................................................................................................4
3. Assembly and Commissioning Instructions ....................................................................6
4. Standard Control Box & Hand Control ..........................................................................10
5. Smart Monitor & Hand Control ......................................................................................11
6. Operating Instructions ...................................................................................................15
7. 6-Point Bari Loop Spreader Bar System .......................................................................17
8. Charging Instructions ....................................................................................................19
9. Maintenance Schedule and Daily Check List ...............................................................20
10. Lifter Maintenance Checklist .........................................................................................21
11. Specifications ................................................................................................................22
12. Warranty ........................................................................................................................25
Page 3
Hoyer
®
HPL700
3
English
1. Introduction
Each HPL700 lift is fully assembled, load tested and certified before being packed/shipped.
The packing consists of a strong, purpose built carton that is used for both export and domestic
markets to ensure the safe arrival of the lift. Documents are supplied and packed with each lift
and should be kept safely for future reference.
• TEST CERTIFICATE
• USER MANUAL
The TEST CERTIFICATE is an important document and should be kept for reference purposes.
To properly maintain your lift please refer to the maintenance schedule included in this document.
If you are at all unsure what your country’s servicing requirements are, please check with your
dealer and/or a local government agency.
Statement of Intended Use
The intended use of this lifting device is for the safe lifting and transfer of an individual from one
resting surface to another (such as a bed to a wheelchair). Joerns Healthcare recommends that
the transfer of a patient is fully risk assessed and conducted safely over a short distance only.
The Hoyer HPL700 is suitable for patients in the SITTING, SITTING/RECUMBENT and
RECUMBENT positions.
The Hoyer HPL700 is an electrically operated patient lift, designed to support and promote safe
patient handling and transfer for both the patient and carer.
The Hoyer HPL700 lift incorporates a 6-point Bari loop spreader bar, as standard and is designed
to be used in conjunction with the Hoyer range of slings. The examples of slings suitable for use
with this device are listed as follows:
• Hoyer Bari Full Back
• Hoyer Bari Quickfit
• Hoyer Bari Hammock
With the optional 6-point standard spreader bar, examples of slings suitable for use with this
device are listed as follows:
• Hoyer Full Back
• Hoyer Quickfit
• Hoyer Quickfit Deluxe
• Hoyer Access
Expected Service Life
The HPL700 lift is designed and tested for a minimum service life of seven (7) years, subject to
the use and maintenance procedures stated in this manual. Use, other than in accordance with
these instructions, may compromise service life.
• Hoyer Long Seat
• Hoyer Repositioning
• Hoyer Twin Turner
• Hoyer Limb
Page 4
Hoyer
®
HPL700
4
English
2. Safety Precautions
Please read and follow the safety precautions listed below. The operation and use of Hoyer
patient lifts is simple and straightforward. Following these few basic safety precautions will make
lifting operations easy and trouble free.
READ AND UNDERSTAND THE USER INSTRUCTION MANUAL BEFORE USING THE
HOYER HPL700 LIFT
WARNING: Important safety information for hazards that might cause serious injury.
CAUTION: Information for preventing damage to the product.
NOTE: Information to which you should pay special attention.
WARNING
• DO NOT lift a patient unless you are trained and competent to do so.
• ALWAYS carry out the DAILY CHECK LIST located towards the end of the manual
before using the lift.
• DO NOT exceed the safe working load of the lift.
• ALWAYS plan your lifting operations before commencing.
• ALWAYS familiarize yourself with the operating control and safety features of a lift
before lifting a patient.
• DO NOT use a sling unless it is recommended for use with the lift.
• ALWAYS check the sling is suitable for the particular patient and is of the correct size
and capacity.
• NEVER use a sling, which is frayed or damaged.
• ALWAYS fit the sling according to the instructions provided (user instructions).
• ALWAYS check the safe working load of the lift is suitable for the weight of the
patient.
• ALWAYS carry out lifting operations according to the instructions in the user manual.
• NEVER disconnect or bypass a control or safety feature because it seems easier to
operate the lift.
• ALWAYS lock the wheels when lifting from the floor.
• DO NOT attempt to maneuver the lift by pushing on the mast, boom or patient.
• ALWAYS maneuver the lift with the handle provided. A foot push pad is also
provided.
• DO NOT push a loaded lift at speeds, which exceed a slow walking pace (2.6 ft/sec).
• DO NOT push the lift over uneven or rough ground. Particularly if loaded.
• DO NOT attempt to push/pull a loaded lift over a floor obstruction.
Page 5
Hoyer
®
HPL700
5
English
• NEVER force an operating/safety control. All controls are easy to use and do not
require excessive force.
• DO NOT park a loaded lift on ANY sloping surface.
• DO NOT use electric lifts in a shower.
• DO NOT use or store a lift in a wet or corrosive environment such as shower, bath or
pool locations.
• DO NOT charge batteries in a bathroom or shower room.
• DO NOT place or store batteries under direct sunlight or near a heat source.
• YOUR lift is for patient lifting. DO NOT use it, or allow it to be used, for any other
purpose.
• DO NOT bump the lift down steps, loaded or unloaded.
• DO NOT attempt to negotiate a loaded lift on a slope, which exceeds 1:12
(approximately 5 degrees)
• DO NOT attempt to negotiate a slope without a second helper being present.
• DO NOT use a loaded lift on thick pile carpet.
• NEVER operate the lift with loose or missing parts or fasteners.
• INSPECT all precautionary labels on the lift. Order and replace all labels that cannot
be easily read.
Page 6
Hoyer
®
HPL700
6
English
3. Assembly and Commissioning Instructions
WARNING
The Hoyer® HPL700 is heavy and will need to be lifted with care. You may need assistance
to lift the Hoyer HPL700 from the carton.
Carton Contents
Place the carton in a clear working area and open carefully. The carton contains:
Hoyer HPL700 Lift Product documents
Hand control Battery pack (2)
Charging cord Desk top charger/stand
Covers and hardware (2) 6-point Bari loop spreader bar
Assembly Instructions
Remove all the parts from the carton and place on the oor, taking care to protect the nish from
damage.
1. Place the chassis in a clear space and apply the rear brakes (Figure 1).
2. Remove the 5/8" bolt that connects the mast (in its shipping position) to the base. Remove the
3/8" carriage bolt as well (Figure 2). Do not discard these nuts and bolts as they are needed for
assembly.
Figure 1
Figure 2
Page 7
Hoyer
®
HPL700
7
English
3. Lift the mast assembly from the base. The assembly needs to be rotated and positioned close
to vertical so the handle is to the rear of the lift (Figure 3).
WARNING
Do not damage the cord that runs from the mast to the base. This can lead to the leg
spreader actuator not functioning.
4. Position the mast assembly into the base socket. Full engagement of the mast is indicated by
alignment of the 5/8” bolt hole between the mast and the base (Figure 3).
WARNING
Avoid trapping ngers. Keep ngers away from the end of the mast when inserting into the
base socket.
5. Insert 5/8” bolt and nut removed in Step 2, and tighten until snug.
6. Insert the 3/8” carriage bolt and nut removed in Step 2, and tighten until snug.
Figure 3
Step 5
Step 6
Step 4
Page 8
Hoyer
®
HPL700
8
English
Figure 4
Step 7
Figure 5
Steps 8, 9
Step 7
7. Attach the front and rear covers (Figures 4 and 5), using the screws provided.
8. Remove the key ring fastener from the boom actuator mounting bracket. Remove the pin
(Figure 5).
9. Carefully remove the orange tie from the lifter actuator that is attached to the mast (Figure 5).
10. Align the upper end of the lifter actuator and boom actuator mounting bracket (Figure 6).
Insert the pin. Install the key ring fastener.
11. To connect the spreader bar to the boom, see instructions on page 16.
12. Plug the hand control and actuator cables into the bottom of the controller. Refer to the gures
on page 10 or 11 for correct positions.
Figure 6
Step 10
Boom
Control
Leg Control
Page 9
Hoyer
®
HPL700
9
English
Always Check the Following Before Operation
• The mast is securely bolted into place per Steps 5 and 6.
• The red emergency stop is located on the front of the control box. Twist clockwise for normal lift
operation (on).
• The legs of the lift open and close satisfactorily (This is done via the hand control) (Figure 6).
• Push the up and down buttons on the hand control and conrm the boom raises and lowers
(Figure 7).
Figure 7
Forward
Direction of travel
Page 10
Hoyer
®
HPL700
10
English
4. Standard Control Box & Hand Control
Emergency Stop Button
Emergency Raise & Lower
Redundant Controls
LCD
Information
Screen
Hand Control
Connection
Socket
Actuator
Connection
Socket
Hand Control
Connection
Plug
Raise & Lower
Buttons
Hand Control
Actuator
Detachable Battery Pack
Legs Open /
Close Buttons
Page 11
Hoyer
®
HPL700
11
English
5. Smart Monitor & Hand Control
Emergency Stop Button
Emergency Raise & Lower
Redundant Controls
LCD
Information
Screen
Hand Control
Connection
Socket
Actuator
Connection
Socket
Hand Control
Connection
Plug
Raise & Lower
Buttons
Hand Control
Actuator
Detachable Battery
Pack
Smart Monitor
Legs Open /
Close Buttons
Legs Open / Close
Redundant Controls
Page 12
Hoyer
®
HPL700
12
English
Intended Use
The Hoyer Smart Monitor is a control system for Hoyer lifts. The Smart Monitor stores useful
servicing information about the lift that can be recalled when required. This servicing information
includes:
• Number of patient lift cycles
• Total work done by actuator
• Number of lift overloads (attempted lifts above the safe working load)
• Number of days since last service interval
The Hoyer Smart Monitor contains a microprocessor inside making it possible to read out service
data via the on-board LCD screen.
Features
• Data collection in the control box with data display via LCD screen
• Work counter
• Intelligent cycle counter
• Service indicator
• Service interval indicator
• Overload information
• 3 step battery indicator
Benefits
• Improved safety for both patient and carer
• Accurate service data available at the touch of a button
• Optimised product life time
• Ease of maintenance for engineers and service technicians
Page 13
Hoyer
®
HPL700
13
English

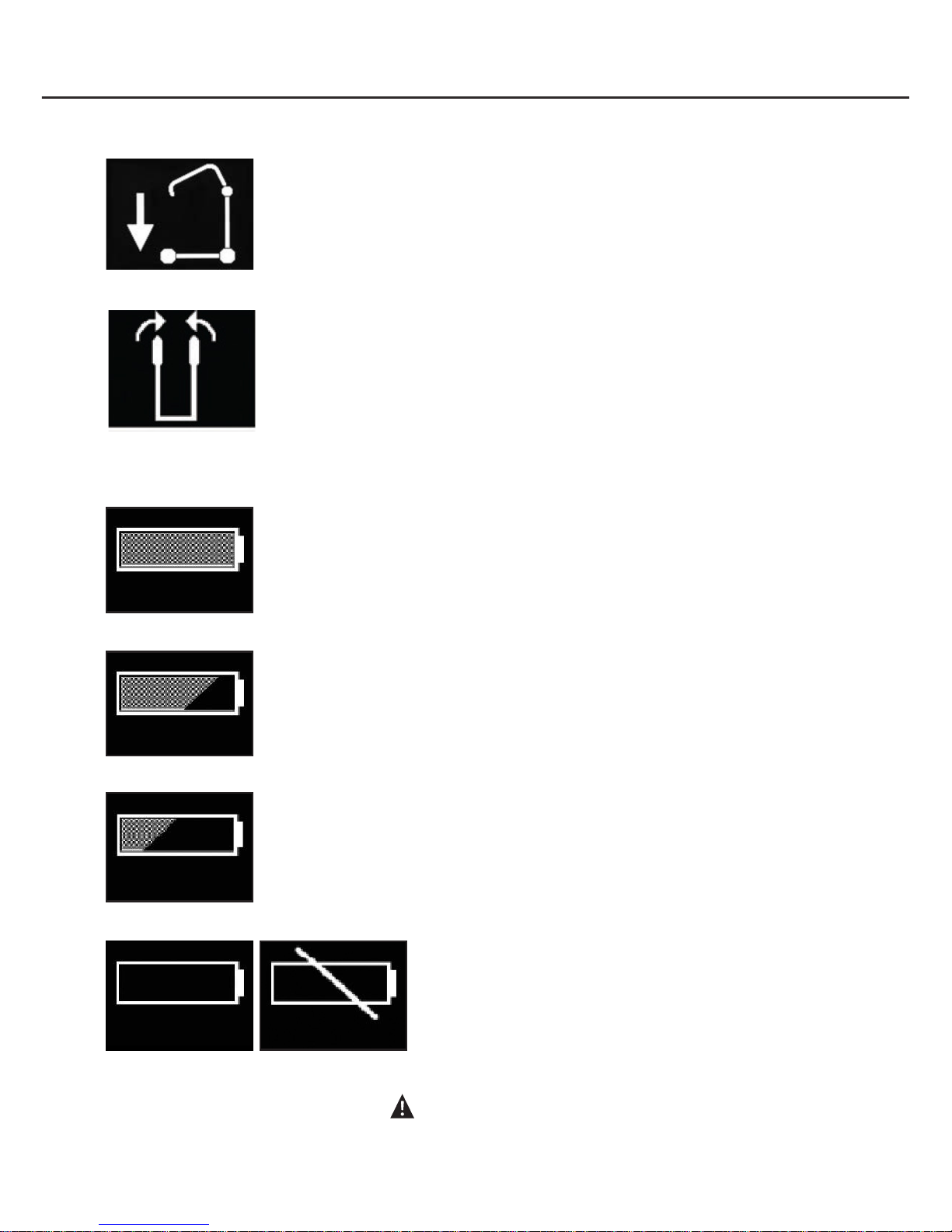

LCD Display Screen
The Hoyer Smart Monitor has the option to read out information via the LCD display screen. It is
possible to read out total lifting cycles, total work done, overloads and number of days since last
service, which can be used to quickly and easily evaluate the condition of the lift actuator.
This information is accessed by a ½ second press on the ‘UP’ button on the User Hand Control
or redundant ‘UP’ button on the Smart Monitor.
Service & Usage Information
When it is time for a service, the service symbol will appear on the
display. In addition, when the user hand control is activated, the Smart
Monitor will give an audible signal giving notice to users that a PM
check is recommended (see recommended maintenance schedule later
in this manual).
The service symbol will be displayed each time the raise or lower keys
are depressed on the user hand control.
To reset the service interval to one year, depress the raise and lower
buttons simultaneously for five seconds.
If the lift stops because of an overload (an attempt to lift more than the
safe working load) the overload symbol will appear on th e LCD display
and the lift will cease. Lower the boom and remove excess weight.
WARNING
If the LCD display screen on your Smart Monitor has recorded
an overload, Joerns Healthcare recommend that ALL routine
daily checks are carried out on the lift prior to further use (for a
list of daily checks, please refer to your lift user manual). Joerns
Healthcare also recommend that you contact your authorised
Hoyer service provider for additional guidance.
Total Lifting Cycles
Total Work Done (Amps * Seconds)
Number of Overloads
Number of Days (since last service) /
Number of Days (between services)
Page 14
Hoyer
®
HPL700
14
English
On-Board Redundant Controls:
On-board redundant controls enable the lift to be raised or lowered in the
event of an emergency (Fig. 10).
If your lift incorporates powered leg positioning, there are redundant
controls to both open and close the legs. (Fig 11).
Battery Information:
The display showing full battery means that the battery is fully charged
and the lift is ready for use (Fig. 12).
The display indicates the battery is at 25-50% and charging is
recommended (Fig. 13).
The display indicates the battery is below 25% and requires charging. At
this state, the control box will provide an audible alert when a button is
pressed (Fig. 14).
WARNING
To avoid possible permanent damage to the battery, the battery should be placed on
charge as soon as the display indicates the half empty battery symbol (Fig. 14).
Fig. 12
Fig. 14
Fig. 15
Fig. 10
Fig. 11
Fig. 13
The empty battery symbol showing on the display indicates the
battery needs charging. At this stage, some of the functionality
of the lift is lost and it is only possible to drive the lifting arm
down. The symbol will switch between the two pictures for 10
seconds (Fig.15.). Permanent damage to the battery is likely to
occur with continued battery depletion to this state.
Page 15
Hoyer
®
HPL700
15
English
6. Operating Instructions
Read carefully the “Important Precautions” section before attempting to use the lift.
WARNING
• The Hoyer® lift is not intended to be a transport device. Patients in the lift should be
transferred for short distances only (example: bed to chair or toilet).
• Do not attempt to maneuver the lift by pulling on the mast, boom, actuator or patient.
CAUTION
Have someone assist you when attempting to transfer a patient.
Always carry out the daily checklist before each lift use.
1. Leg Adjustment
The legs on the Hoyer HPL700 are electrically adjustable for width. The legs can be opened to
enable access around armchairs or wheelchairs. For transferring and negotiating narrow doorways
and passages, the lift legs should be in the closed position. Electric leg adjustment is achieved by
pressing the appropriate buttons on the hand control. The legs will be locked whenever the hand
control switch is released.
2. Casters and Braking
The lift has two braked casters which can be applied for parking. When lifting, the casters should
be left free and un-braked (the only exception is when lifting a patient from the oor). The lift will
then be able to move to the center of gravity of the lift. If the brakes are applied it is the patient that
will swing to the center of gravity and this may prove disconcerting and uncomfortable.
3. Raising and Lowering the Boom
The movement of the boom is achieved by a powerful electric actuator which is controlled by a
simple hand control box. The hand control has two buttons with directional arrows UP («) and
DOWN (»). The actuator stops automatically at the limit of travel in both directions. The hand
control plugs into a socket at the base of the control box.
4. Emergency Stop
The red Emergency Stop Button is located on the front of the control box and is activated by
pressing in. This will cut all power to the lift and can be reset by twisting the button counterclockwise and releasing.
5. Redundant controls
The HPL700 is fitted with redundant controls for raise/lower and base open/close on the control
box. These are located under the emergency stop button and can be used should the hand
control fail.
Page 16
Hoyer
®
HPL700
16
English
6. Mechanical Emergency Down
In the case of a complete electrical failure the electrical actuator is fitted with a mechanical
lowering device (RED BOSS). Dependent on your lift, the device is either pulled upwards, or
twisted by hand to activate. A slow decent will commence. Repeat this process until the patient
has been safely lowered.
CAUTION
Mechanical emergency down is to be used for emergency purposes only. Repeated use may
cause permanent damage to the actuator.
7. Batteries
The batteries are protected from deep discharge by a LOW VOLTAGE ALARM. This will sound
when the batteries need recharging and the hand control is being operated. It will not sound
independently of the hand control being operated. DO NOT IGNORE THIS WARNING ALARM.
Complete the lifting operation and place the battery on charge (see charging instructions).
8. Slings
The Hoyer HPL700 has a 6-point bari loop spreader bar. The 6-point system uses slings with
webbing loops which allow positioning adjustment by selecting different colored straps.
Loop Strap Slings: Hoyer Bari Quickt and Bari Full Back slings.
The 6-point system attaches to the spreader bar hooks via loop straps. Each sling is supplied with
instructions. Please study the instruction guide before use.
NOTE: For detailed fitting instructions, please refer to the user guide supplied with each sling.
WARNING
Joerns Healthcare recommends that slings be checked regularly and particularly before
use for signs of fraying or damage. DO NOT use slings that are worn or damaged.
WARNING
HOYER RECOMMENDS THE USE OF GENUINE HOYER PARTS. Hoyer slings and lifts
are not designed to be interchangeable with other manufacturer’s products. Using other
manufacturer’s products on Hoyer products is potentially unsafe and could result in
serious injury to patient and/or caregiver.
WARNING
Refer to maximum weight capacity of lift. Sling capacity is limited by the maximum
capacity of the lift.
Page 17
Hoyer
®
HPL700
17
English
7. 6-Point Bari Loop Spreader Bar System
Follow these instructions exactly
Your Hoyer
®
HPL700 lift uses 6-point Bari loop spreader bar. The removal of this system is
completed easily by the use of a quick-release pin. This is done quickly and easily, but you must
read the following safety instructions to ensure the spreader bar is safely locked into position
before use.
WARNING
Do not attempt to disassemble kingpin from the 6-point Bari loop spreader bar. This applies
to spreader bar with or without scale.
Connection
To connect, place the spreader bar on a solid surface such as a table and lower the boom for ease
of attachment (Figure 8).
HPL700 (without scale):
Insert the pin sleeve through end of the boom and the kingpin of the spreader bar (Figure 9).
Figure 8
Figure 9
Page 18
Hoyer
®
HPL700
18
English
Once aligned in the boom slot reinsert the quick release pin fully into the sleeve until it locks into
position (Figure 11). YOU MUST CHECK THAT THE PIN IS SECURELY FITTED.
To do this, press your nger into the barbed end. If the pin remains stationary, the lift is safe to use.
HPL700WSC (with scale):
Place a plastic washer on each side of scale housing, align holes, align these items within the end
of the boom, and install the pin sleeve. Insert the quick release pin fully into the sleeve until it locks
into position (Figure 10 and 11). You must check that the pin is securely tted.
Removal
CAUTION
Be sure to support the weight of the spreader bar before removing pin.
To detach pin, depress the spring barb (using a at screwdriver or similar) and pull the pin out.
Support the 6-point Bari loop spreader bar, and then pull the pin sleeve in the opposite direction,
removing it completely from the boom. This will release the spreader bar completely.
Figure 10
Figure 11
Page 19
Hoyer
®
HPL700
19
English
8. Charging Instructions
When the power pack needs charging it is removed from the lift and fitted to an off board
charging unit.
1. Remove the power pack from the lift. The pack is retained by a simple latch at the top of the
power pack. Lift the latch and the power pack will be released.
2.
Fit the power pack to the charging unit. The location and latching of the power pack to the
charger is the same system as used on the lift.
3.
Plug the charger mains plug into a suitable mains outlet and switch the mains supply ON.
4. Charging is automatic and will fully charge the batteries over a period of four (4) hours.
Note: Even if the charger is left plugged in for extended periods it will not allow the batteries to
overcharge.
a) Green Light - Indicates main power is on.
b) Yellow Light - Indicates battery is charging.
c) Battery will be fully charged when yellow light goes off.
Note: It is recommended that the battery be charged immediately upon receipt.
5.
To return the lift to service, unplug the charger and remove the power pack from the charger.
Fit the power pack to the lift and make sure the latch holding the pack in place is fully
engaged. “Click” in place. The charging of Hoyer electric lifts is simple and straightforward, but
it is important to follow the charging instructions closely. Please pay particular attention to the
following points, they will help you avoid problems with discharged batteries.
WARNING
• The battery, charger, hand control and control box are NOT to be opened by
unauthorised personnel. (Contact your distributor for warranty and repairs).
• DO NOT touch battery/charger terminals.
• KEEP the batteries fully charged. Place the battery on charge whenever it is not in use.
If it is more convenient to do so, place on charge every night. The charger will not allow
the batteries to overcharge.
• NEVER run the batteries completely flat. As soon as the audible warning sounds,
complete the lifting operation in hand and place on charge.
• To avoid possible permanent damage to the battery, the battery should be placed on
charge as soon as the display indicates the half empty battery symbol.
• NEVER store the battery for long periods without regular charging throughout the
storage period.
• NEVER leave the battery pack connected with the charger unit unplugged.
• DO NOT leave the charger plugged in with no battery connected.
• NEVER disconnect the charger plug by pulling on the cable.
• BE CAREFUL not to trip over the charge lead.
• DO NOT charge batteries in a bathroom or shower room.
Page 20
Hoyer
®
HPL700
20
English
9. Maintenance Schedule and Daily Check List
All Hoyer products are designed for minimum maintenance, however some safety checks and
procedures are required. A schedule of DAILY tasks are detailed below. Daily checks and a
yearly service, inspection and test will ensure a lift is kept in optimum safe working condition. A list
of spare parts is available upon request.
DAILY CHECK LIST: Joerns Healthcare strongly recommends the following checks be
carried out on a daily basis and before using lift.
- MAKE sure the lift moves freely on its castors.
- MAKE sure the spreader bar is free to rotate and swing. Check the spreader bar is firmly
attached to the boom.
- ENSURE the mast is fully engaged into the mast slot and the mast locking device is securely tightened.
- EXAMINE the sling hooks on the spreader bar and side suspenders for excessive wear. If in
doubt - do not use.
- MAKE sure the legs open and close correctly.
- OPERATE the hand control to confirm the boom raises and lowers satisfactorily.
- CONFIRM the lift is not giving a low battery indicator when the hand control is operated. If a low
battery is indicated, DO NOT use and place on charge immediately.
- Check the operation of the emergency stop button.
- EXAMINE slings for fraying or other damage. DO NOT use any sling if damaged or if the sling
shows signs of wear.
MAINTENANCE
Joerns Healthcare recommends regular inspection and maintenance. Please refer to the chart on
the next page.
Page 21
Hoyer
®
HPL700
21
English
*THESE CHECKS SHOULD INCLUDE:
Initially
Before
Use
Annual
Service
1. SPREADER BAR: Check the spreader bar for freedom of rotation and
swing. Check for wear on the central pivot. Check for firm attachment to the
boom.
ü ü ü
2.
BOOM: Check the attachment of the boom to the mast. Make sure there is
only minimal side movement of the boom and the boom is free to rotate on
the boom bearing.
ü ü ü
3. MAST: Check the operation of the mast-locking device. Make sure the mast
fully engages into the socket. Check the bottom actuator.
ü ü ü
4. ACTUATOR: The actuator should require no maintenance other than
checking for correct operation and listening for unusual noise.
ü ü
5.
CONTROL BOX/SMART MONITOR: Check the function of the emergency
stop button. Inspect the hand control socket for correct fitting. Check
functioning of the hand control. Check the redundant controls and confirm
they operate as intended.
ü ü ü
6. BATTERIES: The batteries are housed in the power pack and should not
require maintenance other than the regular charging as detailed in the
charging instructions. Check that the connections remain clean.
ü
7. LEG ADJUSTMENT: Check the legs operate in both full extensions (inward/
outward).
ü ü
8. CASTORS: Check all castors for firm attachment to the legs. Check for free
rotation of the castor and the wheels.
ü ü ü
9. CLEANING: Clean with ordinary soap and water and/or any hard surface
disinfectant. Harsh chemical cleaners or abrasives should be avoided as
these may damage the surface finish of the lift. Avoid wetting any of the
electrical parts.
ü ü
10. BASE AND WHEELS: Ensure base is even and level (all four wheels are
on the floor).
ü ü ü
11. SLINGS: Check for wear and fraying.
ü ü ü
12. LUBRICATION: Lubricate pivot joints with any light food grade spray
lubricant, including mast and boom connections, pedal assembly, spreader
bar joint (only if required),
ü
13. HAND CONTROL: Ensure plugged fully into controller.
ü ü
14. QUICK RELEASE PIN: Ensure the pin is securely fitted before lifting.
ü ü
15. HARDWARE: Check all nuts, bolts, screws and fasteners for excessive
wear and for tightness. Replace as required.
ü ü
ü
= Recommended
10. Lier Maintenance Checklist
Page 22
Hoyer
®
HPL700
22
English
11. Specifications
Safe Working Load .................................................................................700 lbs .................... 227kg
Maximum Overall Length.............................................................................. 56"
................1423mm
Minimum Overall Length............................................................................... 55"
................1397mm
Maximum Overall Height
.............................................................................. 81" ................2058mm
Minimum Overall Height
.......................................................................... 57.75" ................1467mm
Height at Maximum Reach
........................................................................ 46.5" ................ 1181mm
Reach at Maximum Height
........................................................................ 28.5" ..................724mm
Reach at Minimum Height
............................................................................ 27" ..................686mm
Maximum Reach*
.................................................................................... 37.75" ..................959mm
Turning Radius
............................................................................................. 62" ................1575mm
Legs Open - External Width
.................................................................... 46.25" ................ 1175mm
Legs Open - Internal Width...................................................................... 42.25"
................1073mm
Legs Closed - External Width
.................................................................... 27.5" ..................699mm
Legs Closed - Internal Width
..................................................................... 23.5" ..................597mm
Overall Height of Legs
................................................................................. 4.5" .................. 114mm
Ground Clearance
................................................................................... 0.625" ....................16mm
Front Twin Casters
......................................................................................... 3" ....................76mm
Rear Braked Casters
...................................................................................... 4" ..................102mm
Maximum Sound Level
........................................................................................................64 dB (A)
Operating forces of the controls meet the requirements of ISO 10535
*Reach = Center of spreader bar to the front of the mast
6-Point Bari Loop Spreader Bar (measurement to top of location pins)
Spreader Bar Maximum Height
.....................................................................69" ................1753mm
Spreader Bar Minimum Height
.................................................................23.25" .................. 591mm
Weight
Mast, Base, Boom Assembly, Spreader Bar
.......................................143.4 lbs ......................65kg
Power Pack
.............................................................................................6.6 lbs ......................... 3kg
Total
........................................................................................................150 lbs ...................... 68kg
Base Assembly
........................................................................................83 lbs ...................... 38kg
Mast and Boom (not including battery)
..................................................40.4 lbs ...................... 18kg
6-Point Bari Loop Spreader Bar
...............................................................20 lbs ........................ 9kg
All measurements are within a +5/-5% tolerance.
Page 23
Hoyer
®
HPL700
23
English
Electrical Specifications:
Batteries ................................................2 x 12 Volt rechargeable sealed lead acid type
Battery Capacity ....................................2.9 Ampere hours
Charger Rated Input ..............................100-240V AC/24 VDC 50/60 Hz. Max 400MA
Charger Rated Output ...........................29.5 VDC. Max 19W
Electric Shock Protection:
Charger..................................................Class II (Double insulated)
Lift
..........................................................Internal Power Source
Degree of Shock Protection:
Charger..................................................Type B
Lift
..........................................................Type B
Environmental Conditions:
Outside this environment functionality and safety may be compromised.
Operating:
Temperature .........................................5°C to 40°C
Relative humidity
...................................20% to 90% @ 30°C - not condensing
Atmospheric pressure
...........................800 to 1060 hPa
Noise level
.............................................55 dB
Storage:
Temperature
..........................................-10°C to +50°C
Relative humidity ...................................20% to 90% @ 30°C - not condensing
Atmospheric pressure ...........................800 to 1060 hPa
IP Ratings:
Control Box ...........................................IPX4
Actuator
.................................................IPX4
Off Board Charger ................................IPX5
Battery ..................................................IPX5
Hand Control ........................................IPX4
Duty Cycles:
Actuator
.................................................10% (2 min/18 min)
Battery ..................................................10% (2 min/18 min)
Page 24
Hoyer
®
HPL700
24
English
KEY SYMBOLS:
The following symbols are used on the charger, control box and battery:
Type B equipment, as per EN 60601-1
Class 2 equipment
The disposal of the charging and control box should not be mixed with general
household waste.
The disposal of batteries should not be mixed with general household waste.
The disposal of electronics should not be mixed with general household waste.
For indoor use
ATTENTION, consult accompanying documents.
Page 25
Hoyer
®
HPL700
25
English
12. Warranty
The HPL700 lifts are guaranteed for a period of two years from the date of delivery against
defects in materials and workmanship under normal use and service. This warranty includes all
mechanical and electrical components.
Structural components on lifts are covered under warranty for a pe ri od o f fi ve ( 5) y ea rs f rom the
date of delivery.
Damage caused by use in unsuitable environmental conditions or failure to maintain the product
in accordance with user and service instructions is not covered. Any alteration, modification or
repair unless performed by or authorized in writing by Joerns Healthcare will void this warranty.
Parts:
HoyerPro lifts contain various parts that wear from normal use. These parts, such as DC batteries
and casters are not covered under the two-year warranty but are covered for 90 days after date
of delivery.
Joerns Healthcare’s obligation under this warranty is limited to supplying replacement parts, servicing
or replacing, at its option, any product which is found by Joerns Healthcare to be defective.
Warranty replacement parts are covered by the terms of this warranty until the product’s original
warranty period expires.
When requested by Joerns Healthcare, parts must be returned for inspection at the customer’s
expense. Credit will be issued only after inspection.
Service:
Most service requests handled by the facility Maintenance Department with assistance from the
Joerns Healthcare Product Service Department.
Most parts requested can be shipped next day air at the customer’s expense.
Should a technician be required, one will be provided by Joerns Healthcare, at our discretion.
Only the Joerns Healthcare Product Service Department can dispatch authorized technicians.
This warranty is extended to the original purchaser of the equipment.
Loading...
