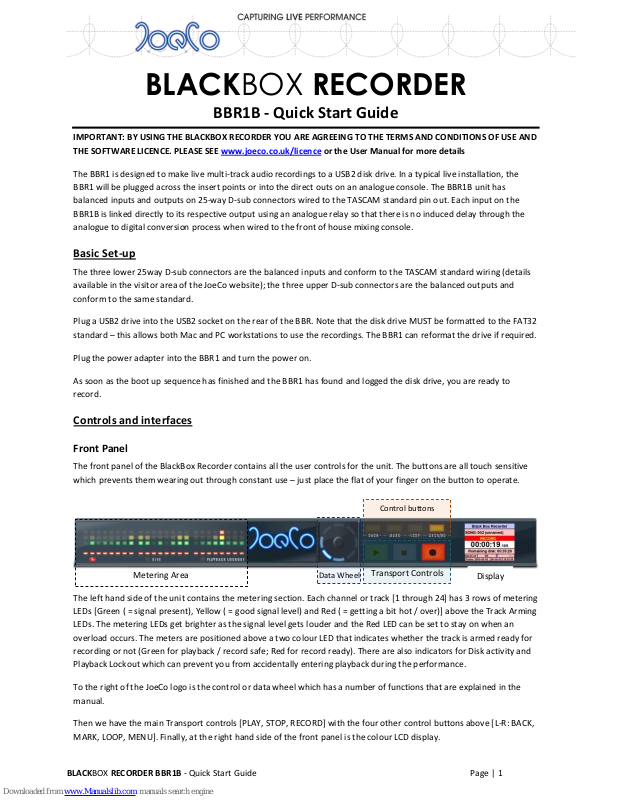

BLACKBOX RECORDER BBR1B - Quick Start Guide Page | 1

BLACKBOX RECORDER

BBR1B - Quick Start Guide

IMPORTANT: BY USING THE BLACKBOX RECORDER YOU ARE AGREEING TO THE TERMS AND CONDITIONS OF USE AND
THE SOFTWARE LICENCE. PLEASE SEE www.joeco.co.uk/licence or the User Manual for more details

The BBR1 is designed to make live multi-track audio recordings to a USB2 disk drive. In a typical live installation, the
BBR1 will be plugged across the insert points or into the direct outs on an analogue console. The BBR1B unit has
balanced inputs and outputs on 25-way D-sub connectors wired to the TASCAM standard pin out. Each input on the
BBR1B is linked directly to its respective output using an analogue relay so that there is no induced delay through the
analogue to digital conversion process when wired to the front of house mixing console.

Basic Set-up

The three lower 25way D-sub connectors are the balanced inputs and conform to the TASCAM standard wiring (details
available in the visitor area of the JoeCo website); the three upper D-sub connectors are the balanced outputs and
conform to the same standard.

Plug a USB2 drive into the USB2 socket on the rear of the BBR. Note that the disk drive MUST be formatted to the FAT32
standard – this allows both Mac and PC workstations to use the recordings. The BBR1 can reformat the drive if required.

Plug the power adapter into the BBR1 and turn the power on.

As soon as the boot up sequence has finished and the BBR1 has found and logged the disk drive, you are ready to
record.

Controls and interfaces

Front Panel

The front panel of the BlackBox Recorder contains all the user controls for the unit. The buttons are all touch sensitive
which prevents them wearing out through constant use – just place the flat of your finger on the button to operate.

The left hand side of the unit contains the metering section. Each channel or track [1 through 24] has 3 rows of metering
LEDs [Green ( = signal present), Yellow ( = good signal level) and Red ( = getting a bit hot / over)] above the Track Arming
LEDs. The metering LEDs get brighter as the signal level gets louder and the Red LED can be set to stay on when an
overload occurs. The meters are positioned above a two colour LED that indicates whether the track is armed ready for
recording or not (Green for playback / record safe; Red for record ready). There are also indicators for Disk activity and
Playback Lockout which can prevent you from accidentally entering playback during the performance.

To the right of the JoeCo logo is the control or data wheel which has a number of functions that are explained in the
manual.

Then we have the main Transport controls [PLAY, STOP, RECORD] with the four other control buttons above [L-R: BACK,
MARK, LOOP, MENU]. Finally, at the right hand side of the front panel is the colour LCD display.

Metering Area

Transport Controls

Control buttons

Display

Data Wheel

BLACKBOX RECORDER BBR1B - Quick Start Guide Page | 2

Adjusting Settings

All user definable settings are adjusted using the MENU and BACK buttons and the data wheel. Parameters are
displayed on a RED background whilst being adjusted. The MENU button takes you deeper into the MENU structure or
selects the currently highlighted item for adjustment. The BACK button takes you out of the MENU structure.

The MENU button also doubles as a CONFIRM button and the BACK button doubles as CANCEL.

Rear Panel

The rear panel will look slightly different depending on which style of audio interface you have on your BlackBox
Recorder. The areas indicated in the diagram below are explained in more detail in the user manual.

Analogue Signal levels are as follows and can be adjusted in the Setup MENU

Setting

LOW

PRO

Nominal level

-10dBu

+4dBu

Headroom above nominal level

14dB

18dB

0dBFS (when digital clipping occurs)

+4dBu

+22dBu

The BBR1B does not provide loop through inserts as the output cables can be routed through any external effects
before returning to the console’s insert returns. The loop through inserts are therefore blanked off

You may want to plug a pair of headphones into the headphone socket. The data wheel then acts as a volume control
for the headphones only. Holding the BACK button while using the data wheel allows the headphones to be used to solo
pairs of channels. V2 software allows you to create a rough mix for the headphone output

You may need to synchronise the BBR1 to other equipment.

Linear Time Code (LTC) or MIDI Time Code (MTC) can be used to provide a timestamp for the audio files you record.

The BBR1 can also lock to an External Digital Audio Clock. It is very important that you understand about clocking digital
audio systems before you start to use external clock signals. This is explained in much more detail in the user manual.

You may want to name the songs and the tracks that you record in which case you will require a keyboard with a PS2
connector. Ctrl+S allows you to rename Songs; Ctrl-T allows you to name tracks. The keyboard can also be used as a
hardware controller for the transport controls and to operate the menu

The rest of the rear panel and other operational matters are explained in greater detail in the user manual.

(c) JoeCo Limited 2009, 2010. E&OE. All rights reserved

Balanced Analogue outputs

Loop through insert points – Not fitted

Balanced Analogue inputs

Clocks
Disk

Keyboard

Headphones

Sync and Control

Power
