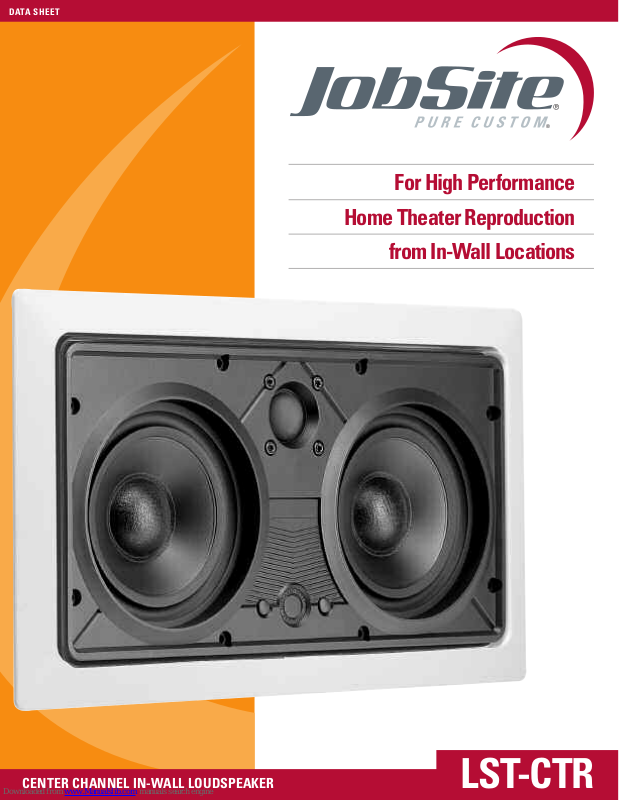

Page 1
DATA SHEET
For High Performance
Home Theater Reproduction
from In-Wall Locations
PHOTO TO BE
REPLACED
CENTER CHANNEL IN-WALL LOUDSPEAKER
LST-CTR
Page 2
LST-CTR
CENTER CHANNEL IN-WALL LOUDSPEAKER
FEATURES
• Dual 5 -1/4” magnetically shielded mica filled polypropylene woofers
with butyl rubber surrounds
• 1” liquid cooled magnetically shielded ElastoDynamic
Front mounted dialog enhancement switch
•
• Front mounted treble cut switch (-3dB)
• Crossover mounted off-axis compensation (OAC) switch
• Rigid braced ABS speaker baffle
• Moisture and UV resistant
• Rust proof aluminum grilles
INSTALLATION FRIENDLY DESIGN:
• Suitable for painting
• Connection terminals accept up to 12 gauge speaker wire
• Includes system mounting hardware for new construction or
retrofit installations
• Includes hole template
SPECIFICATIONS
®
dome tweeter
• Power handling: 10 – 150 watts
• Frequency response: 45Hz-21kHz +/- 3dB
• Impedance: 8 ohms
DIMENSIONS
• 8 -1/4” x 14-1/2” outside dimension
• 7-1/8” x 13-1/4” hole cutout
• 3-1/8” deep when installed in 1/2” drywall
WARRANTY
• Warranty: 5 year limited
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P 866.4JB.SITE (866.452.7483)
F 305.238.0185
.JOBSITESYSTEMS.COM
WWW
©2004 Niles Audio Corporation. JobSite,
Pure Custom, ElastoDynamic and Niles are
registered trademarks of Niles Audio
Corporation and the JobSite Logo is a
trademark of Niles Audio Corporation.
JSLSTCTRPDF
CENTER CHANNEL IN-WALL LOUDSPEAKER
Specifications subject to change without notice.
LST-CTR
