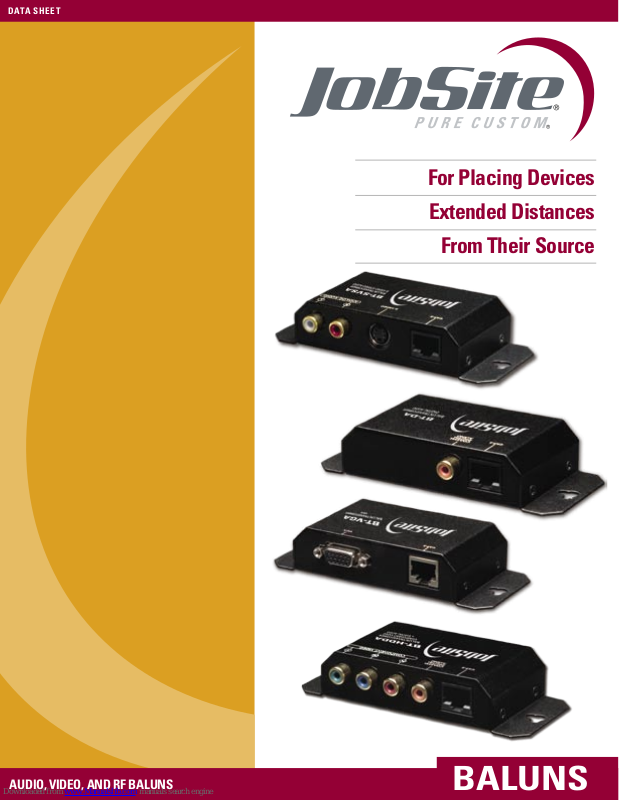

Page 1
DATA S HEET
For Placing Devices
Extended Distances
From Their Source
AUDIO, VIDEO, AND RF BALUNS
BALUNS

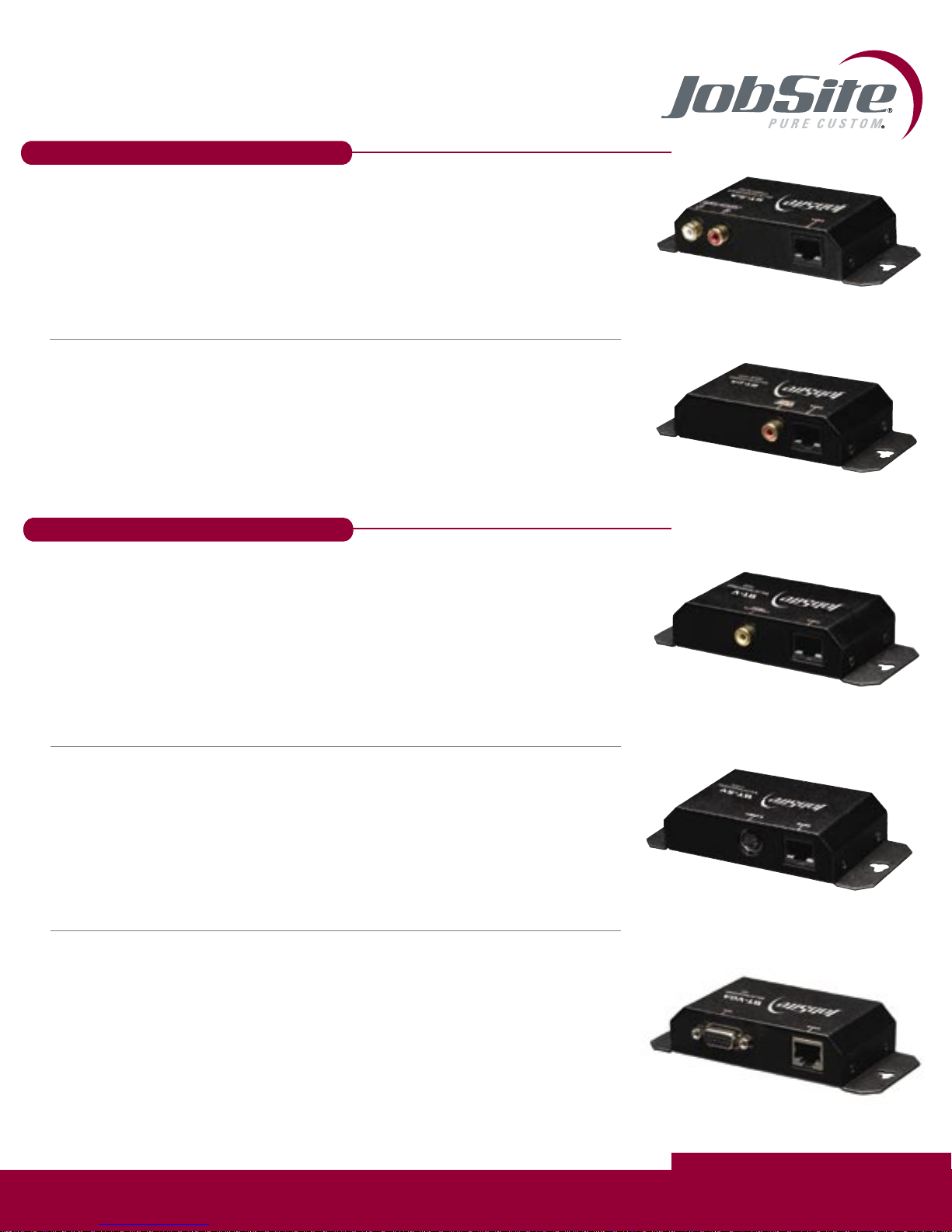

Page 2
AUDIO - CAT-5 BALUNS
BALUN TRANSFORMER STEREO AUDIO
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated Color Coded RCA Connectors
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
BALUN TRANSFORMER DIGITAL AUDIO
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated Color Coded RCA Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
VIDEO - CAT-5 BALUNS
BALUN TRANSFORMER VIDEO
• Bandwidth: 20 Hz – 20 kHz
• Transmission Distance:
2000' (CAT-3 UTP)
2500' (CAT-5 UTP)
Warranty Ten year limited
Shipping Weight: 1 lb
• Bandwidth: 25 MHz – 1 dB
• Transmission Distance:
600' (180 m)
Warranty Ten year limited
Shipping Weight: 1 lb
BT-SA
PART # FG01376
BT-DA
PART # FG01377
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated Color Coded RCA Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
• Bandwidth: DC to 10 MHz
BALUN TRANSFORMER S-VIDEO
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated S-Video DIN Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
BALUN TRANSFORMER VGA
FEATURES:
• Shielded CAT-5 Connector
• DB-15HD Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
• Bandwidth:
0-50 MHz, -3dB at 165’ (50 m)
• Transmission Distance: CAT-5 STP:
• Transmission Distance:
Color: 1500' (CAT-3 UTP)
2200' (CAT-5 UTP)
B & W: 2000' (CAT-3 UTP)
2500' (CAT-5 UTP)
Warranty Ten year limited
Shipping Weight: 1 lb
• Bandwidth:
Y: DC to 6 MHz
C: 1MHz to 6 MHz
• Transmission Distance:
500' (150m) (CAT-5 UTP)
Warranty Ten year limited
Shipping Weight: 1 lb
640 X 480 pixels, 50 Hz
(15 MHz): 330’ (100 m)
800 X 600 pixels, 60 Hz
(30 MHz): 330’ (100 m)
1024 X 768 pixels, 75 Hz
(60 MHz): 250’ (75 m)
1280 X 1024 pixels, 75 Hz
(100 MHz): 165’ (50 m)
Warranty Ten year limited
Shipping Weight: 1 lb
BT-V
PART # FG01378
BT-SV
PART # FG01379
BT-VGA
PART # FG01380
AUDIO, VIDEO, AND RF BALUNS
BALUNS

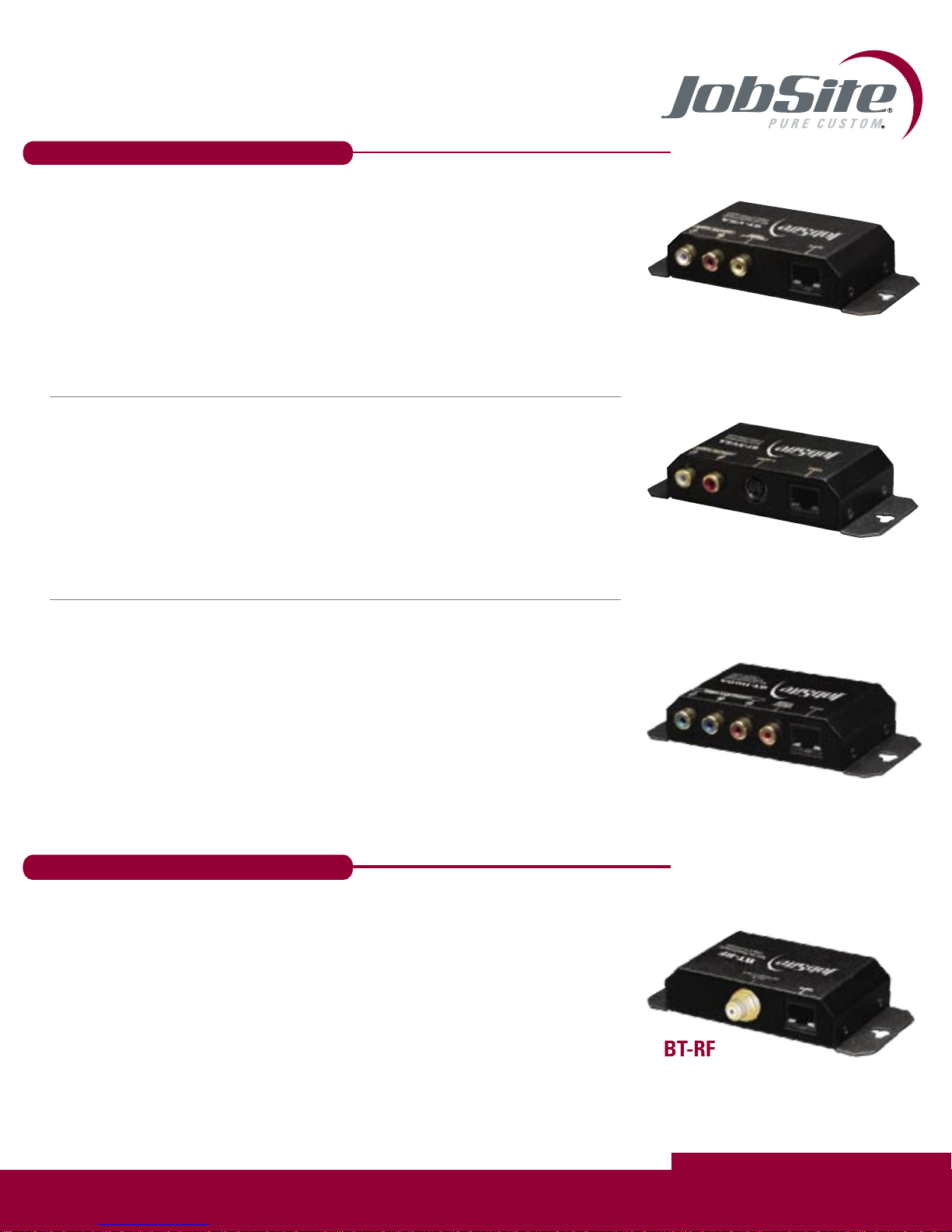

Page 3
AUDIO & VIDEO - CAT-5 BALUNS
BALUN TRANSFORMER VIDEO STEREO AUDIO
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated Color Coded RCA Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
• Bandwidth:
Video: DC to 10 MHz
Audio: 20 Hz-20kHz
• Transmission Distance:
Color: 1500' (CAT-3 UTP)
2200' (CAT-5 UTP)
B & W: 2000' (CAT-3 UTP)
2500' (CAT-5 UTP)
Warranty Ten year limited
Shipping Weight: 1 lb
BALUN TRANSFORMER S-VIDEO STEREO AUDIO
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated Color Coded RCA Connector
• Gold Plated S-Video DIN Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
• Bandwidth:
Y: DC to 6 MHz
C: 1MHz to 6 MHz
• Transmission Distance:
S-Video:500' (150 m)
(CAT-5 UTP)
Warranty Ten year limited
Shipping Weight: 1 lb
BT-VSA
PART # FG01381
BT-SVSA
PART # FG01382
BALUN TRANSFORMER VIDEO + DIGITAL AUDIO
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated Color Coded RCA Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
• Bandwidth:
Video: 0-60MHz, -3 dB
Digital Audio: 25 MHz -1 dB
AUDIO & VIDEO - CAT-5 BALUNS
RF - CAT-5 BALUNS
BALUN TRANSFORMER CABLE TV/ANTENNA
FEATURES:
• Shielded CAT-5 Connector
• Gold Plated Color Coded RCA Connector
• Universal Mounting Holes
SPECIFICATIONS:
n• Overall dimensions:
4.75" W x .85" H x 2" D
• Bandwidth: 5 MHz to 550 Mhz
• Transmission Distance:
Video, Color, CAT-5 UTP or STP:
480i/p:1000' (300m)
720p: 500' (150m)
1080i: 500' (300m)
Digital Video: 500' (150 m)
Warranty Ten year limited
Shipping Weight: 1 lb
• Transmission Distance:
Up to 330' (100 m) using CAT-5 UTP
Warranty Ten year limited
Shipping Weight: 1 lb
BT-HDDA
PART # FG01383
BT-RF
PART # FG01384
AUDIO, VIDEO, AND RF BALUNS
BALUNS
Page 4
ADDITIONAL INFORMATION
HOW TO ORDER
Please place your orders through your local JobSite sales representative and
please have your JobSite customer number available.
TERMS OF SALE
JobSite Systems products are sold by Niles Audio Corporation and all checks
should be made out to Niles Audio Corporation. JobSite Systems offers generous
prompt payment and volume incentive discounts on approved credit. Please
refer to your JobSite Wholesale Distributor Program sheet for details. Most
incentives are based upon timely payment of open invoices. Receipt of payment
at JobSite Systems is the determining factor of payment date. JobSite Systems
reserves the right to charge a 1.5% per month (18% per year) service charge and
to deny volume incentives on overdue invoices and to revert to C.O.D. if invoice
goes 60 days past due. We are sorry, but we cannot ship on open account to
customers with outstanding invoices. There will be a $50 charge for all returned
checks (NSF, etc.).
FREIGHT
Prepaid Ground freight on purchases greater than $500. If expedited freight
is requested on purchases greater than $500, Wholesale Distributor pays the
difference between ground freight and the actual freight charges.
WARRANTY
All JobSite Systems products are built tough with reliability as a primary
component. For details, please refer to the warranty statement included
with each product.
STOCK ADJUSTMENTS
We are pleased to offer stock adjustments under the following conditions:
Merchandise eligible for stock adjustment is current, factory sealed and in
resalable condition. If the return is accompanied by an offsetting purchase order
that is greater than two times the value of the returned merchandise, there will
be no restocking fee. If the return is not accompanied by an offsetting purchase
order, the return will be subject to a 15% restocking charge.
SERVICE AND RETURNS
We pride ourselves on prompt and efficient customer service. Our goal is to
process repairs in one week or less. In order to ensure this quality of service,
we ask that all merchandise returned to JobSite Systems be accompanied by
a return authorization number. Prior to shipping any merchandise to JobSite
Systems, please obtain a return authorization number from your JobSite sales
representative or the JobSite service center department. Make sure you mark the
cartons clearly with the return authorization number. There will be a $20 minimum
charge on all items returned for service found to be problem free. All returns
must be shipped freight prepaid.
JOBSITE SYSTEMS
12331 SW 13 0 STREET
MIAMI, FL 3 31 86
P 866.452.7483 (4JB-SITE)
F 305.238.0185
WWW.JOBSITESY STEMS.COM
©2006 Jobsite Systems. All righ ts
reserved. Jobsite, the Jobsite lo go and
Pure Custom a re regist ered trad em arks
of Niles Au di o Corpora tion. CS0 04 3A
Prices, specification s and terms subject t o change without notice.
