JOBO SNAPSCAN 5000 - V1.15, SnapScan 5000 User Manual

SnapScan 5000

-Patent pending-

User Manual

Version 1.15

November 2010

-2-

Declaration of Conformity

We declare JOBO International GmbH,

Eintrachtstr. 14,
D-51645 Gummersbach

that the “SnapScan 5000”

complies with the following directives:

EN 55022:2006+A1:2007 Radio interference suppression (ITE).

Limits and methods of measurement
EN 55024:1998/A2:2003 EMC Immunity to Radiated Fields (ITE)
EN61000-3-2:2006 Elektromagnetic Compatibility (EMC-Part 3-2)
EN61000-3-3:2008 Elektromagnetic Compatibility (EMC-Part 3-3)

This declaration of EC conformity shall become null and void when the assembly is
subjected to any modification that has not met with our approval.

Gummersbach, 05. September 2010 Johannes Bockemühl
Geschäftsführer

-3-

Index

1 Unpack SnapScan5000 ....................................................4

2 Install film into the film holder ....................................6

3 Quick Start....................................................................9

4 Operation Guide .........................................................14

5 Capture......................................................................14

6 Film Type...................................................................27

7 Setting Mode..............................................................30

8 Specification...............................................................33

9 Waste Management ......................................................34

10 Service .......................................................................35

-4-

1 Unpack SnapScan5000

JOBO SnapScan 5000 Negative Holder User Manual

USB power core USB/Video cable Roll Film Holder Clean brush

2 x Rapid slide feeder

-5-

Note

 We strongly suggest using a clean, dry, non-alcohol

cotton swab to clean the glass surface periodically
to produce a clear image during operation.

 Clean dust from Film Scanner back light, to use the

clean brush to wipe the dust.

 Dust or dirt from the negative, slide films and cover

trays may affect the scanned image quality, please
make sure the materials are cleaned before inserting
into the scanner.

 Please find recommend, processional purger from photo store to clean the dust on

films if any to avoid damaging the only one copy of old films.

-6-

2 Installfilmintothefilmholder

2.1 Insert slides into the rapid slide feeder

1. Put a stack of slides into the feeder

After the slides are placed into the holder
and the holder is placed into the slot of
the scanner (refer to „Quick Start“) the
slides can be slide into the scanner by
moving the holder backward and forward.
The slides are positioned automatically
inside the scanner.

2.2 Install the Negative Film into holder

1. Open the film holder as illustrated

2. Install film into negative film slot 3. Close the film holder

FilmSlot

-7-

2.3 Install the Roll Film into holder:

1. Take out the roll film holder from package

2. Insert roll film into film slot 3. Pull out the roll film in another side

-8-

Note

 To avoid mirror image, follow the serial numbers (from left to right) on top of film

when install negative film into holder

 If the image is upside down [see fig.2], the image can be corrected by Flip function

in Button of device before capture.

Figure1

Figure2

-9-

3 Quick Start

Right/+button



FilmSlot

OKbutton

SDcardSlot

Left/‐button

Powerbutton

USBport



TVoutjack

PowerstatusLED



-10-

1. Put Film onto the film cartridge

2. Insert the film cartridge into JOBO SnapScan 5000

-11-

3. Connect power USB cable to SnapScan 5000

4. Turn on Device by pressing the power button

-12-

5. Press OK button to capture the image

6. Follow the menu on display for scanning

-13-

7. After finished the capture, take out the SD card which stored capture
images

8. Or read picture from PC by MSDC mode

-14-

4 OperationGuide

4.1 Home: Main menu

• Capture: capture mode (default)

• Playback: playback mode

• Film Type: define the film type which loaded in cartridge

• USB mode: MSDC (Mass Storage Device Class) mode

• Setting: TV out and format option

5 Capture

After welcome page, above menu will remains for 5 sec. User can press up/down button
for desired menu. Or system will auto enter Capture mode if there is no action during
this 5 second period.

Capture

Playback

FilmType

USBmode

Setting

Capture

-15-

5.1 Capture: <Up>/<Down> (Button)

• press <Mirror> Button to mirror image from right to left

• Press <Down> button to upside down image

Flipbutton

mirror

Mirrorbutton

-16-

5.2 Capture mode

Once enter capture mode, there will be a red indicator on left top corner to indicate it is
in live view mode. When the film cartridge is inserted into the scanner slot, the image
always shows the positive image according to previous defined Film Type (after power
on. the Film Type is default to negative film). Reconfirm the film position through the
display before press OK button.

5.3 Capture: Edit Menu

• Save: save captured image

• Rotate +90: continue rotate +90 degrees

• Rotate -90: continue rotate -90 degrees

(this is for adjusting the user who took the portrait picture)

• Cancel: cancel any editing with this image

• Home: Back to main menu

Liveviewindicator

(

flashingat0.5secrate)

Save

Rotate+90

Cancel

Rotate‐90

Home

Selectedimage

-17-

5.4 Live View -> Capture/Edit Menu

Live View Capture/Edit Menu

OK

OK

Once press OK button in live view, the edit menu will be appeared. When user press OK
button again, the current image will be saved into SD card. The display will return to
live view again.

5.5 Capture: Save

Once user press OK button on top of SnapScan 5000, preview (live view) image will be
selected and shown on the TFT which will take between 3-4 second with 4 icons shown
on the left side of the screen. Save icon will be highlighted for user to confirm the
saving by OK button. After the above step, display goes back to live view mode
(preview).

Save

-18-

5.6 Capture: Rotate +/-90 degrees

User can apply the up/down button for further editing (rotate +90/-90). Once user
confirm rotate +90 degrees, they can press the OK button, the image will be rotate +90
degrees and cursor will remain at Save. Press OK button again will save the rotated
image to SD card and screen will return to live view. For continuously rotate +90
degrees, move cursor to rotate again and press OK.

5.7 Capture: Cancel

Or select Cancel and press OK button to cancel any of the editing step with present
selected image and SnapScan 5000 goes to live view mode (nothing will be saved onto
the SD card).

OK

Playback
/capturedimage

-19-

5.8 Capture: Home

Go back to main menu, press OK button when select Home icon.

5.9 Exit from Edit mode back to Capture mode (Live View)

Once User presses OK button for save or cancel option, display will return to capture
mode/live view. Then, user can move the film cartridge to next target film to capture.

Nextimagein
filmcartridge

OK

-20-

5.10 Memory full

Once the internal memory or SD card is full, user can see a SD card full once press OK
button. User has to down load the images to PC or replace another SD card for continue
capture.

5.11 SD card locked

If the SD was locked, once press the OK button, a SD Card locked icon displays on screen.
Please do slide the switch of SD card to unlock before insert into device.

OK

SDcardlocked

indicator

-21-

5.12 SD card error

If scanner cannot detect SD card in good condition, a warning icon with question mark
will be shown on display. Please try to format the SD card or replace another proper SD
card for continue further operation. (Refer to Setting section)

SDcarderror

indicator

-22-

5.13 Playback

Playback

Press Down button to Playback mode when power on SnapScan 5000 or access the main
menu by Home icon if during operation. Press OK button to confirm the selection.

5.14 Playback: Auto Slide Show

Slide show mode

Once user enter playback mode (default to slide show), 2.4 TFT will auto display all
images stored in SD card with 2 seconds interval from previous captured image. User can
also stop the slide show mode by press OK button.

-23-

5.15 Playback: Edit Menu

Press 2x OK during playback

• Rotate +90: captured image rotate +90 degrees

• Rotate -90: captured image rotate -90 degrees

• Mirror: change image left to right

• Flip: upside down image

• Exit: returns to Slide show

• Delete: delete this picture stored in SD card

• Save: save the modified image onto SD card

• Home: returns to main menu

5.16 Playback: Slide mode -> Edit mode

User can interrupt (stop) the slide show mode to stand alone playback mode (single
picture playback) by press OK button. (Pause slide show) Then user is able to scroll each
picture by up/down button. Once user select the picture stored in SD card which
intended to be modified, then use OK button again to bring out the edit mode for

Save

Hom

Rotate+90

Exit

Delete

Rotate‐90

Mirror

Fli

p

-24-

modification

5.17 Slide Show -> Single picture -> Edit mode

Slide show mode Edit mode

5.18 Playback: Rotate/Mirror/Flip/Save

If user wants to Rotate +90 degrees by OK button, the image will be rotate +90 degrees
and cursor will remains at Save. Press OK button again to save modified result and next
picture will be shown (N+1). For continuously Rotate +90 degrees, move cursor to
Rotate again and press OK. (Same for Rotate -90, Mirror, and Flip function)

Pausse

OK

OK

Singlepicturemode

UseUp/Downbutton

toscrollpicturetobemodified

OK

-25-

5.19 Playback: Exit

Once user select the EXIT function in edit menu, the display will go back to slide show
starting with the current picture in internal memory or SD card without saving any
change of present picture

5.20 Playback: Delete

Delete will delete the present selected picture and next picture will be shown (N+1).
Cursor goes to Exit icon. If user intend to process continuously delete, just move to
delete icon again and press OK to confirm.

OK

OK

-26-

5.21 Playback: Home

Go back to main menu, press OK button when select Home icon

5.22 Playback: No Picture

If there’s no picture inside internal memory or SD card when enter playback mode, a No
picture symbol will show on display.

OK

OK

-27-

6 FilmType

Film Type

Change film type definition by enter Film Type menu when power on SnapScan 5000 or
access the main menu by Home icon if during operation. Press down button for Film
Type and press OK to confirm.

6.1 Film Type: Select Film Type

• Negative film: select Negative film when cartridge loaded with negative film

• Slide: select Slide type when load slide in holder

• B&W film: select B&W when cartridge loaded with Black&White negative film

Slidefilm

B&WNegative

ColorNegative

film

-28-

6.2 Film Type: Example

ColorNegative
film

B&W
Negativefilm

Slide

Loaded

Into

Cartridge

-29-

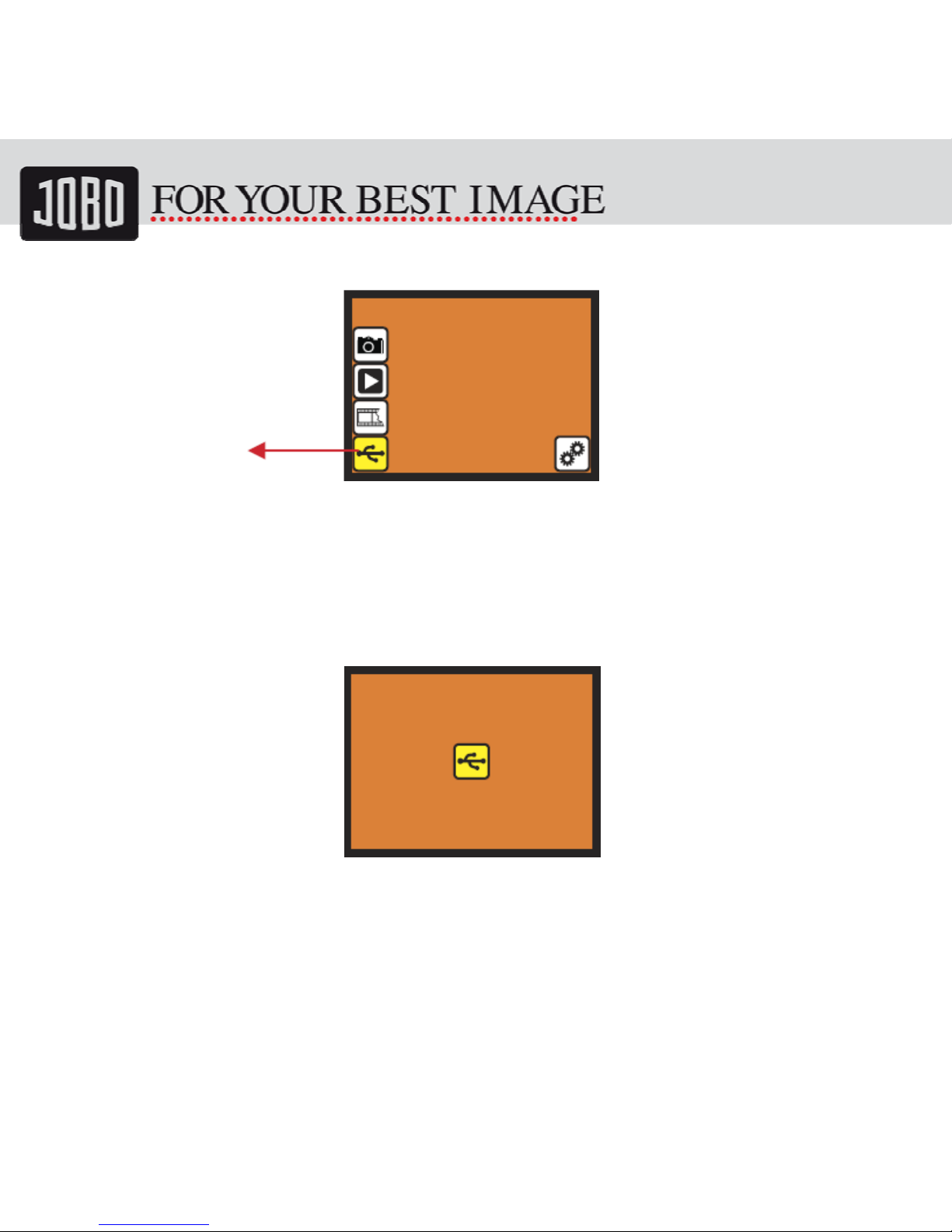

6.3 USB Mode

After finished capture, user can download the stored images from internal memory or SD
card to PC by selecting USB mode. Press OK button when connect USB cable to PC,
SnapScan 5000 becomes a mass storage device. User can review or edit images once PC
detected the external storage device. Or just take out the SD card from device into PC
to read the images directly.

6.4 USB Mode: Status

Once user select USB mode, SnapScan 5000 becomes a mass storage device and then a
status icon shows on display, then user can find an external USB disk device from my
computer and review the images in internal memory or SD card with PC.

USBmode

-30-

7 SettingMode.

The setting mode covers TV out and format option. User can connect the device to TV
and finish the operation with TV display. Moreover, the scanned images can be
playback on TV display to share with family.
If the SD card was formatted by the other devices and not readable by scanner, user can
apply the format function in scanner to correct required format.

7.1 Setting Mode

• TV out: select NTSC or PAL according to required interface

• Format: format internal memory or SD card

• Exit: returns to main menu

Settingmode

TVout

Format

Exit

-31-

7.2 Setting: TV out

When user want to switch the display from on device LCD to TV display, user can
connect device to TV and select PAL or NTSC as required in TV out menu by OK button.
Then, the TV display will show the same option for scanning operation. Or directly
enter playback mode to slide show captured images on TV.

7.3 Setting: Format

If the internal memory or SD card requires format by scanner, user can enter format
mode by press OK button. The default setting will be cancel format. User can press
OK button again to cancel the format or select confirm icon to confirm format the
memory.

OK

OK

-32-

Note

If there’s no SD card inside device, the internal memory will be formatted once process
Format. Instead, if SD card is inserted in device, SD card will be formatted.

Good bye page

-33-

8 Specification

Image Sensor: 9 mega CMOS sensor
Lens: Precision

TM

Glass Element Fixed Focus
LCD: 2.4’’ Color TFT LCD (2.5” optional)
Internal memory: 24MB NAND Flash (for saving images)
Focus Range: Fixed focus
Exposure Control: 6 levels of control
Color Balance: 6 levels of control
Scan Quality: 2,400 dpi 3,600 interpolated
Data Conversion: 10 bits per color channel
Scan Method: Single pass
Light Source: Back light (3 white LEDs)
Interface: USB 2.0, TV-out (video 3.5mm jack)
USB Configuration: Mass Storage Device Class/MSDC
Power: 5V adapter, or USB power
Dimensions: 82x86x152mm
Weight: 0.41kg

External memory: SD/MMC compatible

-34-

9 Waste Management

9.1 Packaging

To avoid damage and pollution of the product the Photoframe will be
delivered within a packaging. Zum Schutz vor Schäden wird das Gerät in
einer Transportverpackung ausgeliefert. These Packaging can be recycled.

9.2 Disposal of WEEE (Waste Electrical and Electronic Equipment)

Devices marked with the WEEE logo are subject to the European Community
Directive 2002/96/EC.
Waste Electrical and Electronic Equipment must be separated from
household rubbish and disposed at sites that collect WEEE.

By orderly disposing WEEE you will avoid damage caused to the environment.

Service: To guarantee a product always at the best standard this manual as well
as the product itself are subject to alterations.

-35-

10 Service

Within the uncommon situation of failures further Information for Service can found at
the Homepage www.jobo.com
