JOBO Plano 8 User Manual
User Manual
Version 1.0
Table of Contents
Table of ContentsTable of Contents
Table of Contents
Important Safety Precautions ..............................................................................................3
Cleaning LCD Screen...........................................................................................................3
1. Introduction .................................................................................................................4
1.1. Key features .......................................................................................................4
1.2. Package content..................................................................................................4
1.3. Getting Started ...................................................................................................4
2. Getting to know the PLANO 8 ..........................................................................................5

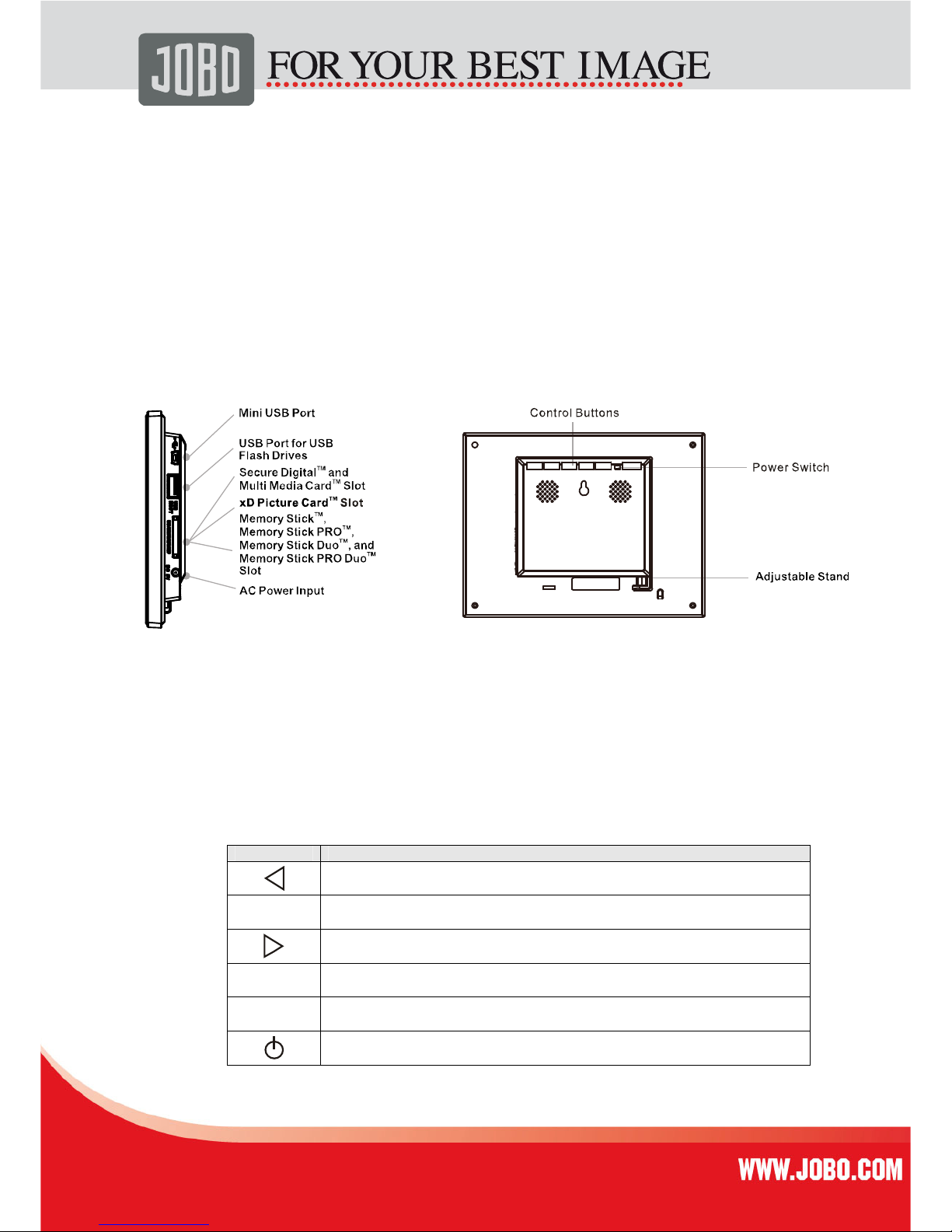

2.1 Main parts...........................................................................................................5

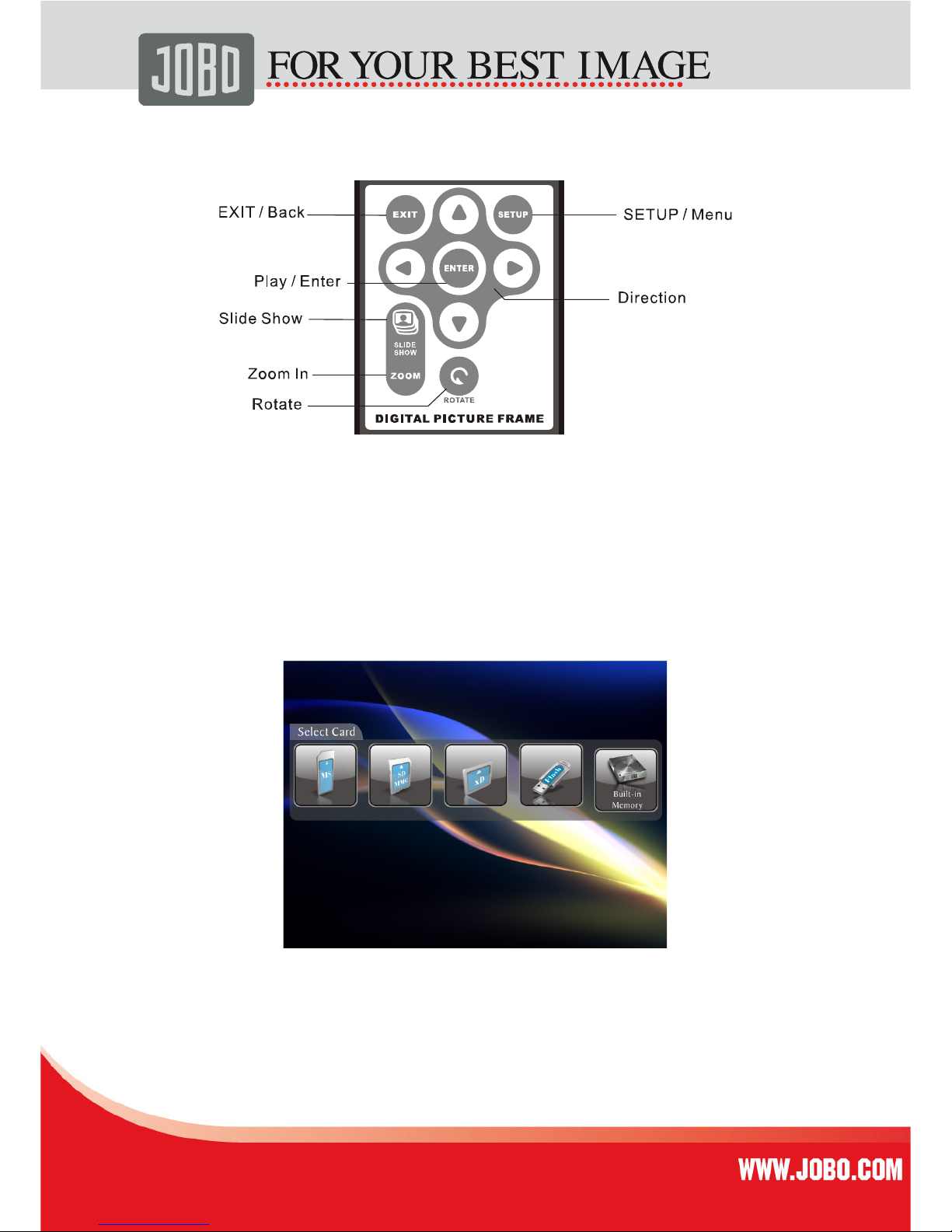

2.1. Buttons and Remote Control .................................................................................5
3. Key Operating Screens ....................................................................................................6
3.1. Card Selection Screen...........................................................................................6
3.1.1. Connect a USB Flash Drive..................................................................................7

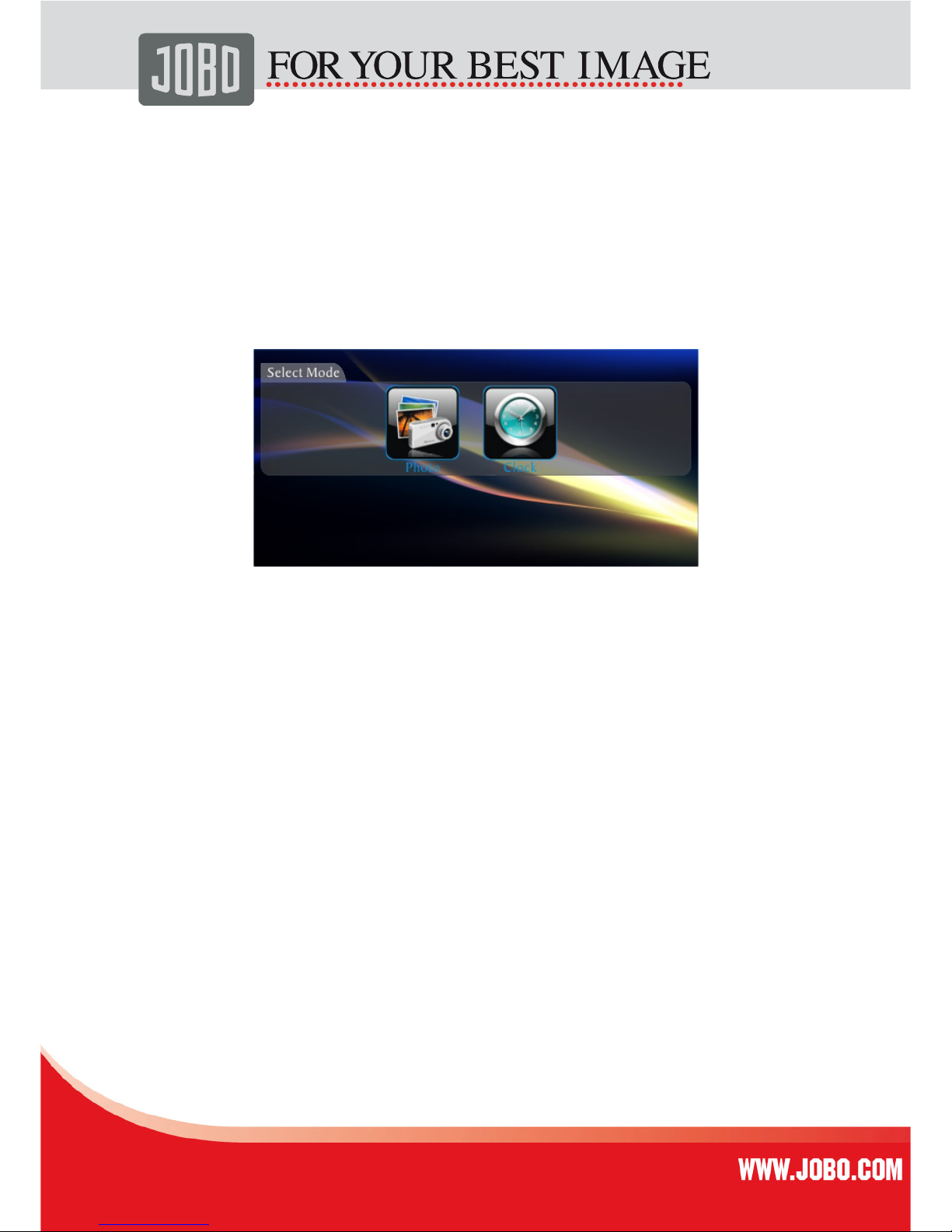

3.2. Photo or Clock Selection Screen.............................................................................7
3.3. Thumbnail View Screen.........................................................................................7
3.4. Display Single Photo in Full Screen Mode ................................................................7
4. Slide Show and Photo Options .........................................................................................8
4.1. Rotate Photos.....................................................................................................8
4.2. Enlarge Photos....................................................................................................8
4.3. Delete Photos .....................................................................................................8
5. General Settings ............................................................................................................8
5.1. Adjust the LCD Colour ..........................................................................................8
5.2. Settings Menu.....................................................................................................9
6. Frequently Asked Questions ...........................................................................................10
7. Warranty conditions .....................................................................................................11
8. Contact/Service ...........................................................................................................11
Important Safety Precautions
Important Safety PrecautionsImportant Safety Precautions
Important Safety Precautions
Always follow these basic safety precautions when using your JOBO Photo Display PLANO 8. This will
reduce the risk of fire, electric shock, and injury.
Warning
WarningWarning
Warning:
• To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture.
• To prevent the risk of electric shock, do not remove the cover. There are no user serviceable
parts inside. Refer all servicing to qualified personnel.
• The JOBO Photo Display PLANO 8 is for indoor use only.
• Unplug the JOBO Photo Display PLANO 8 before performing care and maintenance.
• Do not block the ventilation holes on the back of the JOBO Photo Display PLANO 8 at anytime.
• Keep your Multimedia JOBO Photo Display PLANO 8 out of direct sunlight and heat sources.
• Protect the power cord. Route power cords so that hey are not likely to be walked on or pinched
by items placed on or against them. Pay particular attention to the point where the cord
attaches to the JOBO Photo Display PLANO 8.
• Only use the AC adapter included with the JOBO Photo Display PLANO 8. Using any other power
adapter will void your warranty.
• Unplug the power cord from the outlet when the unit is not in use.
Cleaning LCD Screen
Cleaning LCD ScreenCleaning LCD Screen
Cleaning LCD Screen
Treat the screen gently, the screen is made of glass and can be scratched or broken. To clean
fingerprints or dust from the LCD screen, it is recommended to use a soft, non-abrasive cloth such as
a camera lens cloth to clean the LCD screen. If you use a commercial LCD Cleaning Kit, do not apply
the cleaning liquid directly to the LCD screen. Clean the LCD screen with cleaning cloth moistened
with the liquid.
1.
1. 1.
1. Introduction
IntroductionIntroduction
Introduction
Congratulations on your purchase of the JOBO Photo Display PLANO 8! Before operating the unit,
please read this manual thoroughly and retain it for future reference. You can display your digital
photos directly from your memory card, no computer is needed! Simply insert a memory card into
the Photo Display PLANO 8 turn on the power, then all images will be shown automatically as a
slideshow.
1.1.
1.1. 1.1.
1.1. KKKKey features
ey featuresey features
ey features
• Display: 8 inch (20.32 cm) colour TFT LCD
• Resolution: 800 x 600 pixels
• Contrast ratio: 400:1
• Brightness: 230 cd/m²
• Aspect ratio 4:3 (original & optimized mode)
• Card slots for SD, SDHC, MMC, MS, xD
• USB Host & USB 2.0 High Speed
• Supported file format: JPEG
• Full screen, thumbnail, 4in1 window or slide show mode
• Slide show with adjustable transition effects and time intervals
• Rotate and zoom function
• Clock and Calendar with slide show mode
• Setup menu, power saving function
• Wall mount, foldable stand
• Dimensions: 213 x 164 x 24.3 mm
• Weight: 520 g
1.2.
1.2. 1.2.
1.2. Package content
Package contentPackage content
Package content
• JOBO Photo Display PLANO 8 (PDJ080)
• AC Power Adapter (5V, 2A)
• Remote control
• This manual
1.3.
1.3. 1.3.
1.3. Getting Started
Getting Started Getting Started
Getting Started
The JOBO Photo Display PLANO 8 is easy to set up. Just follow these steps:
1. Connect Photo Display PLANO 8 with the AC Power Adapter to a power supply.
2.
Insert a memory card into the memory card slot.
Note: The card will only fit in one direction; do
not force it. The card should fit snugly when properly inserted.
3. Pull out adjustable Stand to adjust the viewing angle.
4. Press the Power ON button on the back of the JOBO Photo Display PLANO 8 . The frame will
automatically start a slide show of the photos on the card.
5. To display photos individually, press the Exit button to open the Thumbnail Screen window.
Use the Up and Down arrows to choose a photo. Press the Play button (>/ll) on the top of
Loading...
