CHORUS® 700 SERIE
U s e r m a n u a l
English

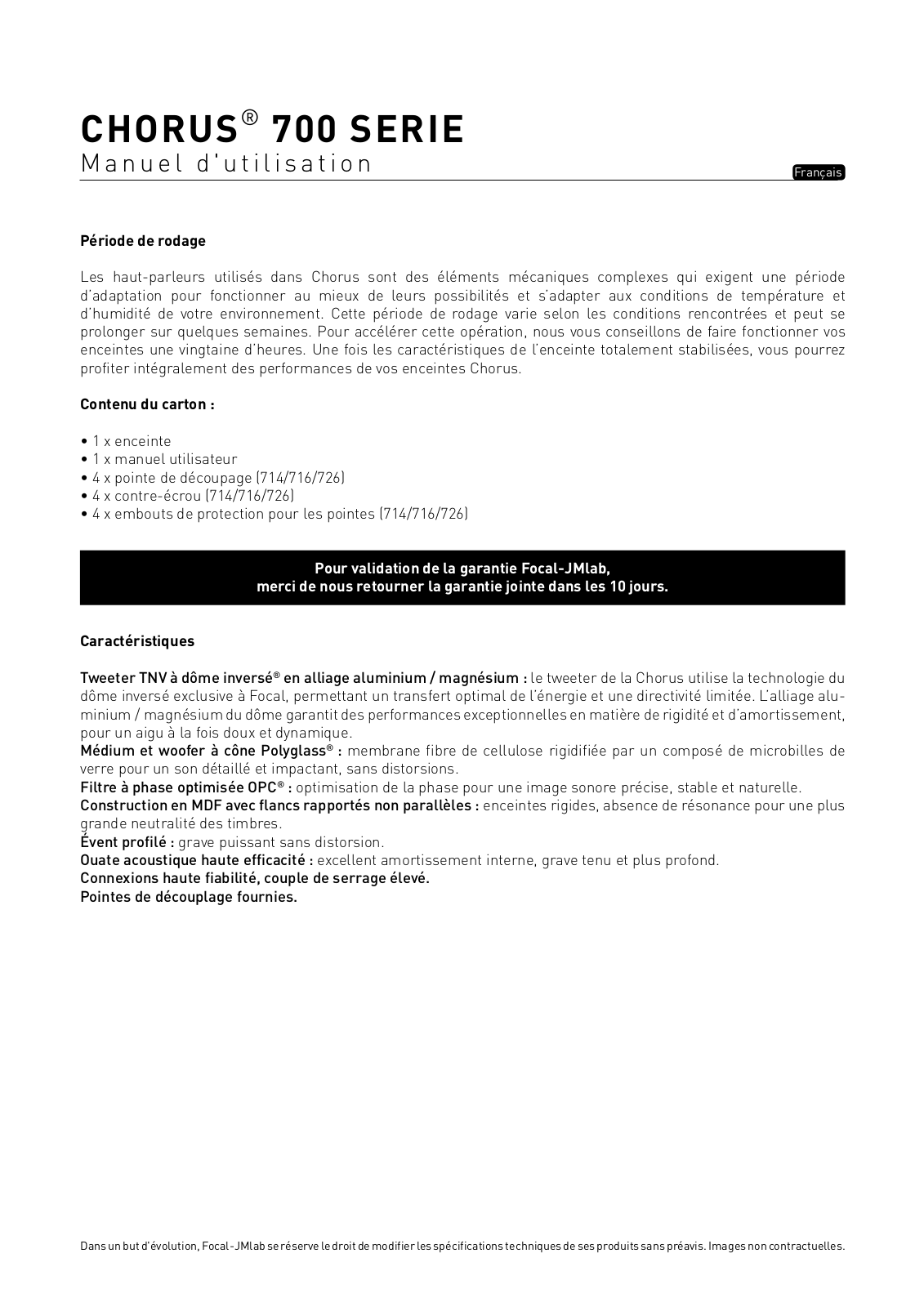

Running-in period
The drivers used in the Chorus loudspeaker are complex mechanical devices and require an run-in period before they deliver their best performance. They must get adapted to the temperature and humidity conditions of their environment. This breaking-in period depends on the encountered conditions and can last several weeks. In order to shorten this period, we advise you to let your loudspeakers operate for about twenty hours.
Once the components of the loudspeakers are completely stabilized, it is possible to enjoy the real performance of your Chorus loudspeakers.
Included inside:
ì [ ORXGVSHDNHU
ì [ XVHU PDQXDO
ì [ GHFRXSOLQJ VSLNHV
ì [ ORFN QXW
ì [ SURWHFWLYH FDS

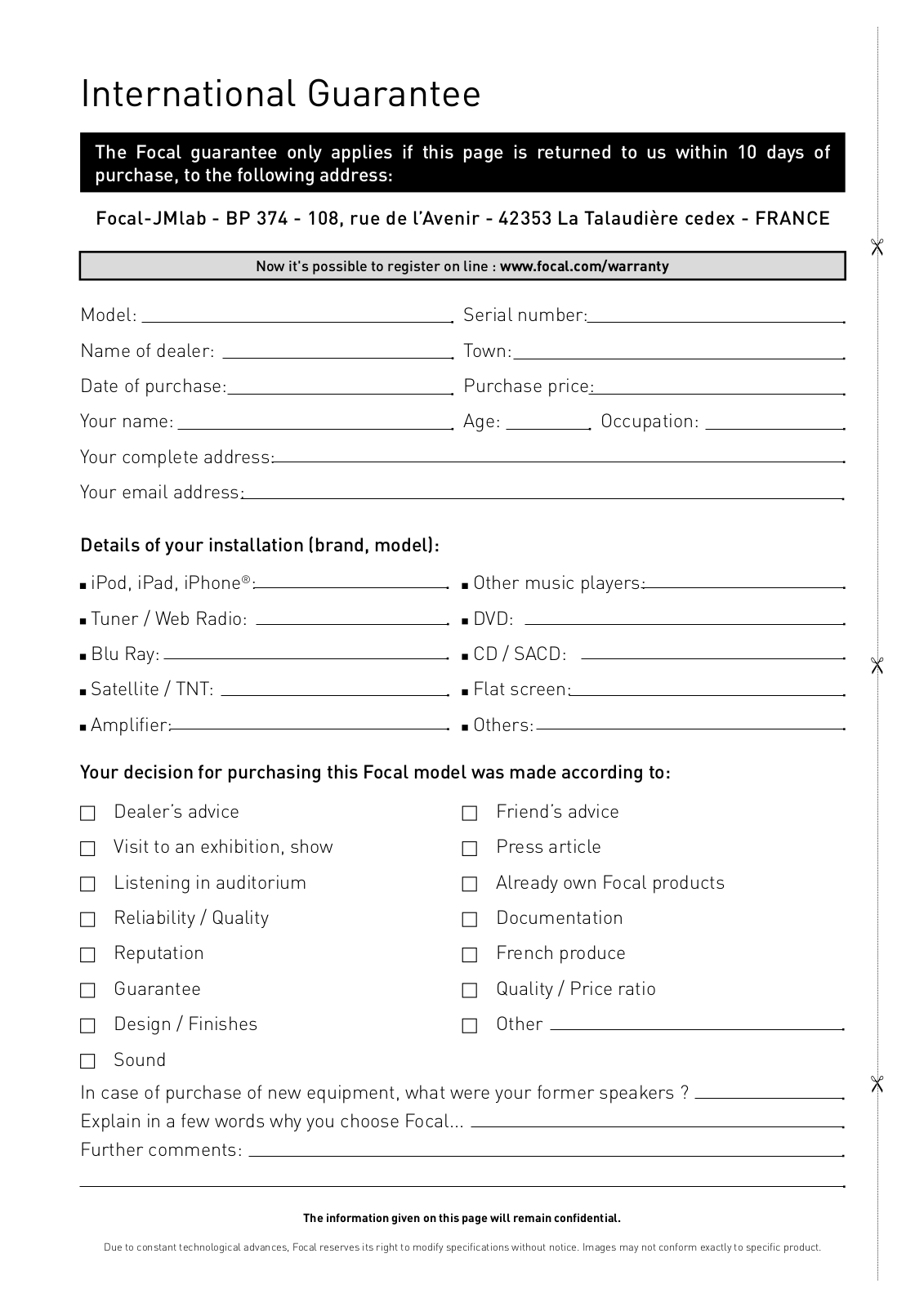

The Focal-JMlab guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

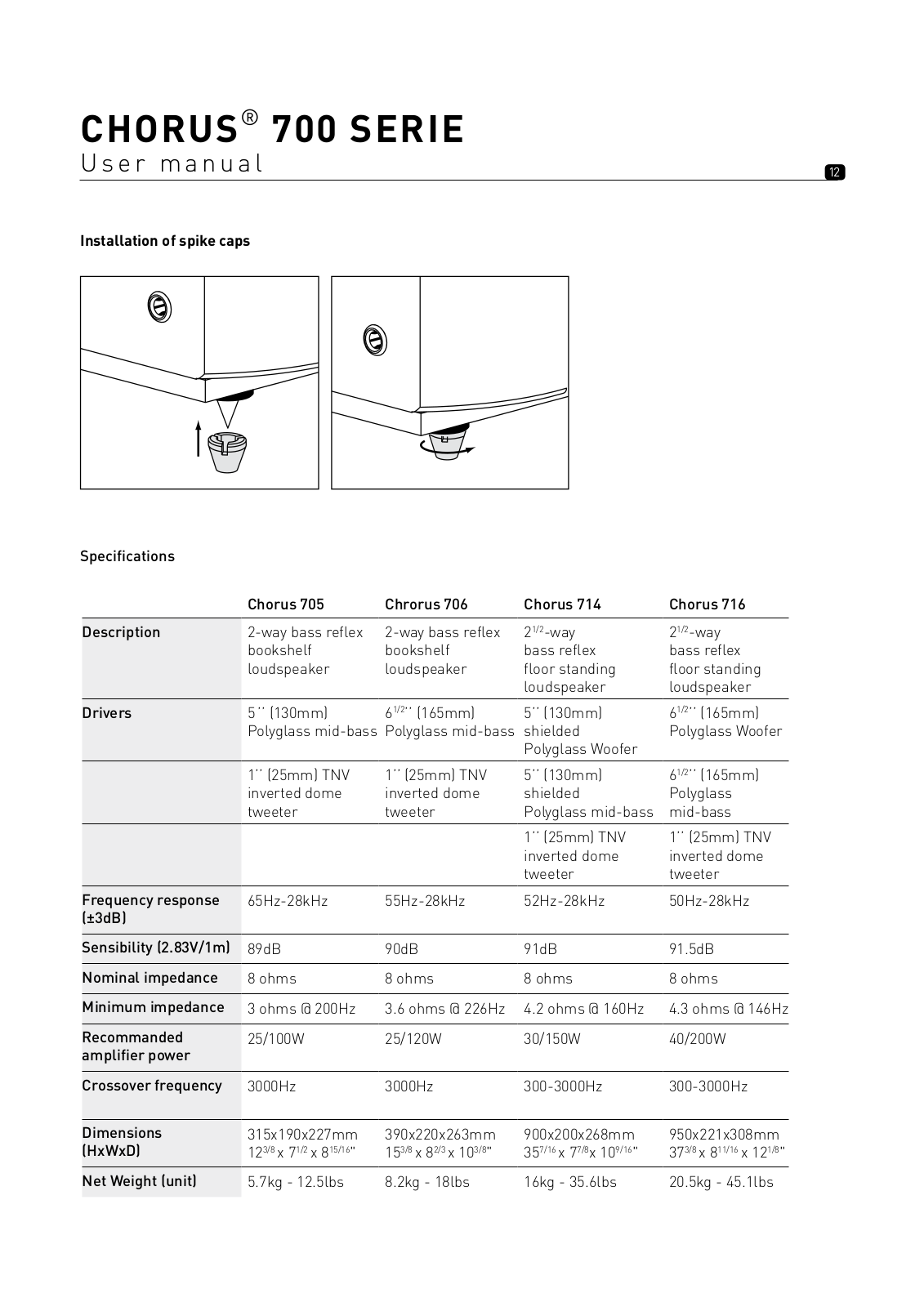

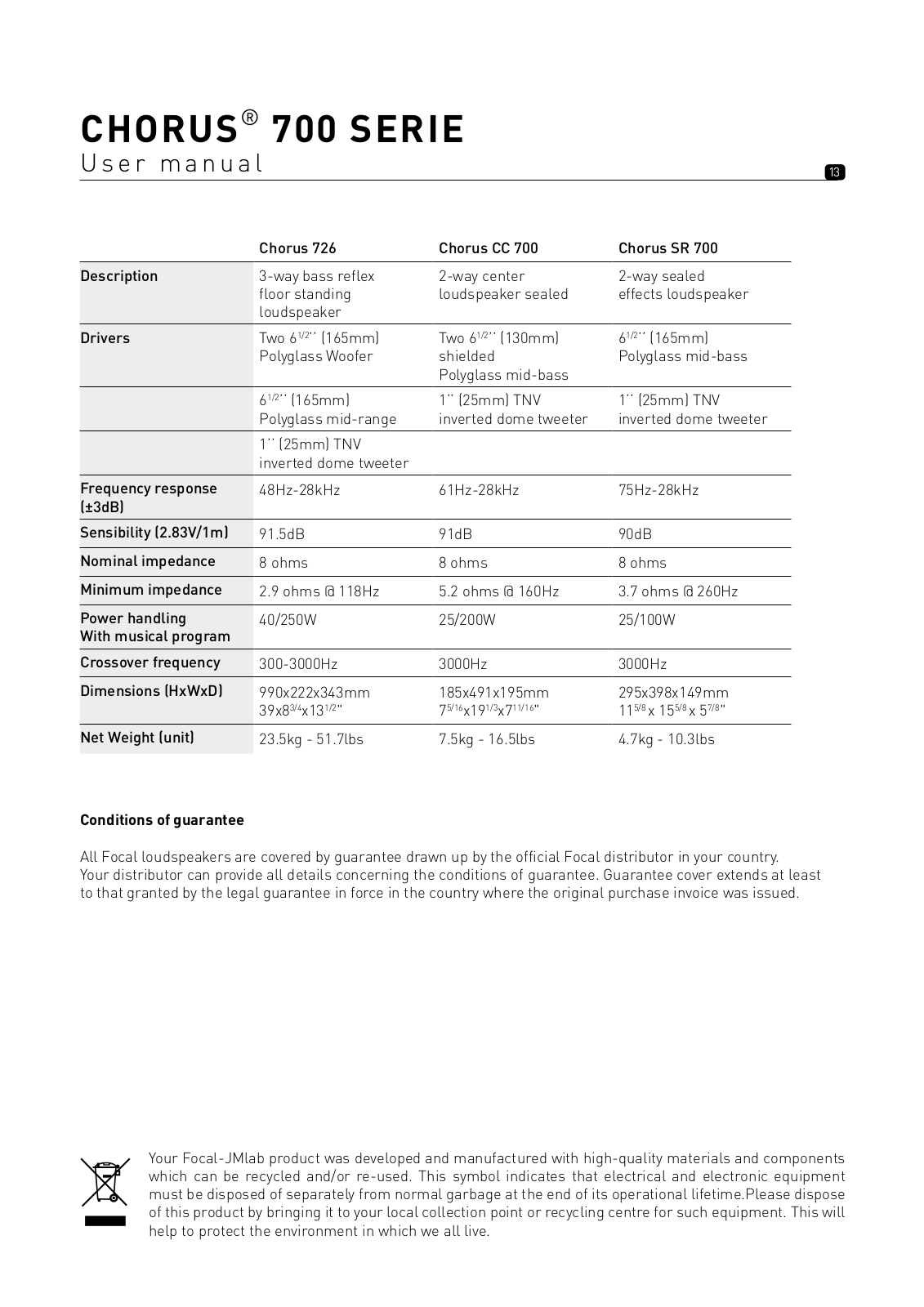

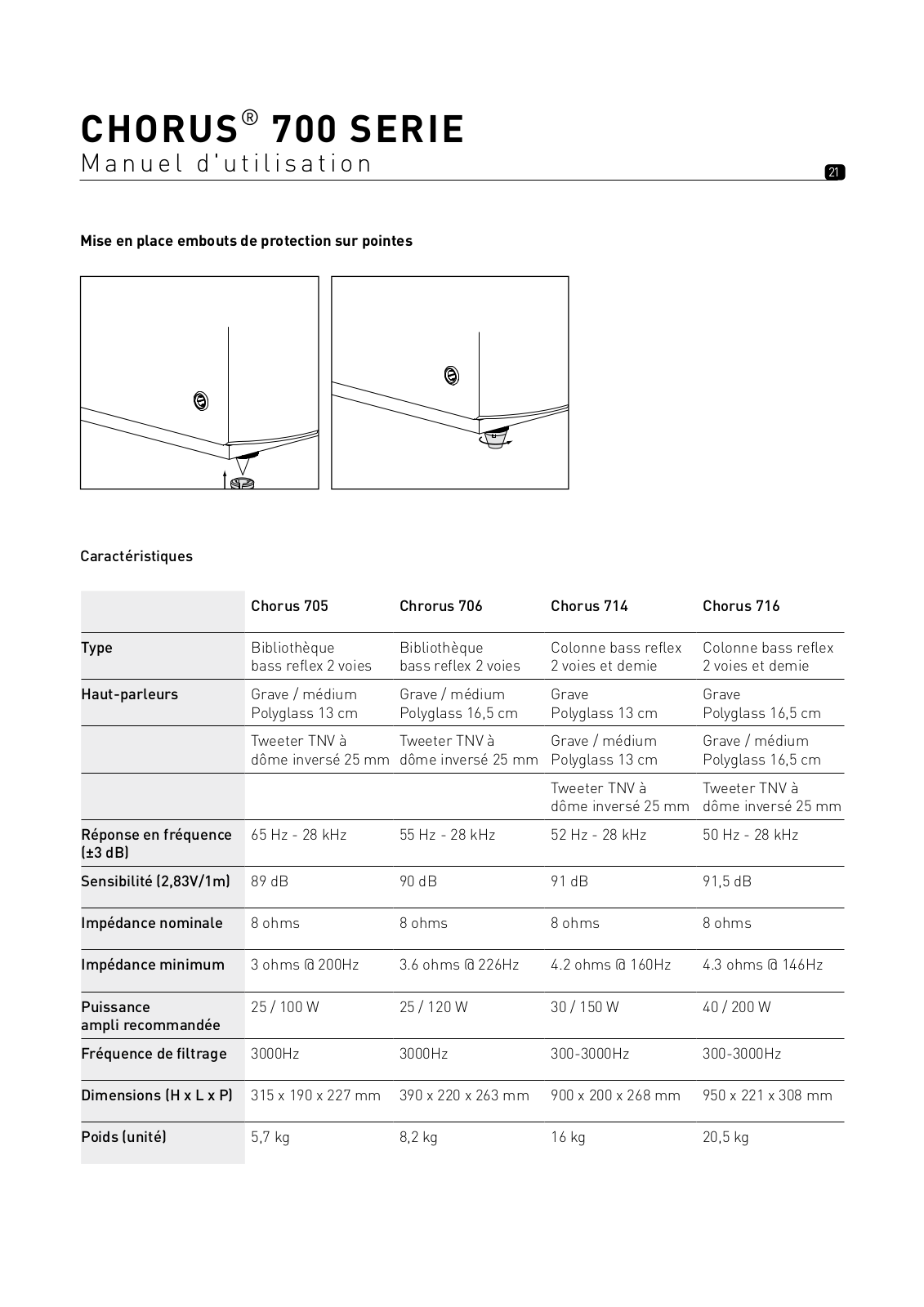

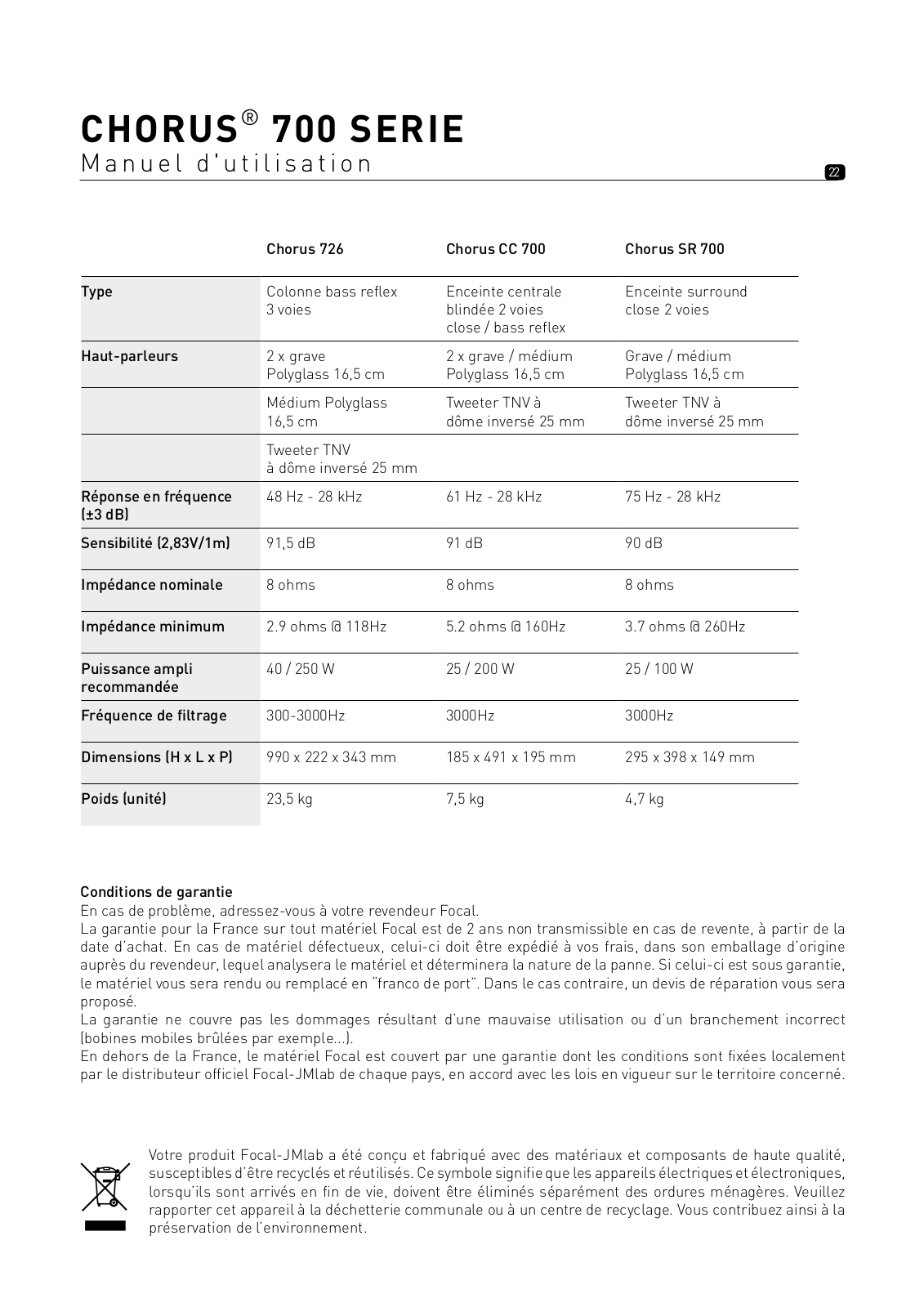

Specifications
The aluminum/magnesium alloy TNV inverted dome tweeter®: the tweeter of the Chorus benefits from the inverted dome technology, which is exclusive to Focal. It allows optimal energy transfer and wide dispersion. The aluminum /magnesium alloy making up of the dome guarantees exceptional performances in terms of stiffness and damping thus ensuring a subtle blend of softness and dynamics.
Polyglass® cone woofer and midbass: impregnated paper cones with a fine layer of silica micro-balls for a fully dynamic bass impact, precise and distortion-free.
OPC® (optimum phase crossover): phase optimization for a precise, natural and stable soundstage and image.
Braced precision MDF cabinets, non parallel inner wall structure: rigid cabinets without any internal resonance for lower coloration.
Highly efficient acoustic wadding: excellent internal damping, deeper and tighter bass.

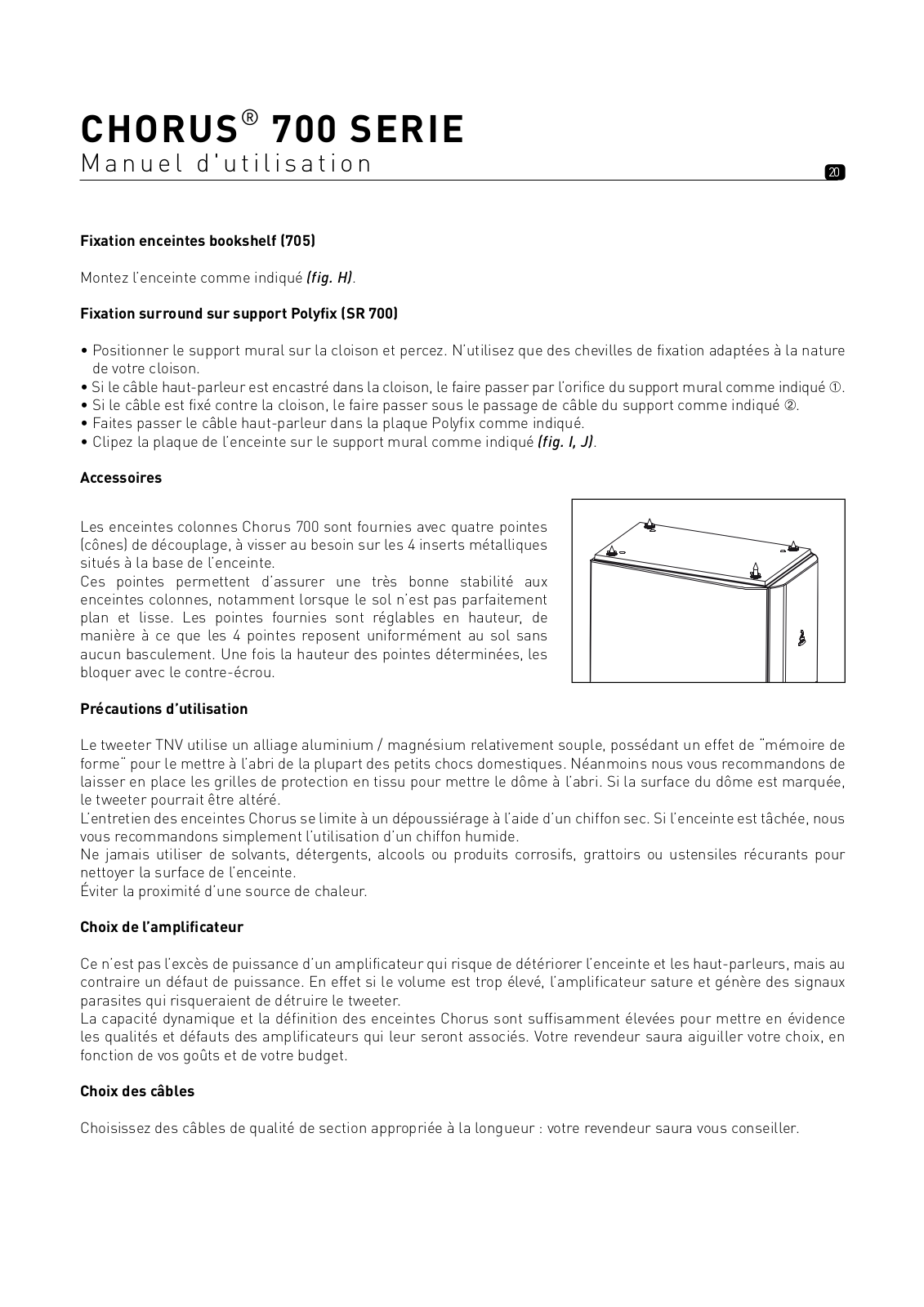

Highly reliable input sockets. Decoupling spikes.
Duetoconstanttechnologicaladvances,Focalreservesitsrighttomodifyspecificationswithoutnotice.Imagesmaynotconformexactlytospecificproduct..
A |
C |
E |
B |
D |
F |
CHORUS® 700 SERIE
U s e r m a n u a l |
7 |

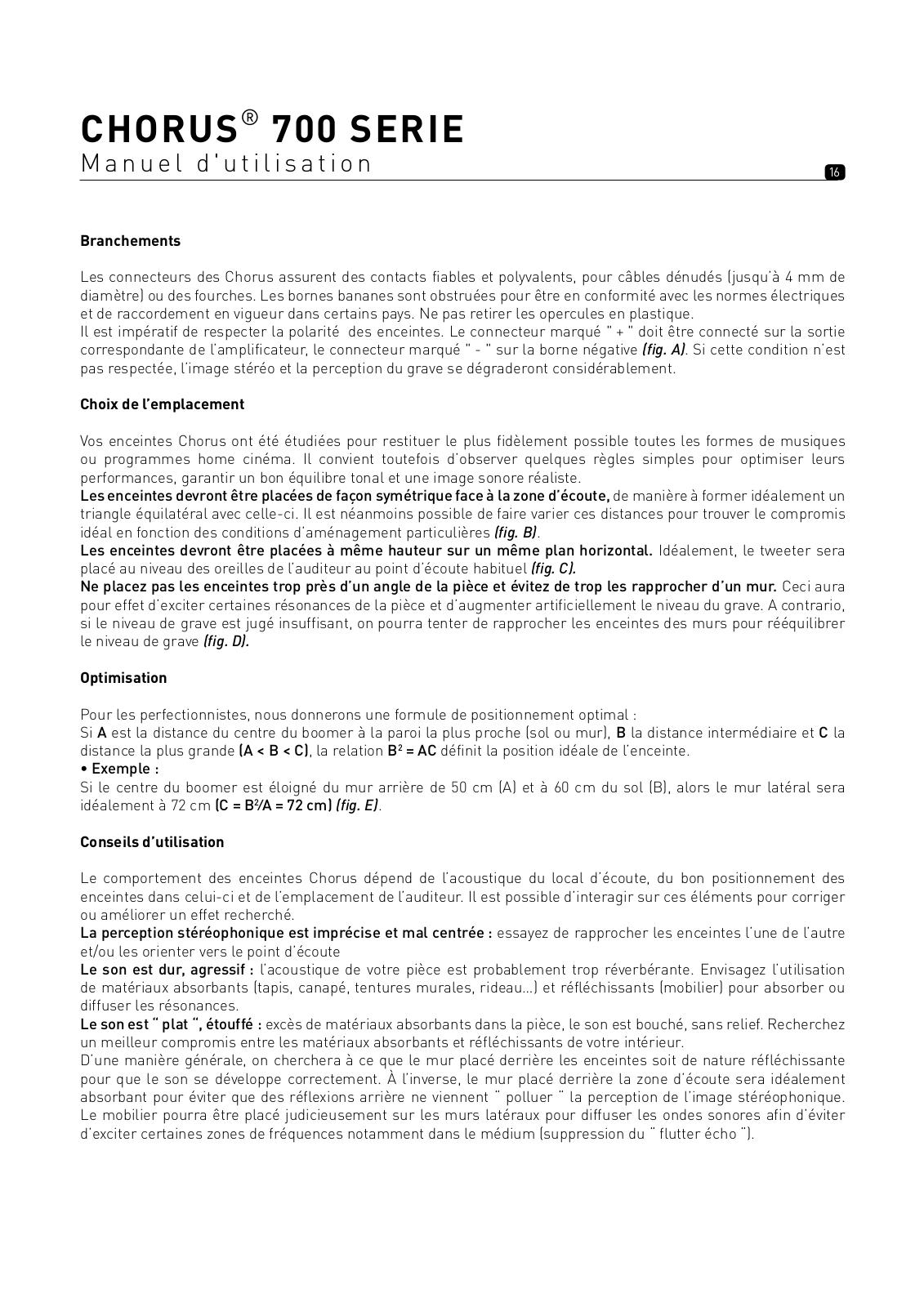

Connections
The Chorus input sockets ensure reliable multipurpose connections for stripped cables as well as for plugs. The “banana” terminals are obstructed in order to comply with electrical standards currently in force in several countries. Make sure not to remove the plastic safety lids.
It is imperative to respect the connector polarity of both the loudspeaker and amplifier. The positive terminal
ç è PXVW EH FRQQHFWHG WR WKH FRUUHVSRQGLQJ PDWFKLQJ DPSOLILHUåV WHUPLQDO DQG WKH QHJDWLYH WHUPLQDO ç ç WR WKH negative terminal (fig. A). Stereo image, soundstaging and bass perception would be seriously compromised if these conditions were not respected.
Positioning
The Chorus loudspeakers have been engineered to deliver the most faithful sound reproduction, whether they are used for music or home cinema. In order to enhance their performance, to guarantee a high quality of listening, sound image and tone balance, it is important to note the following basic rules.

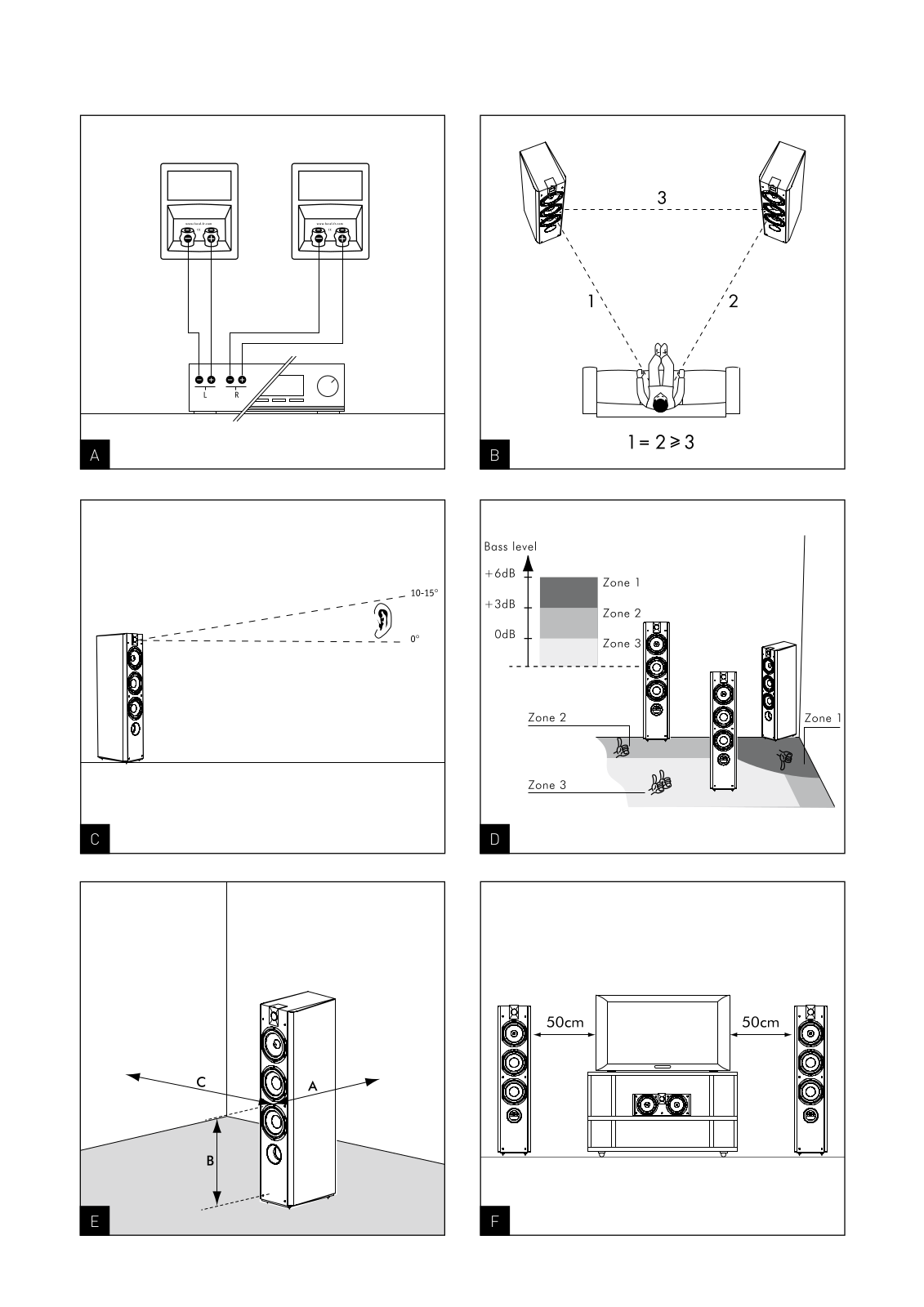

The listening area must be located at the summit of an equilateral triangle whose two other points of insertion are determined by the position of each speaker. Nevertheless it is possible to modify these distances to find an ideal compromise according to the particular disposition of the room (fig. B).
Each loudspeaker must be placed at the same height and on the same floor plan. The tweeter should be at the same height as the listener’s ear, when the listener is in their usual listening area (fig. C).
Avoid placing the loudspeakers too close to the room’s corners or walls. This will induce some unwanted room resonance and artificially increase bass response. On the contrary, if the bass level proves to be insufficient, it is possible to move the speakers closer to the walls to adjust the bass level (fig. D).
Optimization
To please the perfectionists, we shall give an optimum positioning formula : if A is the distance from the boomer FHQWUH WR WKH FORVHVW ZDOO IORRU RU ZDOO B the intermediate distance and C the longest distance (A<B<C), the relation B2=AC determines the ideal position of the speakers.
ì ([DPSOH
,I WKH ERRPHU FHQWUH LV FP è DZD\ IURP WKH UHDU ZDOO (A) DQG FP è DERYH WKH IORRU (B), then the side wall ZLOO EH LGHDOO\ FP è (C=B2⁄A=72cm) (fig. E).
User instructions
The sound performance of the Chorus loudspeaker depends strongly upon the listening room’s acoustics, the place of the loudspeakers and the listening area. These factors can be modified in order to correct or enhance a desired effect.
Should the soundstage be imprecise or not centred, try to move the loudspeakers closer to each other.
Harsh or aggressive sound means that your listening room is probably too reflective. Try to use any absorbing
PDWHULDOV VXFK DV FDUSHW VRID ZDOO FRYHULQJV FXUWDLQVí FRPELQHG ZLWK UHIOHFWLYH PDWHULDOV WR DEVRUE RU GLIIXVH resonances.
Should the sound be “flat” or muffled, there are too many absorbing materials in the listening room. The sound appears to be closed-in, with a narrow stereophonic image. Try to find a better compromise between absorbing and reflective materials within your listening room.
Generally the wall to the rear of the speakers should be made up of reflective materials so that the sound image exhibits satisfying volume and width. On the contrary the wall on the rear of the listener should be absorbing in order to avoid reflections damaging the perception of the stereo soundstage. These reflections may limit the impression of depth of the sound image. Furniture, such as bookshelves should be ideally placed along the side walls in order
WR GLIIXVH VRXQG ZDYHV DQG WR SUHYHQW VRPH IUHTXHQFLHV IURP EHLQJ DPSOLILHG HVSHFLDOO\ LQ YRFDO UDQJH LW UHPRYHV çIOXWWHU HFKRè
G |
|
1 |
2 |
|
|
I |
|
8 |
min. |
H |
|
J |
CHORUS® 700 SERIE
U s e r m a n u a l |
9 |
Choice of speakers
The Chorus loudspeakers have been engineered to work with stereo systems as well as with home theater systems. If you already own a pair of stereo Chorus loudspeakers and wish to purchase a complete home theater system, it is of the utmost importance that you use the central and effect loudspeakers of the same product line : Chorus. It is the sole possible condition to bring to your system a perfect tonal homogeneity and a realistic and coherent reproduction of tri-dimensional effects within the listening room.

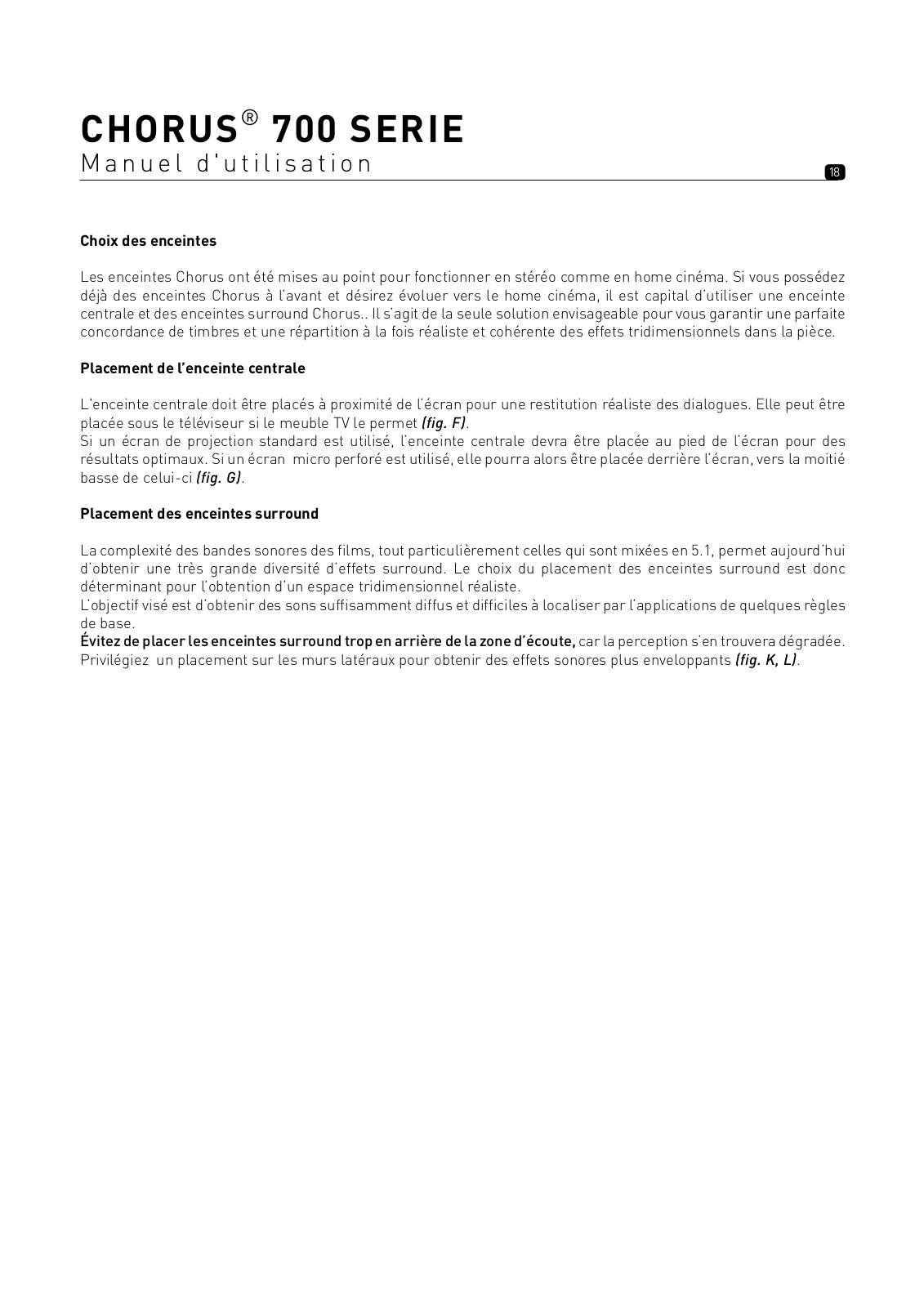

Central channel placement
Central channel speaker should be placed close to the TV-screen to obtain a proper placement and a realistic reproduction of the dialog. It could be placed below the TV-screen (fig. F).
If a standard projection screen is used, the central channel speaker must be placed under the screen.

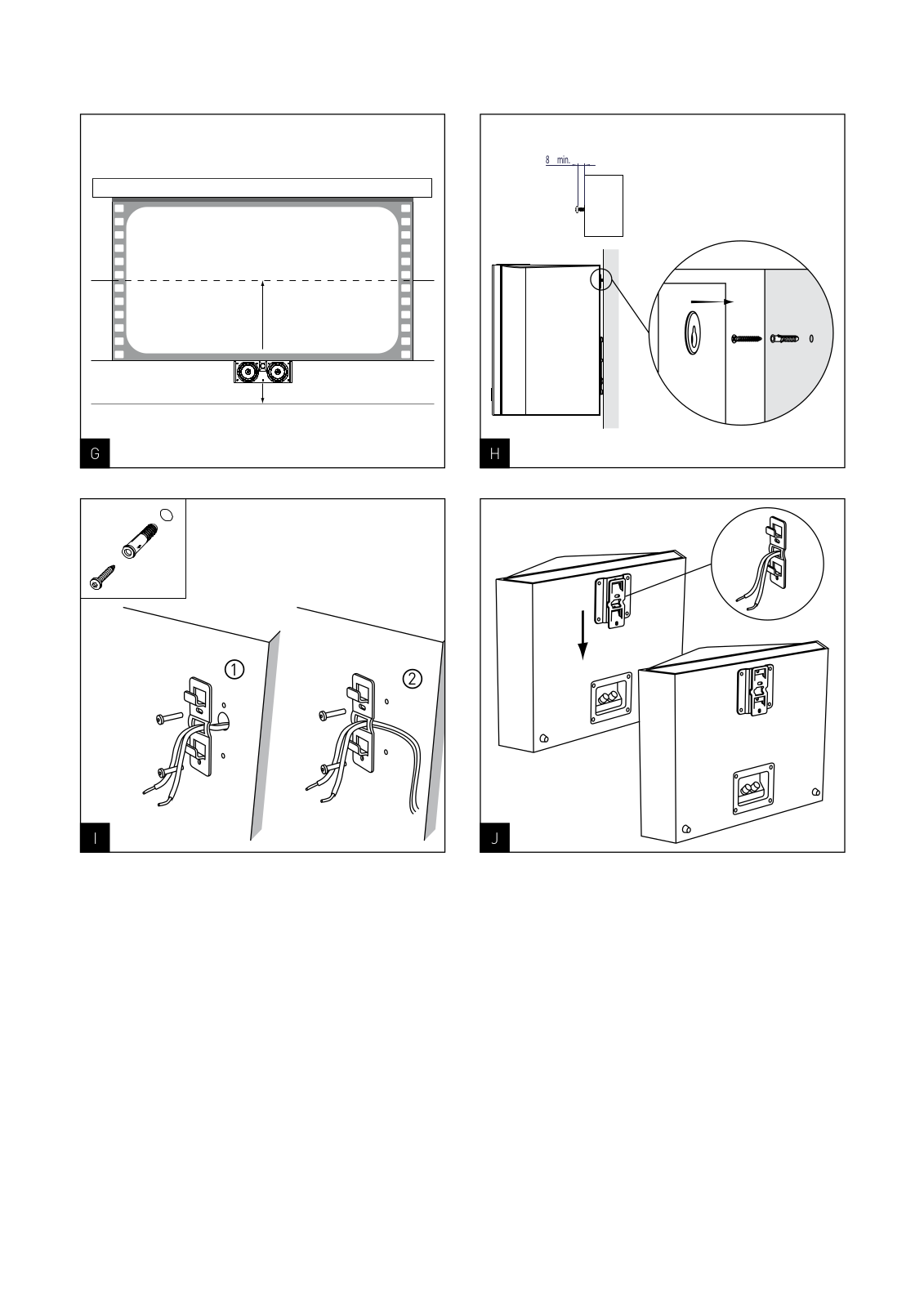

If an acoustically transparent projection screen is used, the central channel speaker can be placed behind and at the bottom of the screen (fig. G).
Effect channel speakers‘s place
The soundtrack mix for a film or music encoded in multichannel format is very complex and allows the listener to benefit from a wide range of special sound effects, which require the use of effect channel speakers. In order to obtain a realistic 3D soundstage, the placement of the speakers is decisive, even when confronted with a restrictive disposition of the listening room.
For enhanced performances, the following elements should be noted.

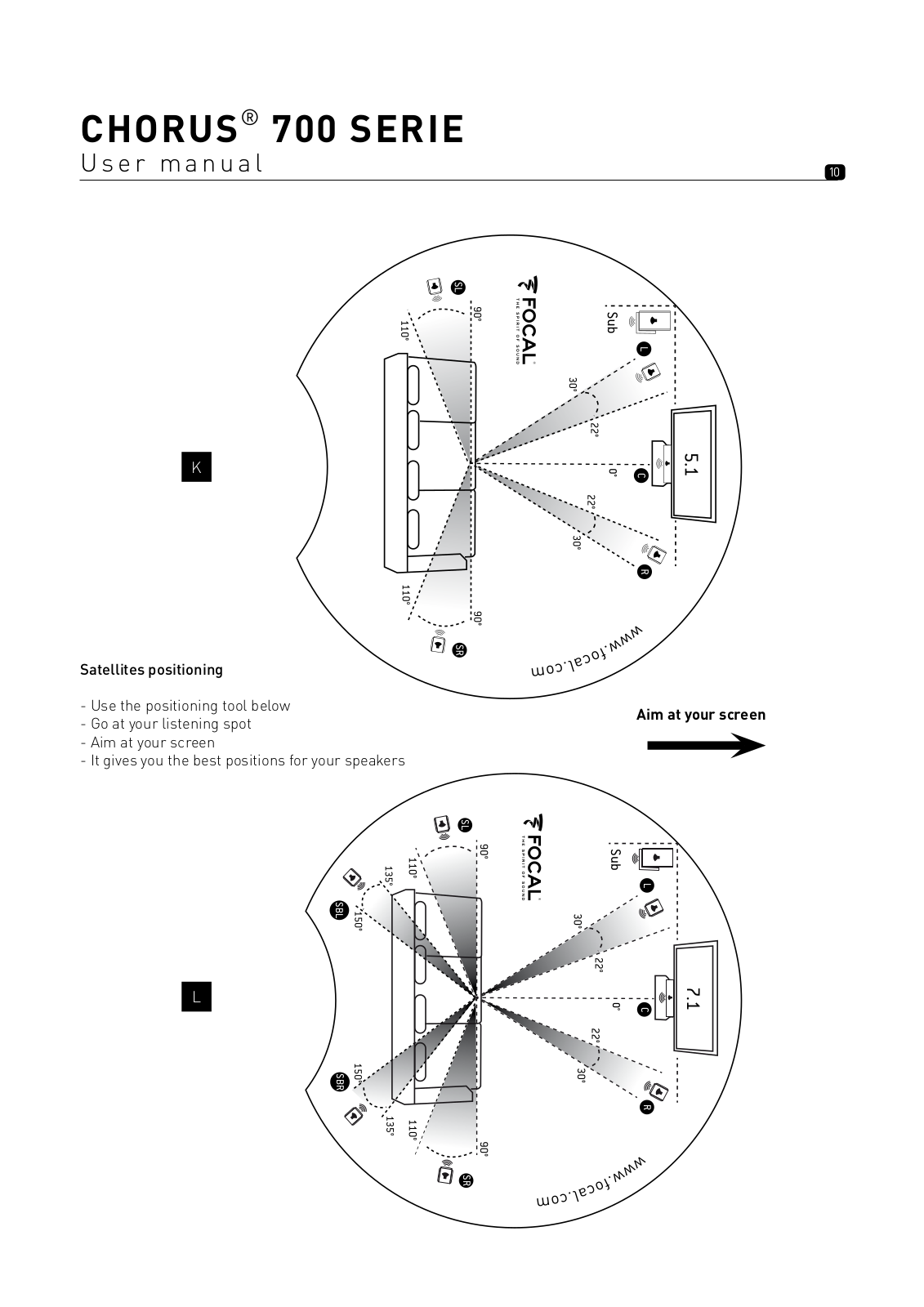

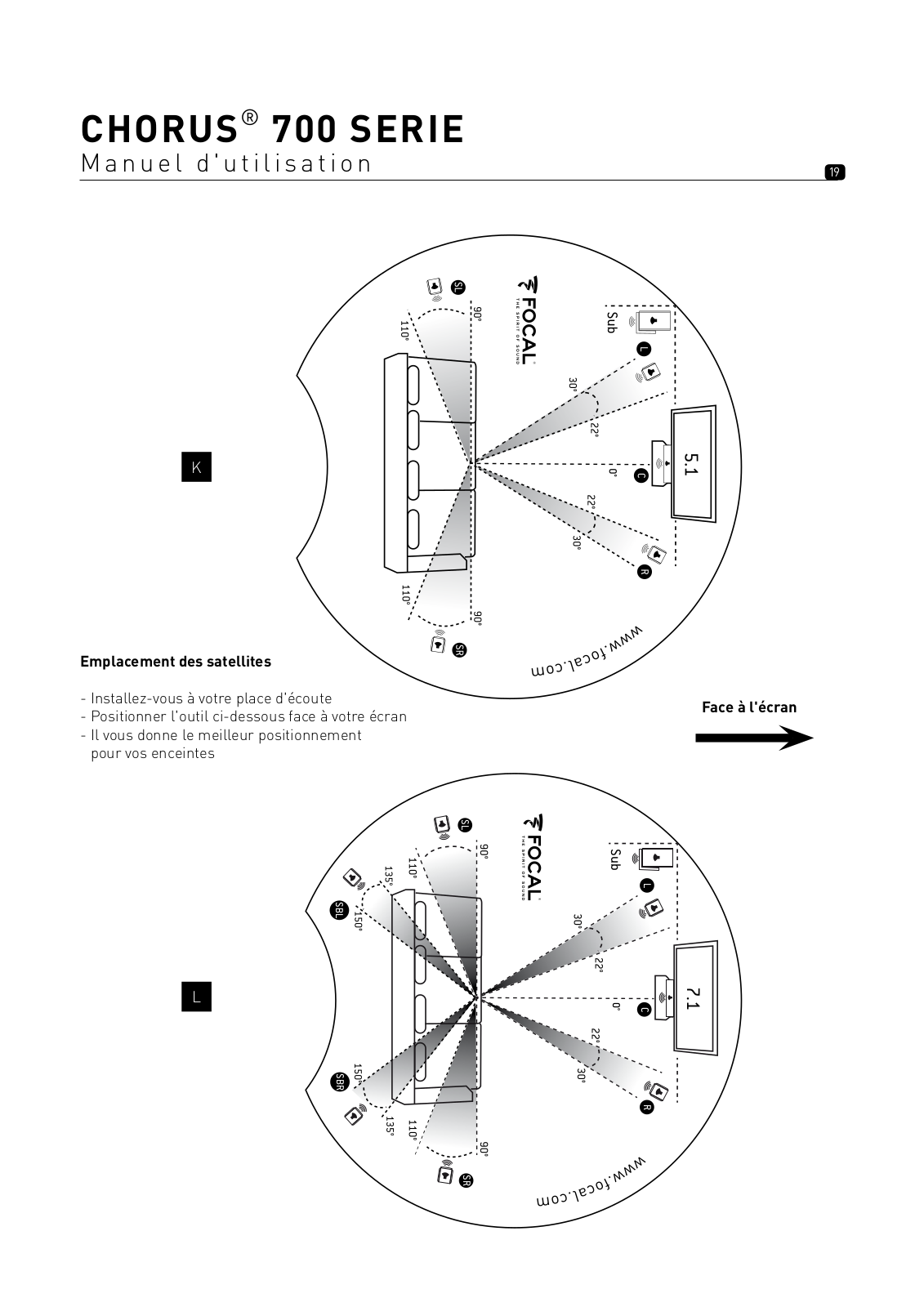

Avoid placing the effect speakers too far from the listening area otherwise the sound perception will be altered. In order to obtain surround effects, with great sound density we advise you to place the speakers against the sidewalls on each side of the listening room (fig. K, L).
